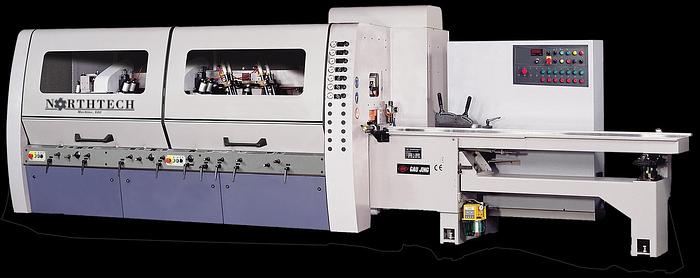

Northtech NT L4300 4 Spindle Moulder

Northtech NT L4300 4 Spindle Moulder

Contact us for price

Dundee, NY

orCall +1 (607) 243-7167

Description

SPINDLE ARRANGEMENT • 1st Bottom horizontal: 15HP, 6000RPM, 50mm • 2nd Right vertical: 10HP, 6,000RPM, 50mm • 3rd Left vertical: 10HP, 6,000RPM, 50mm • 4th Top horizontal: 15HP, 6,000RPM, 50mm FEED SYSTEM • Feeding motor: 10HP with inverter • Elevation motor: 1HP • Feeding speed: 19 - 110FPM PRODUCT DIMENSIONS • Width: 3/8" - 11.8" • Thickness: 5/16" - 6-1/4" • Minimum length: 12" FEATURES • Infeed table length: 51" • Pressure board in front/rear of top spindle with digital readout • (1) Pneumatic side pressure roller before left spindle • Automatic lubrication system • 1st 4th spindles with outboard bearing support • (2) Pneumatic infeed side pressure roller • (1) Pneumatic pressure board before top spindle • (3) Pneumatic pressure roller from above in front of vertical spindles • Table is hard chrome plated • (1) Powered front table roller • (3) Powered back table rollers • (1) tool box • Net Weight: 14,331 lbs. • Gross Weight: 16,094 lbs. • Machine Dimensions: (L) 192" x (W) 79" x (H) 71" • Packing Dimensions: (L) 201" x (W) 90" x (H) 84" • Warranty is one year parts • All machines are tested at factory prior to shipment providing trouble free start up.

Specifications

ManufacturerNorthtech
ConditionNew
Stock NumberNT L4300
