Timbertech T-630S 25’’ Spiral Head Planer
or
Call +1 (607) 678-4374
Description
FEATURES
• Segmented Chip Breaker
• Full row of anti-kickback fingers for added operator safety

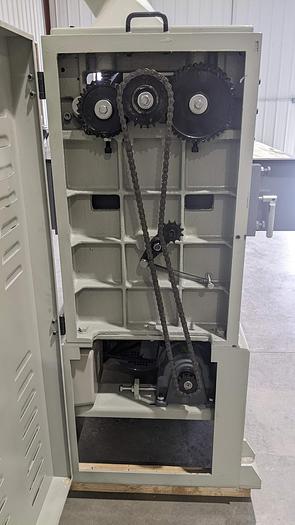

• Chain and Gear Drive Train
• Warranty is one-year parts
• All machines are tested at our headquarters in New York prior to shipment providing trouble
free start up
Specifications
| Manufacturer | Timbertech |
| Model | T-630S |
| Condition | New |

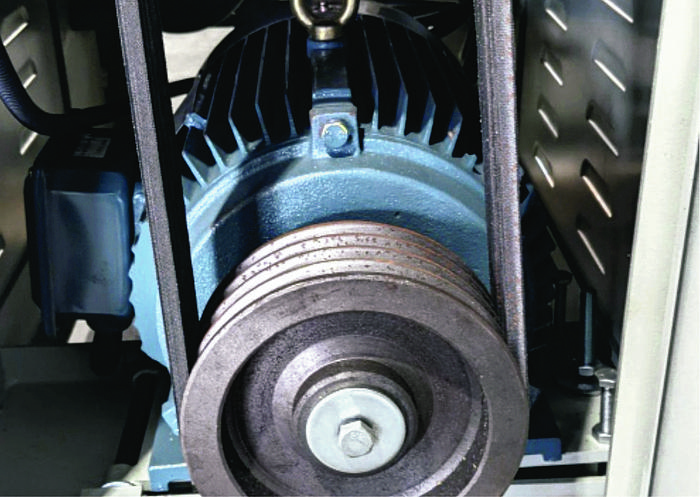

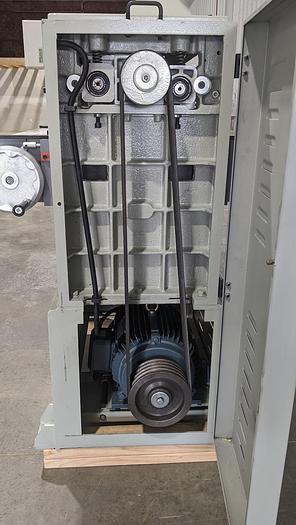

| MAIN MOTOR HP | 10HP |
| AMP REQUIREMENT | 28 Amps |
| VOLTAGE, FREQUENCY | 230 Volt 60HZ |

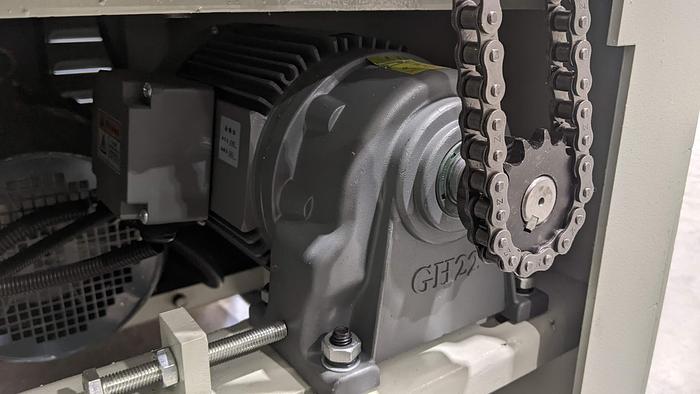

| FEED MOTOR | 1/2HP |
| FEED SYSTEM | Segmented Infeed / Solid Outfeed |

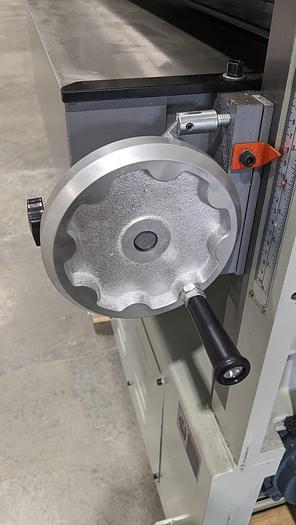

| ELEVATION SYSTEM | (2) Jack Screws, Manual Adjustment |

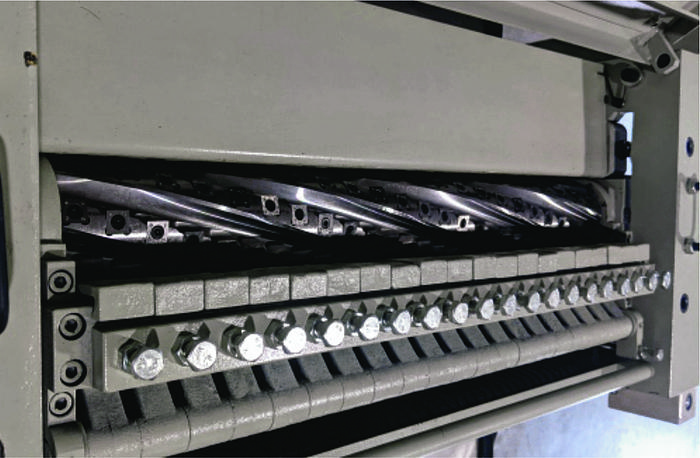

| CUTTERHEAD | 5900 RPM, 3-1/4’’ x 25’’ |
| TOOLING | 15x15x2.5mm insert knives, 6 rows (144 total) |
| DUST PORT SIZE OUTLET | (2) 5’’ ports |
| TABLE SIZE | 26’’ x 27-3/4’’ |
| Min. Thickness | 3/16” |
| Max Thickness | 8’’ |
| Min. Length | 8’’ |
| Max. Width | 24-7/8’’ |
| MACHINE DIMENSIONS | 39’’ x 29’’ x 53’’ |
| NET WEIGHT | 1070 Lbs |
| GROSS WEIGHT | 1200 Lbs |
