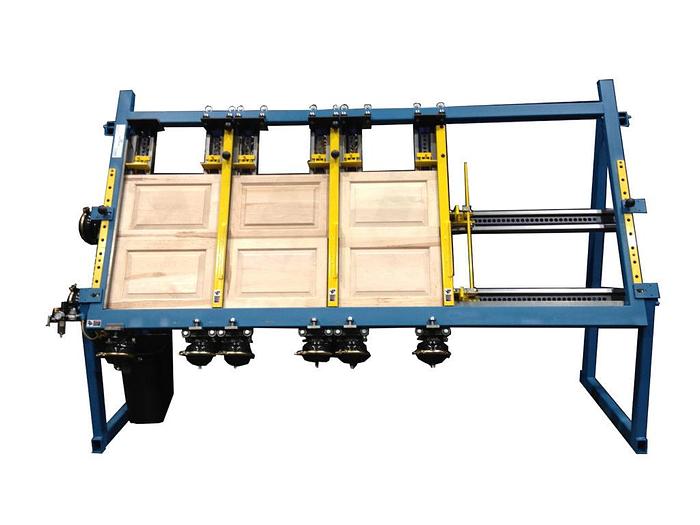

Large Capacity Triple Door Clamp Model: #717A-8-TDC

Large Capacity Triple Door Clamp Model: #717A-8-TDC

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

Features:


Large Capacity and Versatile for a Wide Variety of Stile and Rail Cabinet Door Sizes.

38″ x 97″ Overall Capacity

Includes (6) Vertical Clamps and (3) Horizontal Clamps

(3) Total Squaring Sections for Clamping and Squaring of Multiple Cabinet Doors

Single Lever Valve Air Activation

Faster Changeover with the Cross Clamps Adjusting in a Single Motion

Clamp & Square Multiple Cabinet Doors with Vertical Center Rail – (2) 38″ x 46″ Doors Side by Side Double Door Clamping.

100% Heavy Duty Steel Construction.

Convenient 60 Degree Vertical Working Angle.

Enhanced Features from the Tried & True #79K Design:

Intuitive Pin System allows even Quicker and Easier setup than ever before.

Cylinders Located in the back of the machine to Provide Operator with Additional Working Space.

Redesigned Jaws with Thumb Plate for Increased Efficiency.

Thicker Push Bars Decrease Daily Wear and Tear.

Machine Footprint: 116″L x 70″H x 44″W

Includes Speed Control As Well As Two Dial Regulators on Upper Cross Clamps


Specifications

ManufacturerJLT
Model717A-8-TDC
ConditionNew
Stock Number717A-8-TDC
