Description

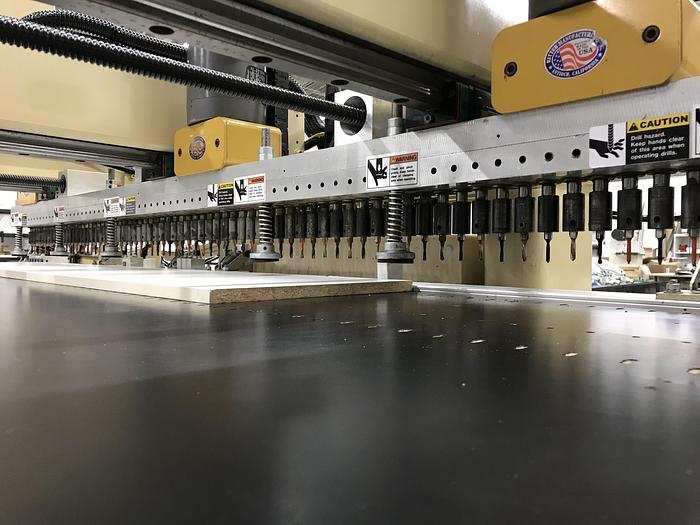

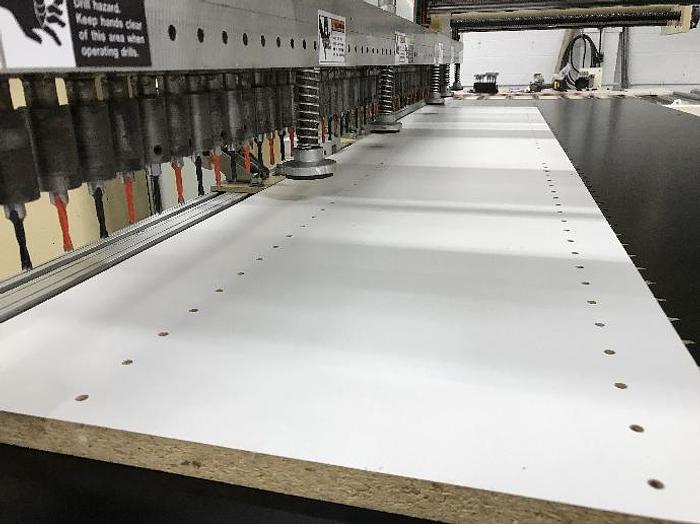

The Ritter R76 a closet system drill part of the panel master series. The R76 is a CNC single row system drill with programmable drill row location and boring depth. The R76 is used for drilling full length closet panels in a single process. The drill row ball screws and linear rails provide for precision drill row location. The servo driven ball screw table feed control allows for precision drill depth control and through feed boring.


  • (3) 3 HP Spindle Drive Motors, TEFC
  • (1) 76-Vertical Gear Driven Spindles
  • 32mm Spindle Centers
  • 10mm Bored Collets
  • (38) Right Hand, (38) Left Hand
  • 0″-24″ Programmable Throat Capacity
  • Triple Precision Drill Row Guide Rails
  • Magnetic Scale Precision Drill Row Positioning
  • Programmable Through Boring, Servo Driven
  • Twin Ball Screw Boring Stroke Control
  • 30″ x 108″ Table Area
  • Right and Left Hand Work Stations
  • (4) Pneumatic Material Clamps

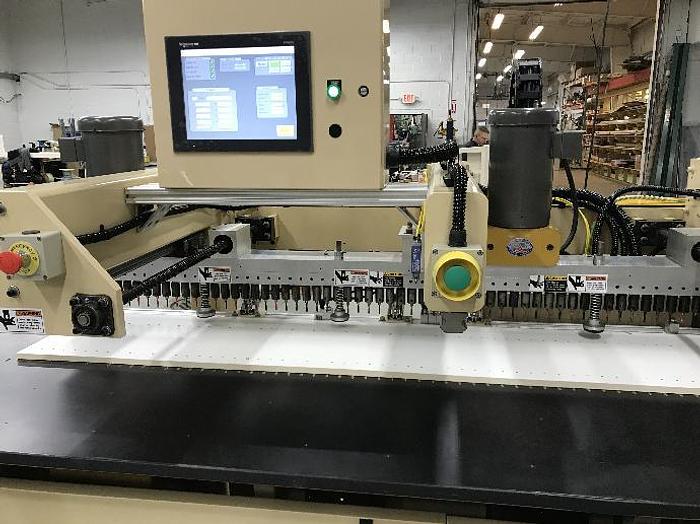

  • Touch Screen CNC Controller
  • (2) Emergency Stop Buttons
  • 75-Spindle Gear Driven Drill Head
  • 10mm Bored Collets on 32mm Spindle Centers
  • 2,368mm (93.228″) First to Last Spindle
  • Twin Ball Screw Drill Row Positioning
  • Programmable Boring Depth, Servo Driven
  • Triple Precision Table Guide Rails
  • Magnetic Scale Precision Table Stroke Control
  • 1-1/4″ Maximum Material Thickness
  • 108″ Back Fence with (4) Positioning stops
  • (4) Spring Operated Material Clamps
  • Center Beam Mounted Cycle Start Button
  • Tooling Not Included
  • 54″ x 136″ Floor Area
  • 30″ X 108″ Work Table Surface
  • Wired 3-Phase 240/480 Volt, 60 Hz
  • Machine Weight: 4,432 lbs.


Specifications

ManufacturerRitter
ModelR76
ConditionNew
