Omga RN 450 Radial Arm Saw

Omga RN 450 Radial Arm Saw

Contact us for price

Dundee, NY

orCall +1 (607) 678-4374

Description

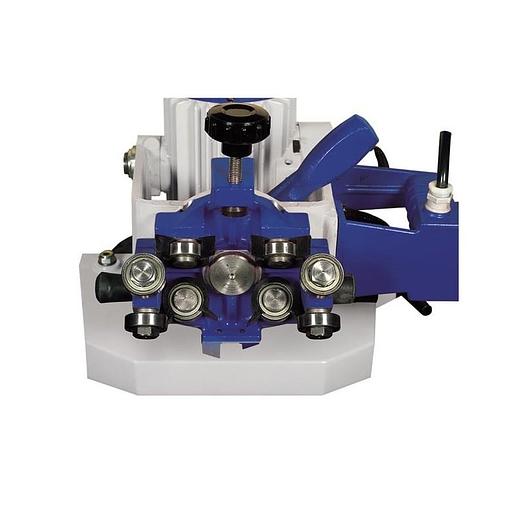

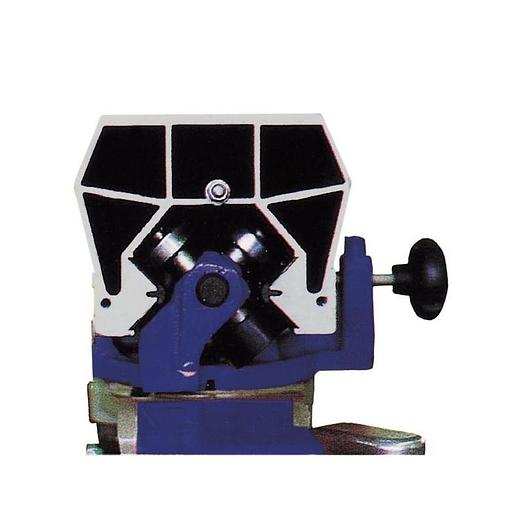

The precision of these radial arm saws is identified by the following characteristics: Saw carriage slides on 8 bearings, having dust scrapers which guarantees complete cleanliness of both the interchangeable steel tracks and the bearing. Self-centering locking in the main angles position of the arm, the motor and the carriage with the possibility of manual locking at all intermediate angles. Easy and extremely practical unlocking of the arm rotation on the front. Swiveling and tilting on the vertical and horizontal axes. These machines are especially suitable for furniture manufacturers, frame makers, sawmills and carpentry shops. Standard overload protection with no-volt coil, automatic head reversal and motor brake.


OPTIONAL ACCESSORIES

  • Dado Head Guard 12" x 2 3/8"
  • Roller Table 6' X 24" RH
  • Roller Table 6' X 24" LH
  • 12" ATB Saw Blade w/Keyway

Specifications

ManufacturerOmga
ModelRN 450
ConditionNew
Max. Depth of cut 45 Deg.2 1/2"
Max. Depth of cut -903 1/2"
Motor Power4
Saw Bore1"
Saw Diameter12"
Arbor Speed RPM3200
Bevel Positive Stops0-45
Cross Cut Capacity17 3/4"
Miter Positive Stops45-0-45
Overall Dimensions27"x40"
Ripping Capacity26 3/4"
Shipping Weight Lbs.246
Crated Dimensions35"x35"x43"
Max. Dado Capacity1 1/2"
Table Size27"x21"
