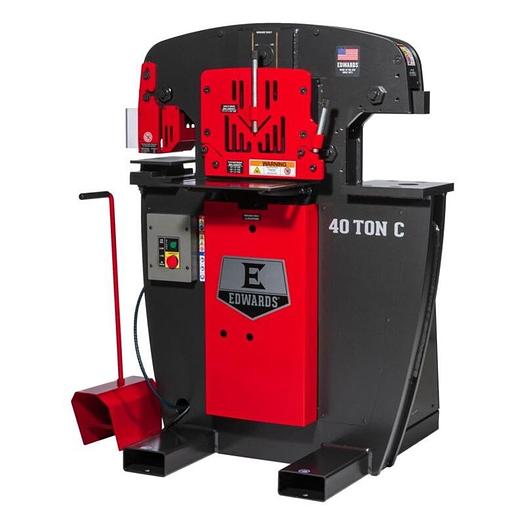

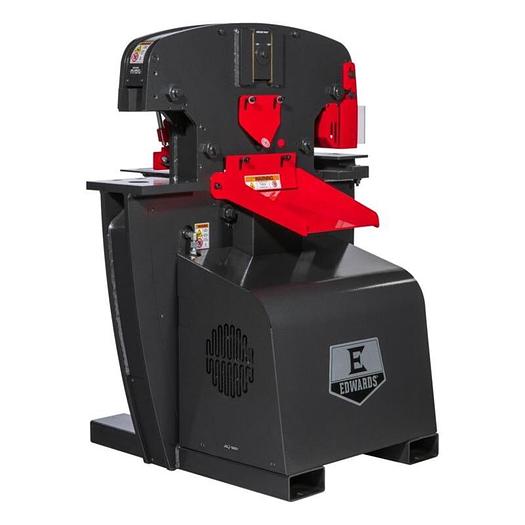

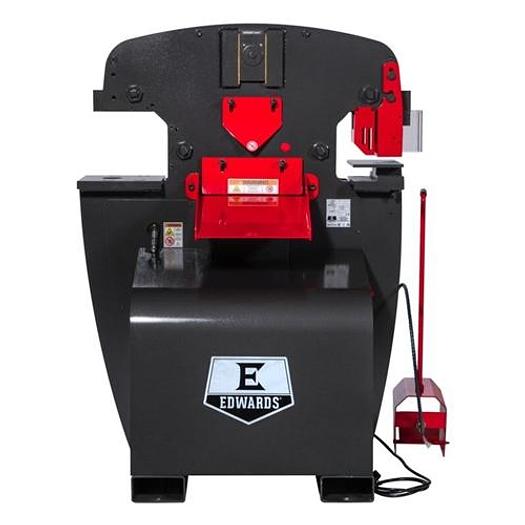

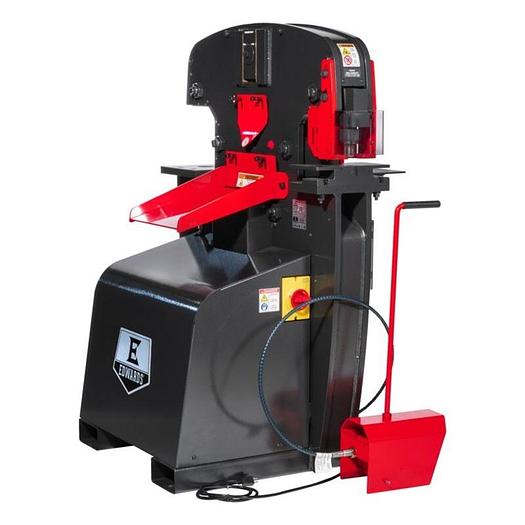

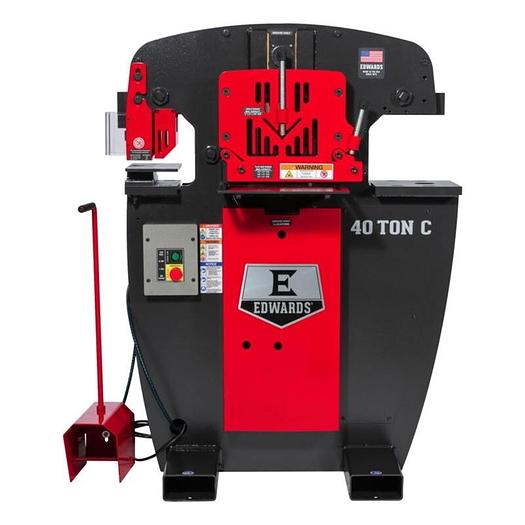

Edwards 40 Ton C Ironworker 110 Volt

The Edwards 40 Ton C Ironworker is ideally suited for home, farm fabrication, and medium-sized job shops. Standard features include a Punch Assembly with Pedestal Die Table, Flat Bar Shear, Angle Shear, and a universal open tooling station designed to accept optional Tooling Accessories. There are 11 interchangeable Attachments and 16 Accessories available allowing customization of an Ironworker to your needs.

40 Tons on 115 Volts

• Four Available Workstations
• Universal Open Tooling Station
• Operates on 115V Power
• ANSI B11.5-198802) Compliant Guarding
• ETL Certified Controls
• Integrated Lock-out/Tag-out

PUNCH

Rating (tons) 40

Max Capacity (in.) 1 diam. in 1/2 mild steel

Work Height (in.) 34-1/2

Throat Depth (in.) 7

Stroke (in.) 1-5/8

FLAT BAR SHEAR

Max. Capacity (in.)

1/4 x 8

3/8 x 6

1/2 x 4

Work Height (in.) 34-3/4

ANGLE SHEAR

Max. Capacity (in.) 3 x 3 x 1/4

Work Height (in.) 40

OPEN STATION

Throat Depth (in.) 10-1/2

Work Height (in.) 34-1/2

GENERAL SPECIFICATIONS

Standard Motor 2 HP

Product Dimensions (.in) 36-1/8 x 40 x 53

Weight (lbs.) 1,720
