Taylor #825A Semi-Super Automated Clamp Carrier

Taylor #825A Semi-Super Automated Clamp Carrier

Contact us for price

Dundee, NY

orCall +1 (607) 678-4374

Description

Increase the Productivity over a Standard Semi-Auto Machine by up to 30%

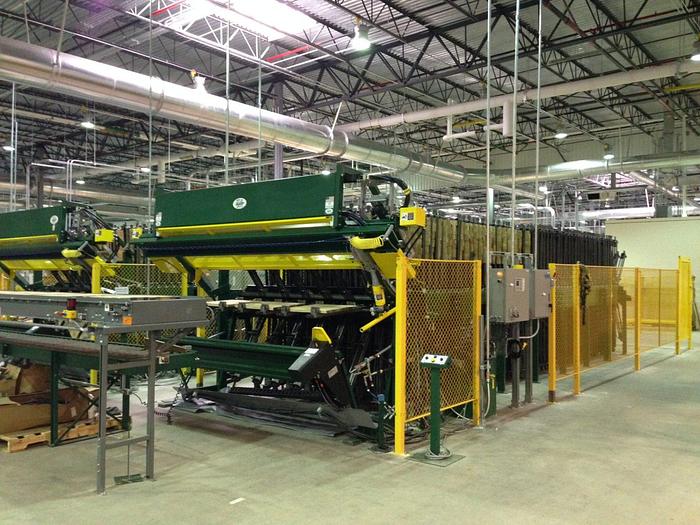

The Semi-Super Automated Clamp Carrier is the high production model of our most versatile line of clamp carriers. This machine has a Semi-Automatic Hydraulic Tightener(s) and Flattener System for the operator, and an Automatic Loosening System up above the work area.


Features:

  • Produces up to 3000 ft2 / Shift
  • Standard Machine Features
  • Machine Frames Built to Match Product Dimensions
  • Taylor’s Patented Clamp Design in Lengths to Meet your Needs
  • Semi Automatic Clamp Tightener
  • Pneumatic Panel Flattener
  • Overhead Loosening System to Improve Cycle Time and Increase Production
  • Heavy Duty Motor Drive(s) for Rotation of the Sections
  • Pneumatic and Hydraulic Models Available
  • (1) Operator and (2) Operator Setups Available

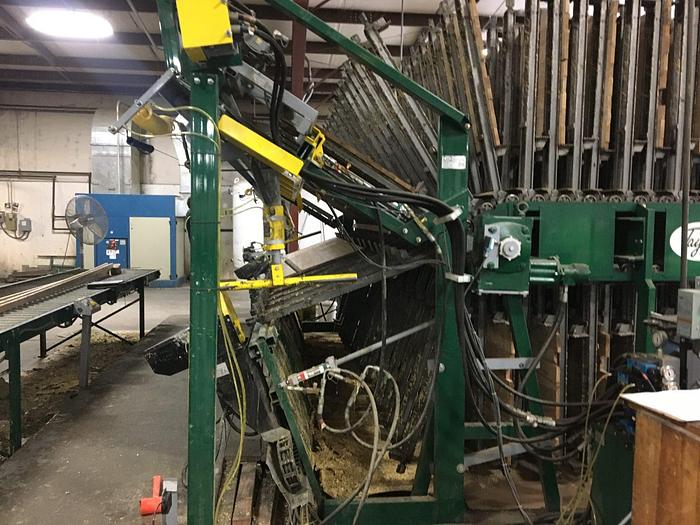

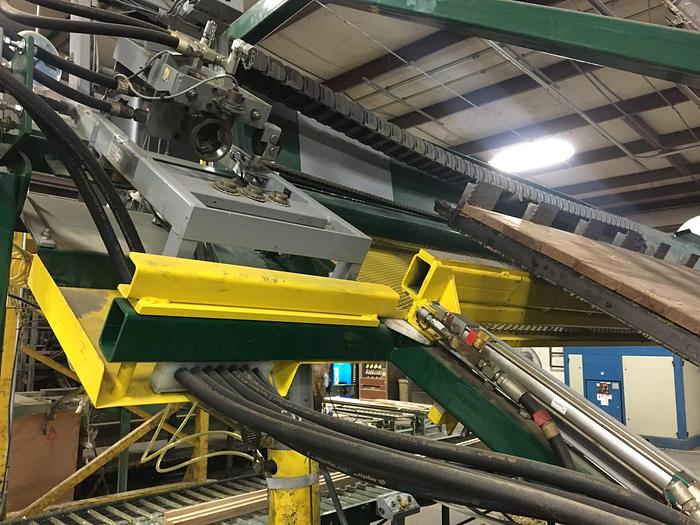

Automated Loosener:

The Automated Loosener on the #825A- will help reduce the cycle time of the machine by 30%. When the machine is rotated, it will automatically Index across to each clamp and loosen it one section ahead of the section the operator is working on, leaving the operator with one less job to do. The loosener is PLC Driven and uses sensors to sense each clamp.

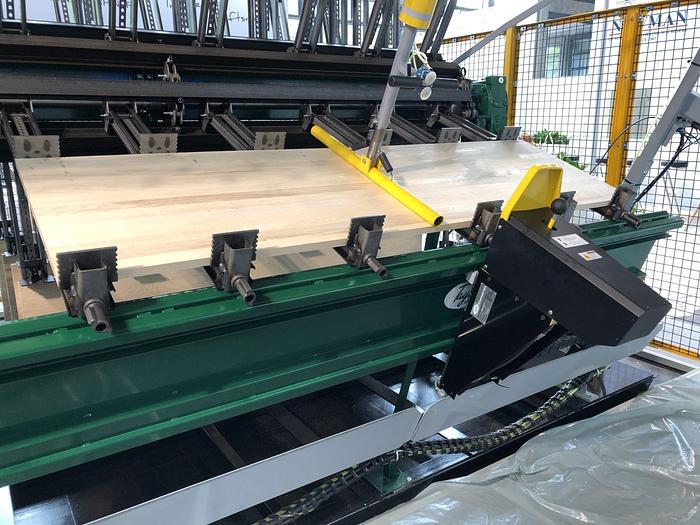

Semi Automatic Clamp Tightener:

  • The Semi Automatic Clamp Tightener provides rapid and uniform clamping force up to 3,000 lbs (at 90 psi) on each clamp.
  • The Tightener is offered in either Pneumatic or Hydraulic. It uses a motor, which provides a more uniform pressure that an impact type of Tool.
  • The Semi Automatic Tightener’s ergonomic design reduces operator effort and increases productivity. The tightener carriage rides on ball bearings for quick and easy positioning to clamp on the front rest. A simple push or pull of the lever allows the Tightener to engage the clamp for tightening or loosening.

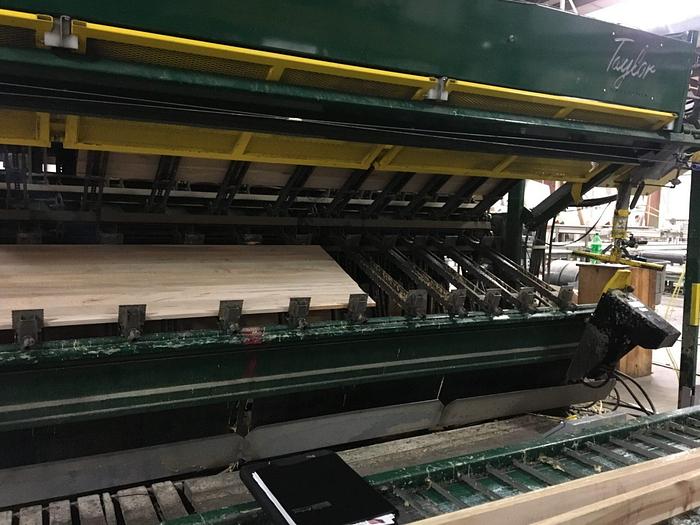

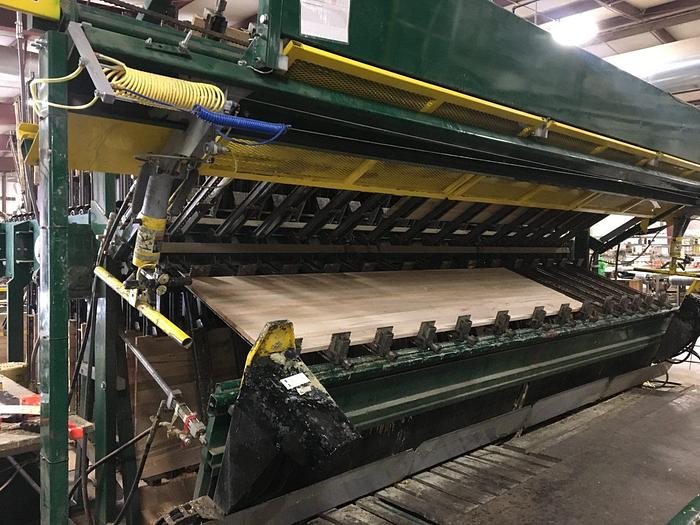

Pneumatic Panel Flattener:

  • The Taylor Panel Flattener is designed to hold stock flat while each clamp is tightened
  • The Flattener rides on ball bearings on an overhead beam and is energized by a push button. The push button to energize the cylinder is interlocked with the Semi Auto Tightener for a rapid and safe operation. The Flattener will stay energized until the operator pushed the button to release pressure.
  • At 90 psi, the downward force on the stock exceeds 625 lbs, which produces high quality and flat panels.

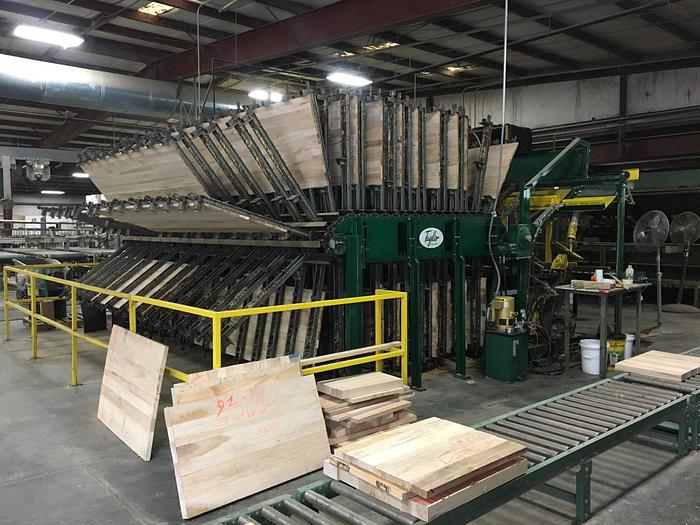

Motor Drive for Rotation of the Sections:

  • The motor drive rotates the Clamp Carrier from section to section. It is offered with a pneumatic or hydraulic (shown) motor. The Motor Drive worm gear reducer insures controlled indexing from section to section, even when rotating an unbalanced load. The Motor Drive is controlled by a Joystick, on the Front Rest of the machine, and can rotate forward or reverse. The Motor Drive speeds rotation of the machine with precise control and minimizes operator fatigue.



Specifications

ManufacturerTaylor
Model#825A
ConditionNew
