Larick 6000 Series Brush Sander

Larick 6000 Series Brush Sander

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

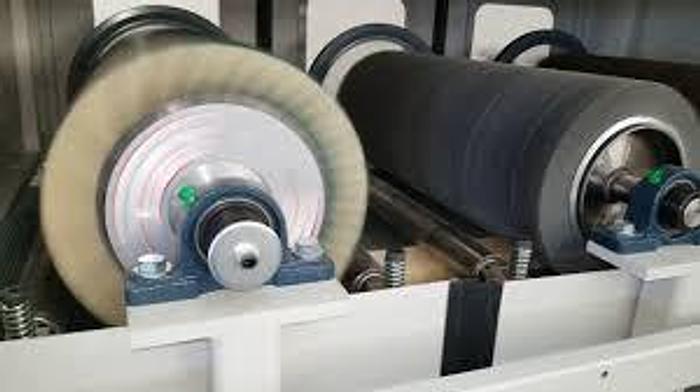

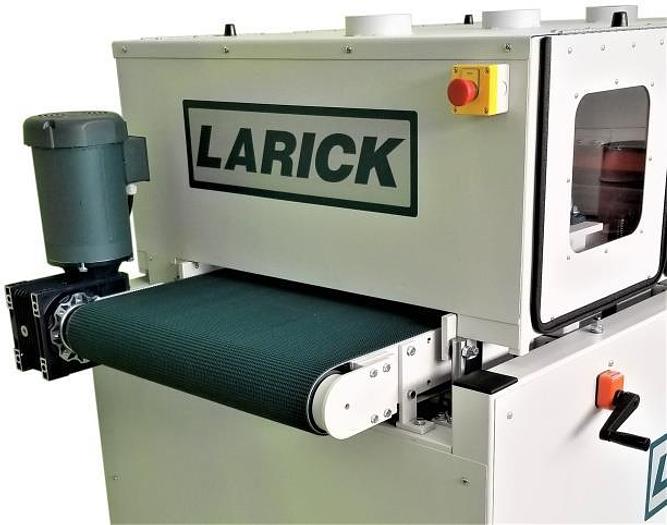

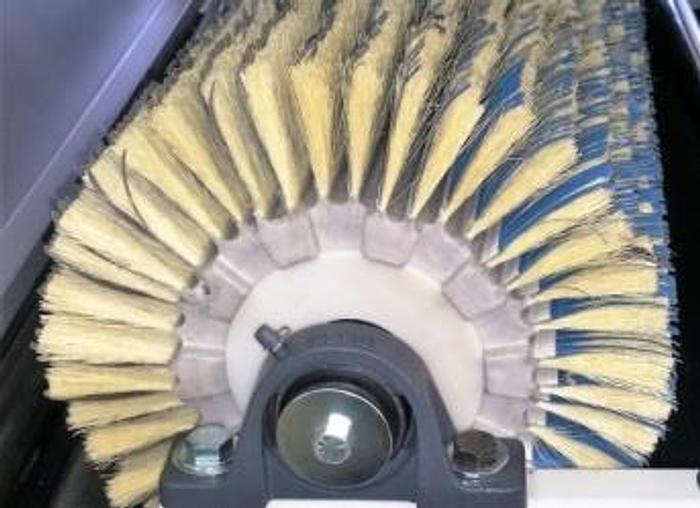

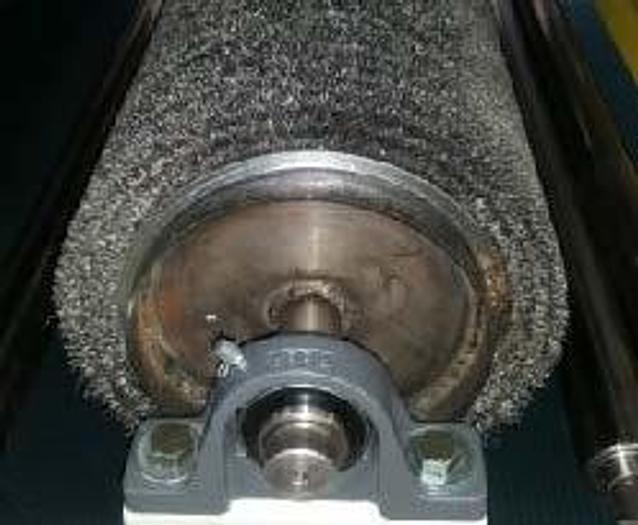

The LARICK 6000 Series machine will brush sand and/or wire brush parts with standard widths of 25, 37 and 49 inches. It has 2 to 6 spindles which will accommodate sanding or wire brushes up to 14 inch diameter and 50 inches long. It has a fixed height conveyor and accommodates parts up to 9 inches thick.


The spindles are belt driven with full power down to 450 RPM. Speed and direction are controlled from the touchscreen. Each motor's load is also displayed.


USER FRIENDLY MACHINERY INNOVATIVE LEADER IN PROFILE SHAPING & SANDING


Inverters control the feed rate, the spindles’ speed, and rotatonal direction. Load meters aid setup and help maintain consistent results. Larger diameter sanding and wire brushes deliver best results.


As with all Larick Machines, it is designed with a small footprint, is rugged, dependable, and manufactured with as many 'off the shelf' parts as possible to minimize downtime and maintenance


Voltage:

  • 208-240V
  • 400-480V
  • 575V 3ph

Upgrade Availability:

  • Head: 1 up to 6
  • Width options: 25"-73"
  • HP: 2 up to 10


Specifications

ManufacturerLarick
Model6000
ConditionNew
Spindle Motors2, 3, 5, 7.5 or 10HP, Standard motor is 2 HP/ spindle
Variable SpeedAC Inverter, 200-900 rpm
Spindles1.25” Dia.
Conveyor5-40 ft/min
Opening HeightUp to 9”
