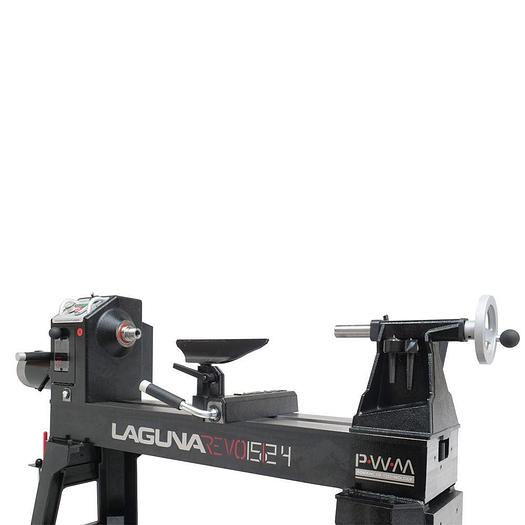

Laguna Revo 15|24 Lathe 110V 1.5 HP
orCall +1 (607) 678-4374
Description
With the launch of the Revo 15|24 Laguna is filling the gap between the Revo 12|16 & the legendary Revo 18|36, providing space constrained users with more power and capacity.
Features:
- World-class fit and finish Laguna is known for
- Sliding headstock for ergonomic outboard bowl turning

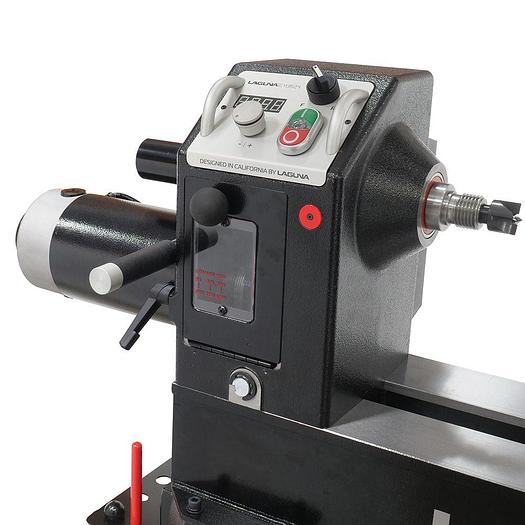

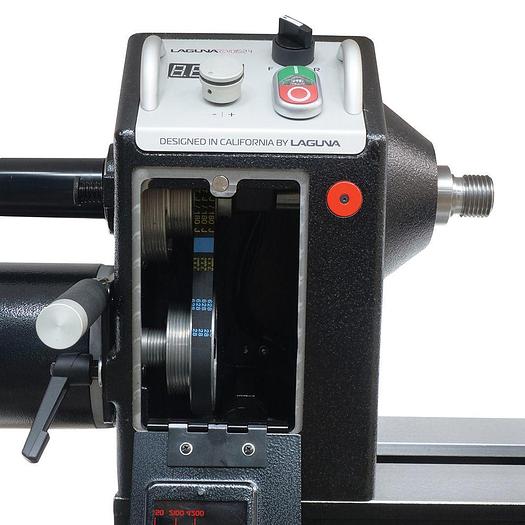

- Infinite electronic variable speed from 50 – 4200 RPM with a 3 step pulley
- Extraordinary torque even at low speeds, powered by Laguna Pulse Width Modulation
- Adjustable-height legs allow a more ergonomic working position tailored to individuals needs

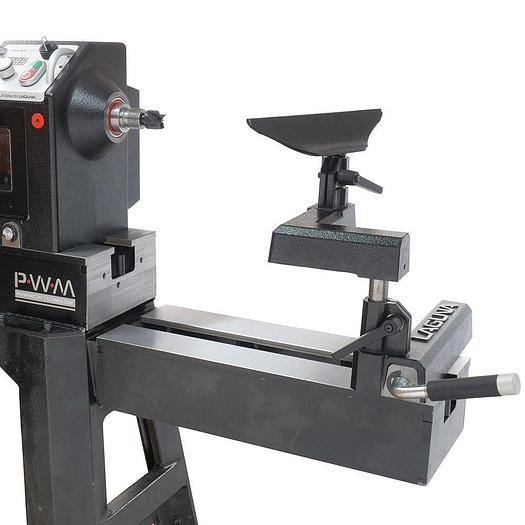

- Steel bed provides strength, stability and a surface that the banjo will glide across smoothly

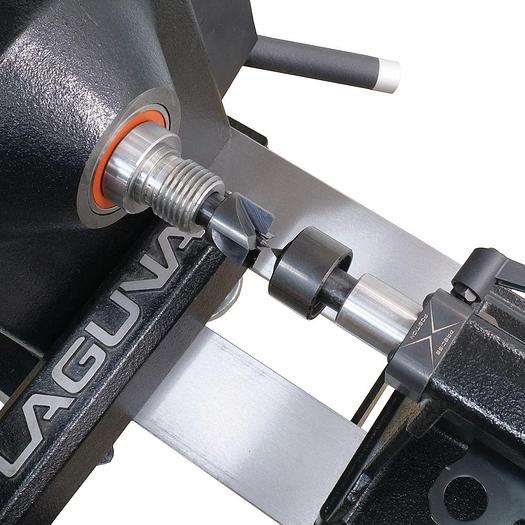

- A brand new feature is the patent-pending Precise Point that allows you to dial in the tailstock quill to meet with the headstock center
- Spring Loaded Spindle Lock

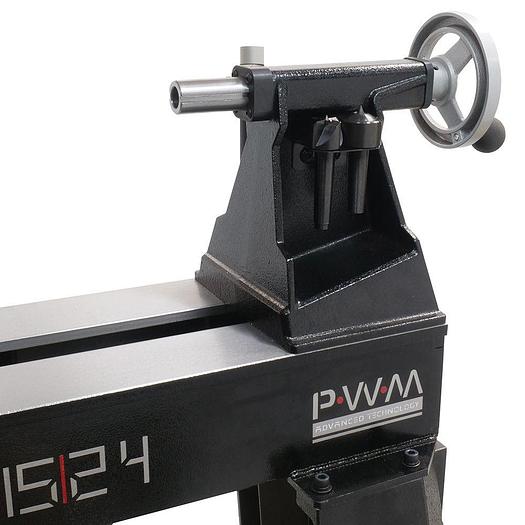

- Tailstock Storage Of Centers
Specifications
| Manufacturer | Laguna |
| Model | Revo 15|24 |
| Condition | New |
| Stock Number | 415241 |
| Electrical | 1.5HP, 110 Volt, 8 Amp, 60Hz. |
| Motor | Permanent Magnet DC, 2150 RPM |
| PWM | Pulse Width Module Speed Control |
| Swing Over Bed | 15-½″ |
| Swing Over Banjo | 11-3/32″ |
| Max. Outboard Swing with optional accessory | 25″ |
| Tool-Rest Post Size | 1″ |
| Tool-Rest Length | 12″ |
| Bed Gap | 50mm |
| Spindle Taper | MT#2 |
| RPM High | 650-4200 |
| RPM Mid | 325-2100 |
| RPM Low | 50-650 |
| Accepts Vacuum Chuck | No |
| Tailstock Quill | #2 MT |
| Floor To Spindle Center Low | 36-13/32″ |
| Floor To Spindle Center High | 51-13/32″ |
| Floor To Bed Min. | 25-19/32″ |
| Floor To Bed Max. | 43-19/32″ |
| Front Bearing | TPI Taiwan 6206LLU |
| Rear Bearing | TPI Taiwan 6205LLU |
| Spindle Index # | 24 w/ Lock |
| Distance Between Centers | 24″ |
| Headstock/Tailstock Through-Bore | ⅜″ |
| Headstock Travel | Full Length |
| Spindle Size | 1-¼″ x 8TPI RH |
| Floor Space (W x D x H) | 60″ x 22″ x 22″ |
| CSA C/US | 256540 |
| Box Dimensions (L x W x H) | 52″ x 22″ x 22″ |
| Weight (Net/Ship) | 288/302 lbs |
