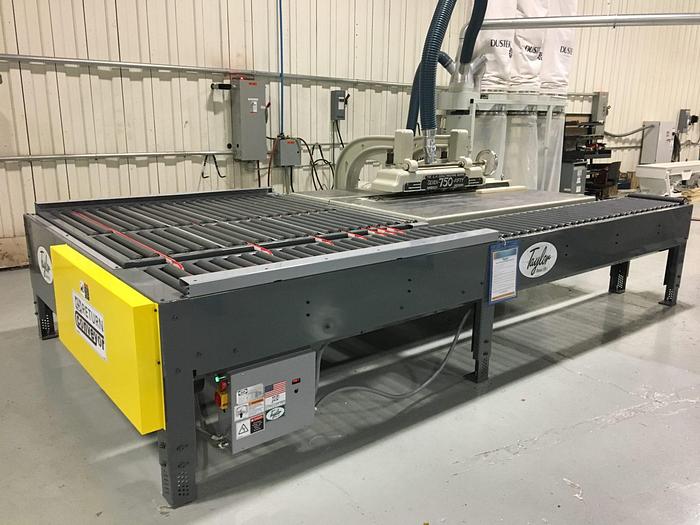

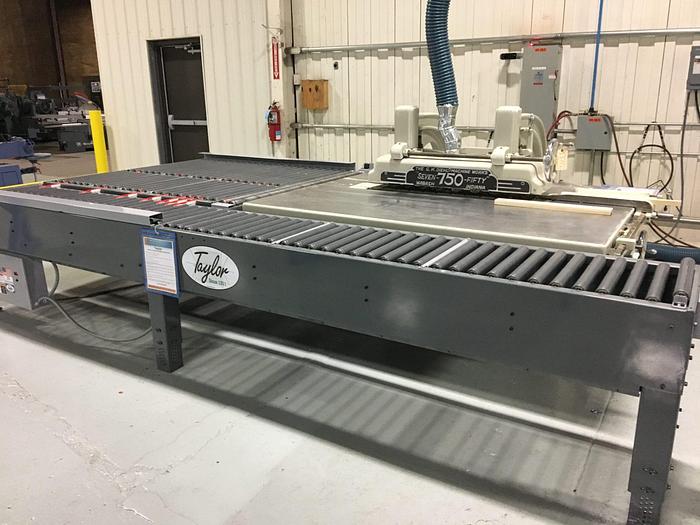

Taylor #912A Return Conveyor for a Straight Line Rip Saw

Taylor #912A Return Conveyor for a Straight Line Rip Saw

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

Customize a Return Conveyor to fit your products

and Straight Line Saw


A Return Conveyor is an Easy Machine to Justify. The Investment is not Large and every hour, day, or week that it is used saves all the $$$$ associated with one person’s salary and benefits. Return Conveyors on straight line rip saw have a fast payback. Most boards need 2+ passes through the saw, so productivity is increased by 100% or more. Usually, the catch width is sized so boards can be ripped on both sides of the blade


Features:

  • (3) Machine Lengths Return Material up to 60″ Long, 84″ Long, and 90″ Long
  • Catch Area Widths of 36″ Wide, 48″ Wide, and 60″ Wide
  • 18″ Wide, 24″ Wide, and 36″ Wide Return Sections can Return Material up to 14″ Wide, 20″ Wide, and 50″ Wide respectively
  • Drop Away Receiver Gently Transfers Parts to Cross Conveyors
  • Photo Eye Triggers Drop on Receiving Conveyor. A PLC Automatically Adjusts the Timing Based on Conveyor Speed
  • Any Length Return (in one foot increments, measured from tail end of Straight Line Rip Saw) composed of modular sections.

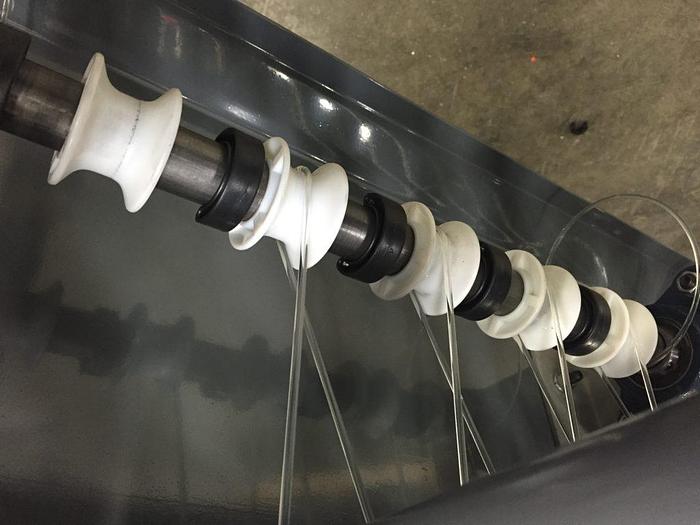

  • All rollers are powered and individually clutched for long belt life.
  • Roller Spacing 3″ center to center.
  • Variable Speed AC drive matches conveyor feed rate to rip saw feed rate.


How it Works:

  1. Components exit your edgebander, sander, or rip saw
  2. Our catch is equipped with powered rollers which feed the component completely onto the catch section
  3. A sensor is used to activate cylinder and lower the catch and place the component onto traverse belts
  4. Traverse belts carry the component sideways onto the return section
  5. The return is equipped with powered rollers to start the component back to the operator
  6. The return extension carries the component back to the infeed end


Specifications

ManufacturerTaylor
Model#912A
ConditionNew
