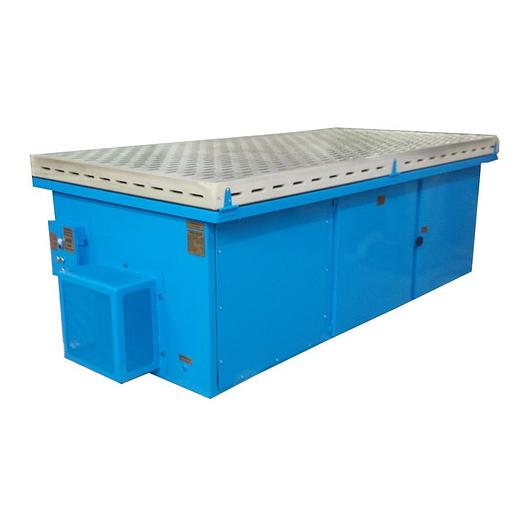

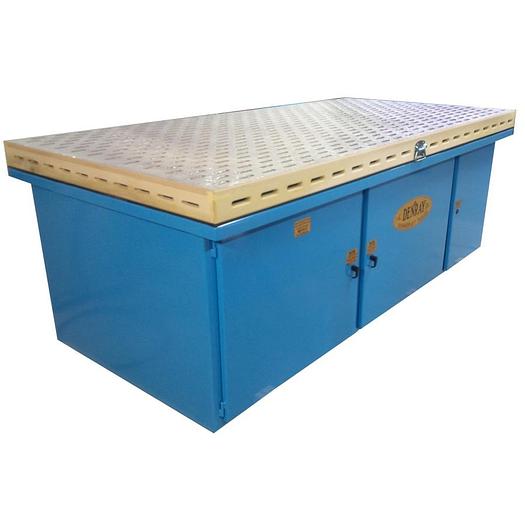

Denray 9600B Cartridge Filter Down Draft Table

This model is ideal for larger jobs and is accommodating for two or three jobs going on at the same time on the same table. The 9600B is one of the larger tables in Denray's push-button cleaning line. This model comes standard with 80/20 cartridge filters which clean with a 99.95% capture rate at .5 micron, along with a magnetic starter and rubber coated top.

*Please note that the starter box on this model is on the left side of the machine.

• 96" x 48"
• 36" HEIGHT
• ​5 HP MOTOR
• 4800 CFM
• ​82 DECIBELS SOUND LEVEL

PHASE/VOLTAGE OPTIONS

SINGLE-PHASE

220 VOLTAGE (23 AMPS)

THREE-PHASE

230 VOLTAGE (13.4 AMPS)

460 VOLTAGE (6.7 AMPS)

575 VOLTAGE (5.3 AMPS)

ADDITIONAL OPTIONS

Explosion Proof Motor (3 Phase only)

Light Bar

Casters

Auto-timer

Muffler (reduces sound level 10-12 dbs.)

100% Spunbond Polyester Filters

Carbon Filter Bank (odor only)

HEPA Filter bank

Three-sided Hinged Safety Shield

Magnehelic Gauge

HDPE Plastic Tabletop

Larger Motor/Fan Upgrade

ADDITIONAL OPTIONS

Explosion Proof Motor (3 Phase only)

Light Bar

Casters

Auto-timer

Muffler (reduces sound level 10-12 dbs.)

100% Spunbond Polyester Filters

Carbon Filter Bank (odor only)

HEPA Filter bank

Three-sided Hinged Safety Shield

Magnehelic Gauge

HDPE Plastic Tabletop

Larger Motor/Fan Upgrade

ADDITIONAL OPTIONS

• Explosion Proof Motor (3 Phase only)
• Light Bar
• Casters
• Auto-timer
• Muffler (reduces sound level 10-12 dbs.)
• 100% Spunbond Polyester Filters
• Carbon Filter Bank (odor only)
• HEPA Filter bank
• Three-sided Hinged Safety Shield
• Magnehelic Gauge
• HDPE Plastic Tabletop
• Larger Motor/Fan Upgrade
