Hoffmann X-18 Manual Dovetail Routing Machine

Hoffmann X-18 Manual Dovetail Routing Machine

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

Hoffmann X-18 Machine Overview:

Entry-level, manually operated dovetail routing machine to rout a single dovetail keyway with each machining cycle.

For Dovetail Key sizes W-0, W-1, W-2 and W-3


Highlights:

The X18 manual dovetail routing machine is a lightweight, more portable model with an open base design. This machine does not require a compressed air supply.

Due to its limited routing height of 2 1/4” this machine is not suitable for joining most floater frames and shadow box moulding.


Operation:

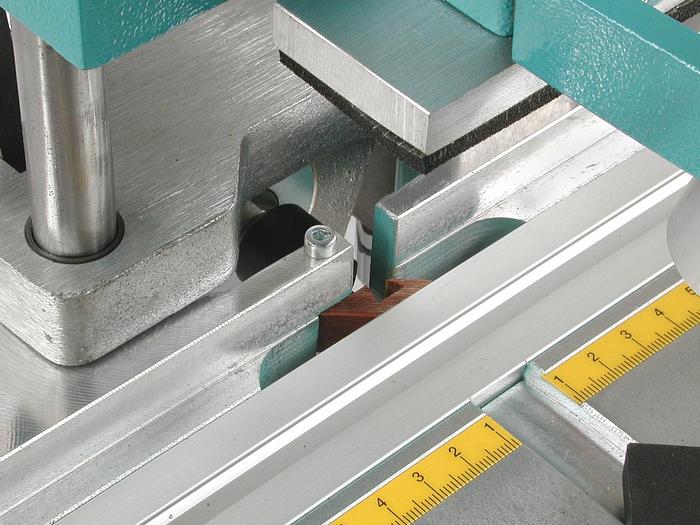

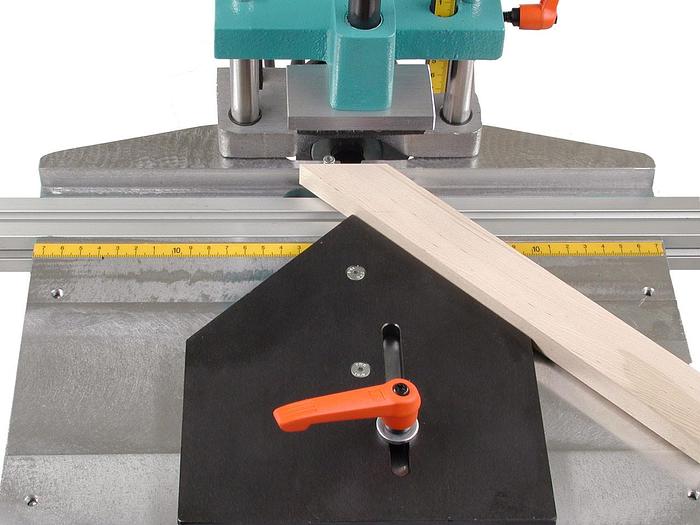

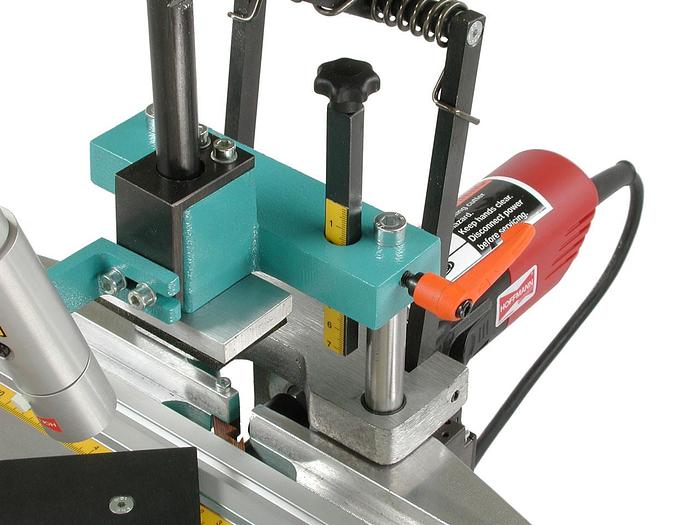

The keyway location is adjusted by positioning the guided center fence plate on the machine table; the keyway length (routing height) is adjusted by setting a height-stop rod to the desired setting.


Standard Features:

Hoffmann Dovetail Routing Machine, model X18, ready for operation, W-2 solid carbide router bit installed, standard 45 degree center fence plate and square stop, toolkit and manual.

Specifications

ManufacturerHoffmann
ModelX-18
ConditionNew
Power Supply120 volts – 4.4 Amps
Motor carriage guides16mm diameter guide rods, precision ground
Max. height routing2 1/4” – 57mm / moulding 3 1/2” – 89mm
Available router bitsW-0, W-1, W-2 and W-3
Dimensions W/D/H19 3/4” x 21 1/4” x 30 1/4”
Motor530 Watt motor
Weight38 lbs.
Motor speed29,000 rpm at idle
Installed router bitW-2, solid carbide
Operationmanual– dual action design
Collet size1/4”
