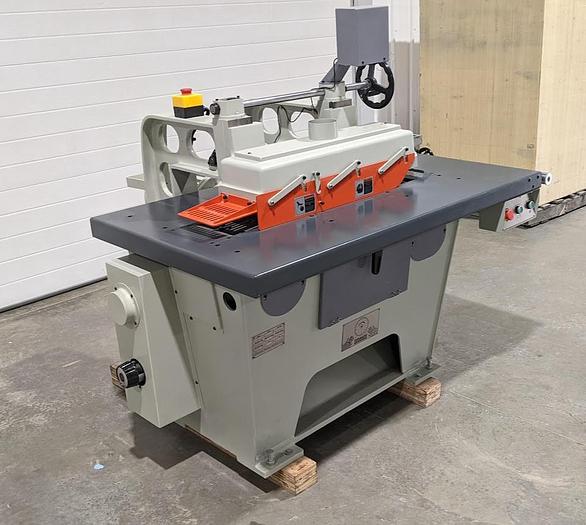

Timbertech MJ162A Precision Straight Line Rip Saw

Timbertech MJ162A Precision Straight Line Rip Saw

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

The Timbertech MJ162A is designed to be the perfect fit for anyone looking for a compact bottom arbor rip saw. Powerful and compact, the MJ162A is equipped with a 14'' blade that effortlessly slices through materials up to 3'' thick. With its 6-pressure hold-down rollers, it ensures perfect alignment and stability, enabling you to achieve seamless glue joints up to an impressive 8 feet in length. Safety is a top priority and with a double set of anti-kickback, safety interlocks, and emergency shut-off switches the MJ162A doesn't disappoint.


FEATURES

• Chain and Race equipped with "True Track" adjustment

• Table size 55" x 34"

• 2" arbor and large support bearings

• Glue line rip is 8ft on 4/4 stock at 50fpm

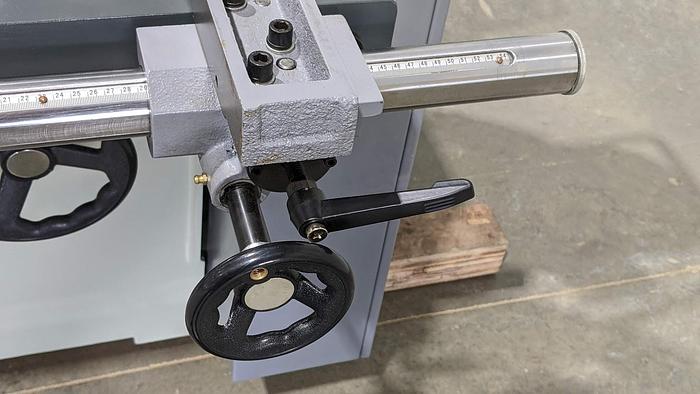

• Industrial fence with cam lock quick release on rack and pinion glide

• Two rows of heavy-duty kickback fingers

• (6) large pressure rollers for optimum holding power

• An automatic mechanical oiling system with low-level feed stop

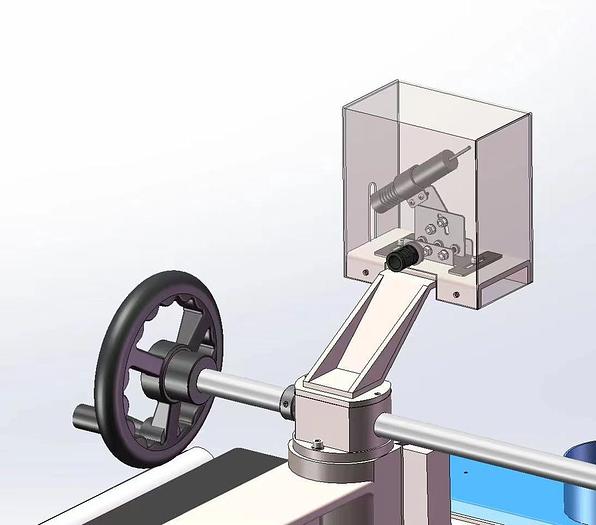

• (1) Laser light, laser guard, and mounting bracket are included

• (1) Tool box

• Dust collection requirements: (1) 4" dust port requiring 436 CFM @ each point of extraction

(1) 6" dust port requiring 981 CFM @ each point of extraction

• Warranty is one year parts

• All machines are tested at our headquarters in New York prior to shipment providing trouble

free start up


Specifications

ManufacturerTimbertech
ModelMJ162A
ConditionNew

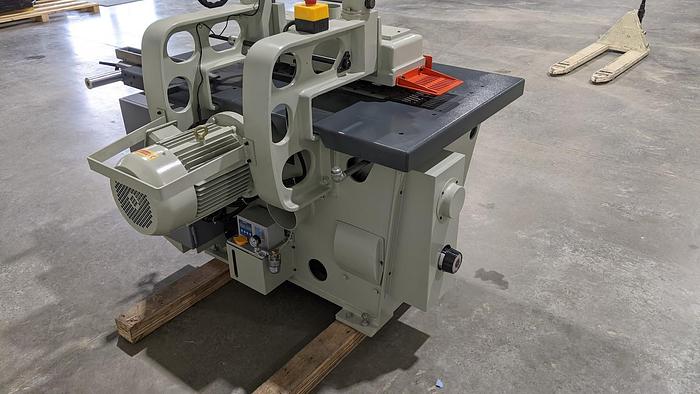

MAIN MOTOR HP10 HP
VOLTAGE, FREQUENCY230 Volt 60HZ
PHASE3 Phase
AMP REQUIREMENT33 Amps
FEED HP1.5 HP
FEED SYSTEMSplit Chain and Race equipped with "True Track"
FEED SPEED RANGE10-90 FPM

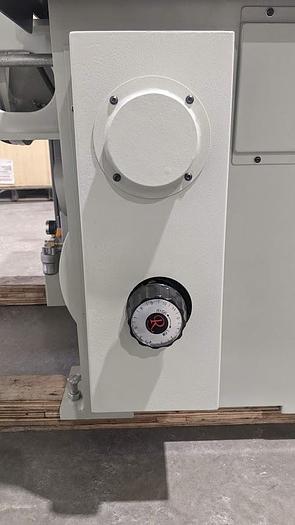

ELEVATION STYLEManual Wheel Adjustment
TOTAL MACHINE HP11.5 HP
CONTROL VOLTAGE110 Volt
PASS-LINE31-3/8''
MAX. WORKING WIDTH18'' From Blade to Rear Columns
MIN. THICKNESS3/16"
MAX. WORKING THICKNESS3-1/8''
GLUE LINE RIPGuaranteed 8' 4/4 stock @ 50 FPM
ARBOR RPM3530 RPM

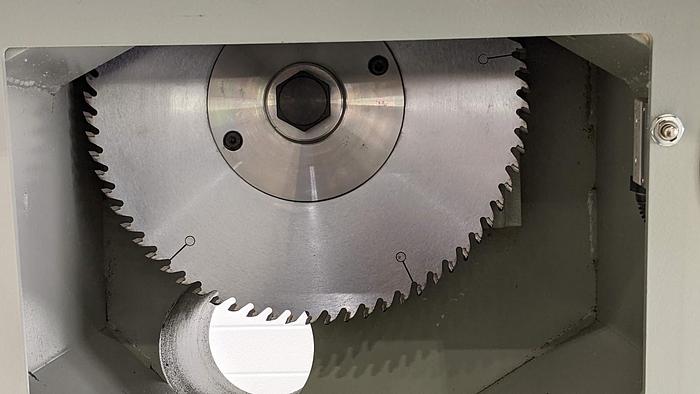

BLADE SIZE14'' Tungsten Carbide Tipped
NO. OF TEETH ON BLADE70 Tooth
TOOTH SPACING5/8''
BLADE KERF.197''
TRACKING STYLE"True Track" System
DUST PORT SIZE OUTLET(1) 4'' Top (1) 6'' Bottom
ARBOR DIAMETER2''

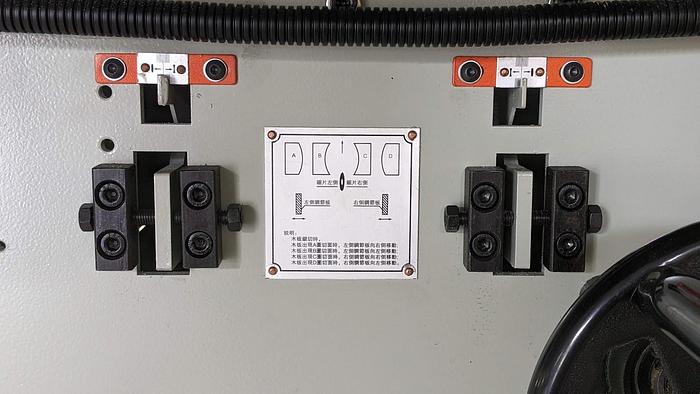

CHAIN ADJUSTMENTTrue Track Adjustable Chain

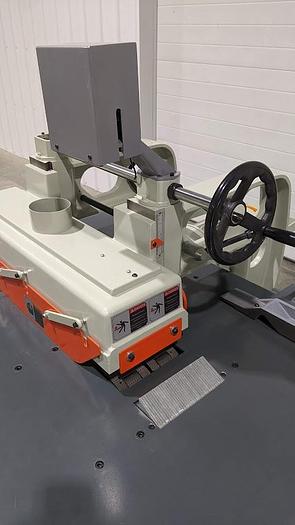

HOLD DOWN STYLE(6) Spring Loaded Hold Downs

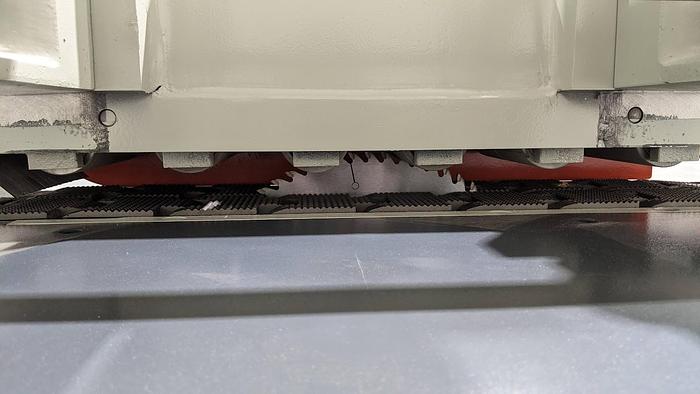

KICKBACK FINGERS(33) Top (38) Bottom Fingers
REAR E STOPPush Button
SAFETY FEATURESawblade Door Safety Interlock
GUARDING HighVisibility Guarding
OILERAutomatic Oiler
LOW OIL WARNING/SHUT OFFLow Oil Shut-off
FENCE TYPEIndustrial Cam Lock Quick Release
FENCE DIMENSIONS1-3/4'' x 23-3/4''
FRAME CONSTRUCTION1/4'' Steel Construction
WORKTABLE DIMENSIONS55'' x 33-1/2''
TABLE CONSTRUCTION MATERIALSteel
DECIBEL RATING80 dB
NET WEIGHT1890 Lbs.
GROSS WEIGHT2050 Lbs.
MACHINE DIMENSIONS65'' x 54'' x 55-1/2''
PACKAGING DIMENSIONS68'' x 57'' x 60''
