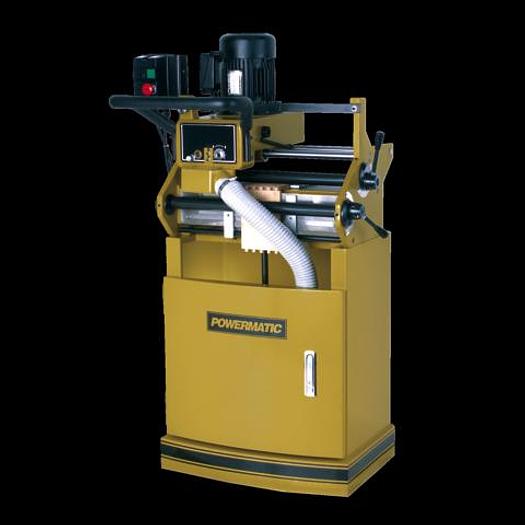

Powermatic DT45 Dovetailer, 1HP 1PH 115/230V

Powermatic DT45 Dovetailer, 1HP 1PH 115/230V

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

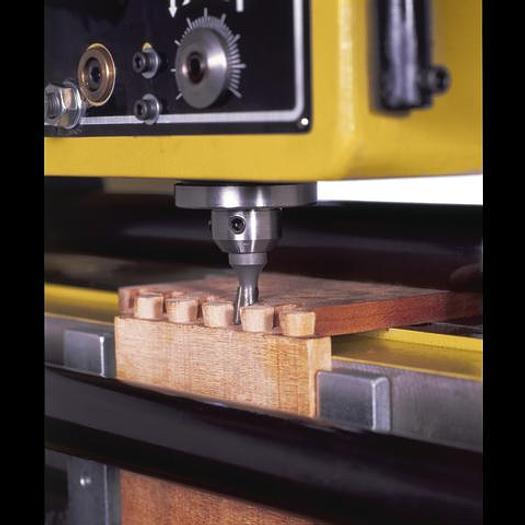

The POWERMATIC® DT45 manual dovetail machine is used to cut dovetails for drawers and various furniture components. The machine is equipped with a router spindle which allows cutting dovetails of adjustable height. The DT45 can machine four types of dovetails with different pitches. Locking and unlocking of pieces takes place manually by an eccentric clamp.


Cast iron and steel construction for added stability and durability

Cutter height of 3/16" to 3/4" accommodates different cutting depths and board thicknesses

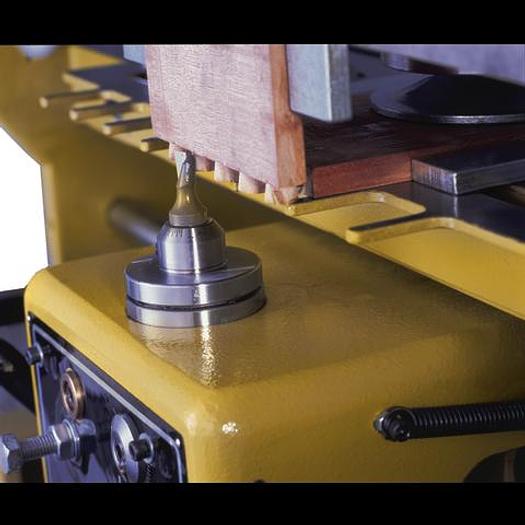

Eccentric spindle collet for resharpened cutters

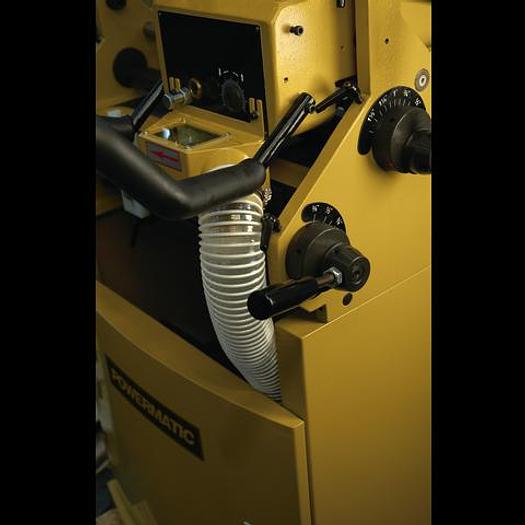

Extra large soft grip handle provides positive control and comfort

Four dovetail center lines at 1", 1-1/2", 2", and 2-1/2" create a custom appearance

Manual clamping will keep boards firm

Material stops provide convenient positioning of the workpiece

Spring loaded carriage makes for smooth, effortless dovetail cutting

The precision linear carriage bearings are sealed on both ends to eliminate dust buildup

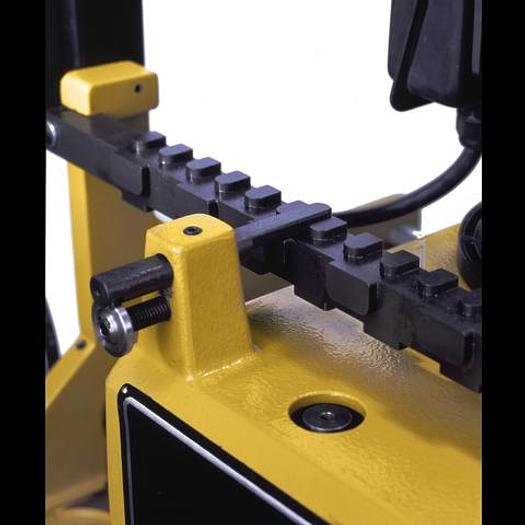

Visual stylus and template aid in guiding the carriage


Specifications

ManufacturerPowermatic
ModelDT45
ConditionNew
Stock Number1791304
Dust Collection Minimum CFM Required500
Maximum Dovetail Height (In.)3/4
Maximum Front Thickness (In.)1-3/4
Maximum Side Thickness (In.)1-3/16
Minimum Dovetail Height (In.)3/16
Minimum Front Thickness (In.)9/32
Minimum Side Thickness (In.)9/32
Motor Phase1
Motor Power (HP)1
Motor Voltage (V.)115/230
Number of Spindles1
Prewired Voltage (V.)115
Style (Type)Closed Stand
