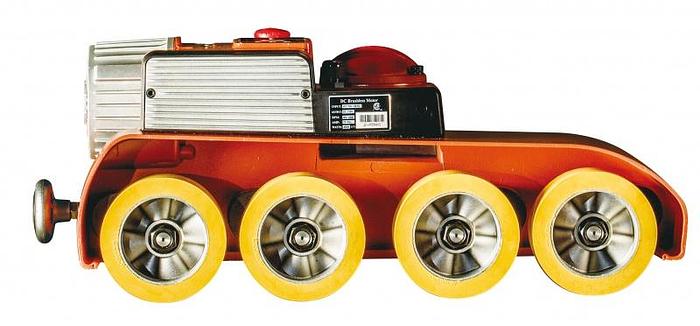

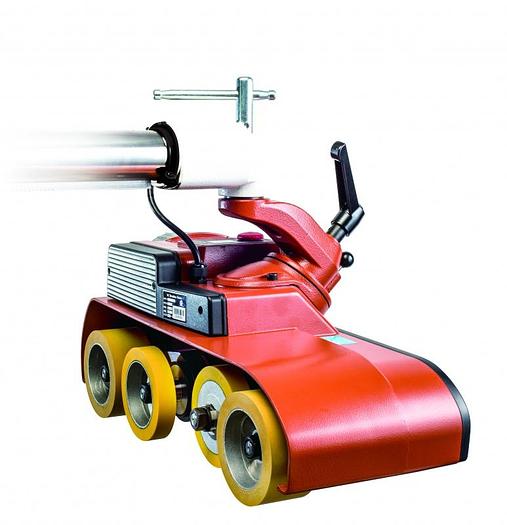

Comatic, DC40 Variable Speed Feeder

Comatic, DC40 Variable Speed Feeder

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

Variable Speed Power Feeder - 4 Wheel DC Brushless Servo With unmatched flexibility, efficiency, and torque, the patented 4 Wheel Brushless Variable Speed Power Feeder is the most innovative 4 wheel stock feeder in the world for woodworking shapers and table saws.  *Includes standard SG13 Stand/Mount.

Available in 1PH 110V, 1PH 220V, and 3PH 220V.  Performance is the same so we recommend whichever setup is easiest to hook up and run.  110V draws about 4.5 amps and 220V draws about 2.25 amps.

These feeders are equipped with wing nuts for quick and easy replacement of the rollers.

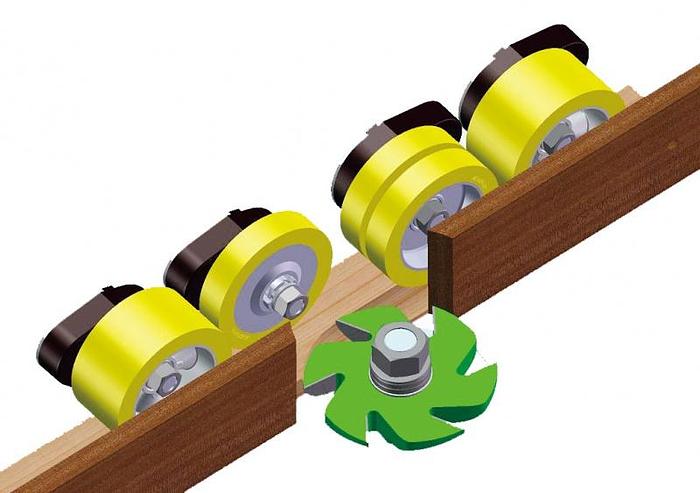

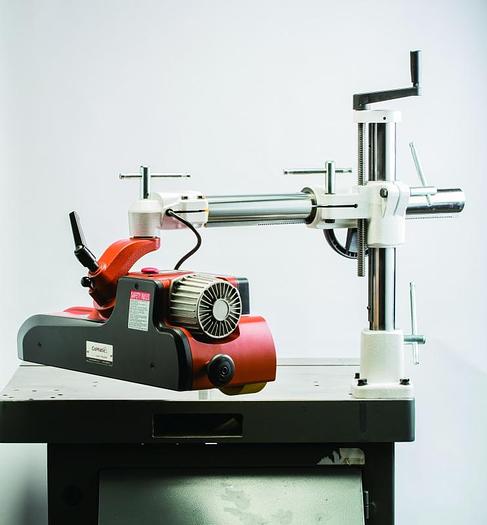

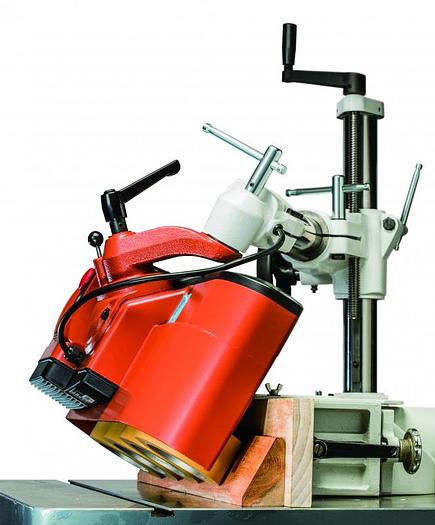

Features 1. DC Brushless Servo Motor Experience equivalent torque as 1HP AC motor feeders thanks to a powerful 2/3HP brushless servo motor while saving up to 70% in energy costs. 2. Variable Speed & Digital Controls No more gear change-out.  Easily identify your feed rate and change the speed with the turn of a button at 1 fpm increments until you reach your desired speed from 7-72 fpm 3. Instant 90° Memo-Locking Swivel Adjustment Swivel the power feeder and lock it in instantly - perpendicular or parallel to the fence with the memo-locking feature not found on standard stock feeders. 4. Detachable Wheel Option Run this feeder with standard wheels, or simply replace them with thin, split wheel(s) for cutterhead or blade clearance *Thin RU21 wheels are sold separately and not included with the feeder 5. Upgrade to SS130 Smart Stand For more durability and increased flexibility, you can upgrade from the SG13 (US13) Heavy-Duty Feeder Stand to the SS130 Smart Stand .  The DC40 upgraded to the smart stand is model DS400 as found in our brochures. *Available in Gray upon request

Specifications

ManufacturerComatic
ModelDC40
ConditionNew
