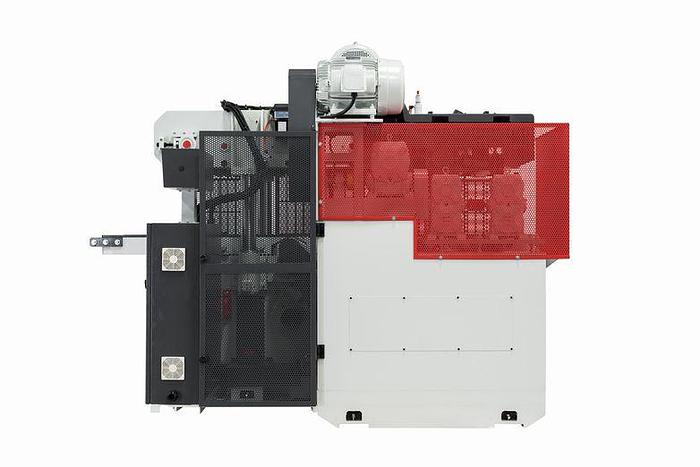

Northtech NT 610SS Supermax Double Surface Planer

Northtech NT 610SS Supermax Double Surface Planer

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

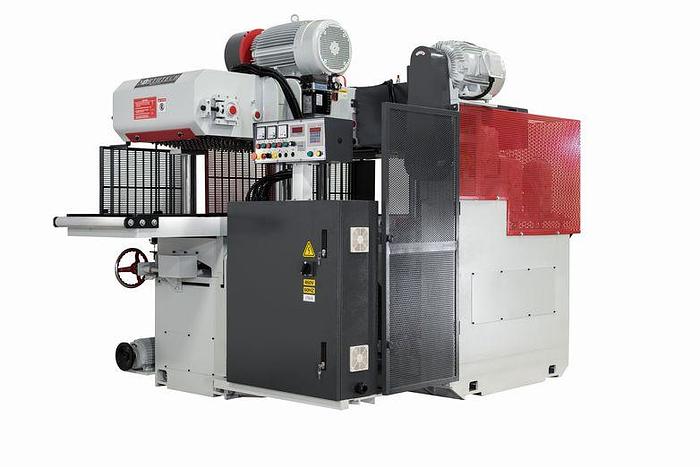

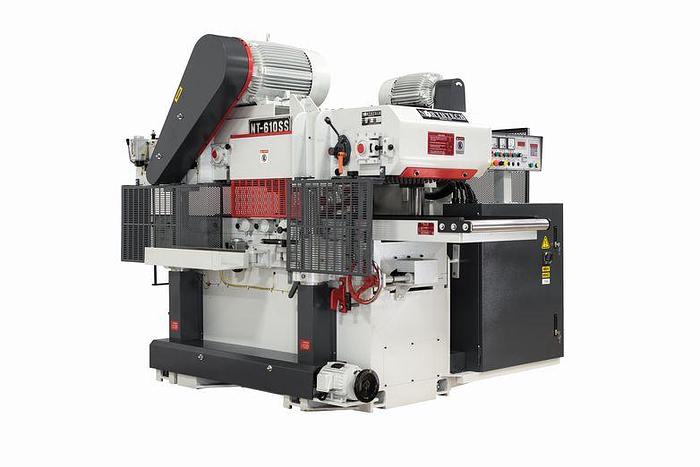

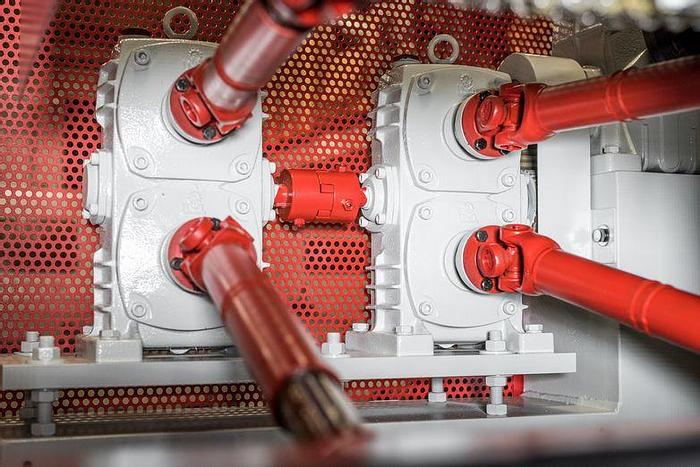

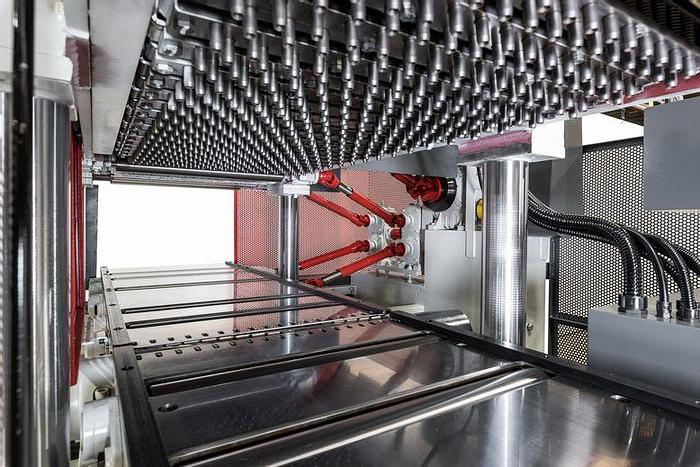

The NT 610SS is our most robust 24″ double surfacer with up to 75HP and feed speeds of 190fpm. Double surfacers, some times referred to as 2 sided planers are used to size the thickness of wood and other dense materials such as plastic. The NT 610SS has a 24″ working width and an 8″ working height, making it an extremely versatile machine. The top and bottom helical cutter head uses two sided 30x12x2.5 carbide insert cutters for a moulder smooth finish, even with heavy stock removal and high speeds. The powered top and bottom feed system is designed with integrated rollers in the chrome bed and a spring loaded carpet spike infeed with a gearbox connected carden shaft drive. The carden shaft drive delivers a slack free feed with out the common chain adjustments. The jointer table infeed and overhead spring loaded carpet spike system allows this machine to not only size the thickness, but also straighten warped or crooked material. The top head is easily accessible for tooling changes by removing the dust hood and the bottom head pulls out of the machine completely in just a couple minutes for full access. The upper assembly is supported by a (4) column slide system that provides precision thickness sizing across the entire width and has digital thickness positioning control. Northtech Double surfacers are available in 16″-52″ working widths with up to a 24″ working thickness and can be offered with a safety/sound enclosure.


Specifications

ManufacturerNorthtech
ModelNT-610SS
ConditionNew
Stock NumberNT 610SS
TOP HEAD HP50 HP
BOTTOM HEAD HP40 HP
VOLTAGE, FREQUENCY230/460 Volt 60HZ
PHASE3 Phase
AMP REQUIREMENT147 / 294 Amps
FEED HP10 HP
FEED SYSTEMCarpet Feed / Powered Rollers
DRIVE SYSTEMCardan Shaft Drive System
FEED SPEED RANGE35-115 FPM
VARIABLE FEED SPEEDInverter Controlled
ELEVATION HP2 HP
ELEVATION STYLEDP-626S Elevation Control
ELEVATION SYSTEM(4) 3-1/4'' Geared Lifting Columns
TOTAL MACHINE HP102 HP
APPROVED ELECTRICAL PARTSCE Approved Components
DUAL VOLTAGE MOTORS230/460 Volt
CONTROL VOLTAGE110 Volt
PROGRAMABLEElevation

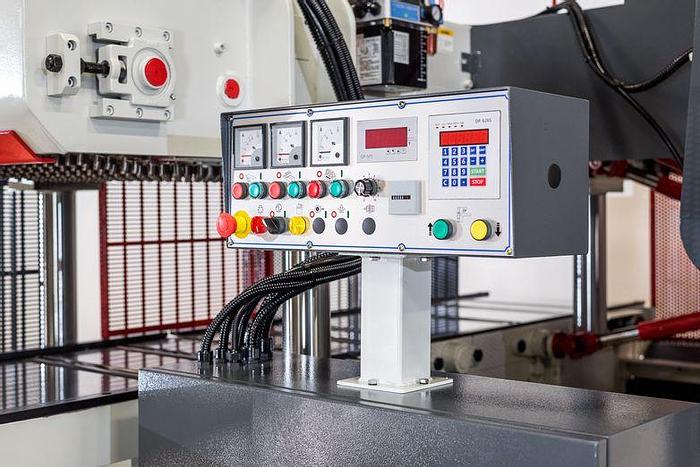

ADJUSTABLE OPERATOR PANELAdjustable Operator Panel
PASS-LINE41-1/2''
MIN. WORKING LENGTH12''
MAX. WORKING WIDTH24''
MIN. WORKING THICKNESS5/8''
MAX. WORKING THICKNESS16''
CUTTER HEAD RPM4500 RPM
HEAD TYPEDynamically Balanced Helical Head
CUTTER HEAD DIMENSIONS6'' x 24-3/8''
CUTTER HEAD MATERIALAlloy Steel
ROWS OF CUTTERS8 Rows
NO. OF INSERTS280 Inserts Total
INSERT SIZE30 x 12 x 2.5 mm
NO. OF HEADS2 Heads

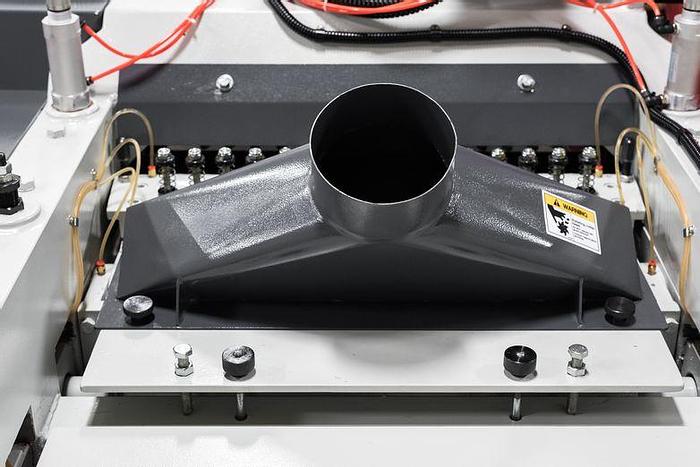

DUST COLLECTION REQUIREMENT980 CFM @ Point of Extraction
DUST PORT SIZE OUTLET(2) 6''
DIGITAL DISPLAYElevation / Feed
POWERED ROLLERS(3) Top (3) Bottom Powered Rollers
IDLE ROLLERS(4) Idle Rollers
HOLD DOWN STYLEChip Breakers/ Pressure Plate
CARPET SPIKE HARDNESSHRC 45
NO. OF SPIKES1500 Spikes
FLR INCLUDEDFilter, Lubricator, Regulator
CFM AIR SUPPLY REQUIREMENT1/4'' Line @ 90 PSI
REAR E STOPPush Button
GUARDINGHigh Visibility Guarding

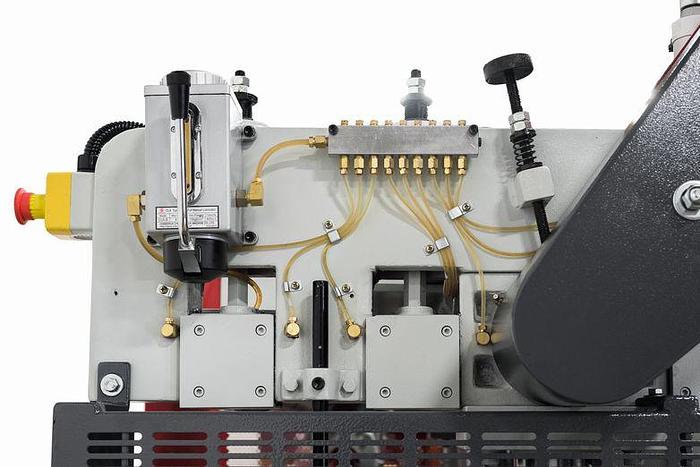

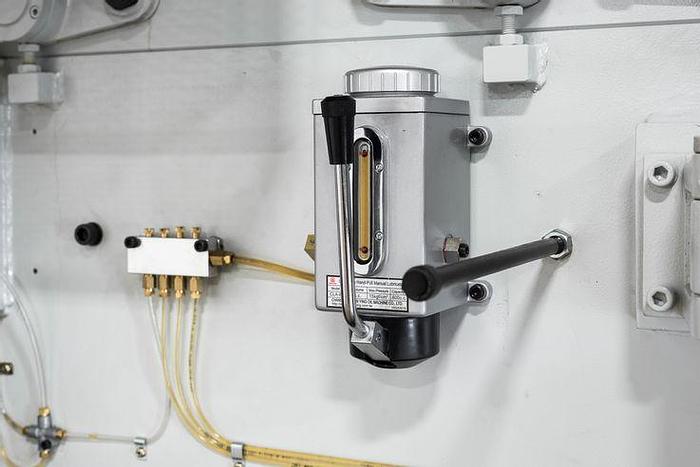

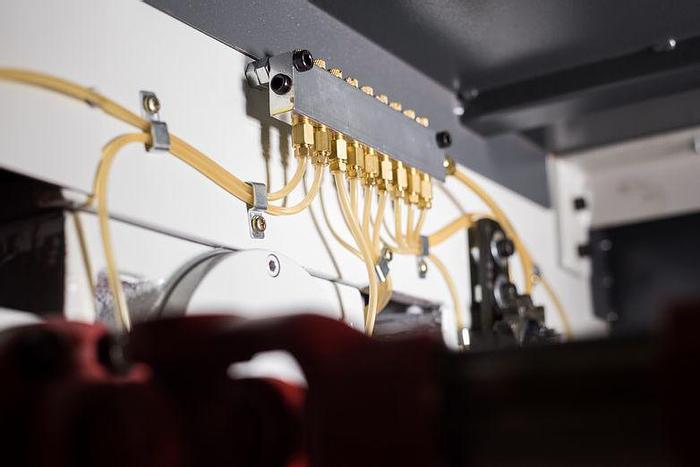

OILER(1) Auto Oiler (1) Manual Oiler
LOW OIL WARNING/SHUT OFFLow Oil Warning / Shut Off
FRAME CONSTRUCTIONCast Construction
CHROME BED PLATE.004"
DECIBEL RATING81 dB
NET WEIGHT14960 Lbs.
GROSS WEIGHT16060 Lbs.
MACHINE DIMENSIONS88'' x 114'' x 86''
PACKAGING DIMENSIONS87'' x 122'' x 93''
