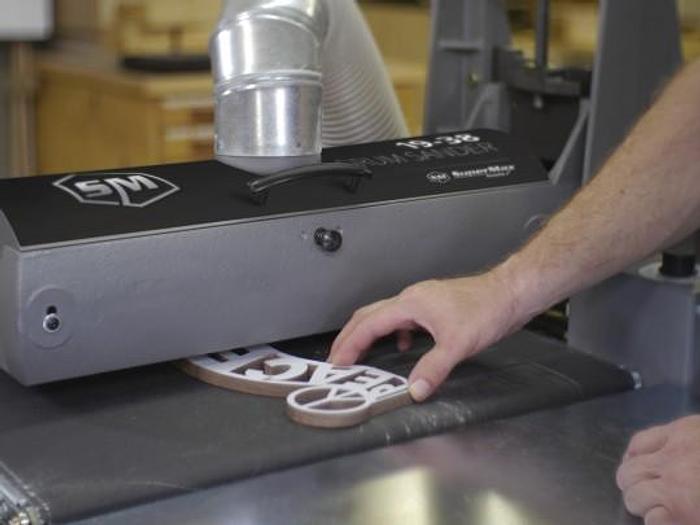

SuperMax, 19-38 Drum Sander

SuperMax, 19-38 Drum Sander

Contact us for price

Dundee, NY

orCall +1 (607) 678-4374

Description

We’ve addressed issues common with other drum sanders by adding five features that are exclusive to our 19-38 machines. No other drum sander on the market has these features!

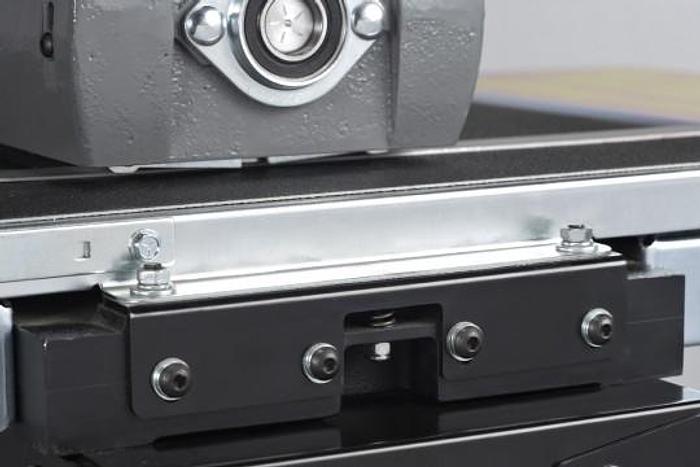

  • Simple alignment feature Just one nut will adjust the conveyor to parallel the sanding head, making aligning the conveyor to the sanding head fast and easy.
  • Indexed alignment setting Has an indexed alignment setting for narrow and wide stock. When sanding stock wider than 19”, the index lever will properly adjust the conveyor for flawless wide sanding.
  • Easy height adjustments A thrust bearing below the handle and a nut positioned above prevents the drum from moving out of the set position while sanding. No backlash or slop in the height adjustment mechanism allowing easier and smoother height adjustments.
  • Extra-wide conveyor to properly support stock over 19” wide. The conveyor table is 22” wide to add support to the work piece.
  • Drum will never go “out of alignment” The drum carriage is bolted to the base, preventing any movement or alignment issues.


Additional Features

  • INTELLISAND™ Technology: Automatically adjusts conveyor speed based on load
  • Prevents gouging, damaging, or burning stock
  • Provides a consistent finish even with varying grain pattern and density
  • Greatly increases abrasive planing and dimensioning speed
  • Flatness Guarantee: Precision-flattened steel conveyor bed reinforced with four steel cross sections for no “flex” in conveyor, guaranteeing flatness to less than .010″ across the width of the sander
  • Abrasive conveyor belt offers the best grip for raw wood, giving you the ability to accommodate stock that is much shorter or thinner
  • Patented Abrasive Attachment System effectively tensions the abrasive wraps, preventing loose abrasive and overlap
  • Easiest access to abrasive fastening system of any drum sander! Extra wide space to access fasteners to eliminate need for special tools.
  • Self-cooling drum prevents overheating and extends abrasive life
  • Tension rollers are adjustable in height and hold down pressure, eliminating snipe
  • Excellent dust extraction as dust cover is formed to shape of drum Metal, not plastic, is formed to maximize air flow and dust extraction
  • Heavy-duty cast iron construction for strength, rigidity and reduced vibration


Features:

  • Simple Alignment Feature
  • Indexed Alignment Setting
  • Easy Height Adjustments
  • Extra-Wide Conveyor
  • Drum Will Never Go “Out of Alignment”
  • CSA Certified

Specifications

ManufacturerSuper Max
Model19-38 Drum Sander
ConditionNew
Stock NumberSUPMX-71938-D
Drum Speed1740 RPM
Max Sanding Width38″ (Two Passes)
Min Sanding Length2-¼″
Max Sanding Thickness4″
Min Sanding Thickness1/32″
Drum5″ x 19″ Extruded Aluminum
Dust Hood1 x 4″, Vacuum Port (Min 600 CFM Recommended)
Conveyor Speed0 – 10 FPM (Variable)
Additional FeaturesINTELLISAND™ TechnologyAutomatically adjusts conveyor speed
Drive Motor1-¾″
Power Requirements110V. 15 Amp, 20 Amp Service
Shipping Weight286 lbs (3 boxes including stand)
Shipping Dimensions (L x W x H)43″ x 16″ x 24″
