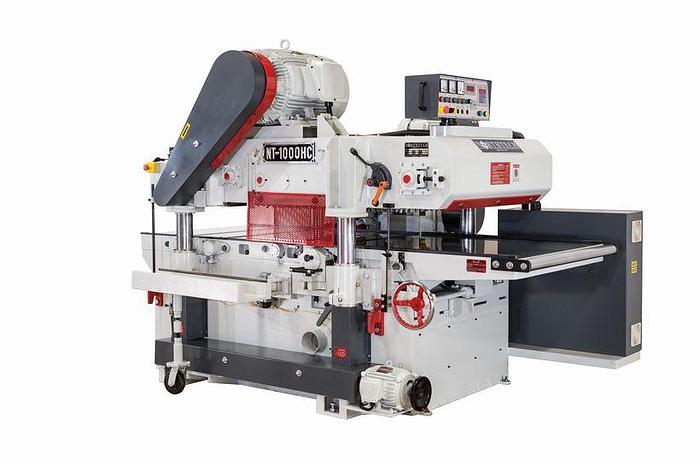

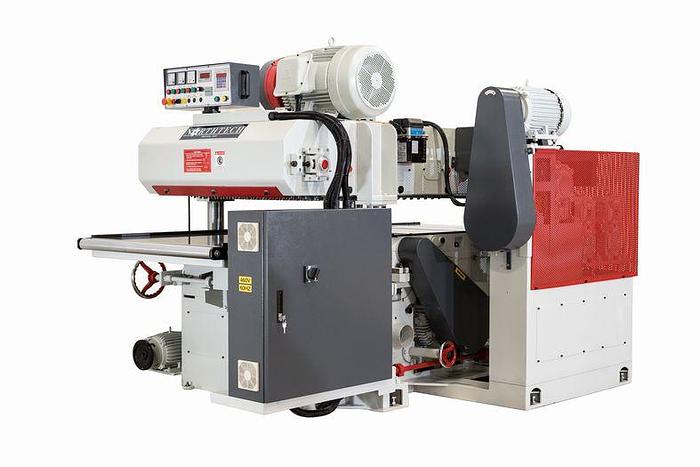

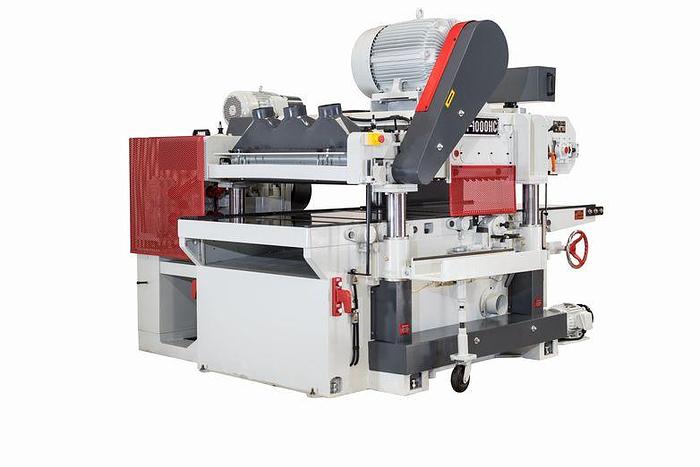

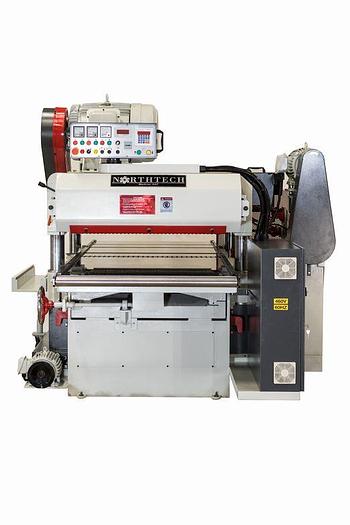

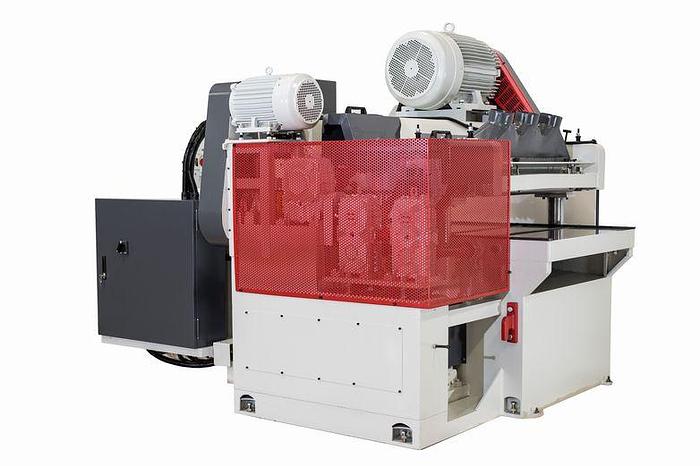

Northtech, NT 1000HCHD-XL Double Surface Planer

Northtech, NT 1000HCHD-XL Double Surface Planer

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

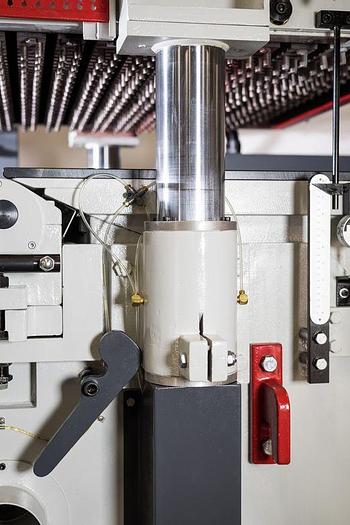

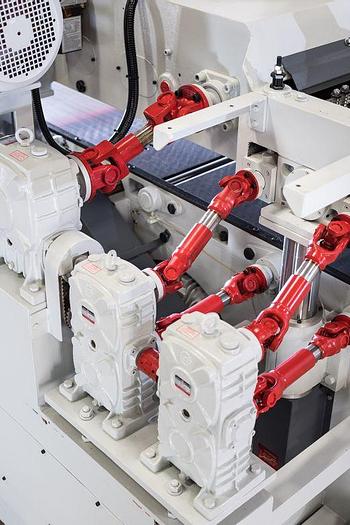

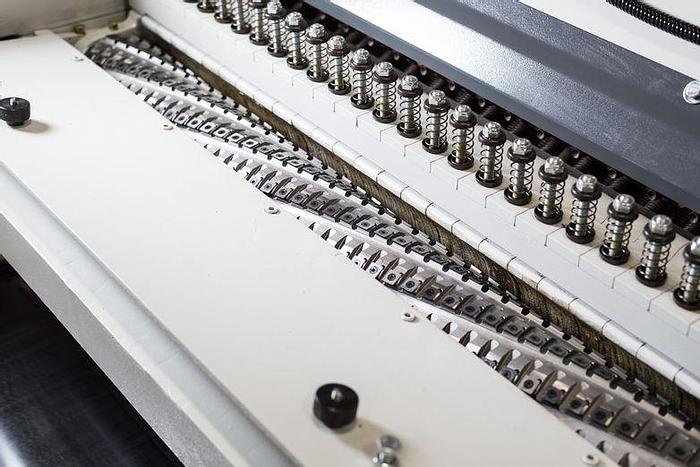

The NT 1000HC is our 41″ width double surfacer with 8″ thickness capability. Double surfacers, some times referred to as 2 sided planers are used to size the thickness of wood and other dense materials such as plastic. The top and bottom helical cutter head uses two sided 30x12x2.5 carbide insert cutters for a moulder smooth finish, even with heavy stock removal. The powered top and bottom feed system is designed with integrated rollers in the chrome bed and a spring loaded overhead carpet spike infeed with a gearbox connected carden shaft drive. The carden shaft drive delivers a slack free feed with out the common chain adjustments. The jointer table infeed and overhead spring loaded carpet spike system allows this machine to not only size the thickness, but also straighten warped or crooked material. The top head is easily accessible for tooling changes by removing the dust hood and the bottom head pulls out of the machine completely in just a couple of minutes for full access. The upper assembly is supported by a (4) column slide system that provides precision thickness sizing across the entire width and has digital thickness positioning control. Northtech Double surfacers are available in 16″-52″ working widths with up to a 24″ working thickness and can be offered with a safety/sound enclosure.

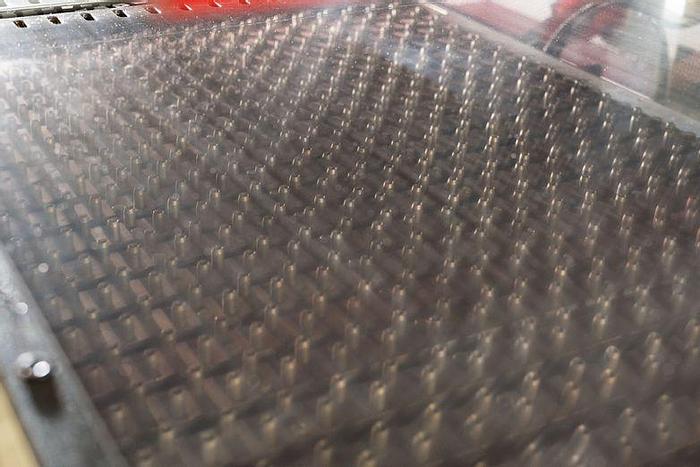

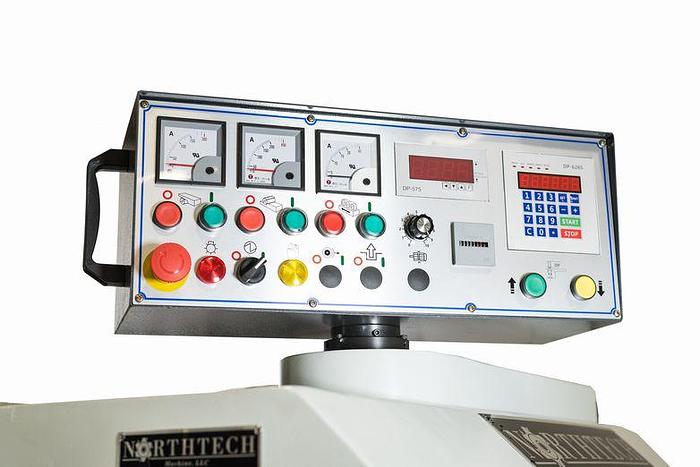

CUTTER HEADS • 75 HP Top, 60 HP Bottom • Dual (9) Row Helical Cutter head with 15 x 15 x 2.5mm inserts • 4925 RPM solid steel cutter heads dynamically balanced with Class 7 NSK bearings PRODUCT DIMENSIONS • 15” min working length • 1-1/2” - 41” working width • 3/8” - 8” working thickness FEED SYSTEM • Carpet feeding spike system with 1,900 hardened spikes • 7.5 HP motor, with 10 HP inverter controlled 15-55 FPM feed • 1000 Series have upgraded feed works, with top and bottom powered rollers on infeed and outfeed of top cutter head FEATURES • 144.5 Total machine HP • 2HP Elevation motor • Inverter speed control • Digital control panel with 3 amp meters • Chrome bed plate (.014”) thick • (2) 6” dust ports requiring 981 CFM at points of extraction • Automatic lubricating system with low level shut off • UL/CE Certified electrical components • Includes operator’s manual and parts book • Machine gross / net weight: 15,600 lbs. 16,100 lbs. • Machine dimensions: 112”(L) x 88”(W) x 83”(H) • One year parts warranty • All machines are tested at the factory prior to shipment providing trouble-free start up.

Specifications

ManufacturerNorthtech
ModelNT-1000HC
ConditionNew
Stock NumberNT 1000HCHD-XL
Top Head Hp.75 Hp.
Bottom Head Hp.60 Hp.
VOLTAGE, FREQUENCY230/460 Volt 60HZ
PHASE3 Phase
AMP REQUIREMENT170 / 340 Amps
FEED HP7.5 HP
DRIVE SYSTEMCardan Shaft Drive System
FEED SPEED RANGE30-90 FPM
VARIABLE FEED SPEEDInverter Controlled
ELEVATION HP2 HP

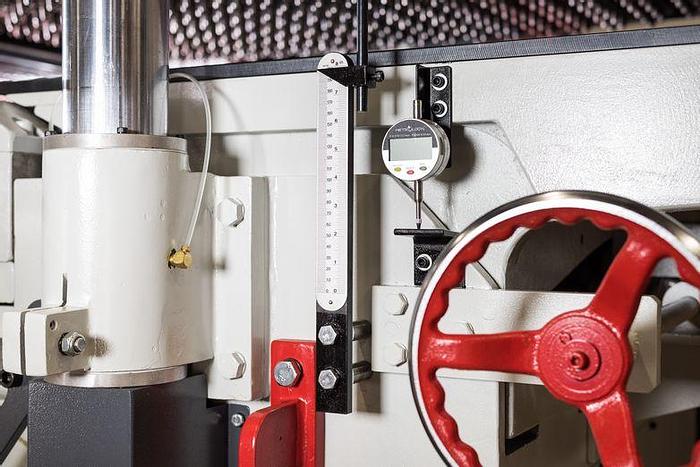

ELEVATION STYLEDP-626S Elevation Control
ELEVATION SYSTEM(4) Post Jack Screw
TOTAL MACHINE HP144.5 HP
APPROVED ELECTRICAL PARTSCE Approved Components
DUAL VOLTAGE MOTORS230/460 Volt
CONTROL VOLTAGE110 Volt
PROGRAMABLEElevation
ADJUSTABLE OPERATOR PANELAdjustable Operator Panel
PASS-LINE34''
MIN. WORKING LENGTH15''
MAX. WORKING WIDTH39-1/2''
MIN. WORKING THICKNESS.415''
MAX. WORKING THICKNESS8''
CUTTER HEAD RPM5000 RPM
HEAD TYPEDynamically Balanced Helical Head
CUTTER HEAD DIMENSIONS5'' x 39-3/4''
CUTTER HEAD MATERIALAlloy Steel
ROWS OF CUTTERS9 Rows
NO. OF INSERTS798 Inserts
NO. OF HEADS(2) Heads
DIGITAL DISPLAYElevation / Feed Speed
HOLD DOWN STYLEChip Breakers/ Pressure Plate
CARPET SPIKE HARDNESSHRC 45
NO. OF SPIKES1900
FLR INCLUDEDFilter, Lubricator, Regulator
REAR E STOPPush Button
GUARDINGHigh Visibility Guarding
CHROME BED PLATE.004'' Chrome Plated Bed
DECIBEL RATING80 dB
NET WEIGHT15600 Lbs.
GROSS WEIGHT16100 Lbs.
