Laguna, Compact 37″ 1K Widebelt Sander

Laguna, Compact 37″ 1K Widebelt Sander

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

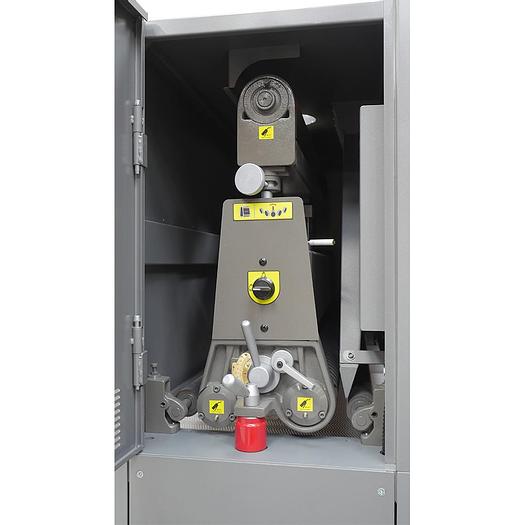

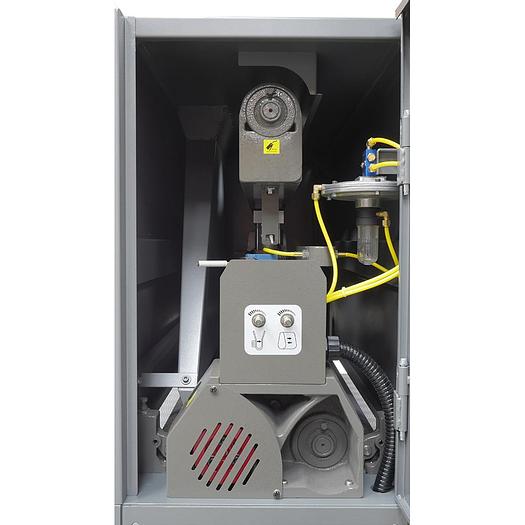

This machine is equipped with 1 combination head. This means you can sand either using the drum or the sanding platen or both at the same time. Due to the large HP motor (10 HP) the machine is capable of dimensioning even wide boards. This is important for customers who do not own a thickness planer. When you use the machine to dimension your work only very aggressive paper 60 or 80 grit should be used. The heavy carpet feed belt is powered by a separate 1HP motor and has two feed speeds 15′ and 49′ per minute. You can adjust the thickness in 3 ways: Manual hand-wheel on the bottom of the machine. By pressing the up or down arrow the table will move in the desired direction. By tapping these same arrows the machine will move an exact amount each tap. The auto thickness gauge will measure your wood piece and automatically set the table to the thickness of the piece of wood inserted.

Features

  • Single Drum

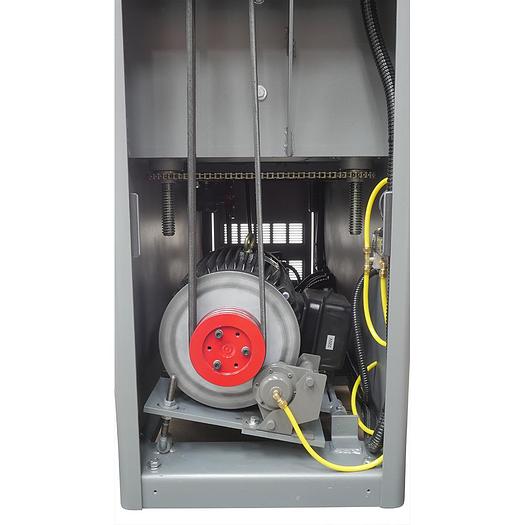

  • Main motor: 10HP

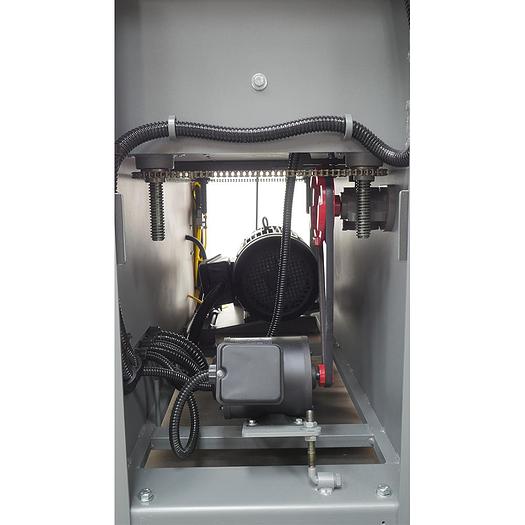

  • Feed Motor: 1HP
  • Table lifting motor: 0.25HP
  • Voltage: 220V / 1phase
  • Max sanding height: 5-9/10″
  • Min sanding height: 1/4″


You can adjust the thickness in 3 ways:

Manual hand-wheel on the bottom of the machine.

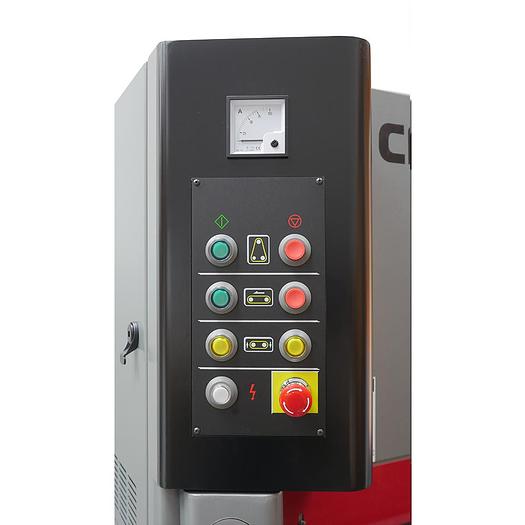

By pressing the up or down arrow the table will move in the desired direction. By tapping these same arrows the machine will move an exact amount each tap.

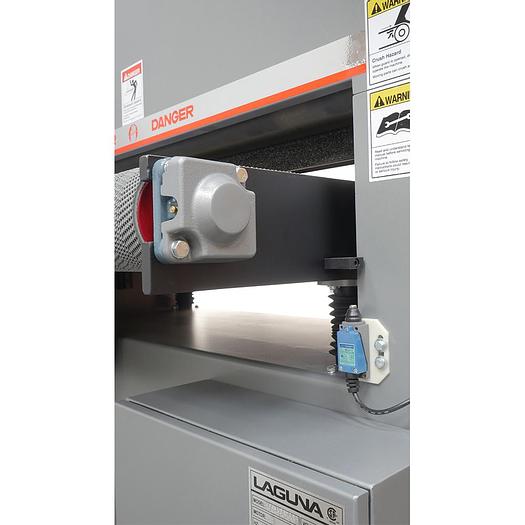

The auto thickness gauge will measure your wood piece and automatically set the table to the thickness of the piece of wood inserted.


Specifications

ManufacturerLaguna
ModelCompact 37″
ConditionNew
Stock NumberMSANWB37X60-1K-10-0197
Max Sanding Width36-½″ (927mm)
Sanding Belt Size37″ x 60″ (940 x 1524mm)
Adjustable Sanding Platen3″ (77mm)
Diameter of Sanding Drum4″ (101mm)
Length of Sanding Drum37″ (965mm)
Sanding Drum RPM1725
Conveyor SpeedTwo Speeds 15′/49′ per min
Dust Port Diameter4″ (101mm)
Number of dust ports3
Footprint19″ x 51″ (483mm x 1300mm)
Width x Depth56-½″ x 52″ (650mm x 1320mm)
Height with Dust Collection Ports77-½″ (1968mm)
Height Without Dust Collection Ports71-½″ (1816mm)
Conveyor Height At Lowest Setting32″ (813mm)
CabinetSteel
Operating Air Pressure6 Bar
Sanding Best OscillationAdjustable
Sanding Belt Motor BrakeYes. Air operated disc brake
CSAFully Certified
Net weight1980lbs.
