Ritter R2061 6° Low Angle Pocket Cutter

Ritter R2061 6° Low Angle Pocket Cutter

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

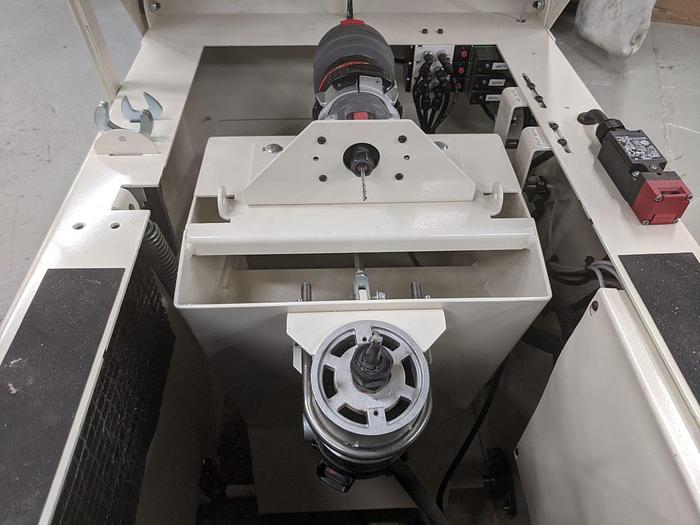

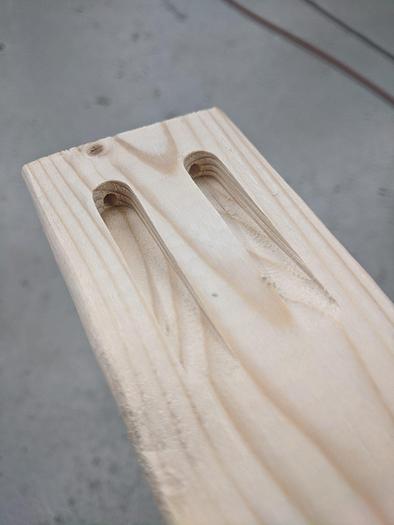

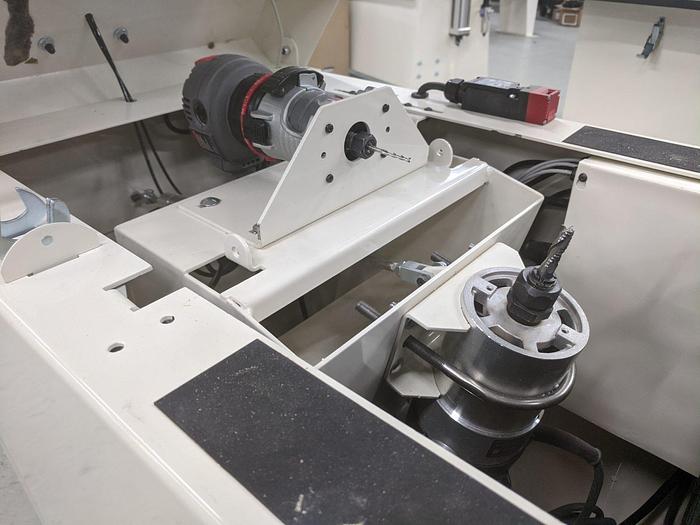

The R2061 is used for routing a single pocket hole for cabinet face frame assembly.


Standard Features:

  • 6° Low angle
  • PLC controlled cycle
  • Foot pedal operated
  • Adjustable Material Stops
  • Up to 2″ thick material
  • Cycle Time: 1.75 – 2 Sec
  • Tooling Included


Additional options for this machine include:

  • 48″ Wide Table
  • R2063 – 3-Phase 230/460 Volt

Specifications

ManufacturerRitter
ModelR2061
ConditionNew
Router Bit3/8” Solid Carbide, Rough Mill
Drill Bit9/64” Brad and Spur TiN-Coated Bit
Router24,500 RPM, 11 A, 1.75 HP
Drill31,000 RPM, 4.5 A, 7/8 HP
* Cycle Time1.75 – 2 Sec
* Electrical110V 15A
Air2 CFM at 80 – 100 PSI
* Work height36″
* Footprint27.75″ x 20.5″
* Table Area15.75″ x 23.75″
* Dust Port4″
Shipping Weight300 LBS
Shipping Dimensions (L x W x H)38″ x 25″
