Northtech NT HBR-12E Horizontal Bandsaw

Northtech NT HBR-12E Horizontal Bandsaw

Contact us for price

Get Financing

Location:Dundee, NY

Available quantity:1

or
Call +1 (607) 678-4374

Description

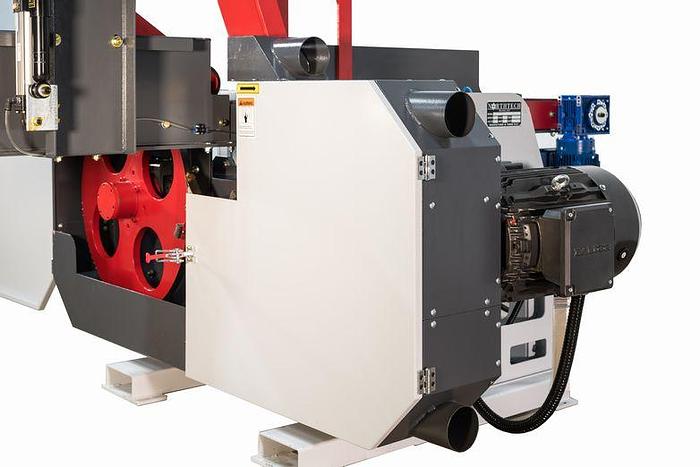

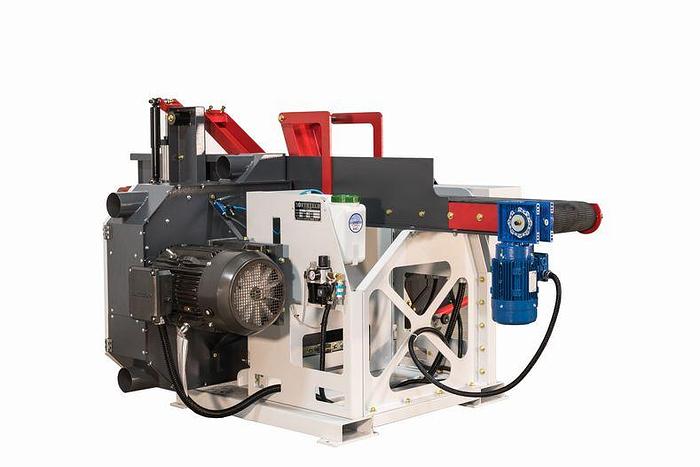

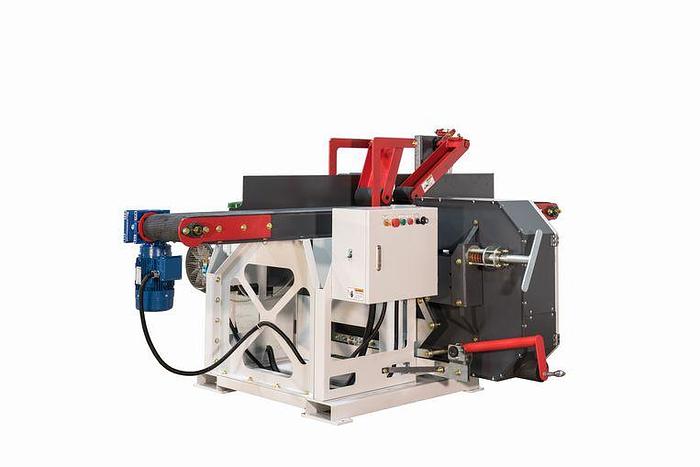

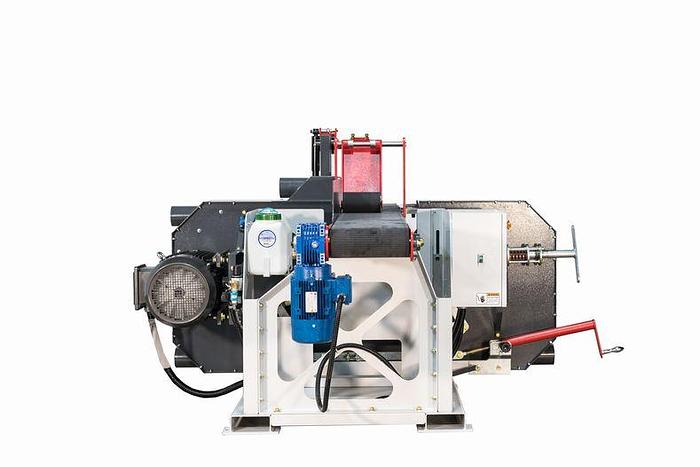

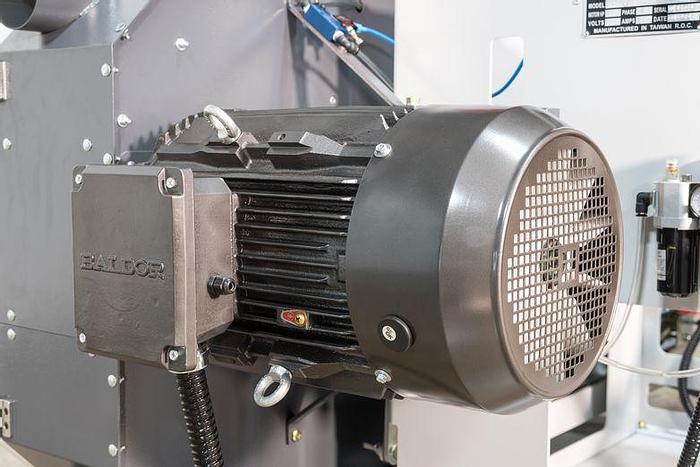

The Northtech NT HBR-12E Horizontal Bandsaw features a 20 HP motor driving the 168″ (L) blade at 6850 FPM. The VFD-controlled 2 HP feed conveyor can be precisely set to speeds between 0 to 97 FPM. The sturdy frame is constructed from CNC machined steel, and the 1” x 28” CNC ground steel saw wheels have been specially heat-treated and balanced for vibration-free performance.

Show All

Specifications

ManufacturerNorthtech
ModelNT HBR-12E Horizontal Bandsaw
ConditionNew
Main Motor20 hp.
Voltage/ Freq.230 / 460V
Phase3 Phase

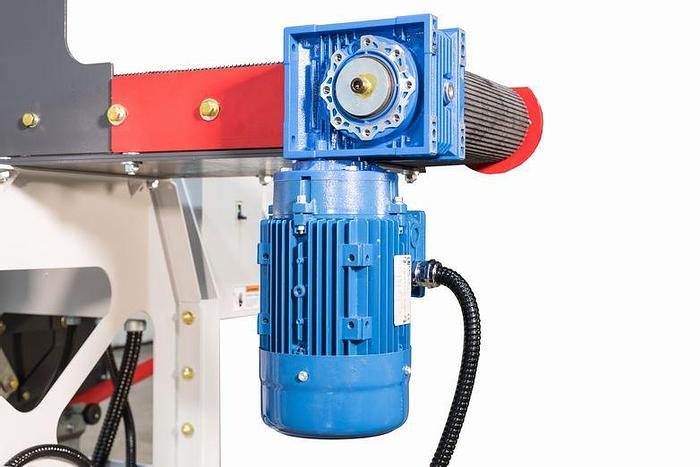

Feed Hp.2 Hp.

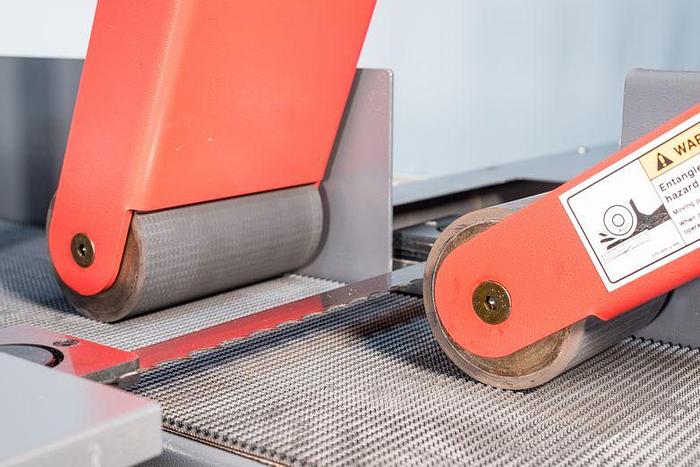

Feed System11-1/4” Rubber Feed Mat
Feed Speed 0 – 95 FPM

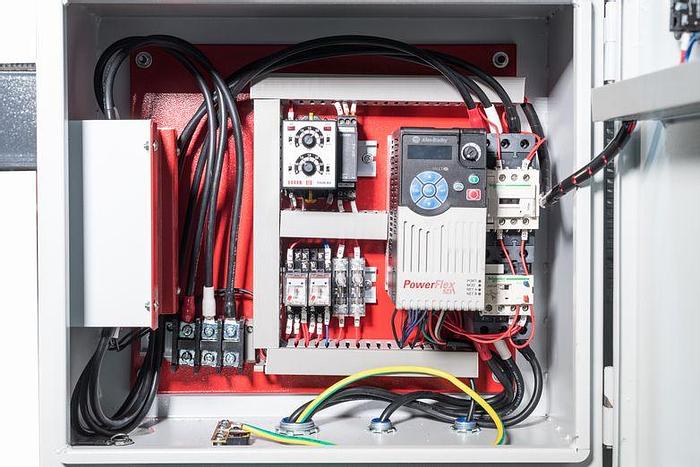

Variable SpeedInverter Controlled

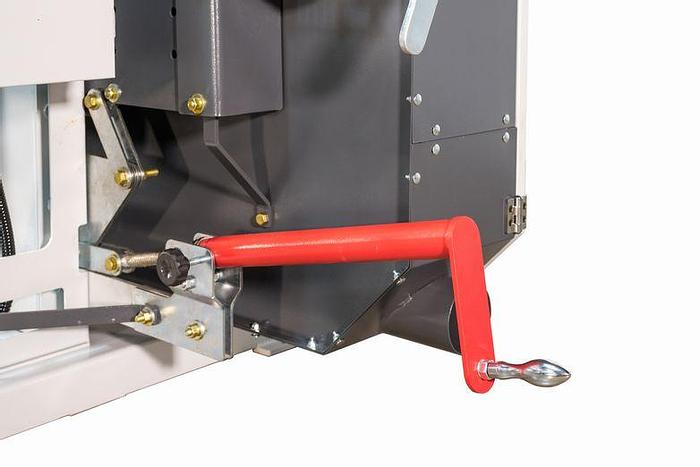

Elevation StyleManual Crank Adjustment
Elevation SystemScissor Lift
Total Hp.22 Hp.
ElectronicsCE Approved Components
Control Voltage220V Control Voltage
Operator PanelFixed
Pass-Line35-3/8”
Cut Envelope11-3/4” W x 11” H
Min. Stock Length12''
Min. Stock Width3/4''
Max. Stock Width11-3/4”
Min. Stock Thickness3/16″
Max. Stock Thickness11''
Blade Size1” x 168”
No. of Teeth192 Tooth
Tooth Spacing7/8”
Blade Kerf1mm
Blade Speed6850 FPM
Cleaning SystemScraper / Felt Pad

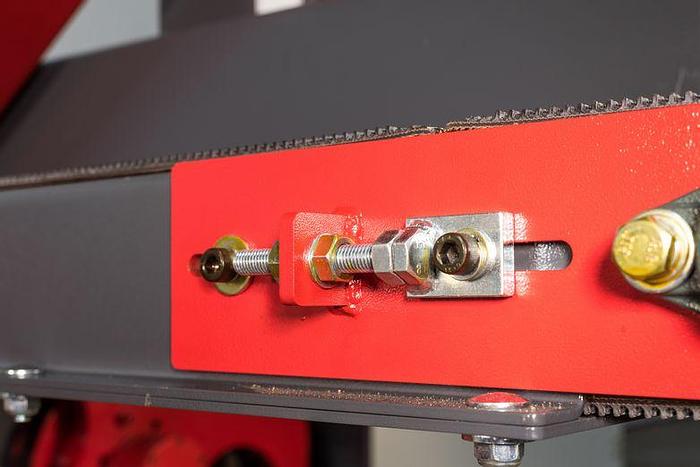

Tracking StyleManual Adjustment

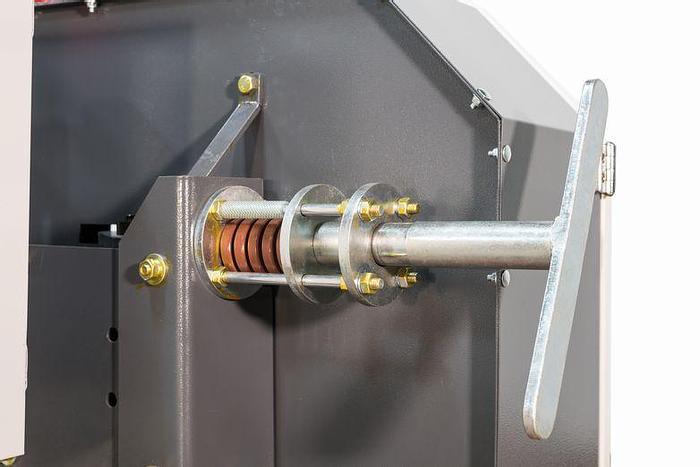

Tension StyleManual Adjustment
Vertical Travel4-5/8”
Dust Collection(4) 4” @ 1744 CFM

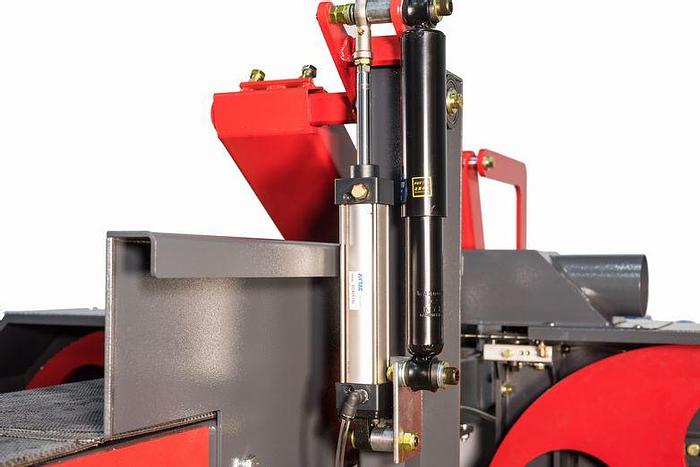

Hold Down StylePneumatic / Gravity

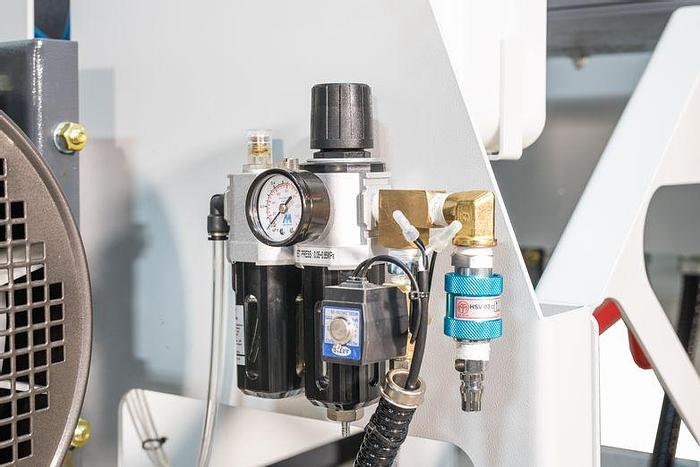

FLR IncludedFilter, Lubricator, Regulator
Recommended CFM1/4” Line @ 90 PSI

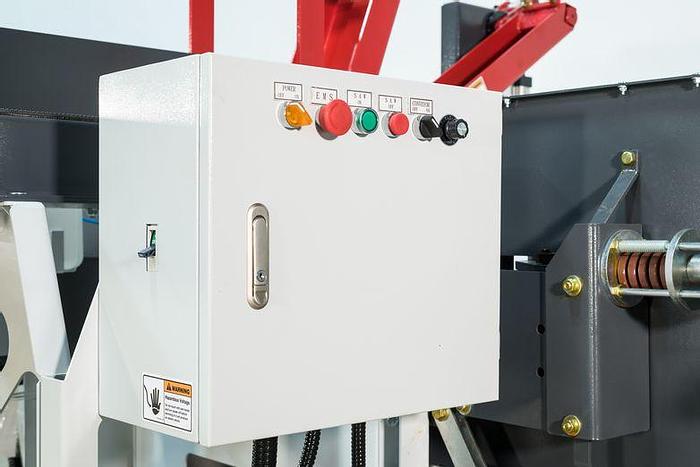

Emergency StopPush Button
GuardingFull Cabinet Enclosure

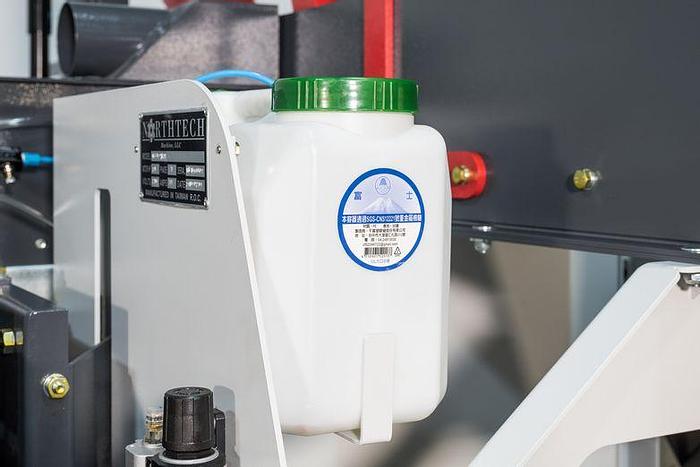

OilerBlade Oil Mister
Fence TypeFixed Fence
Fence Dimensions 6-3/4” x 34-1/2”
Blade GuidesBearing Blade Guide

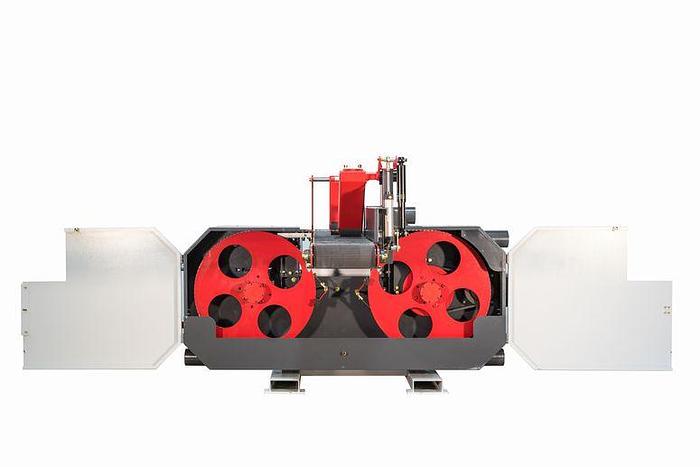

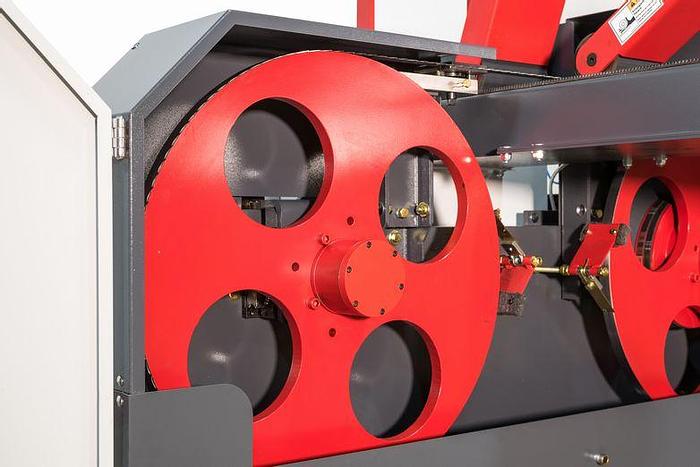

Wheel Dimensions1” x 28”
Wheel ConstructionSteel Construction
Frame ConstructionSteel Construction
Table ConstructionSteel Construction
Decible Rating75 dB
Net weight1930 Lbs.
Gross Weight2298 Lbs.
Machine Dimensions109” x 80” x 53”
Packaging Dimensions2 Skids
