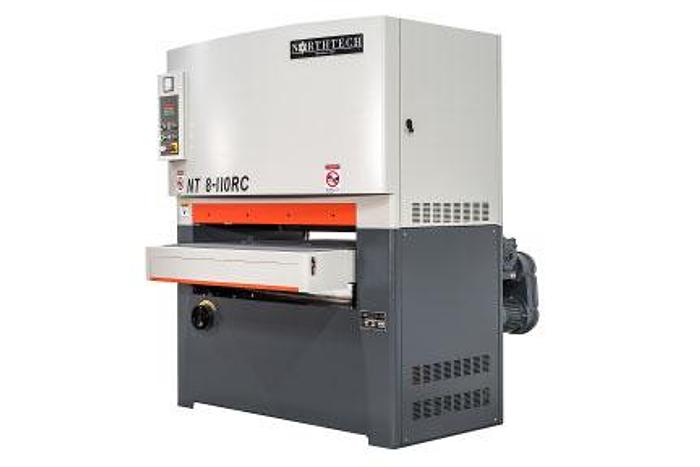

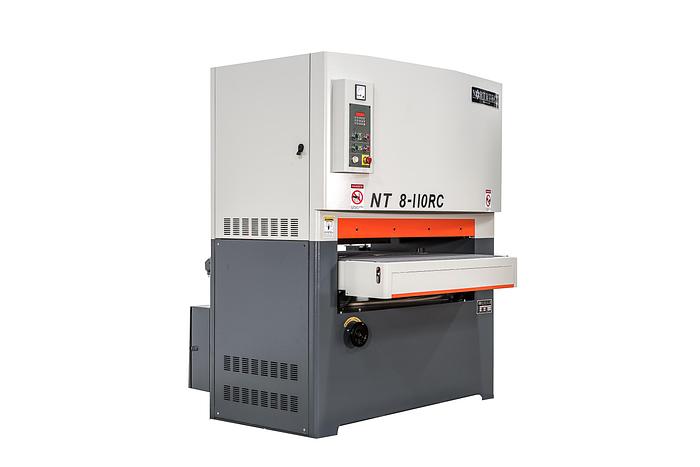

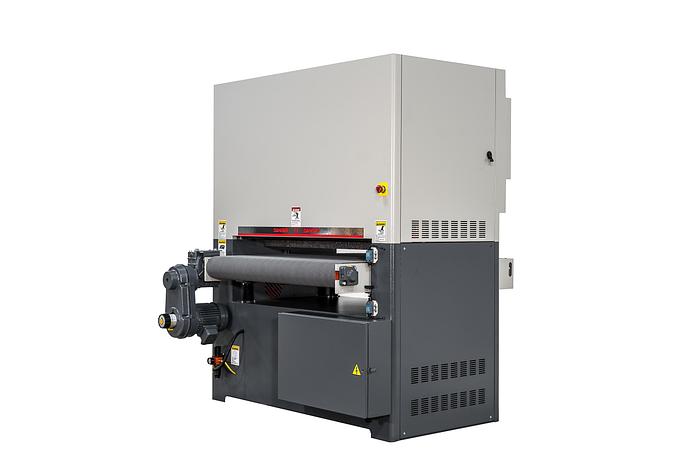

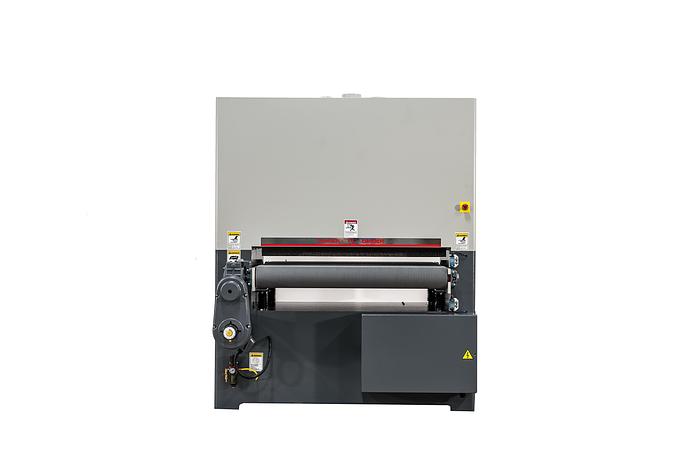

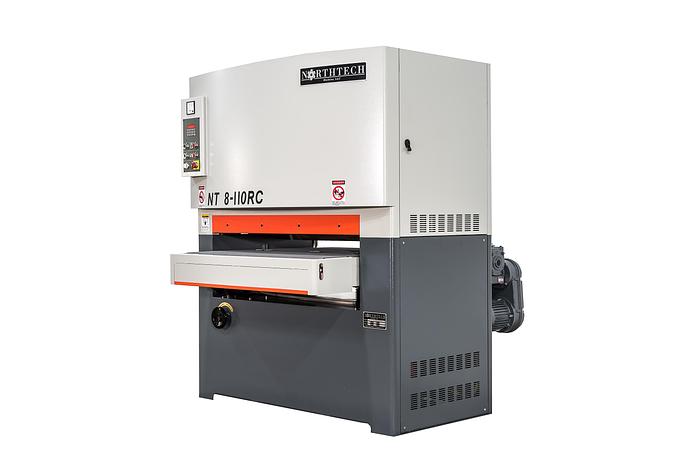

Northtech NT 8-1100RC 43″ Dual Head Wide Belt Sander

Northtech NT 8-1100RC 43″ Dual Head Wide Belt Sander

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

This 43-inch dual-head wide-belt sander from Northtech is a very robust machine. A single 30 HP motor powers the 8″ diameter first head and combination second head at a constant speed for consistent results. With feed rates of 16-47 FPM, it will sand efficiently and cost-effectively.


Features:

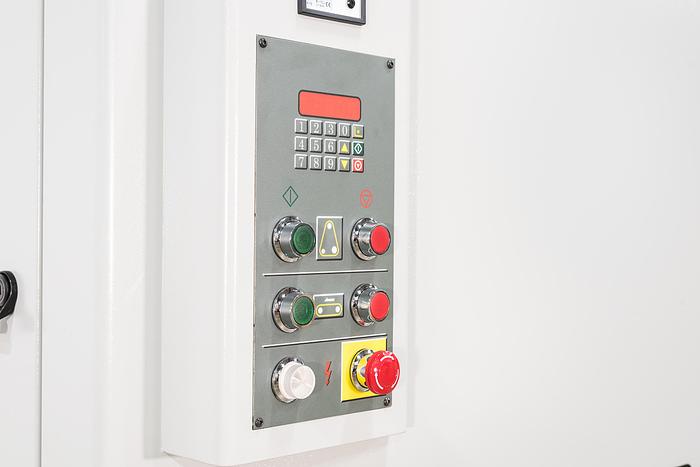

Centralized control center with visual load meter and digital elevation control.

Power supply light with emergency stop control.

Individual start/stop controls for feed and sanding head.

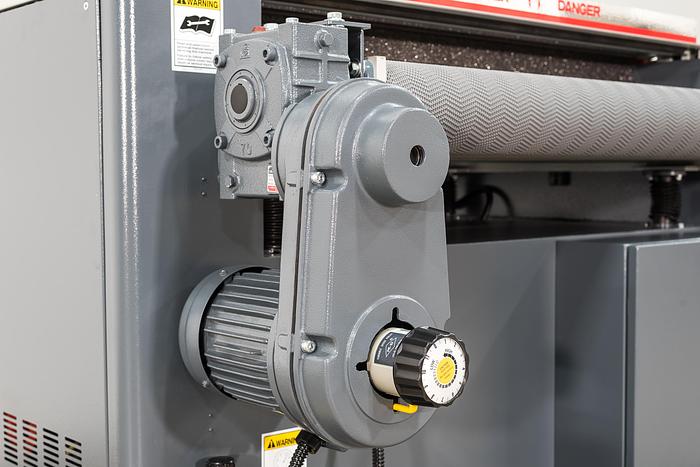

Mechanical feed adjustment allows the operator to change desired feed speed from 16-47.2fpm.

Single 30HP TEFC motor rated for continuous use delivers constant power to sanding surfaces.

Triple V-belt drive for full power delivery to sanding surface.

Disc braking for rapid emergency stops.

Full access door with lock-on outbound side.

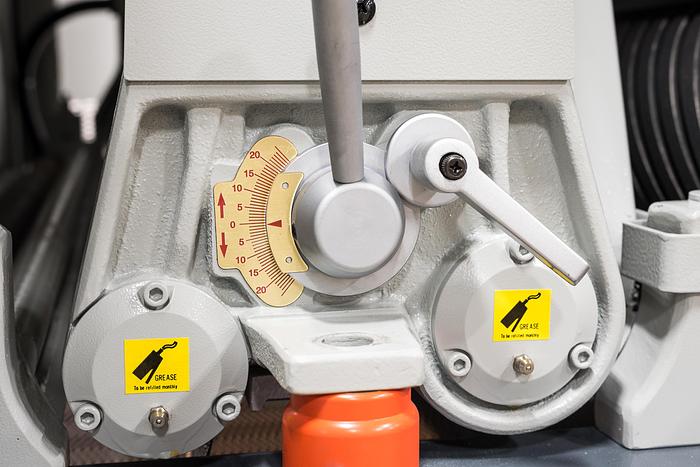

Each sanding head has quick-adjust belt tracking on the inbound side.

Strong 4-Jack elevation control for parallel, precise and repeatable sanding quality.

1st Head 8″ 65 Shore Rubber Contact Drum

1/4 Turn head lock with removable puck. * 2nd Combination Head with 4″ rubber contact drum with 65/70 Shore Platen.

1/4 Turn head lock with removable puck.

Individual roller and platen adjustment.

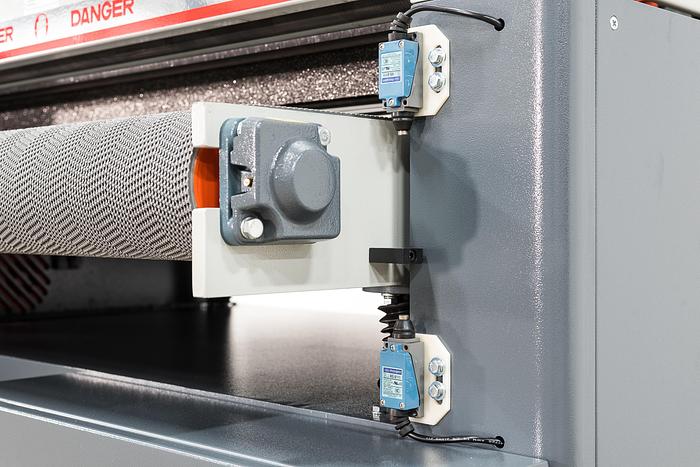

Upper and lower elevation protection switches prevent the machine from crashing.

(8) 5″ dust port require 681 CFM @ point of extraction.

Dust port formed into machine body for superb fugitive dust control.

Belt tracking cycle speed is easily adjustable for product-specific oscillation.

All sanding heads are equipped with a quick switch pneumatic belt tensioner.

Single pneumatic hook up with regulator, filter, and master shut-off included.

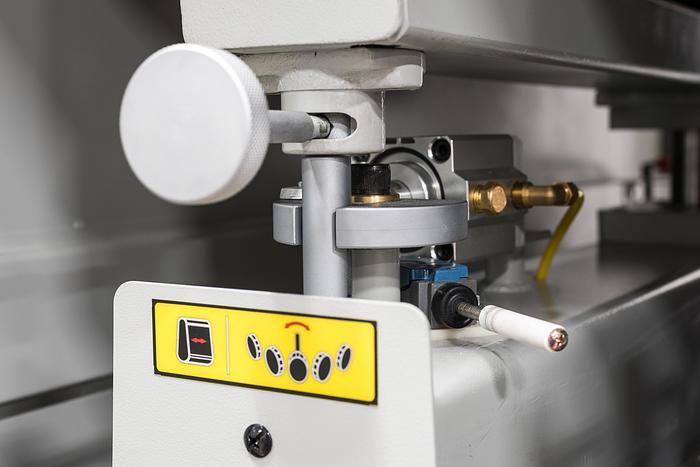

Electronic belt tracking with automatic jet blow-off cleaner.

The belt monitoring switch shuts down the machine if a belt breaks as well as prevents the head from starting if not activated.

UL/CE certified controls and electrical components are neatly labeled and organized in the electrical cabinet.

All machines are tested stateside prior to shipment providing trouble-free start-up.

Toolbox and manual included.

Specifications

ManufacturerNorthtech
ModelNT 8-1100RC
ConditionNew
Max Working Width1100mm / 43″
ConfigurationRoller-Combination Head
Number of Heads2
* 1st Head8″ 65 Shore Rubber Contact Drum
* 2nd HeadCombination Head with 4″ Rubber Contact Drum and 65/70 Shore Platen
Motor30HP
Size of Sanding Belt43-3/4″ x 75″
Mechanical Variable Speed16 – 47.2 FPM
Max Working Height150mm / 5.9″
Feed Motor2HP
Table Lifting & Lower Motor1/4HP
Dust Collection(8) 5″ port
CFM Required681
Voltage / Amperage Requirements230V / 460V 60HZ, 3PH: 79A / 39.5A
Machine / Packing weight3,316lbs / 3,826lbs
WarrantyOne Year Parts
Machine / Packing dimensions (LxWxH)60″ x 61″ x 75″ / 63″ x 66″ x 84″
