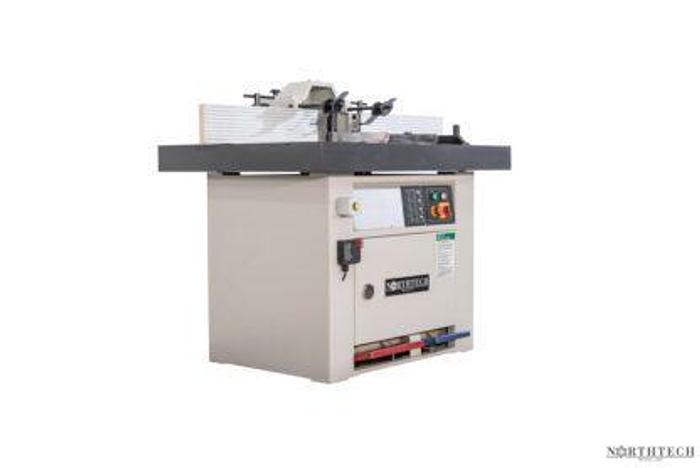

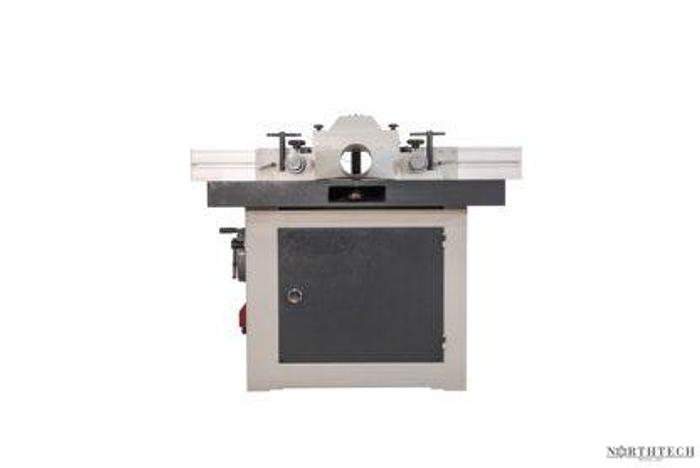

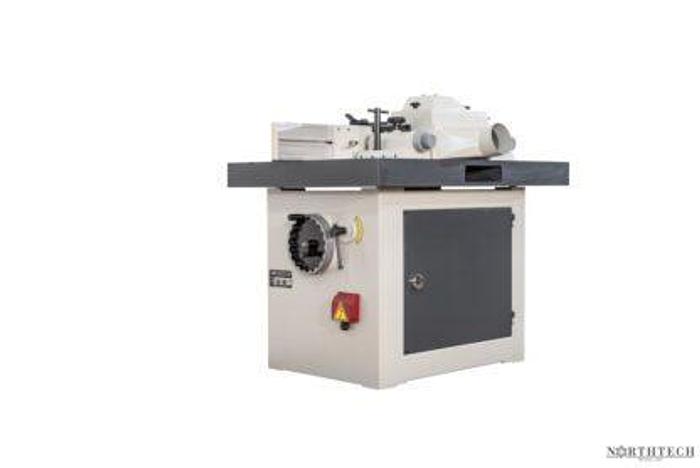

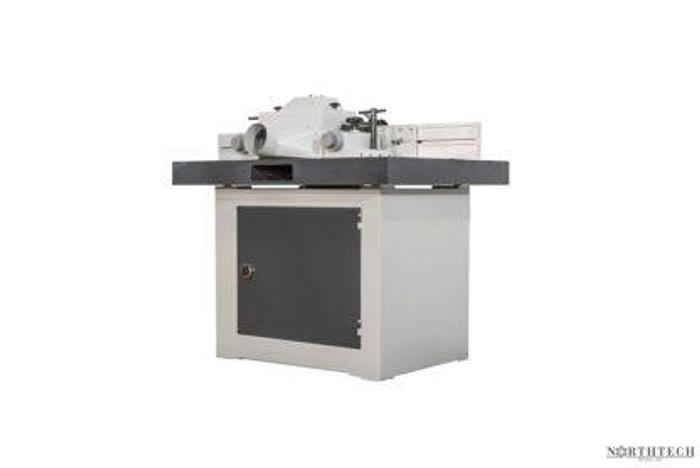

Northtech NT-735M 10 HP Spindle Shaper

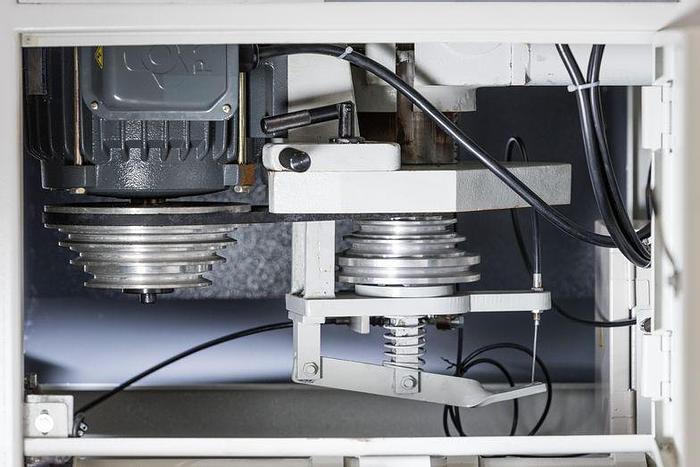

The NT 735 shaper is one of the best built shapers available. Matching the powerful 10hp interchangeable 4 speed spindle with a large stable base, foot operated brake for quick spindle stop and a foot operated lock for easy tool changes, provides excellent customer capability . The oversized precision ground table on solid steel cabinet provides stable vibration free milling.

Options include:

Tilting Spindle / Sliding Table

Tilting spindle assembly (-5 / + 45 Degrees)

Sliding table with 8 rollers bearings

15 HP Motor

Voltage change to 460 volt

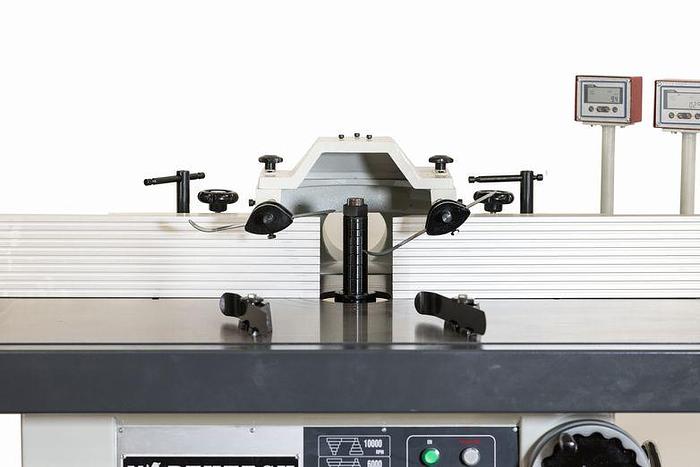

M-10 digital LED readout of spindle height (installed)

DP-727 digital electronic set works with power raise and lower plus has 99 position memory/recall

*Additional options available on the MK5 package:

Optional 7” under nut spindle with spacers and nut

Optional 3/4”, 1”, 1-1/4”, 40mm spindle with spacer nut

MACHINE HP: 10 HP

VOLTAGE, FREQUENCY: 230/460 Volt 60Hz

PHASE: 3 Phase

AMP REQUIREMENT: 26 / 13 Amps

SPINDLE LENGTH: 6''

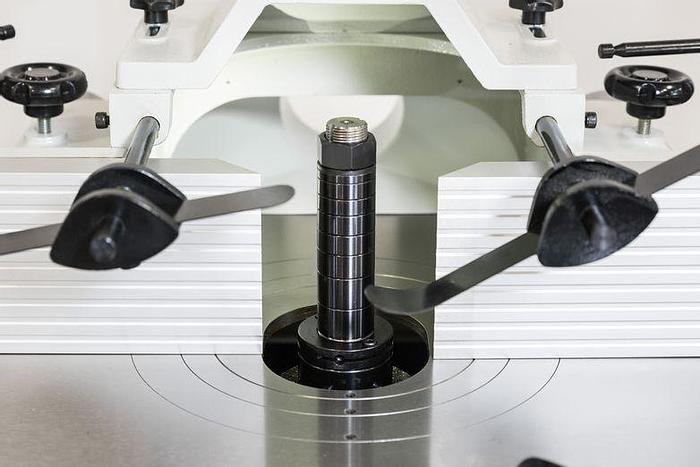

SPINDLE DIAMETER: 1-1/4''

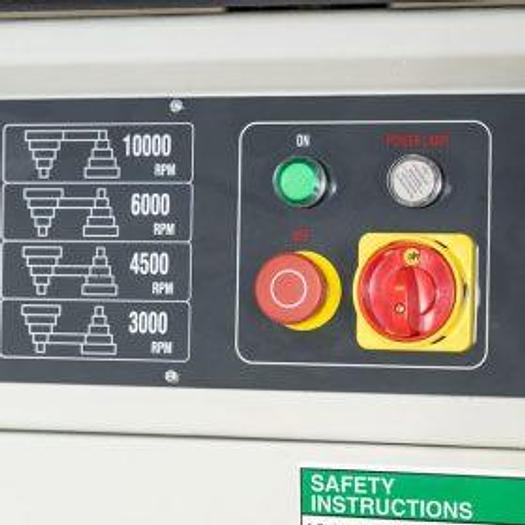

SPINDLE RPM: 3000, 4500, 6000, 10000 RPM

UNDER THE NUT CAPACITY: 5''

TOTAL MACHINE HP: 10 HP

APPROVED ELECTRICAL PARTS: CE Approved Parts

DUAL VOLTAGE MOTORS: 230/460 Volt

CONTROL VOLTAGE: 110 Volt

PASS-LINE: 35''

VERTICAL TRAVEL: 5'' on Spindle

DUST COLLECTION REQUIREMENT: 681 CFM @ Extraction Points

DUST PORT SIZE OUTLET: 5''

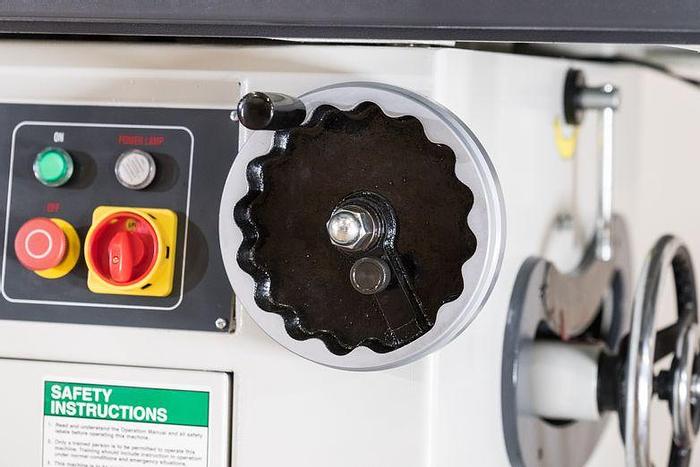

EMERGENCY STOP: (1) Front

FENCE DIMENSIONS: (2) 23-3/4'' x 5-3/4''

MICRO FENCE: Micro Adjustable

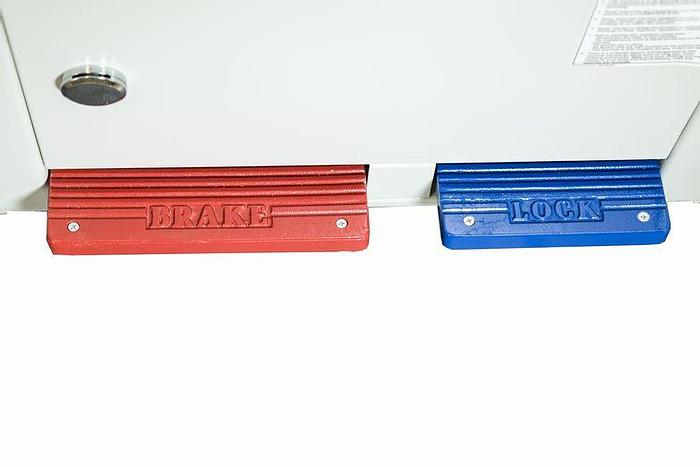

BRAKE SYSTEM: Foot Pedal

FRAME CONSTRUCTION: Fabricated Steel

WORKTABLE DIMENSIONS: 36'' x 47-3/4''

TABLE CONSTRUCTION MATERIAL: Machined Cast

DECIBEL RATING: 65 dB

NET WEIGHT: 1254 Lbs.

GROSS WEIGHT: 1404 Lbs.

MACHINE DIMENSIONS: 48'' x 36'' x 46''

PACKAGING DIMENSIONS: 42'' x 53'' x 51''
