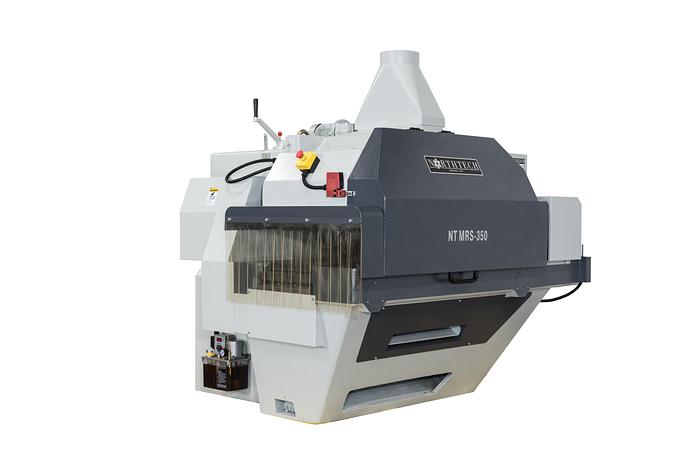

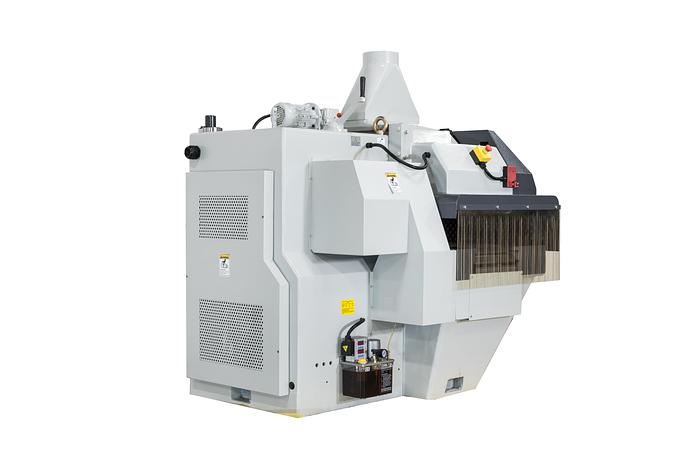

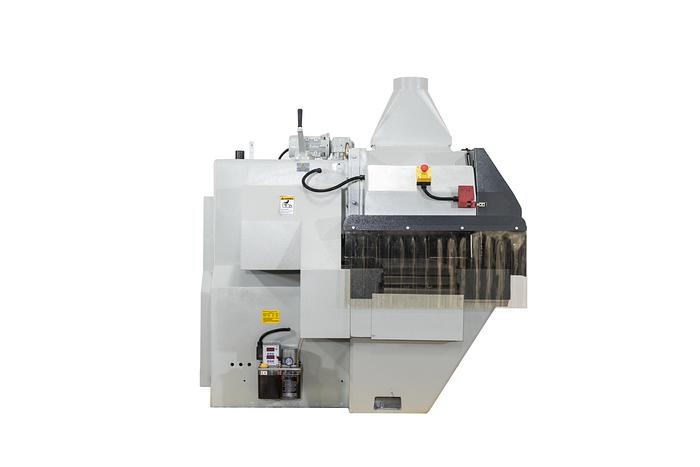

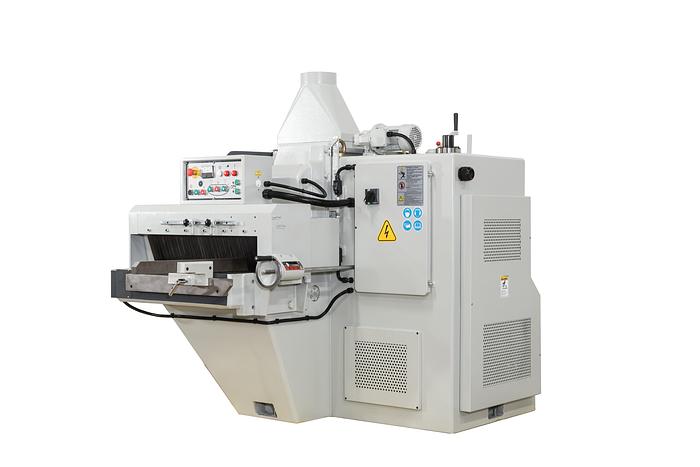

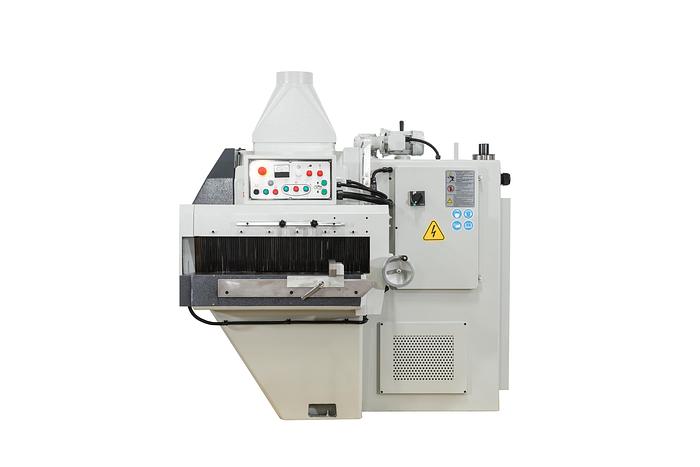

Northtech NT-MRS350 Gang Rip Saw

Northtech NT-MRS350 Gang Rip Saw

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

The NT MRS350 Multiple Rip Saw features a cast iron frame that houses a variable speed dip chain for premium rip capability. Sometimes referred to as gang rip saws, this machine has easy maintenance and change overs with a high rise arbor access hood. The stable base paired with first class safety features provides industrial level ripping for softwood and hardwood lumber.

Specifications

ManufacturerNorthtech
ModelNT-MRS350
ConditionNew
MAIN MOTOR HP50 HP
VOLTAGE, FREQUENCY230/460 Volt 60HZ
PHASE3 Phase
AMP REQUIREMENT64/32 Amps
FEED HP2/1 Hp. 2 Speed
FEED SYSTEM12'' Dip Chain
FEED SPEED RANGE25 - 100 FPM
VARIABLE FEED SPEEDManual Wheel Adjustment
ELEVATION HP1/2 Hp.
ELEVATION STYLEJack Screw / Linear Guides
TOTAL MACHINE HP52.5 Hp.
APPROVED ELECTRICAL PARTSCE Approved Components
DUAL VOLTAGE MOTORS230/460 Volt
CONTROL VOLTAGE110 Volt
ASSISTED STARTWye Delta
PASS-LINE29-1/4''
CUTTING ENVELOPE5-1/4'' x 33''
MIN. WORKING LENGTH17''
MAX. WORKING WIDTH33''
MAX. WORKING THICKNESS5-1/4''
ARBOR RPM3775 Rpm.
BLADE SIZE14'' Tungsten Carbide Tipped
NO. OF TEETH ON BLADE30 Tooth
TOOTH SPACING1-1/8''
BLADE KERF.130 In.
DUST PORT SIZE OUTLET(1) 8'' Port
ARBOR DIAMETER70 MM
HOLD DOWN STYLE(4) Spring Loaded Rollers, Pressure Shoe

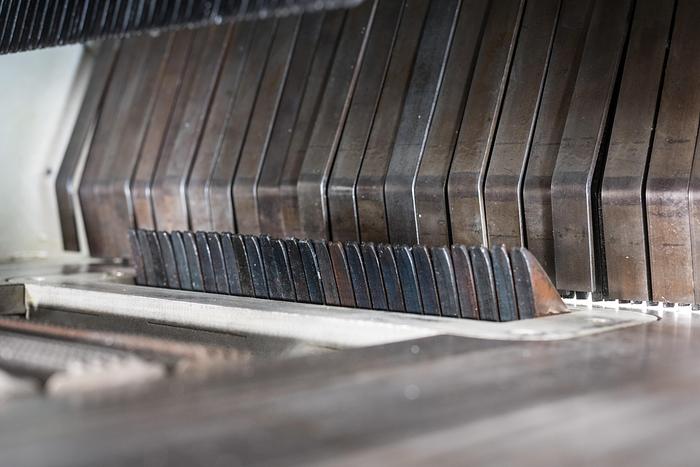

KICKBACK FINGERS(2) Top Sets (1) Bottom Set
REAR E STOPPush Button
SAFETY FEATURESawblade Door Safety Interlock
GUARDINGFull Cabinet Enclosure
OILERAuto Oiler
LOW OIL WARNING/SHUT OFFLow Oil Shut Off / Warning
FENCE TYPEAdjustable
FENCE DIMENSIONS4'' x 27-1/2''
FRAME CONSTRUCTION3/4'' Steel Construction
WORKTABLE DIMENSIONS31'' x 73''
TABLE CONSTRUCTION MATERIALCast Iron
LASER INCLUDED100mw Laser Light & Mount Bracket
DECIBEL RATING69 dB
NET WEIGHT6160
GROSS WEIGHT6400 Lbs.
MACHINE DIMENSIONS76'' x 67'' x 60''
