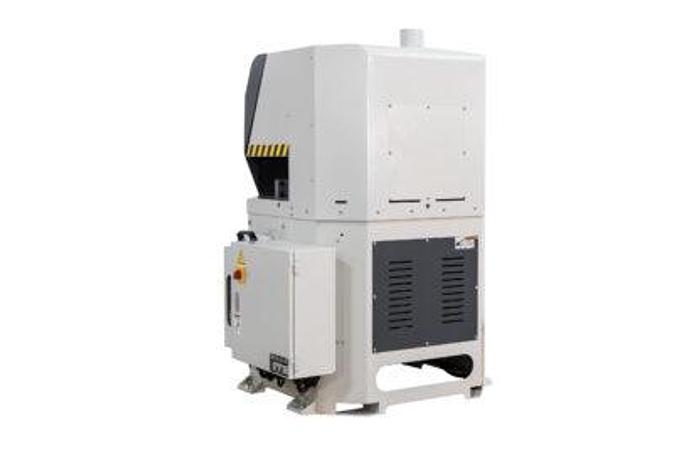

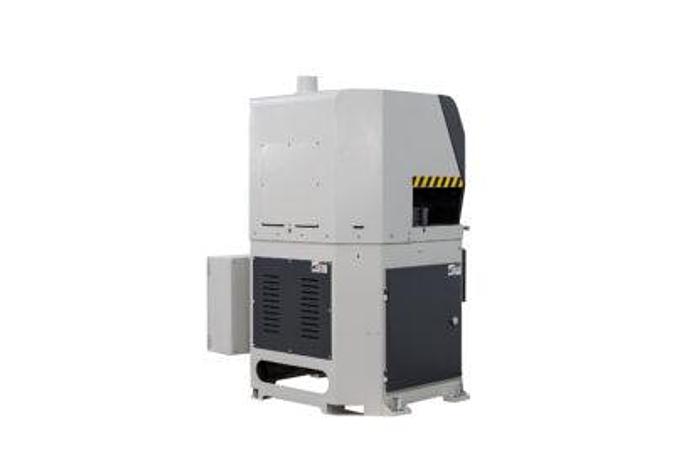

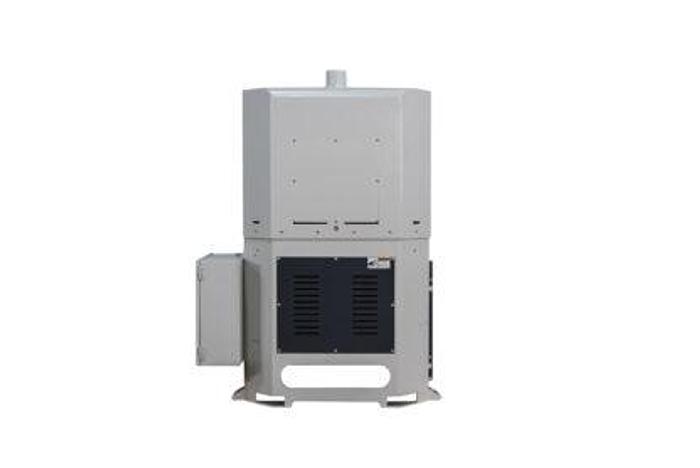

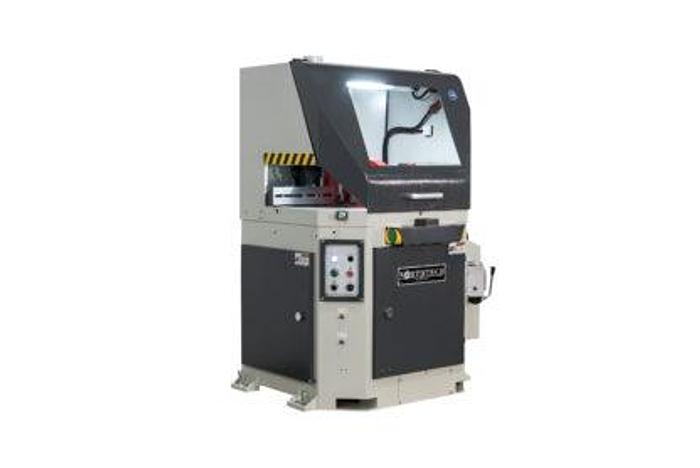

Northtech NT-CS20RT Up Cut Saw Rotary Table

Northtech NT-CS20RT Up Cut Saw Rotary Table

Contact us for price

Dundee, NY

orCall (607)243-7167

Description

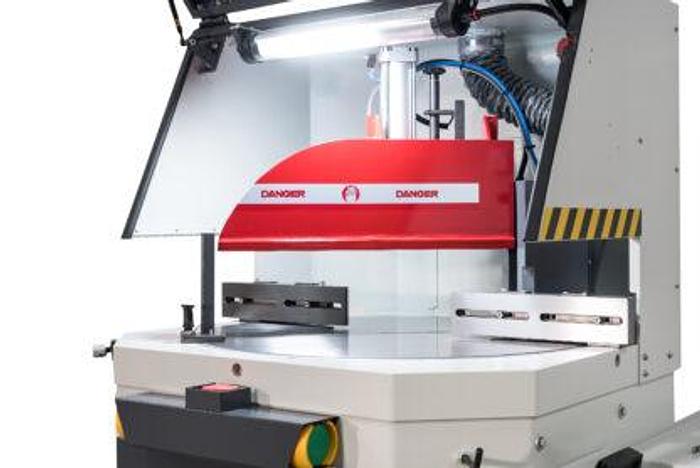

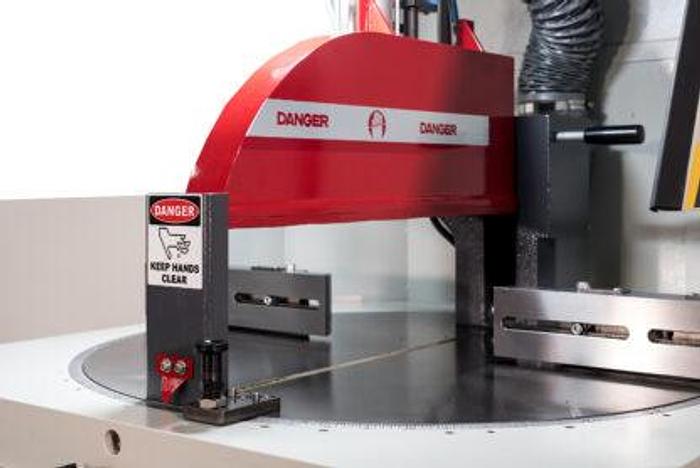

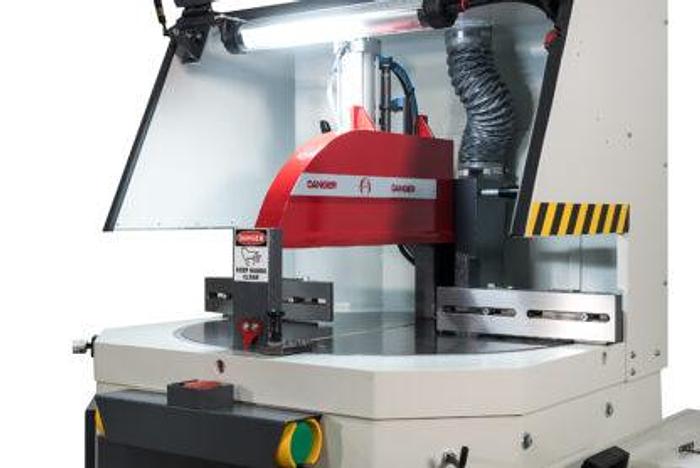

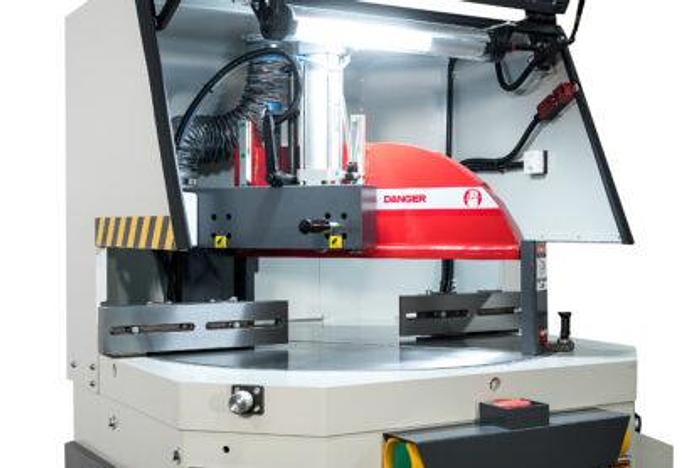

The NT-CS20RT Up Cut Saw is a powerful upcut with 20″ blade and a rotary table allowing it to cut angles in product. Upcut Saws house the blade inside the cabinet of the machine and use a double action cylinder to hold and cut the product safely. The Rotary Table Machines are not hand specific so you can feed parts from the left to the right or the right to the left on the same machine. The Rotary table design allows for the operator to change to specific pinned angles such as 15, 30, 60 and 90degree cuts or anywhere in between by spinning the turret. Using a 20″ diameter blade the CS20RT has a wide range of cut capability from 90-15 degree angles. This machine comes standard with stroke speed control, emergency stop, safety switch, safety enclosure guarding and stroke adjustments for the blade and the top clamp making it ideal for wood and plastic application. The CS20RT has several available options such as two handed cycle operation, infeed/outfeed tables, chromed machine table and safety interlocked cabinet doors for restricted operator access.

Specifications

ManufacturerNorthtech
ModelNT-CS20RT
ConditionNew
Stock NumberNT-CS20RT
MAIN MOTOR HP7.5 HP
VOLTAGE, FREQUENCY230/460 Volt 60 Hz
PHASE3 Phase
AMP REQUIREMENT9/18 Amps
APPROVED ELECTRICAL PARTSCE Approved Components
DUAL VOLTAGE MOTORS230/460 Volt
CONTROL VOLTAGE24 Volt Control Voltage
PASS-LINE34-1/4''
CUTTING ENVELOPE1'' x 11-3/4'', 2'' x 11'', 3'' x 10-1/4'', 4'' x 9-1/4'', 5'' x 7-3/4'', 5-1/2'' x 6-3/4''
MAX. WORKING WIDTH11-3/4''
MAX. WORKING THICKNESS6-1/4''
ABLE TO CUT ANGLE+ - 60 Degrees
ARBOR RPM2996 RPM
BLADE SIZE20'' Tungsten Carbide Tipped
NO. OF TEETH ON BLADE120 Tooth
TOOTH SPACING1/2''
BLADE KERF.142''
DUST PORT SIZE OUTLET(2) 4'' Ports
ARBOR DIAMETER1''
CYCLES/MINUTE16 Cycles Per Minute Adjustable
HOLD DOWN STYLET Clamp
FLR INCLUDEDFilter, Lubricator, Regulator
CFM AIR SUPPLY REQUIREMENT1/4'' Line @ 90 PSI
SAFETY FEATUREDoor Safety Interlock
GUARDINGEnclosure With Door Safety Interlock
OPERATION STYLEDual Palm Button
OILERRotating Table Oiler
FENCE TYPEFixed
FENCE DIMENSIONS3-1/8'' x 13-3/4''
ADJUSTABLE STROKEAdjustable Limit Switch On T Clamp
FRAME CONSTRUCTIONSteel
WORKTABLE DIMENSIONS18'' x 36''
TABLE CONSTRUCTION MATERIALCast
DECIBEL RATING71 dB
NET WEIGHT1399 Lbs.
GROSS WEIGHT1614 Lbs.
MACHINE DIMENSIONS45'' x 40'' x 63''
PACKAGING DIMENSIONS52'' x 41'' x 68''
