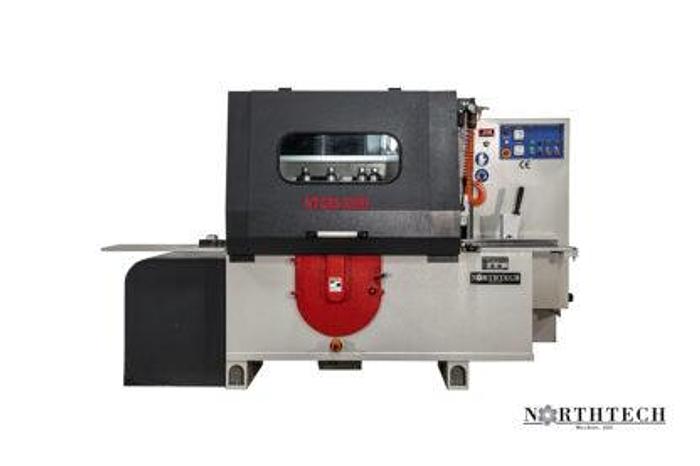

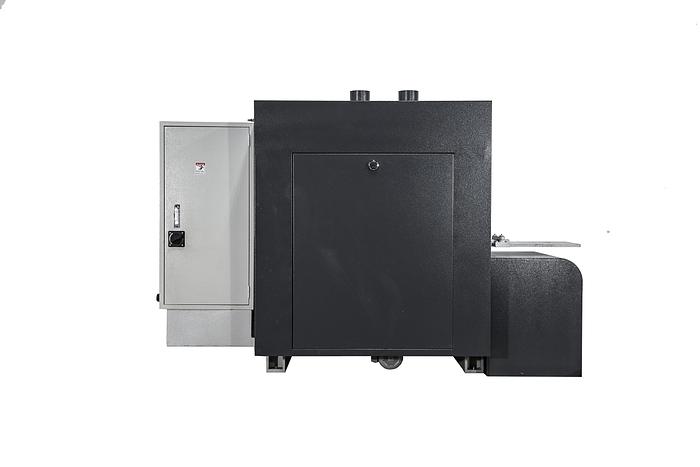

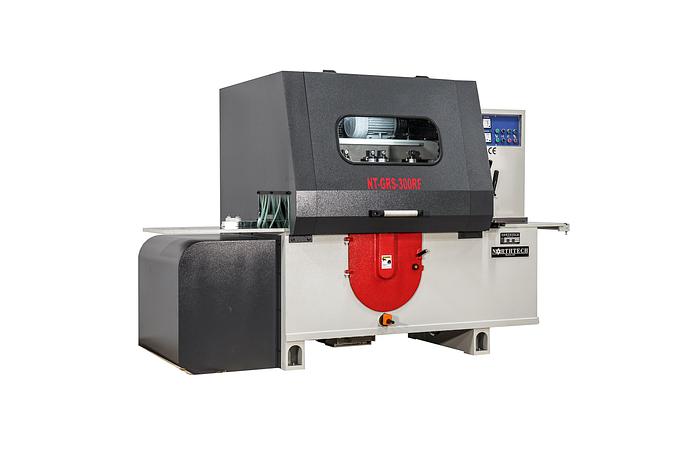

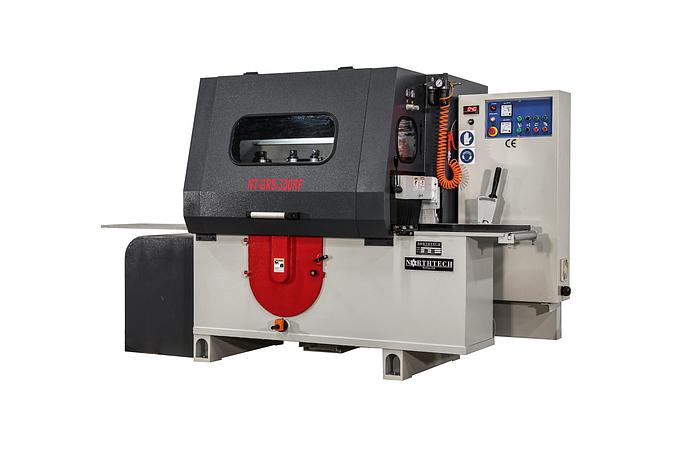

Northtech NT-GRS-300RF ROLL FEED GANG RIP SAW

Northtech NT-GRS-300RF ROLL FEED GANG RIP SAW

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

NT GRS300RF Roll Feed Gang Rip Saw


• Roll feed drive system with bottom arbor for continuous heavy ripping.

• Various motor horsepowers available for any application (25 - 60HP).

• 5HP feeding motor allows speed up to 100fpm

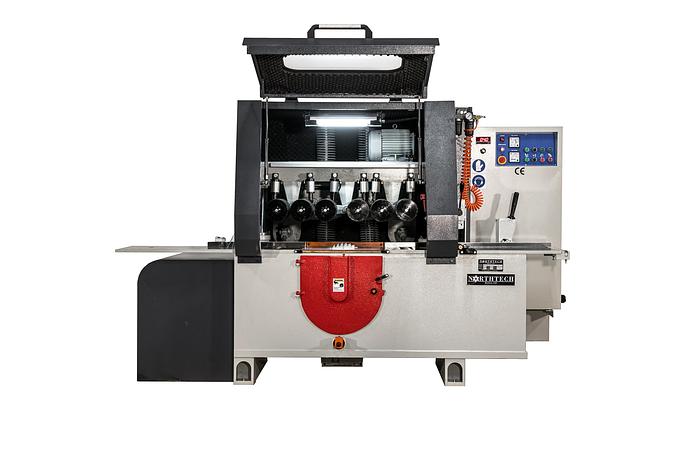

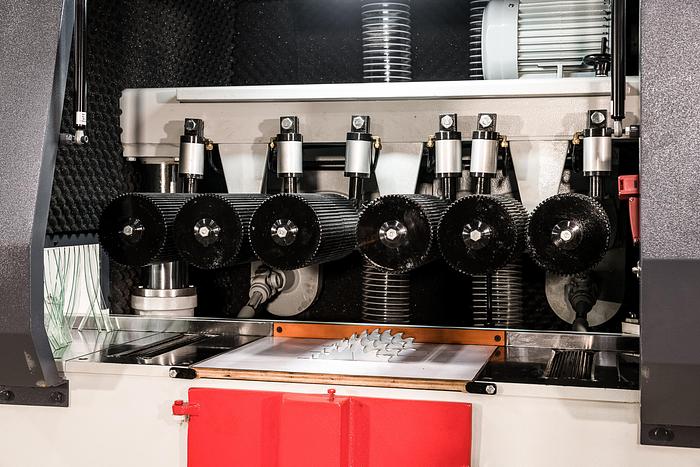

• (6) sets of top steel feed rollers with independent floating pneumatic cylinders

and (2) sets of bed rollers.

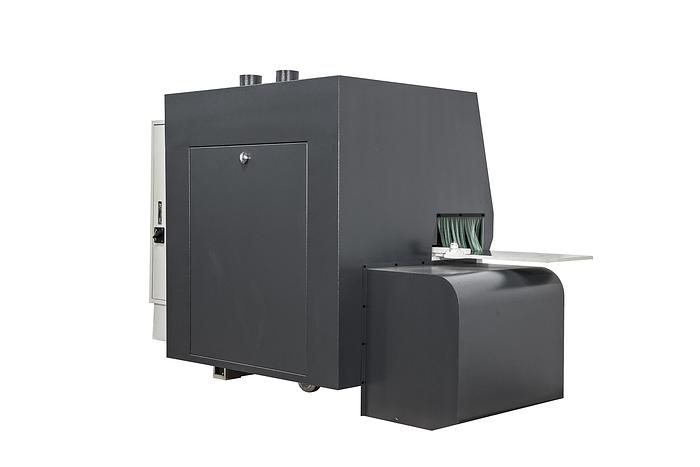

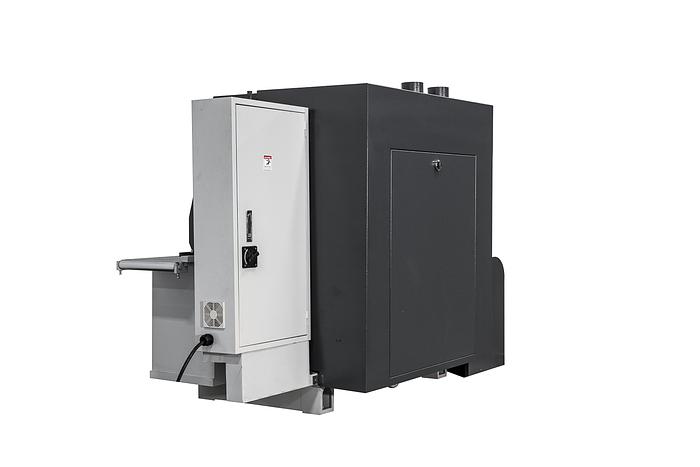

• Full enclosure for operator safety included

• Drive system is powered by a heavy duty gear box drive with cardan shafts,

no chains and sprockets to wear.

• Entire table is hard chrome plated for optimum wear which is 3 - 4 times greater

than normalized iron; a major advantage for constant width material.

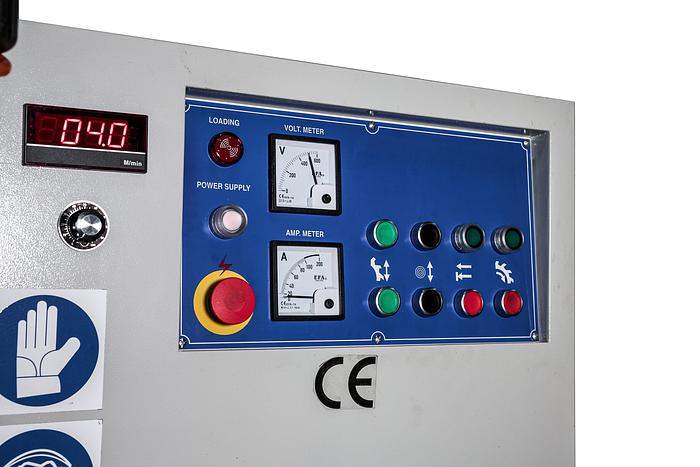

• 1⁄2 HP powered elevation control, conveniently located at operator station.

• Upper and lower limit switches prevent damage to machine from upper assembly.

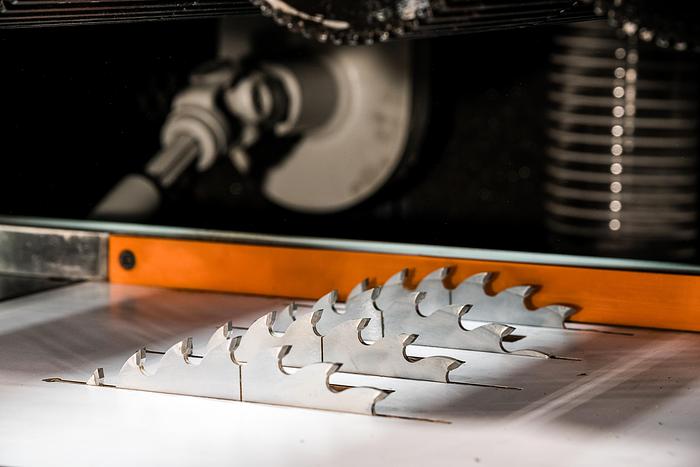

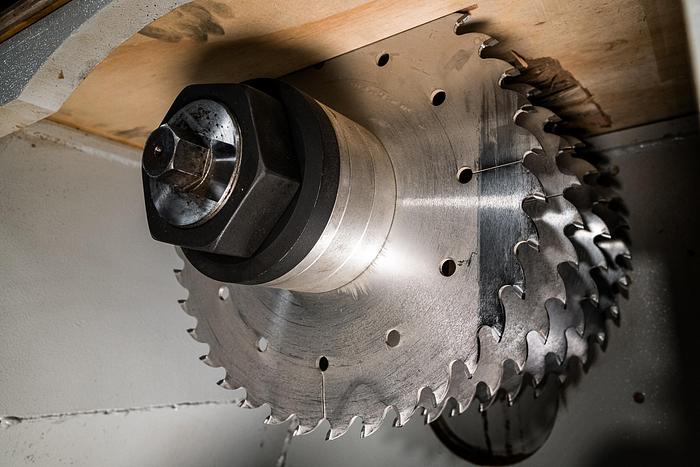

• Spindle is 70mm (2 3⁄4") sleeve style arbor with spacers for quick change setup ((1) included)

and can operate with 10" to 18" diameter saw blades (maximum cutting thickness is 4 3⁄4").

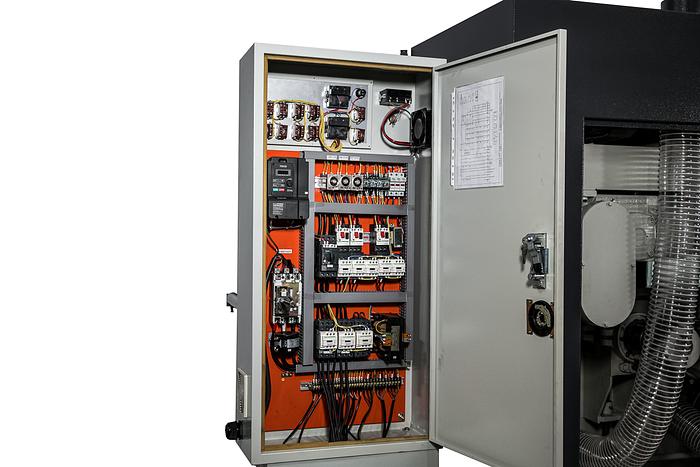

• Equipped with Wye Delta soft start electrics

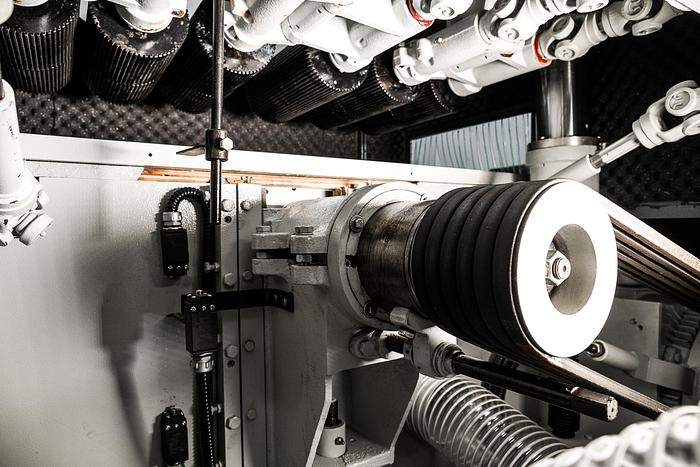

• (4) Matched V belt drive delivers horsepower directly to arbor for pure power transfer

• Northtech offers a full line of dust collectors for any application

• One year parts warranty

• All machines are tested at our corporate headquarters in Indiana prior to shipment providing trouble

free start up.

Specifications

ManufacturerNorthtech
ModelNT-GRS-300RF
ConditionNew
MAIN MOTOR HP60 HP
VOLTAGE, FREQUENCY230/460 Volt 60
PHASE3 Phase
AMP REQUIREMENT100/50 Amps
FEED HP5 HP
FEED SYSTEM(6) Top (2) Bottom Powered Feed Wheels
DRIVE SYSTEMGearboxes / Carden Shaft
FEED SPEED RANGE12-160 FPM
ELEVATION HP1 HP
ELEVATION STYLEPush Button
ELEVATION SYSTEMJack Screw / Guides
TOTAL MACHINE HP66 HP
APPROVED ELECTRICAL PARTSCE Approved Components
DUAL VOLTAGE MOTORS230/460 Volt
CONTROL VOLTAGE220 Volt
ASSISTED STARTWye Delta 60 HP Motor
PASS-LINE32-3/8''
CUTTING ENVELOPE6-9/16'' x 14-1/2''
MIN. WORKING LENGTH9''
MAX. WORKING WIDTH14-1/2''
MIN. WORKING THICKNESS1/2''
MAX. WORKING THICKNESS6-9/16''
ARBOR RPM3000 RPM
BLADE SIZE12'' Carbide Tipped
NO. OF TEETH ON BLADE27
TOOTH SPACING1.05''
BLADE KERF.178''
DUST PORT SIZE OUTLET(2) 5'' Ports
ARBOR DIAMETER70 MM with 21 MM Key Way
DIGITAL DISPLAYFeed Speed
POWERED ROLLERS(8)
HOLD DOWN STYLE(6) Spring Loaded Feed Wheels
KICKBACK FINGERS(60) Top (52) Bottom
FLR INCLUDEDFilter, Lubricator, Regulator
CFM AIR SUPPLY REQUIREMENT3/8'' Line 90 PSI
SAFETY FEATUREEnclosure with Safety Interlock
GUARDINGFull Enclosure
FENCE TYPEAdjustable
FENCE DIMENSIONS1'' x 87''
FRAME CONSTRUCTION1/2'' Steel
WORKTABLE DIMENSIONS16-1/2'' x 106''
TABLE CONSTRUCTION MATERIALSteel
CHROME BED PLATEYes
LASER INCLUDED100mw Laser Light & Mount Bracket
DECIBEL RATING74 dB
NET WEIGHT4247 Lbs.
GROSS WEIGHT4742 Lbs.
MACHINE DIMENSIONS112'' x 54'' x 71''
PACKAGING DIMENSIONS120'' x 61'' x 80''
