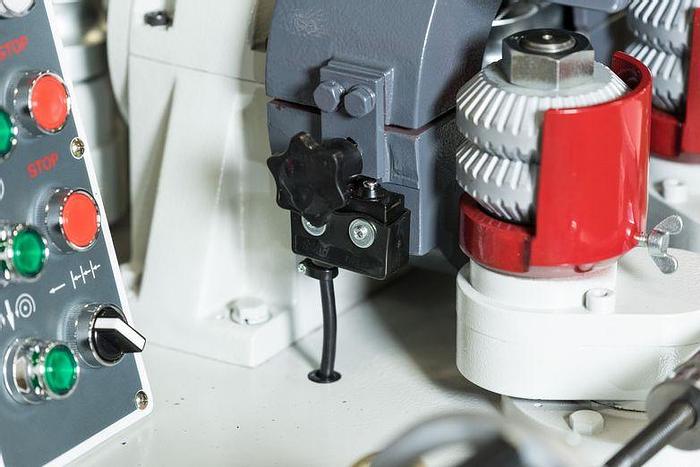

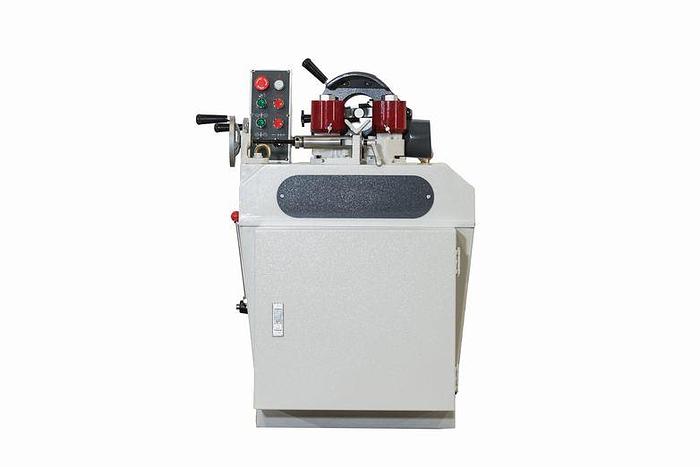

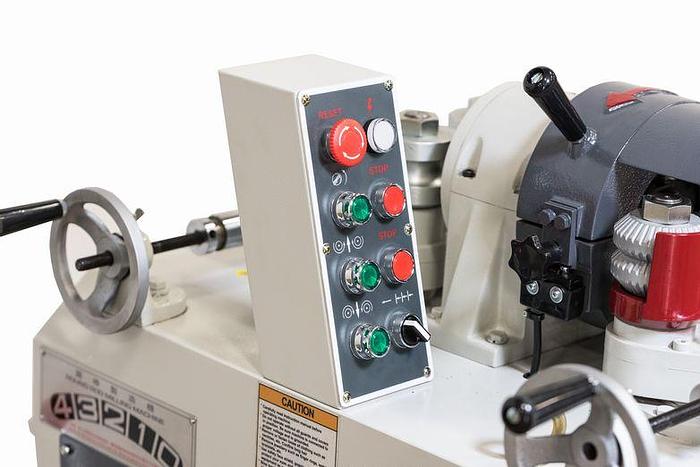

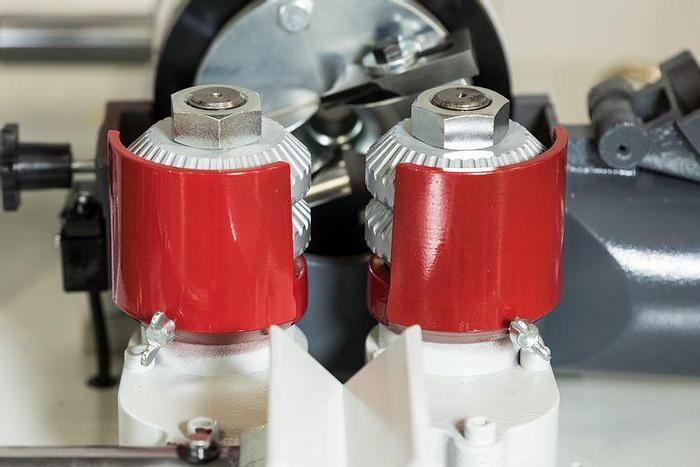

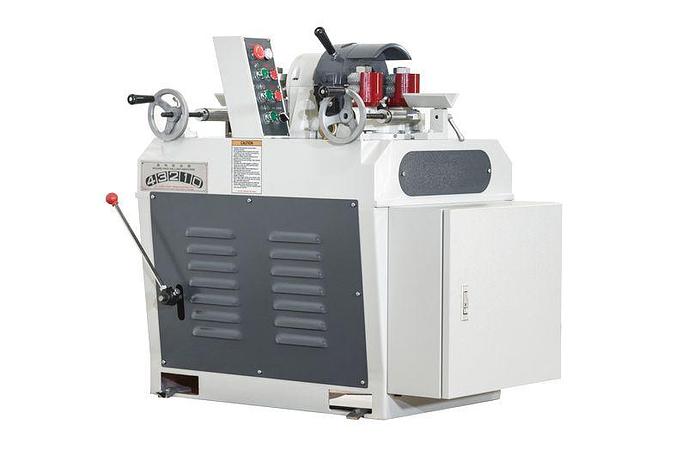

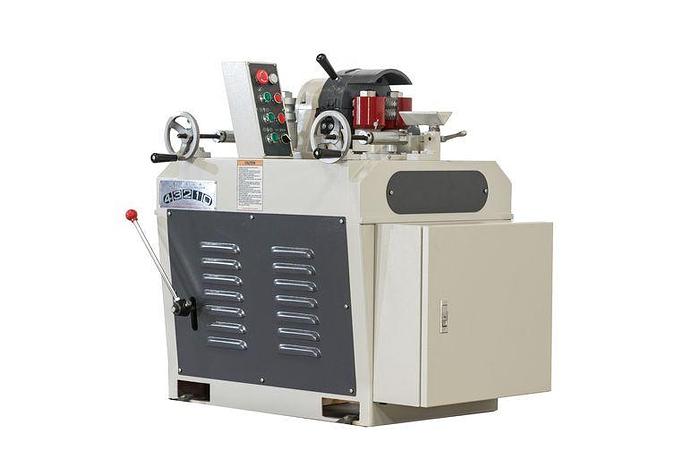

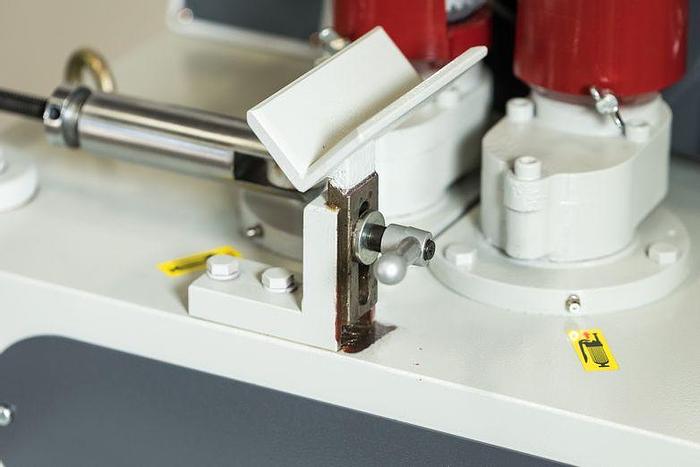

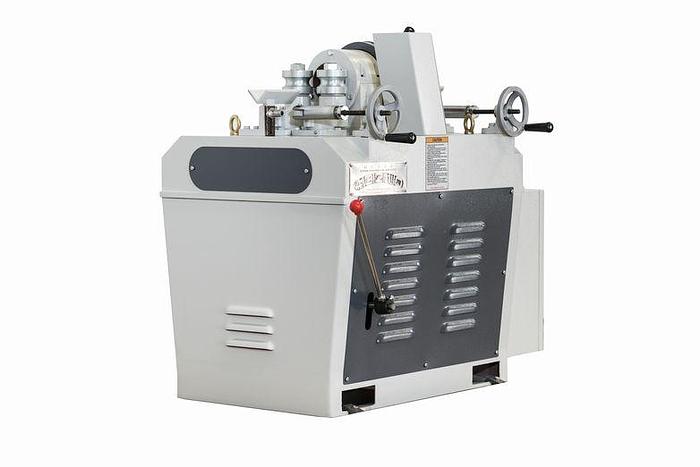

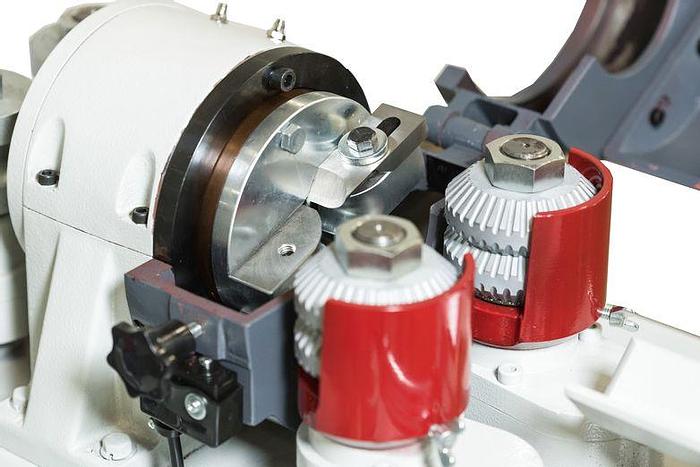

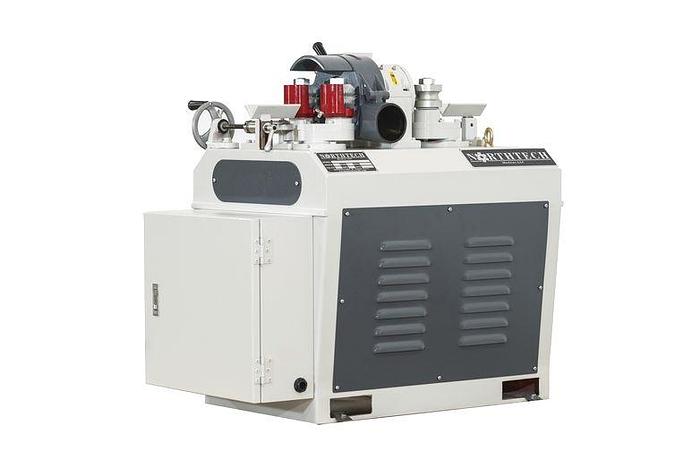

Northtech NT-RM60 ROD MILLING MACHINE

Northtech NT-RM60 ROD MILLING MACHINE

Contact us for price

Get Financing

Location:Dundee, NY

Available quantity:1

or
Call +1 (607) 678-4374

Description

NT-RM60 ROD MILLING

1st Gear 16 FPM

2nd Gear 25 FPM

3rd Gear 35 FPM

4th Gear 50 FPM

Show All

Specifications

ManufacturerNorthtech
ModelNT-RM60
ConditionNew
MACHINE HP12 HP.
REVERSIBLE MOTORFeed
VOLTAGE, FREQUENCY230/460 Volt 60Hz
PHASE3 Phase
AMP REQUIREMENT29.4/14.7 Amps
1st HEAD3-1/8'' HSS Cutterhead
FEED SYSTEMInfeed/Outfeed Rollers

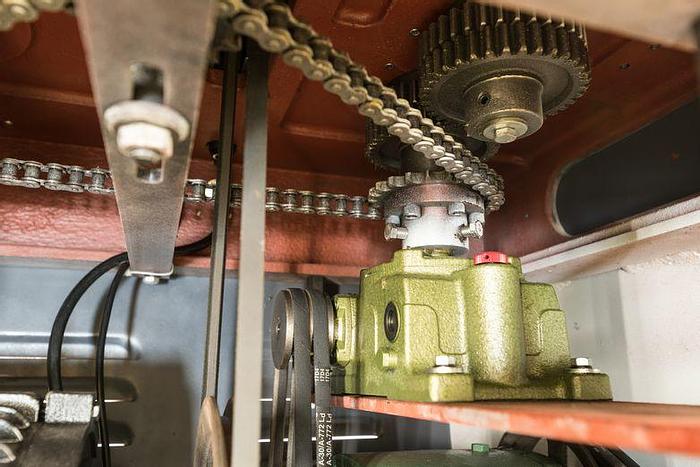

DRIVE SYSTEMGear Box Chain Drive
FEED SPEED RANGE10-30 FPM
VARIABLE FEED SPEED4 Speed Transmission
REVERSIBLE FEEDYes
APPROVED ELECTRICAL PARTSCE Approved Parts
DUAL VOLTAGE MOTORS230/460 Volt
CONTROL VOLTAGE110 Volt
PASS-LINE32''
MIN. WORKING LENGTH13''
MIN. WORKING THICKNESS0.39''
MAX. WORKING THICKNESS3.11''
TOOLINGUnder 42 MM 12 MM Knives Over 43 MM 18 MM Knives
INSERT SIZE12 or 18 MM
DUST COLLECTION REQUIREMENT436 CFM @ Extraction Points
DUST PORT SIZE OUTLET(1) 4'' Port
POWERED ROLLERS(2) Infeed (2) Outfeed
EMERGENCY STOP(1)
GUARDINGCutterhead Enclosure
FRAME CONSTRUCTIONCast / Steel
DECIBEL RATING72 dB
NET WEIGHT904 Lbs.
GROSS WEIGHT1002 Lbs.
MACHINE DIMENSIONS42'' x 27'' x 37''
PACKAGING DIMENSIONS45'' x 32'' x 46''
