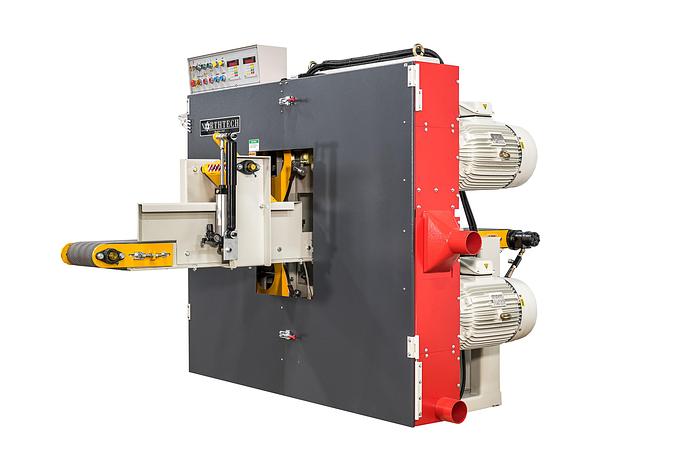

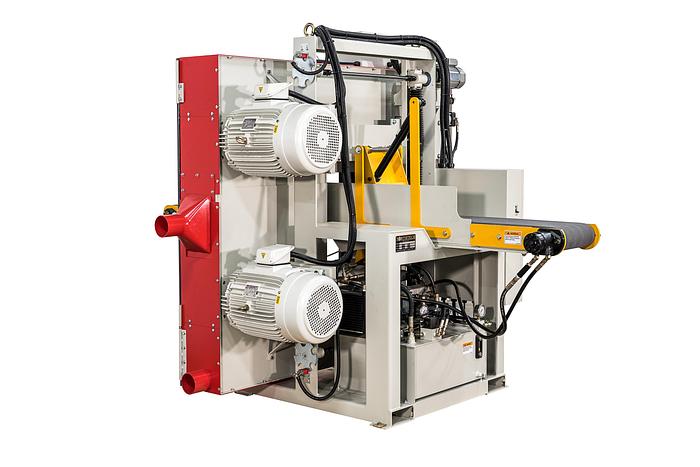

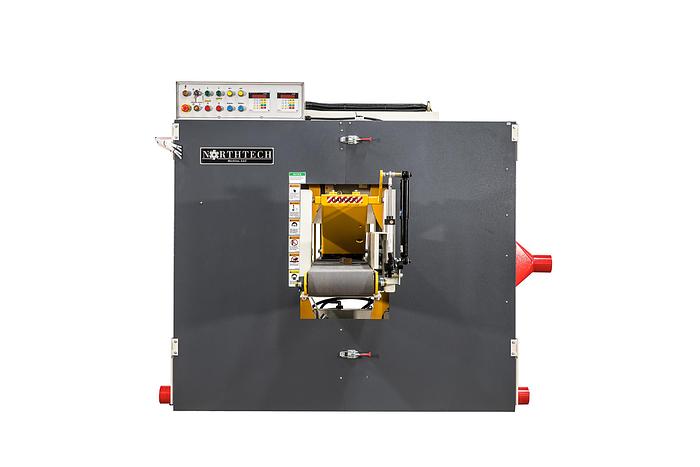

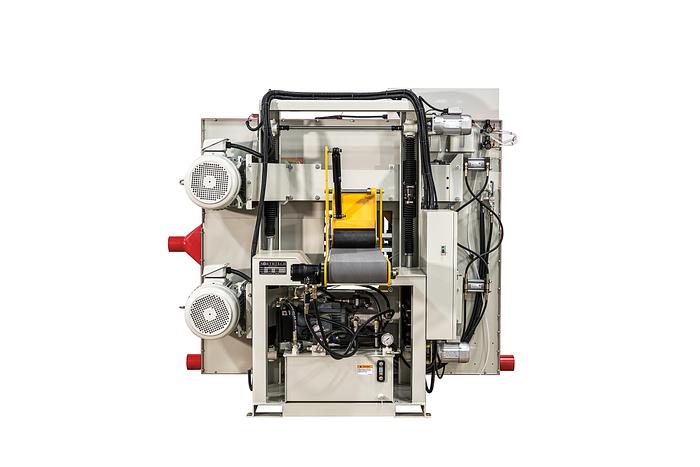

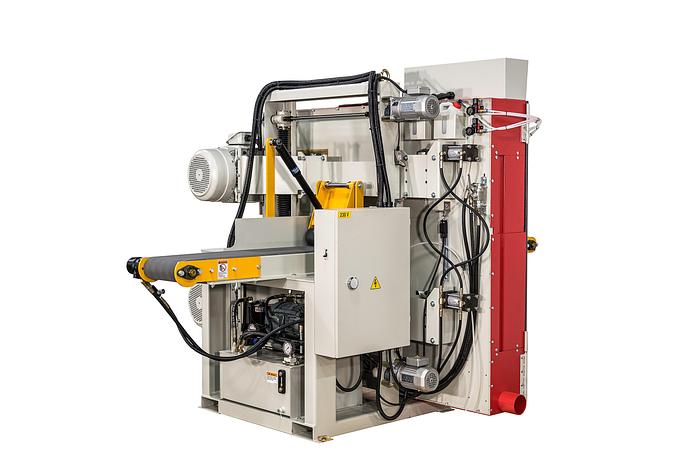

Northtech NT-HBR250BS-2A Horizontal Band Resaw two head

Northtech NT-HBR250BS-2A Horizontal Band Resaw two head
Contact us for price
Location:Dundee, NY
or
Call +1 (607) 678-4374
Description

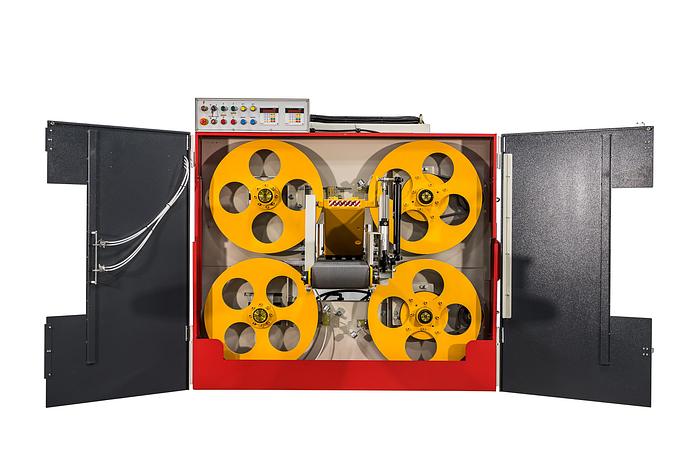

The Northtech HBR250BS-2A is a (2) headed resaw. The top over bottom design not only reduces machine footprint when compared to a traditional multi-head resaw but it relieves stress at the same point for 2 cuts which results in a greater amount thickness consistency on outbound parts. Fabricated with a heavy-duty steel frame that can handle multiple shift operations and a functional simplicity that makes it easy to operate. Full access double door guards and digital head positioning allows quicker change overs with 2x the production output.
Specifications
| Manufacturer | Northtech |
| Model | NT-HBR250BS-2A |
| Condition | New |
| TOP HEAD HP | 20 HP |
| BOTTOM HEAD HP | 20 HP |
| VOLTAGE, FREQUENCY | 230/460 Volt 60Hz |
| PHASE | 3 Phase |
| AMP REQUIREMENT | 108/54 Amps |
| FEED HP | 2 Hp |
| FEED SYSTEM | Feed Mat |
| DRIVE SYSTEM | Hydraulic Pump |
| FEED SPEED RANGE | 0-80 FPM |
| VARIABLE FEED SPEED | Hydraulic Knob Adjustment |
| ELEVATION HP | (2) 1/4 HP |
| ELEVATION STYLE | Jack Screw Rail Slide System |

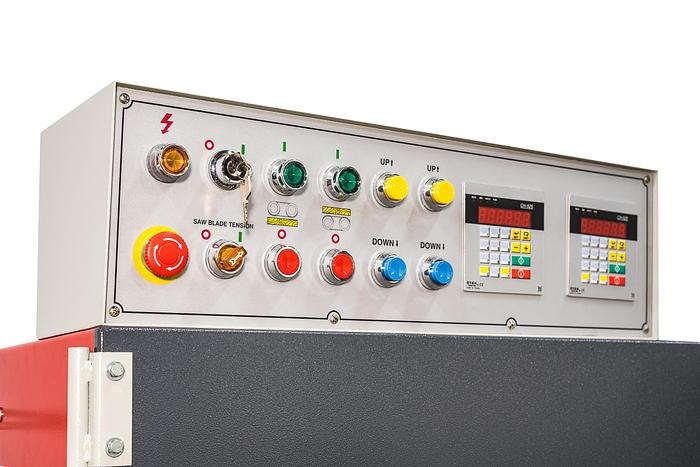

| ELEVATION SYSTEM | CH525 Digital Controller |
| TOTAL MACHINE HP | 42.5 HP |
| APPROVED ELECTRICAL PARTS | CE Approved Components |
| DUAL VOLTAGE MOTORS | 230/460 Volt |
| CONTROL VOLTAGE | 220V Control Voltage |
| MIN. WORKING LENGTH | 23'' |
| MAX. WORKING WIDTH | 12'' |
| MIN. WORKING THICKNESS | 1/2'' Blade to Blade, 1/16'' Minimum Cut single Blade |
| MAX. WORKING THICKNESS | 10'' |
| BLADE SIZE | 1'' x 158'' |
| NO. OF TEETH ON BLADE | 316 Teeth |
| TOOTH SPACING | 1/2'' |
| BLADE KERF | 1.44 MM |
| BLADE HOOK | 10 Degree |
| BLADE SPEED | 6500 FPM |
| CLEANING SYSTEM | Scrapers on Wheels |
| TRACKING STYLE | Manual Adjustment |
| TENSION STYLE | Automatic Hydraulic Tension |
| DUST PORT SIZE OUTLET | (30) 4'' Ports |
| ARBOR DIAMETER | 2-1/4'' |
| DIGITAL DISPLAY | Elevation |

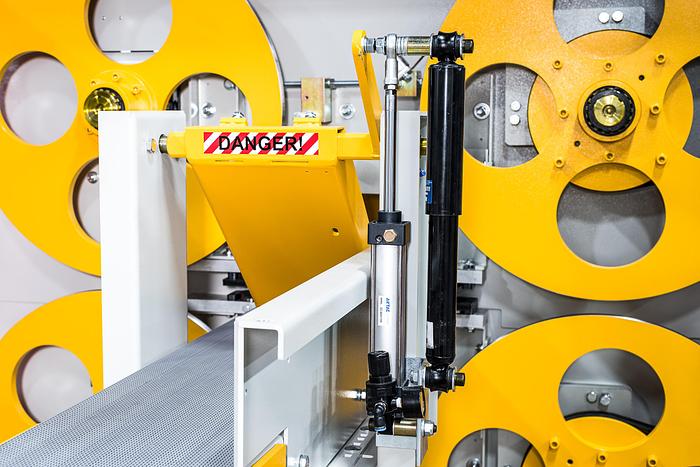

| HOLD DOWN STYLE | Pneumatic Hold Down Rollers |
| FLR INCLUDED | Filter, Lubricator, Regulator |
| CFM AIR SUPPLY REQUIREMENT | 1/4'' Line @ 90 PSI |
| FENCE TYPE | Fixed |
| FENCE DIMENSIONS | 6-3/4'' x 34-1/2'' |
| BLADE WHEEL DIMENSIONS | 28-1/2'' |
| WHEEL DIMENSIONS | 28-1/2'' |
| WHEEL CONSTRUCTION | Cast |
| FRAME CONSTRUCTION | 1/4'' Steel |
| DECIBEL RATING | 75 dB |
| NET WEIGHT | 3456 Lbs. |
| GROSS WEIGHT | 3749 Lbs. |
| MACHINE DIMENSIONS | 84'' x 110'' x 80'' |
| PACKAGING DIMENSIONS | Crate (1) 91'' x 50'' x 83'' 3154 Lbs. Crate (2) 117'' x 27'' x 34'' 487 Lbs. |
