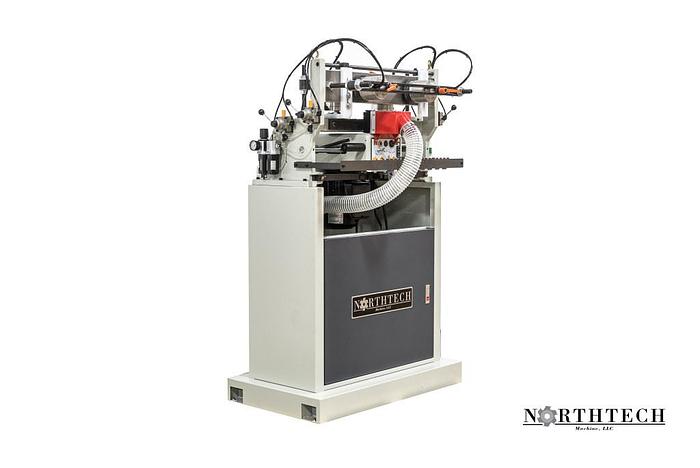

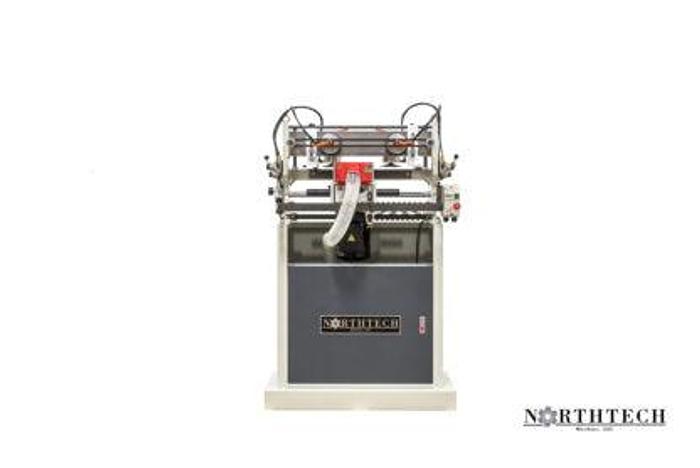

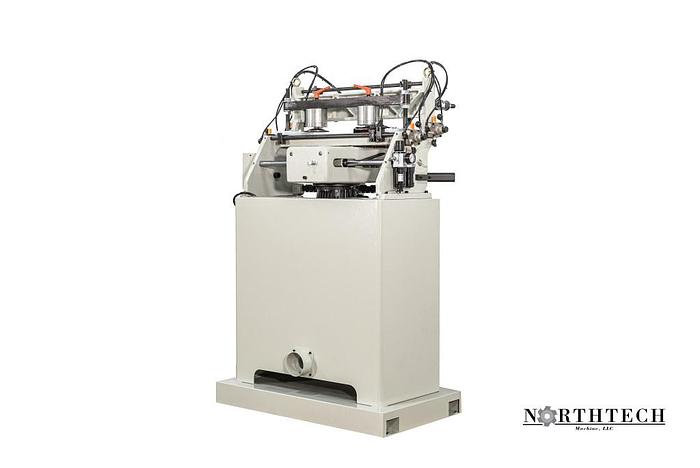

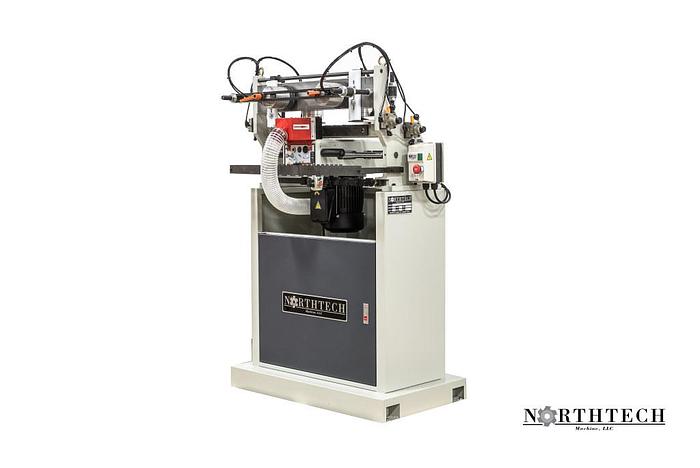

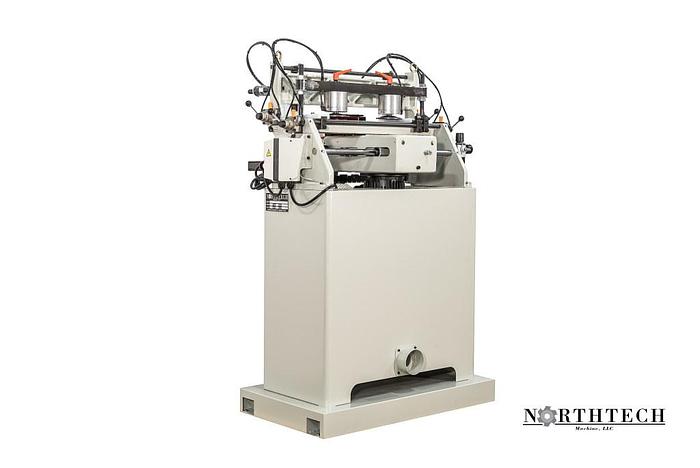

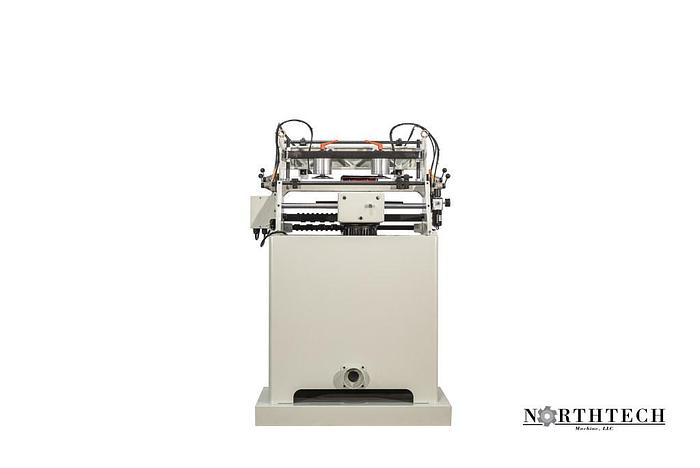

Northtech NT-DTM16M Single Spindle Manual Dovetailer

Northtech NT-DTM16M Single Spindle Manual Dovetailer

Contact us for price

Get Financing

Location:Dundee, NY

Available quantity:1

or
Call +1 (607) 678-4374

Description

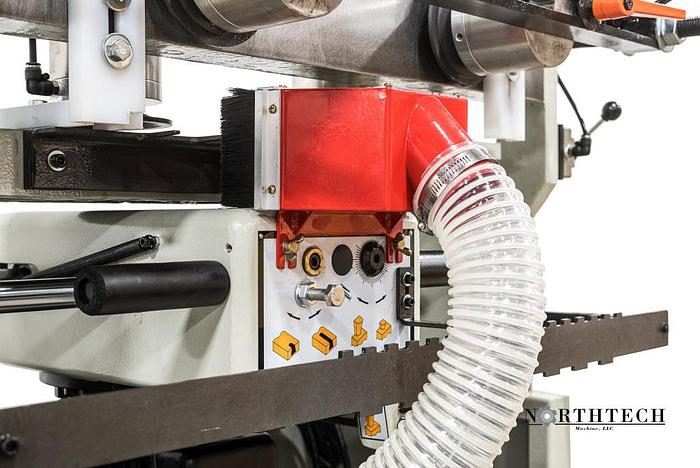

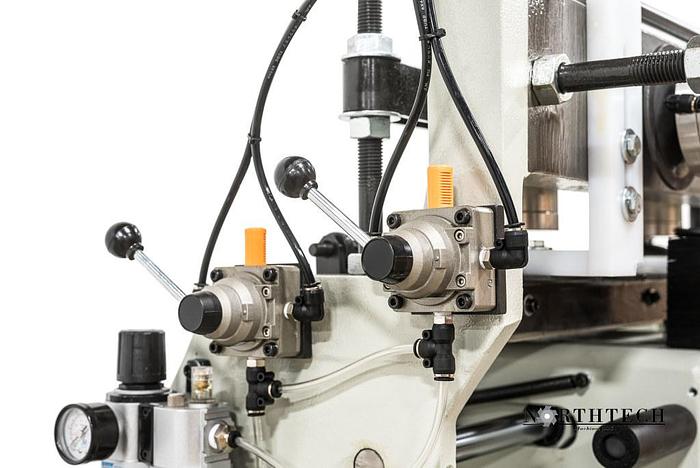

The NT-DTM16M is our entry level dovetail machine. This little unit has a 1HP spindle and 16″ working width and is the ideal solution for smaller production needs. Operator manually moves the single spindle across a precision template with (4) different dovetail patterns. The individually operated pneumatic hold downs securely hold part for processing. Available in120 or 240V 1Ph

Show All

Specifications

ManufacturerNorthtech
ModelNT-DTM16M
ConditionNew
Stock NumberNT-DTM16M
MACHINE HP1 HP
VOLTAGE, FREQUENCY110 Volt 60 Hz
PHASE1 Phase
AMP REQUIREMENT9.2 Amps
SPINDLE ARRANGEMENTSingle Spindle
SPINDLE DIAMETER12 MM Chuck
SPINDLE RPM18500 RPM
APPROVED ELECTRICAL PARTSCE Approved Components
CONTROL VOLTAGE110 Volt
PASS-LINE46-1/2''
MAX. WORKING WIDTH16.5''
MIN. WORKING THICKNESS0.28''
MAX. WORKING THICKNESS2.36''
TOOLING1 Wing Carbide Bit
DUST COLLECTION REQUIREMENT177 CFM @ Extraction Point
DUST PORT SIZE OUTLET(1) 2-1/2'' Port
TOTAL CLAMPS(4)
CFM AIR SUPPLY REQUIREMENT1/4'' Line @ 90 PSI
OPERATION STYLEManual
FRAME CONSTRUCTIONSteel
NET WEIGHT418 Lbs.
GROSS WEIGHT500 Lbs.
MACHINE DIMENSIONS39'' x 27'' x 58''
PACKAGING DIMENSIONS31'' x 43'' x 67''
