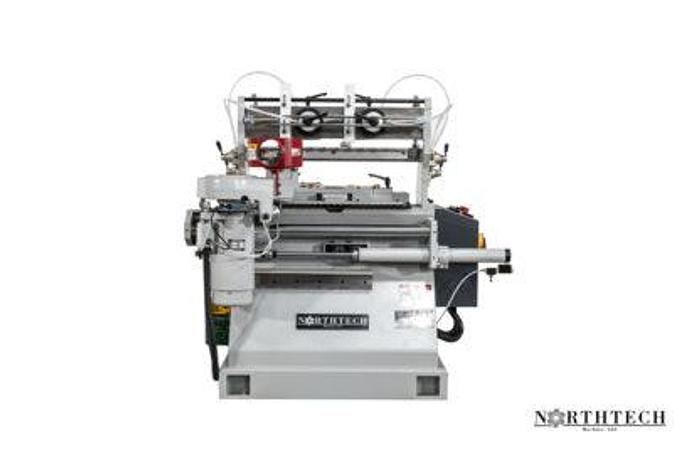

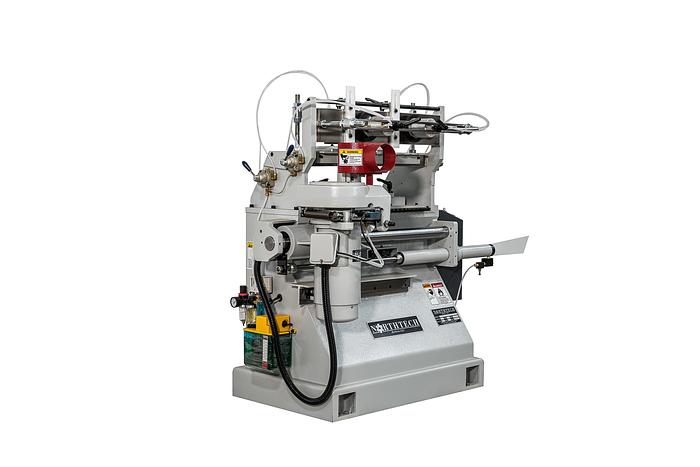

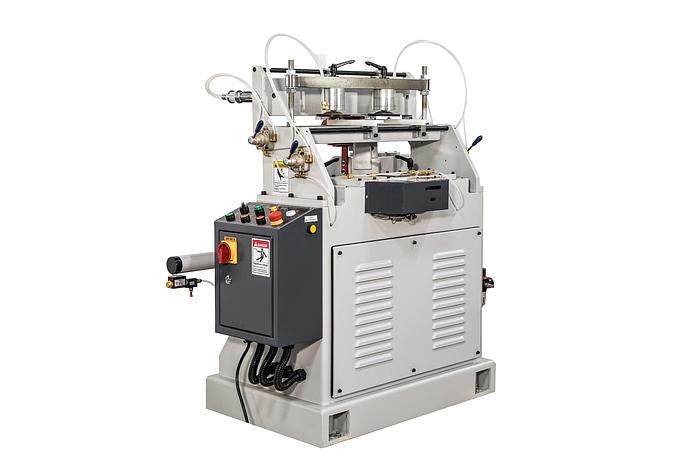

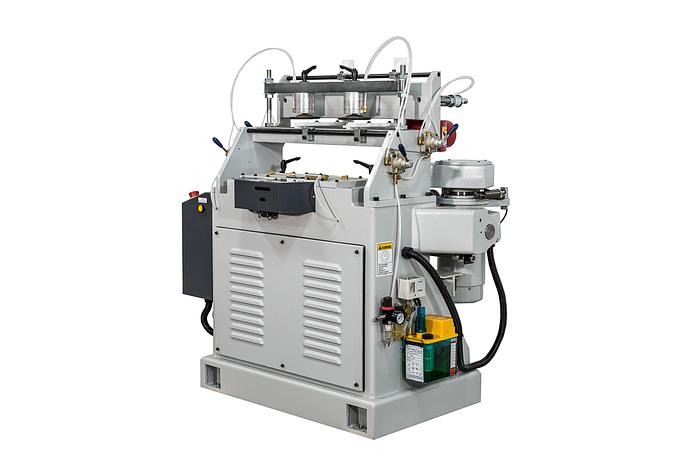

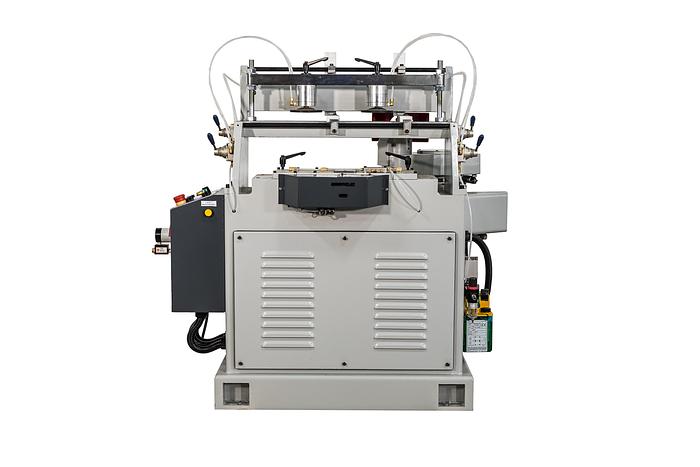

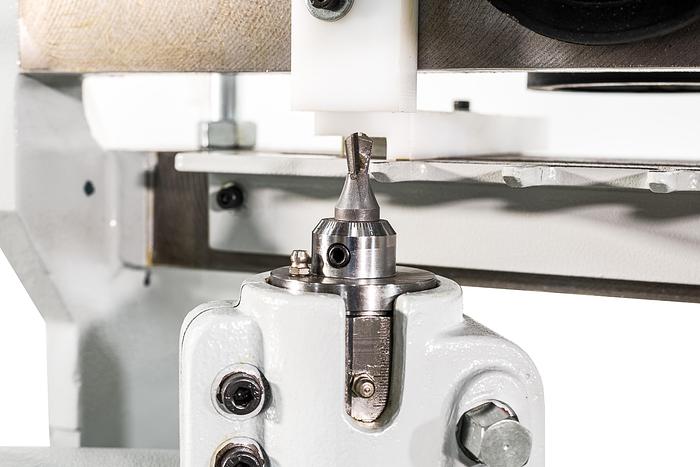

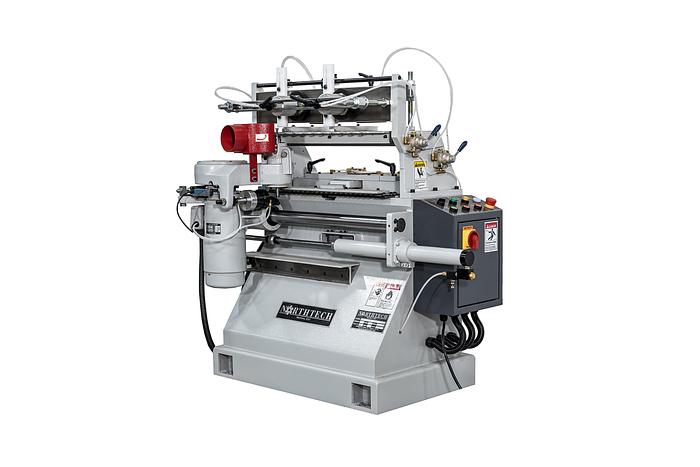

Northtech NT-DTM480 Single Spindle Semi Automatic Dovetailer

Northtech NT-DTM480 Single Spindle Semi Automatic Dovetailer

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

The NT-DTM480 is our single spindle semi-automatic dovetailer. This single spindle indexes across a precision fixed pitch template the entire working width automatically. Unlike other competitive models, the NT-DTM480 has extra 2″ of working width and a return home button. This means you can set the rear limit switch for an automatic return for high volume sizes while also simply pressing the return home button once part is complete. This makes this the most versatile semi-automatics dovetailer on the market today. Available in single phase and three phase this is one of our smallest footprint models.


Specifications

ManufacturerNorthtech
ModelNT-DTM480
ConditionNew
MACHINE HP4 HP
MAIN MOTOR HP2 HP
VOLTAGE, FREQUENCY230/460 Volt 60HZ
PHASE3 Phase
AMP REQUIREMENT13.6/6.8 Amps
CONFIGURATIONSingle Spindle
SPINDLE DIAMETER12 MM
SPINDLE RPM21,500 RPM
FEED HP2 HP
FEED SYSTEMIndexing Mold Board
DRIVE SYSTEMMotor / Gearbox
FEED SPEED RANGE25.5 - 34 - 45.75 Second Cycle Times
VARIABLE FEED SPEED3 Ditch Pulley
APPROVED ELECTRICAL PARTSCE Approved Components
DUAL VOLTAGE MOTORS230/460 Volt
CONTROL VOLTAGE220 Volt
PASS-LINE38-1/4''
MAX. WORKING WIDTH19-1/8'' With Dovetails 24'' Max
MIN. WORKING THICKNESS10 MM
MAX. WORKING THICKNESS20MM
MAX DEPTH MORTISE20 MM
MAX WIDTH MORTISE18 MM
CUTTER HEAD RPM21500 Rpm
TOOLING2 Wing 2 MM Shank
VERTICAL TRAVEL30 MM on Cutter
DUST COLLECTION REQUIREMENT245 CFM @ Extraction Point

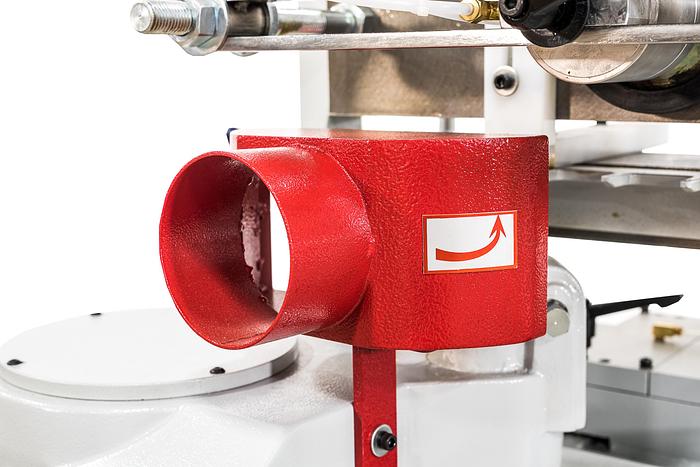

DUST PORT SIZE OUTLET(1) 3''

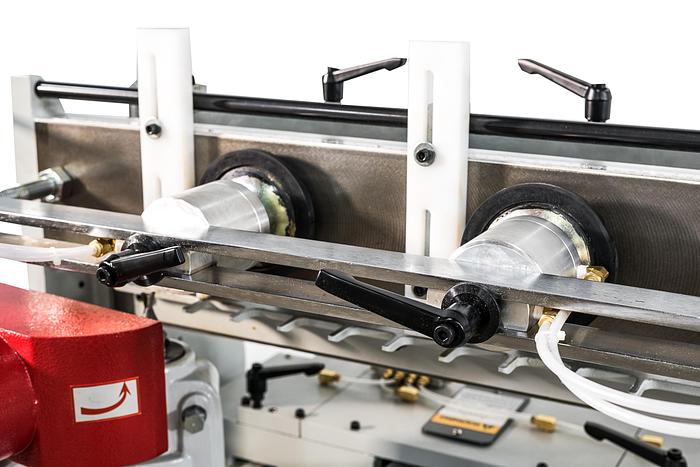

HOLD DOWN STYLE(4) Pneumatic Hold Downs
FLR INCLUDEDFilter, Lubricator, Regulator
CFM AIR SUPPLY REQUIREMENT1/4'' Line @ 90 PSI

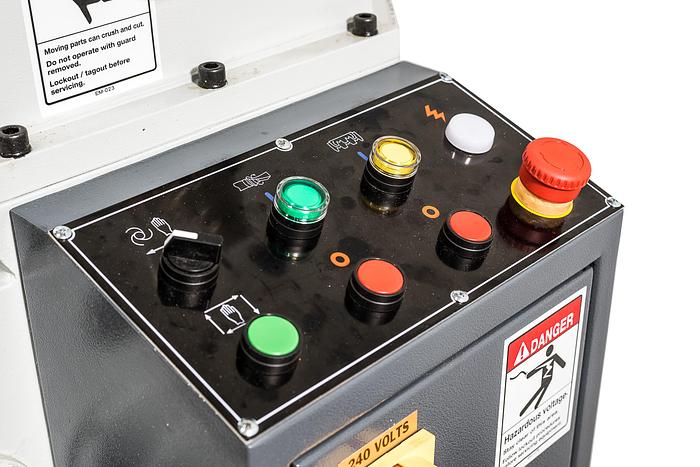

EMERGENCY STOPPush Button
OPERATION STYLEAuto/Manual
OILERAutomatic
FENCE TYPEAdjustable
FENCE DIMENSIONS9'' x 3/4''
FRAME CONSTRUCTION1/4'' Steel
TABLE CONSTRUCTION MATERIALCast
NET WEIGHT1100 Lbs.
GROSS WEIGHT1270 Lbs.
MACHINE DIMENSIONS52'' x 31'' x 48''
PACKAGING DIMENSIONS57'' x 36'' x 58''
