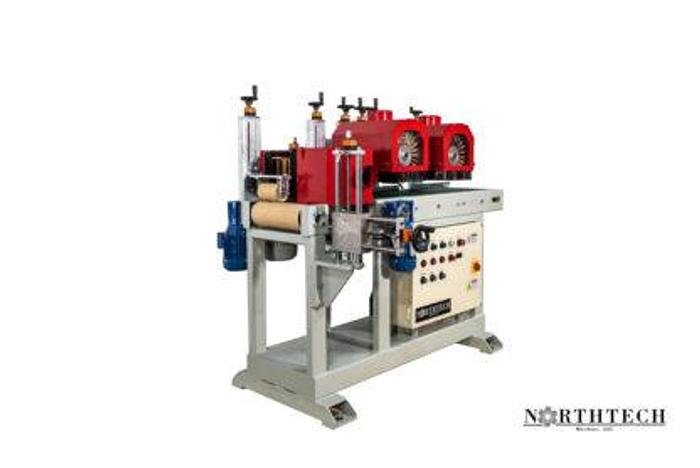

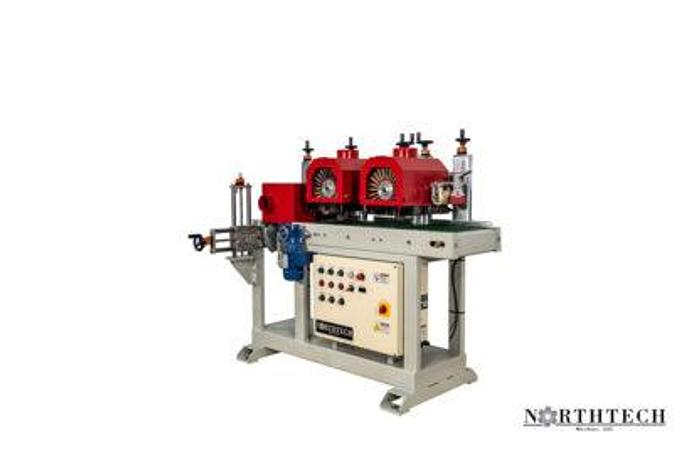

Northtech NT-MBS12-2T1R1OL Moulding Brush Sander
Northtech NT-MBS12-2T1R1OL Moulding Brush Sander
Contact us for price
Location:Dundee, NY
or
Call +1 (607) 678-4374
Specifications
| Manufacturer | Northtech |
| Model | NT-MBS12-2T1R1OL |
| Condition | New |
| Stock Number | NT-MBS12-2T1R1OL |
| MACHINE HP | 5.5 HP. |
| DIRECT DRIVE (MOTOR) | Sanding Heads |
| VOLTAGE, FREQUENCY | 230/460 Volt 60 Hz |
| PHASE | 3 Phase |
| AMP REQUIREMENT | 16.5/8.25 Amps |
| CONFIGURATION | 2 Top 1 Left 1 Right Opposing |
| 1st HEAD | 1.5 HP 10 x 13'' Sanding Head 740 / 1760 RPM |
| 2nd HEAD | 1.5 HP 10 x 13'' Sanding Head 740 / 1760 RPM |
| 3rd HEAD | 3/4 HP 10'' x 7'' Sanding Head 740 / 1760 RPM |
| 4th HEAD | 3/4 HP 10'' x 7'' Sanding Head 740 / 1760 RPM |
| FEED HP | (2) 1/4 HP |
| FEED SYSTEM | 12'' Feed Mat |
| DRIVE SYSTEM | Gear Box / Feed Mat |
| FEED SPEED RANGE | 25-105 FPM |
| VARIABLE FEED SPEED | Inverter Controlled |
| ELEVATION SYSTEM | Manual Wheel Crank |
| APPROVED ELECTRICAL PARTS | CE Approved Parts |
| DUAL VOLTAGE MOTORS | 230/460 Volt |
| CONTROL VOLTAGE | 24 Volt |
| PASS-LINE | 33-3/4'' |
| MIN. WORKING LENGTH | 16'' Single Piece Feed |
| MAX. WORKING THICKNESS | 6'' |

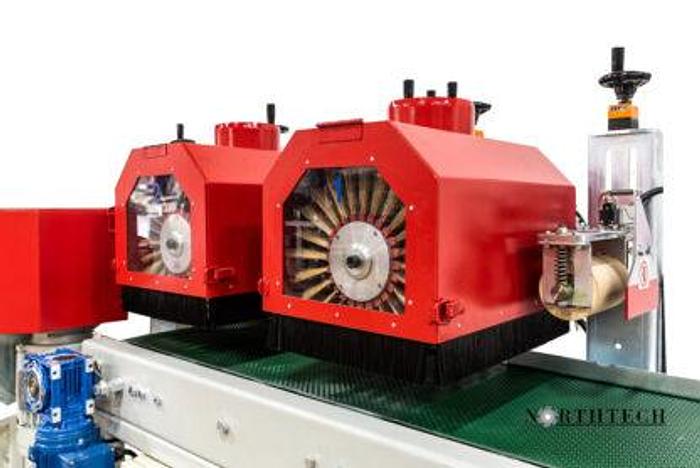

| HEAD TYPE | Insert Brush Head |
| SANDPAPER SIZE | 2-1/2'' x 13'' x 24 Pcs. Per Head |
| DUST COLLECTION REQUIREMENT | 681 CFM @ 5'' Ports 436 CFM @ 4'' Ports |
| DUST PORT SIZE OUTLET | (2) 5'' Top (2) 4'' Side Ports |
| DIGITAL DISPLAY | Feed Speed |
| CONVEYOR | 12'' Conveyor |
| POWERED ROLLERS | (1) Rear Powered Roller |
| IDLE ROLLERS | (4) Idle Rollers |
| HOLD DOWN STYLE | Spring Loaded Rollers |
| EMERGENCY STOP | (1) |
| GUARDING | High Visibilty Guarding |
| FENCE TYPE | Fixed |

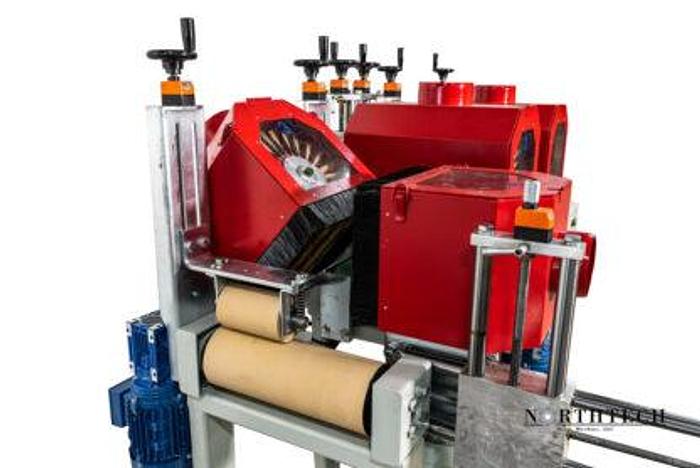

| TILT-ABLE | 45 Degrees Heads 3, 4 |
| DECIBEL RATING | 57 dB |
| NET WEIGHT | 992 Lbs. |
| GROSS WEIGHT | 1254 Lbs. |
| MACHINE DIMENSIONS | 61'' x 65'' x 55'' |
| PACKAGING DIMENSIONS | 66'' x 54'' x 61'' |
