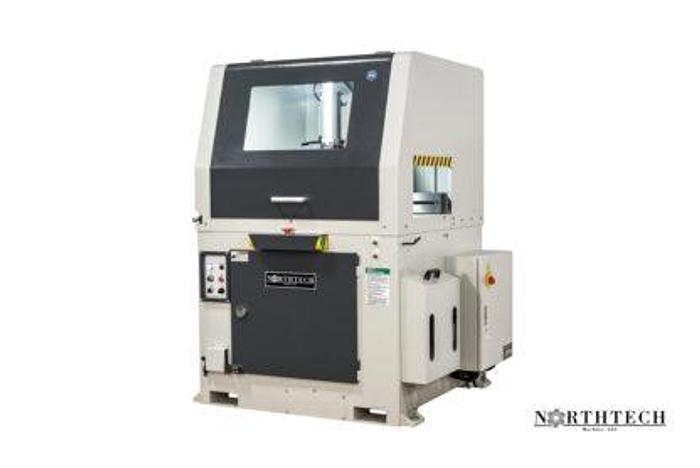

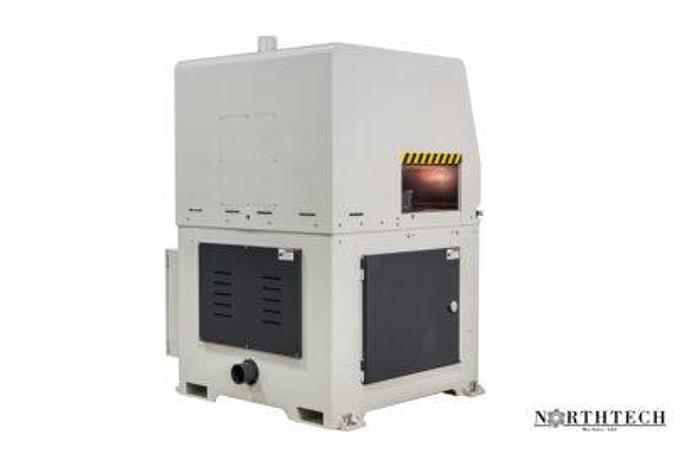

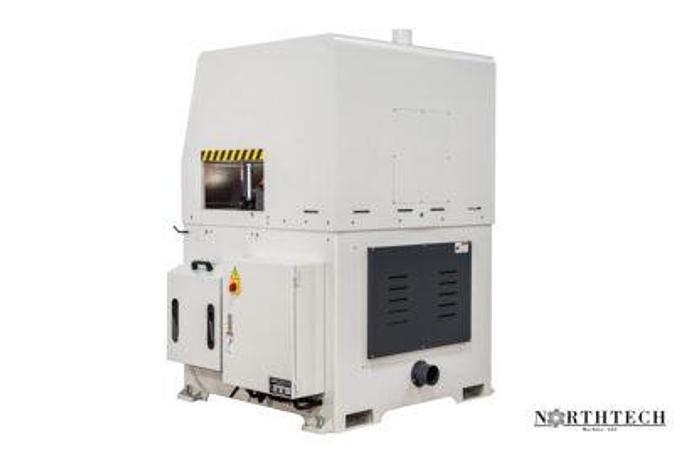

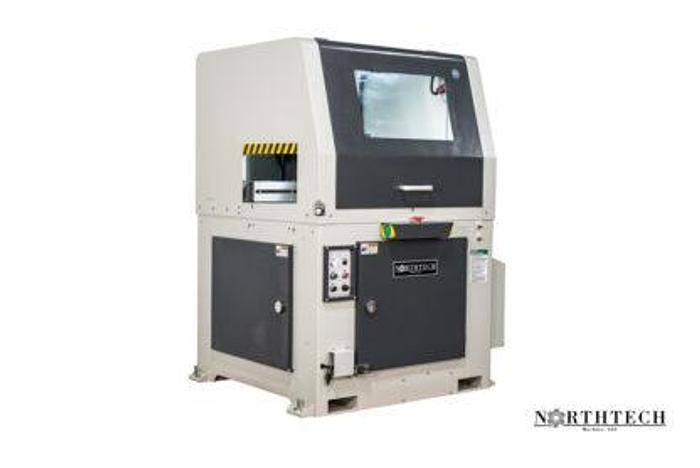

Northtech NT-CS24RT UP CUT SAW ROTARY TABLE

Northtech NT-CS24RT UP CUT SAW ROTARY TABLE

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

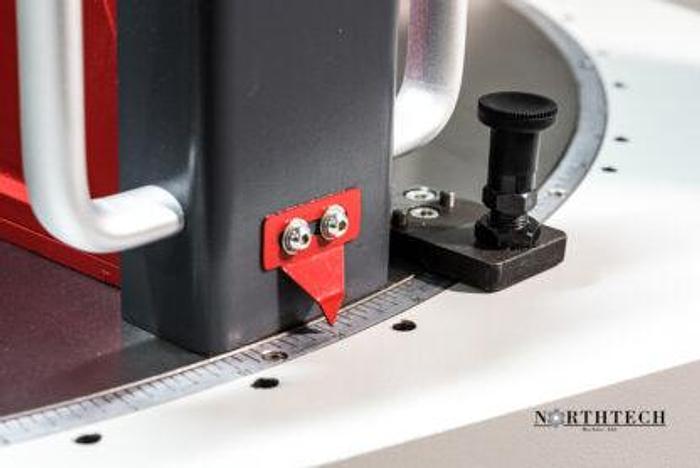

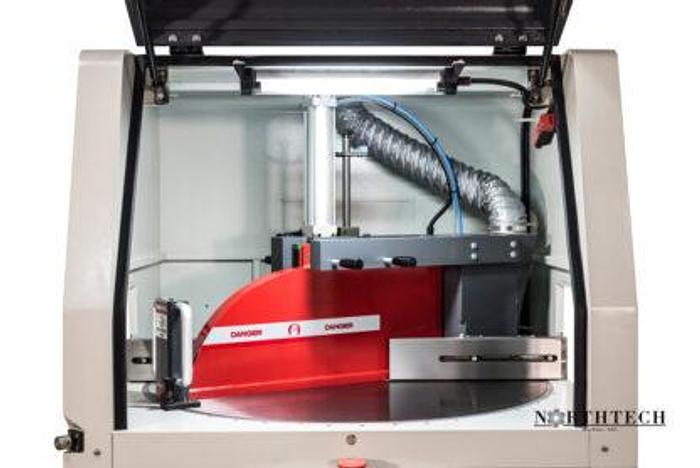

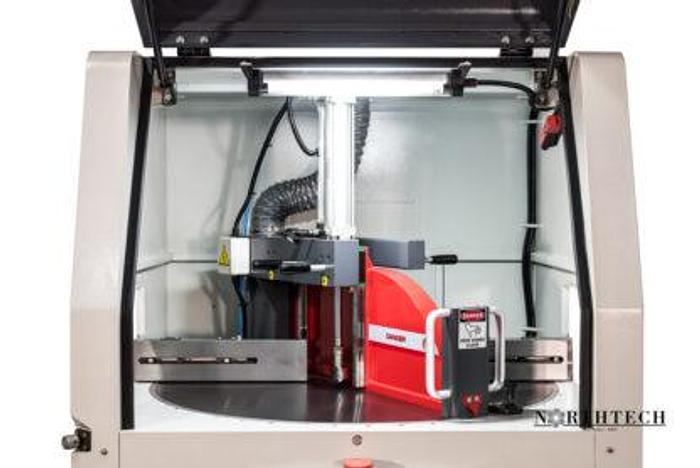

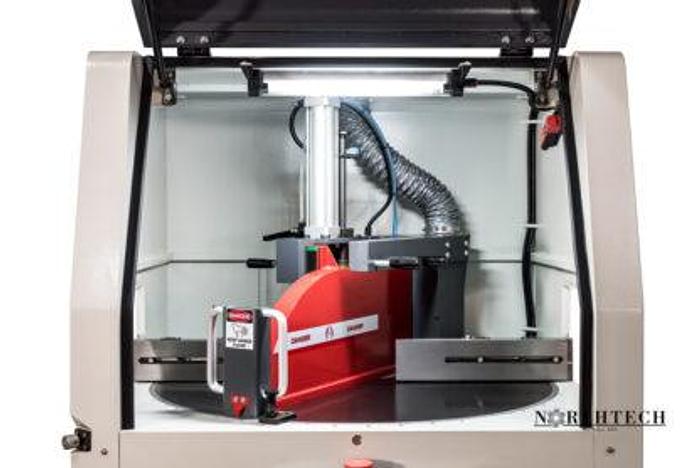

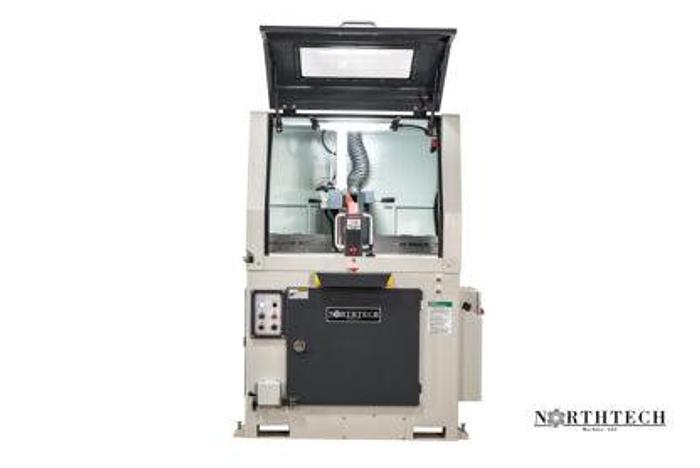

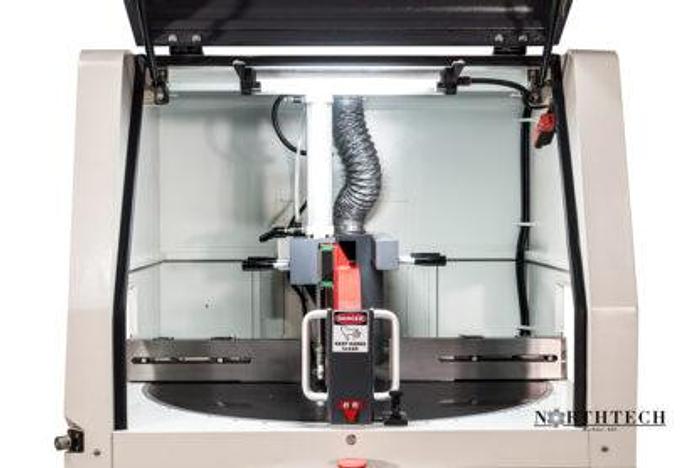

The NT-CS24RT Up Cut Saw is a powerful upcut with 24″ blade and a rotary table allowing it to cut angles in product. Upcut Saws house the blade inside the cabinet of the machine and use a double action cylinder to hold and cut the product safely. The Rotary Table Machines are not hand specific so you can feed parts from the left to the right or the right to the left on the same machine. The Rotary table design allows for the operator to change to specific pinned angles such as 15, 30, 60 and 90degree cuts or anywhere in between by spinning the turret. Using a 24″ diameter blade the CS24RT has the largest cut capacity available on 90-15 degree angles. This machine comes standard with stroke speed control, emergency stop, safety switch, safety enclosure guarding and stroke adjustments for the blade and the top clamp making it ideal for wood and plastic application. The CS24RT has several available options such as two handed cycle operation, infeed/outfeed tables, chromed machine table and safety interlocked cabinet doors for restricted operator access.


Cutting Envelope:

1” x 15-5/8”

2” x 15-1/4”

3” x 14-5/8”

4” x 14”

5” x 13-1/8”

6” x 12”

7” x 10-5/8”

7-3/4” x 8-3/4”

8-1/2” x 2-3/4”


Specifications

ManufacturerNorthtech
ModelNT-CS24RT
ConditionNew
Stock NumberNT-CS24RT
MAIN MOTOR HP10 HP
VOLTAGE, FREQUENCY230/460 Volt 60Hz
PHASE3 Phase
AMP REQUIREMENT27/13.5 Amp
APPROVED ELECTRICAL PARTSCE Approved Components
DUAL VOLTAGE MOTORSc CE Approved Components
CONTROL VOLTAGE220 Volt
PASS-LINE39-1/2''
CUTTING ENVELOPE1'' x 15-5/8'' - 8-1/2'' x 2-3/4''
MAX. WORKING WIDTH1'' x 15-5/8''
MAX. WORKING THICKNESS8-1/2''
ABLE TO CUT ANGLE0-60 Degrees
ARBOR RPM2060 RPM
BLADE SIZE24'' Carbide Tipped
NO. OF TEETH ON BLADE120 Tooth
TOOTH SPACING.602''
BLADE KERF.154''
DUST COLLECTION REQUIREMENT436 CFM @ Point of Extraction
DUST PORT SIZE OUTLET(2) 4'' Ports
ARBOR DIAMETER1''
HOLD DOWN STYLET Clamp
FLR INCLUDEDFilter, Lubricator, Regulator
CFM AIR SUPPLY REQUIREMENT1/4'' Line @ 90 PSI
SAFETY FEATUREDoor Safety Interlock
GUARDINGFull Enclosure
OPERATION STYLEManual
FENCE TYPEFixed with Side Movement
FENCE DIMENSIONS(2) 4-1/4'' x 18''
ADJUSTABLE STROKE6-1/2'' on Stroke
FRAME CONSTRUCTIONSteel Construction
TABLE CONSTRUCTION MATERIALCast Construction
DECIBEL RATING68 dB
NET WEIGHT2288 Lbs.
GROSS WEIGHT2550 Lbs.
MACHINE DIMENSIONS56'' x 54'' x 75''
PACKAGING DIMENSIONS62'' x 54'' x 84''
