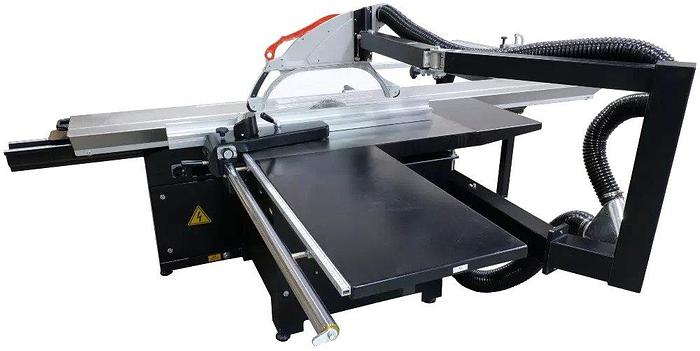

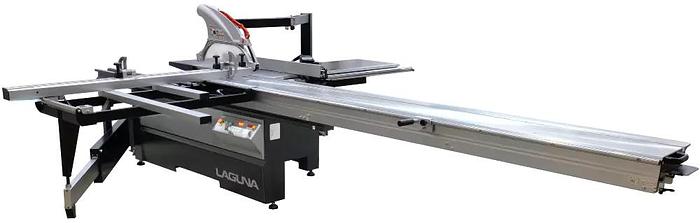

Laguna P14|10 Panelsaw

Laguna P14|10 Panelsaw

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

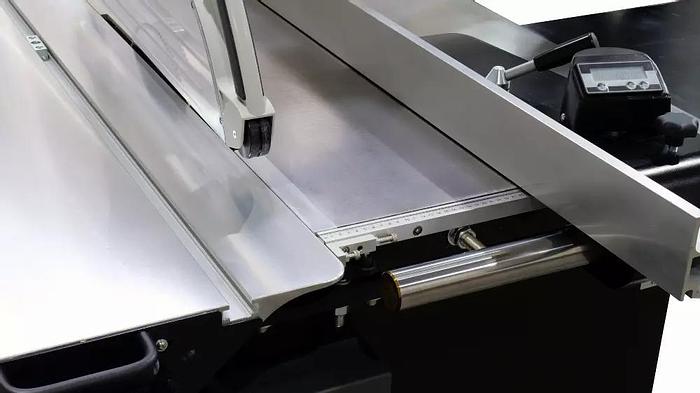

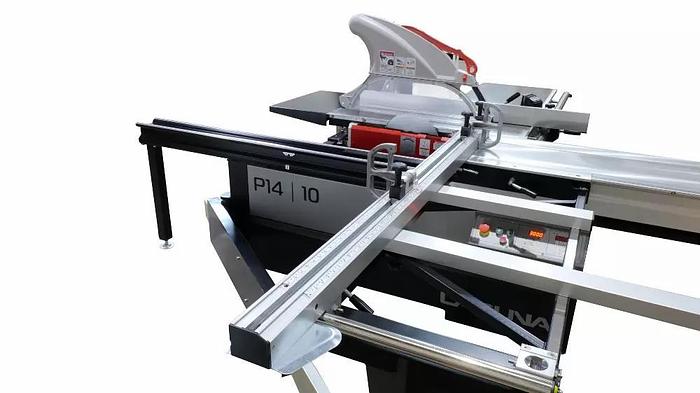

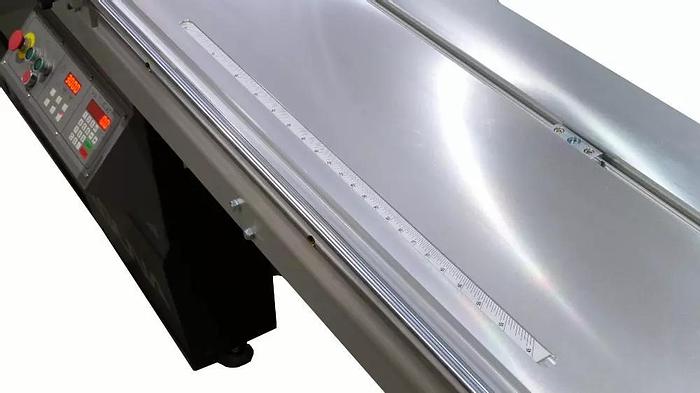

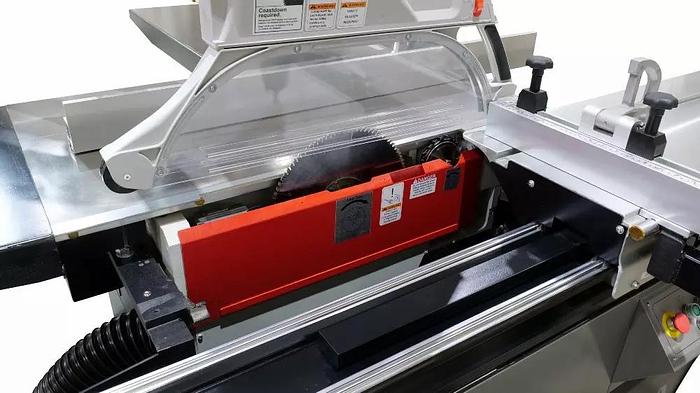

The sliding table is constructed of anodized aluminum. The dumbbell design is widely recognized as the superior choice for high-end sliders today. Ultra-smooth movement allows you to move the table effortlessly. The European-style 51″ rip fence consists of a heavy-duty casting riding on a micro-polished solid steel bar. On the backside of the casting is a small adjustable wheel to make sideways movement a breeze. The rip fence is outfitted with a micro-adjustment for fine-tuning; simply lock it in place and adjust the fence incrementally. The overhead guard comes standard with quick-change 90° and 45° guards; you can switch from one to the other in a matter of seconds. A nice detail is the swing-away function that allows you to quickly move the guard out of the way.


Features:

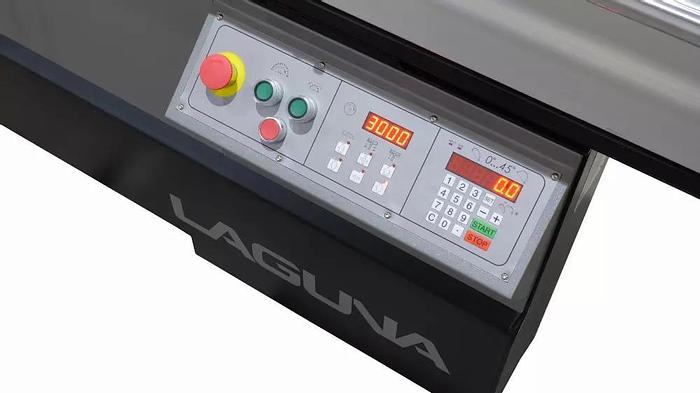

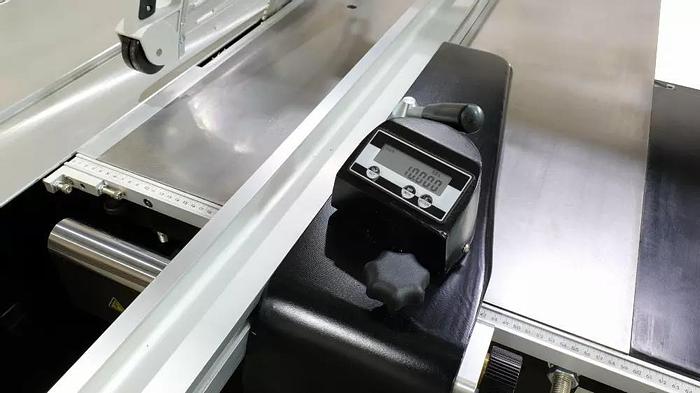

Manual Control For Cutting Width Adjustment w/ DRO

Digital Control For Saw Blade Tilting Adjustment

Motorized Control For Main Saw Blade Height Adjustment

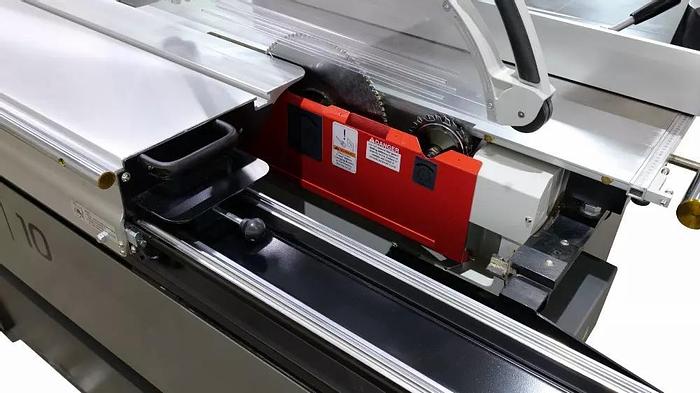

Motorized Control For Scoring Saw Height Adjustment

Motorized Control For Scoring Saw +/- Direction Adjustment

Digital Display For Blade Tilting Angle

Digital Display For Main Blade Speed RPM

Specifications

ManufacturerLaguna
ModelP14|10
ConditionNew
Sliding Table Capacity10′ 6″
Motor Power7.5HP 220V/ 60Hz/ 3Ph
Max Main Saw Blade14″
Max Cutting Height w/ Blade at 90°4-3/4″
Max Cutting Height w/ Blade at 45°2-3/4″
Main Motor Power7.5HP 220V/ 60Hz/ 3Ph
Main Saw Speed3000/4000/5000 RPM
Scoring Saw BladeØ120mm
Scoring Saw Blade BoreØ20mm
Scoring Blade Speed8000 RPM
Scoring Motor Power1HP
Max Rip Capacity51″
