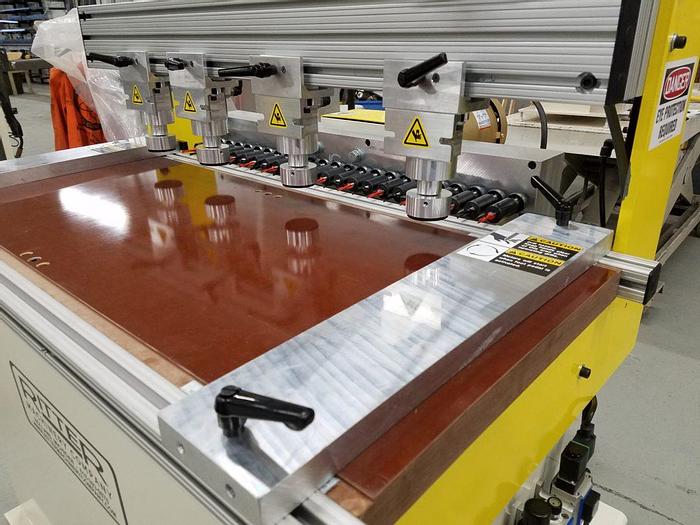

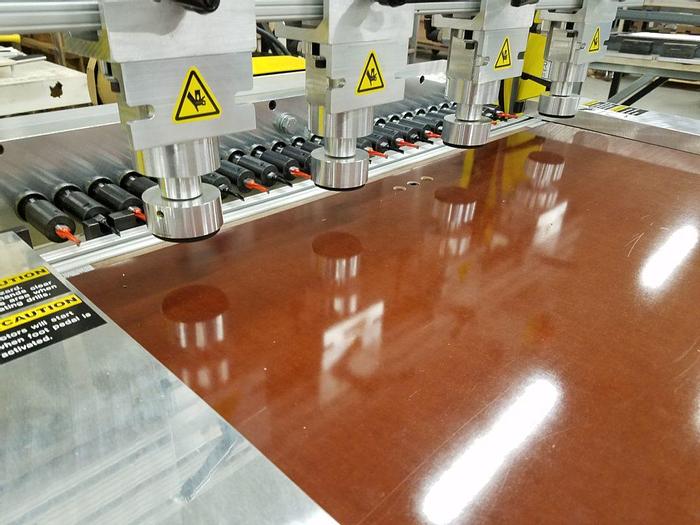

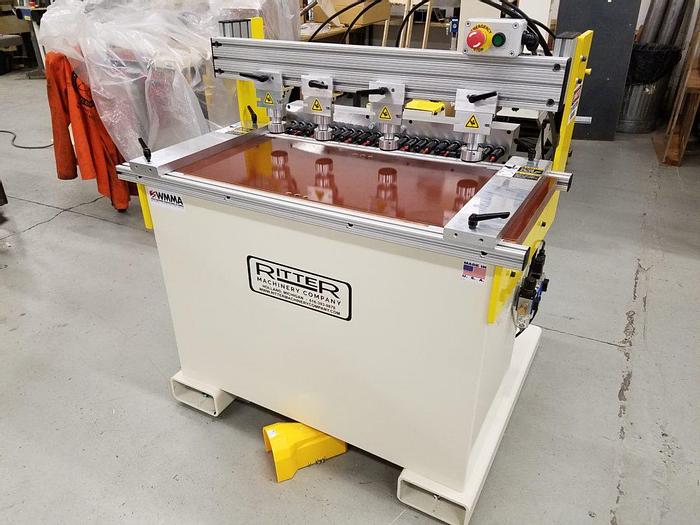

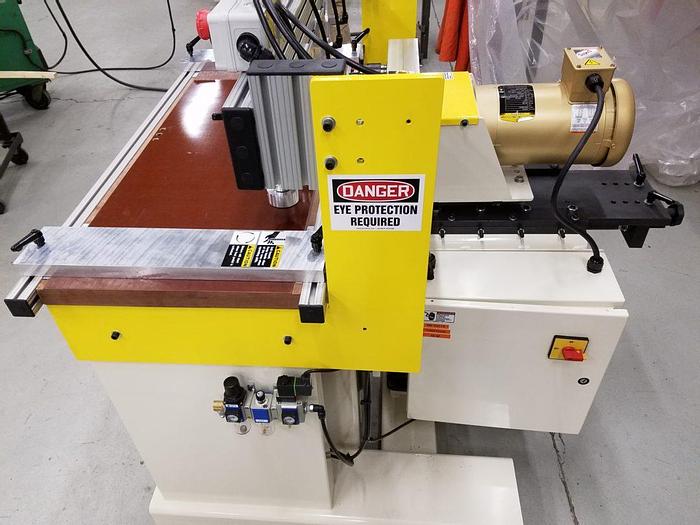

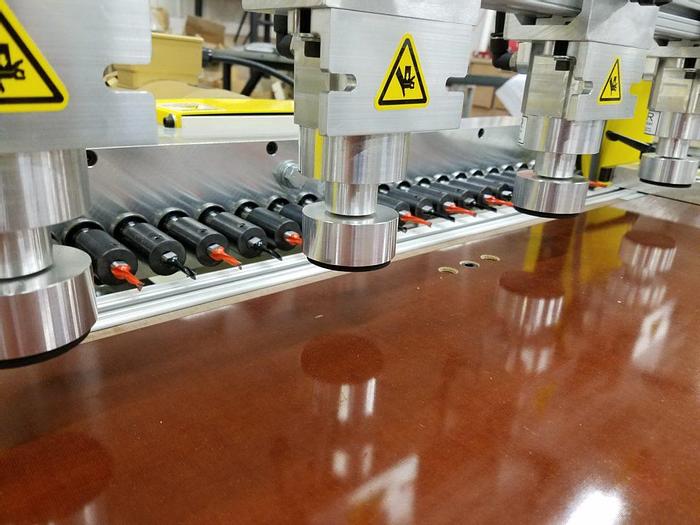

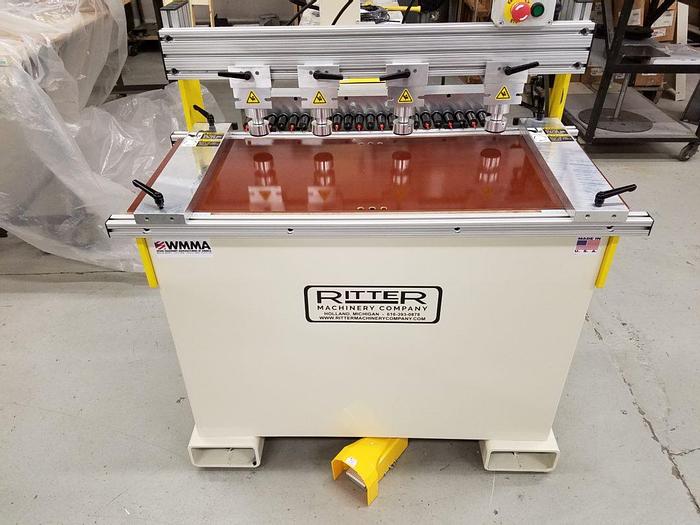

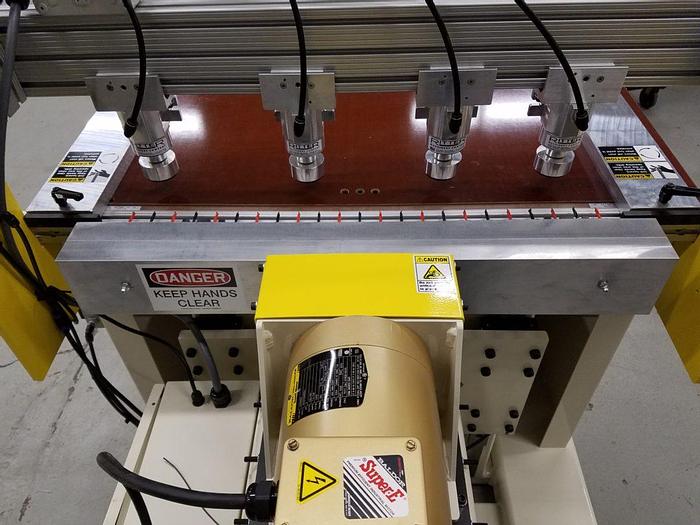

RITTER R823 HORIZONTAL BORING MACHINE

RITTER R823 HORIZONTAL BORING MACHINE

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

The Ritter R823 is a robust, 23 spindle horizontal borer, designed to be used as a supplemental borer for CNC nested based router and point-to-point borer applications, producing clean and accurate drilling of wood components. The workpiece is held firmly against the table by a pneumatic clamps, and there is full adjustability of the index stops, bed height, and depth of cut.


If you have need for a different machine configuration, check out the other horizontal borers in our line of machinery. Still not finding what you’re looking for? Give us a call, we are happy to discuss your specific application!


  • 23-Horizontal Gear Driven Spindles
  • 32mm Spindle Centers
  • 10 Mm Bored Collets
  • (12) Right Hand, (11) Left Hand
  • 3,450 Spindle Rpm
  • 3 H.P. Spindle Drive Motor, TEFC
  • 0-2″ Adjustable Boring Depth
  • 20″ X 42″ Precision Ground Table
  • Back Fence Lip
  • (2) End Boring Fences
  • (1) 5-Ton Carriage Adjusting Jack
  • (4) 2.00″ Bore Clamping Cylinder
  • Wired 3-Phase 480 Volt, 60 Hz. (optional single-phase)
  • Foot Pedal Actuated Boring Cycle
  • No Tooling Included
  • Designed And Manufactured In The USA
  • Crate Dimensions: 54″ X 54″ X 55″ Weight: 1,485 Lbs


Specifications

ManufacturerRitter
ModelR823
ConditionNew
Stock NumberR823
