Omga RADIAL 600 P3S RADIAL ARM SAW

Omga RADIAL 600 P3S RADIAL ARM SAW

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

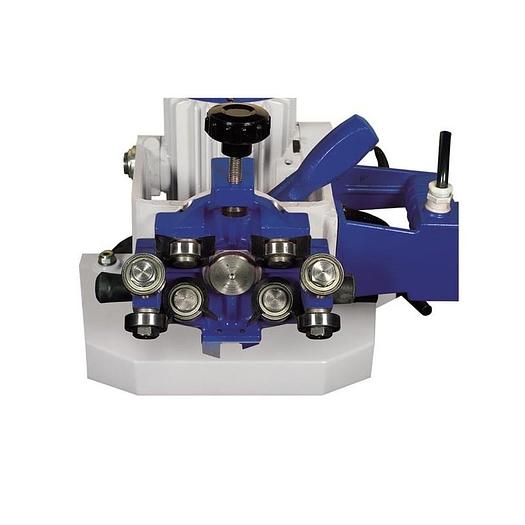

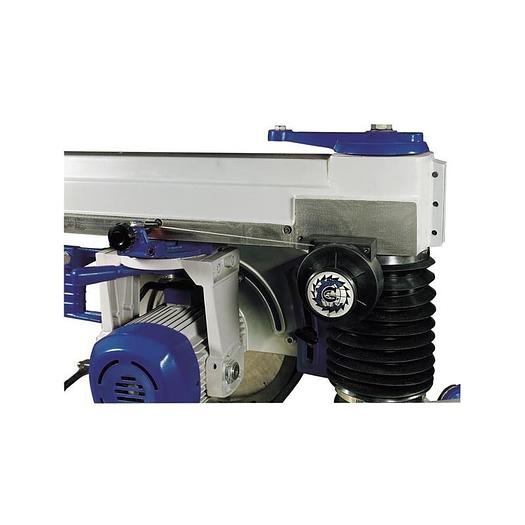

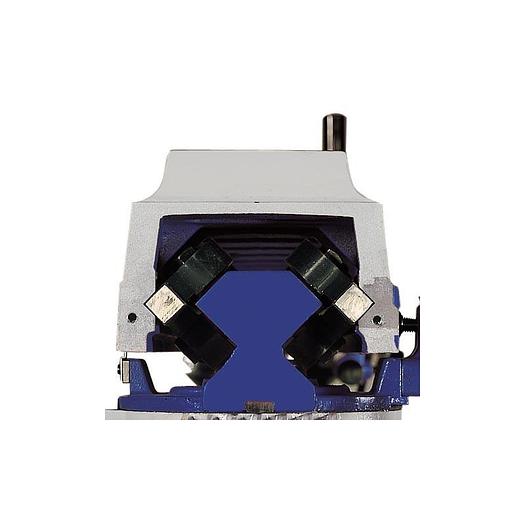

The Saw carriage is fitted with 8 bearing and runs on inserted steel tracks. The locking is self-centering at the main angle positions of the arm, the motor and the carriage, and all the intermediate angles can be locked manually. The unit is provided with standard overload protection with no-volt coil, automatic head reversal and motor brake.


OPTIONAL ACCESSORIES

  • Dado Head Guard 12" x 2 3/8"
  • Pneumatic Horizontal Clamp
  • Roller Table 6' X 24" RH
  • Roller Table 6' X 24" LH
  • 14" ATB Saw Blade w/Keyway
  • Automatic Feed of the Head (RADIAL 600 P3S)


































































































Specifications

ManufacturerOmga
ModelRADIAL 600 P3S
ConditionNew
Max. Depth of cut 45 Deg.3 3/16"
Max. Depth of cut -904 1/2"
Motor Power5
Arbor Speed RPM3200
Saw Blade Bore1"
Saw blade Diameter14"
Bevel Positive Stops0-45
Cross Cut Capacity24"
Table Size35"x31"
Max. Dado Capacity1 1/2"
Miter Positive Stops45-0-45
Overall Dimensions35"x46"
Ripping Capacity32 5/16"
Shipping Weight Lbs.400
Crated Dimensions48"x37"x35"
