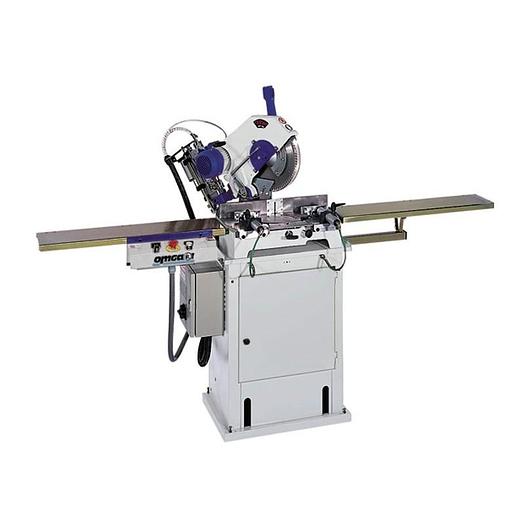

Omga T 50 350 Miter Chop Saw

Omga T 50 350 Miter Chop Saw

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

The heaviest duty of all model of OMGA's Precision Mitre Chop Saws (along with the T 53 370). It features a solid cast iron base and head construction. The rotating table rides on roller bearings for maximum smoothness and accuracy. Positive stops at 45, 30, 22 1/2, 15 and 10 degrees on both sides of the rotation and an independently fine tunable one at 90 degrees. A manual locking device for all the intermediate angles provides a great flexibility to this unit. The belt driven transmission and a powerful 3 HP induction motor make of the T 50 350 the ideal tool for heavy duty industrial usage. This machine is designed to be fitted with a wide variety of optional accessories to make it perfect for any application. This precision saw is a multi purpose machine suitable for use in general carpentry, for cutting moulding, picture frames, furniture components and any application requiring precision cutting.


OPTIONAL ACCESSORIES

  • Cabinet for Mitre Chop Saws
  • Dust Collecting Cabinet
  • Table Extension with Scale 4'
  • Support for scaled table extension
  • Flip over stop Plexiglass at 45 degrees
  • Automatic Descent of the Head (T 50 350)
  • Pneumatic Horizontal Clamp RH (T 50-T 53)
  • Pneumatic Horizontal Clamp LH (T 50-T 53)
  • Pneumatic Hold-Down Clamp (T 50-T 53)

Specifications

ManufacturerOmga
ModelT 50 350
ConditionNew
Cross Cut Capacity 90 Deg.6 3/4"
Cross Cut Capacity 45 Deg.4 3/4"
Max. Depth of Cut 45 Deg.N /A
Table Size23 5/8" X 17 1/8"
Crated Dimensions26" X 25" X 30"
Motor Power3
Max. Beveled Cross CutN /A
Saw Bore1"
Saw Blade Diameter14"
Arbor Speed RPM3200
Shipping Weight Lbs.222
Dust Chute Diameter3 1/8"
Max. Depth of Cut4 5/16"
