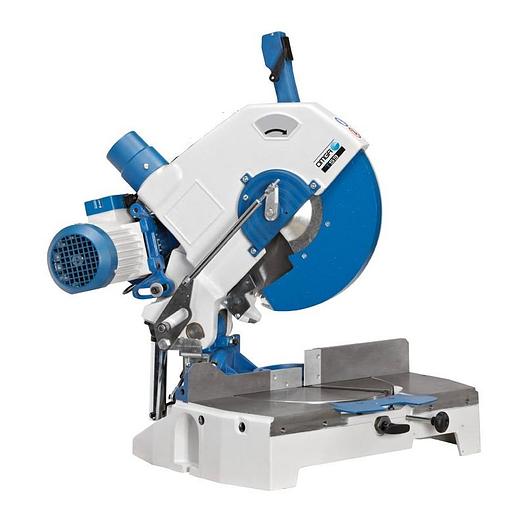

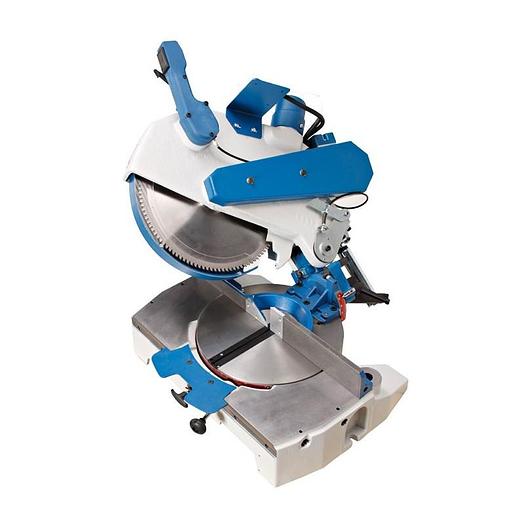

Omga T 53 370 COMPOUND MITRE CHOP SAW

Omga T 53 370 COMPOUND MITRE CHOP SAW
Contact us for price
Dundee, NY
Description
Heavy duty and flexible are the two main features of this Compound Precision Mitre Chop Saw. Positive stops at 45, 30, 22 1/2, 15 and 10 degrees on both sides of the rotation and an independently fine tunable one at 90 degrees. A manual locking device for all the intermediate angles provides a great flexibility to this unit. The unit is also equipped with a 45 degree positive stop for precision beveling. The belt driven transmission and a powerful 4 HP induction motor make the T 53 370 the ideal tool for heavy duty industrial usage. This machine is designed to be fitted with a wide variety of optional accessories to make it perfect for any application. This precision saw is a multi-purpose machine suitable for use in general carpentry, for cutting crown moulding, picture frames, furniture components and any application requiring precision cutting.
OPTIONAL ACCESSORIES
- Cabinet for Mitre Chop Saws
- Automatic Descent of the Head (T 53 370)
- Dust Collecting Cabinet
- Table Extension with Scale 4'
- Support for scaled table extension
- Flip over stop Plexiglass at 45 degrees
- Pneumatic Horizontal Clamp RH (T 50-T 53)
- Pneumatic Horizontal Clamp LH (T 50-T 53)
- Pneumatic Hold-Down Clamp (T 50-T 53)
Specifications
Manufacturer | Omga |
Model | T 53 370 |
Condition | New |
Cross Cut Capacity 90 Deg. | 6 3/4" |
Cross Cut Capacity 45 Deg. | 4 3/4" |
Max. Depth of Cut | 4 5/16" |
Max. Depth of Cut 45 Deg. | 2" |
Motor Power | 4 |
Max. Beveled Cross Cut | 6 3/4" |
Saw Bore | 1" |
Saw Blade Diameter | 14" |
Arbor Speed RPM | 3200 |
Dust Chute Diameter | 3 1/8" |
Table Size | 23 5/8" X 17 1/8" |
Shipping Weight Lbs. | 255 |
Crated Dimensions | 28" X 28" X 33" |
