Northtech NT-UCS20L Up Cut Saw (Left Hand Cut)

Northtech NT-UCS20L Up Cut Saw (Left Hand Cut)

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

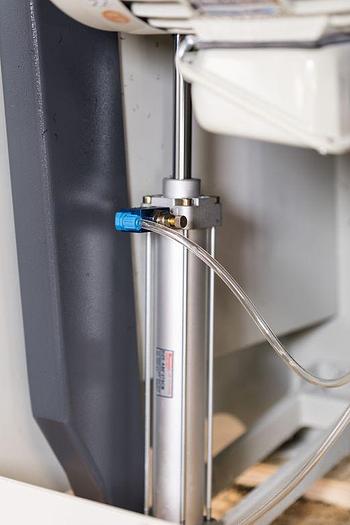

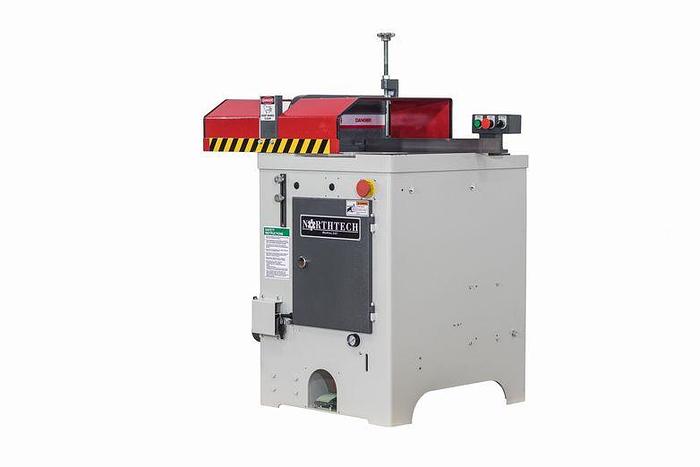

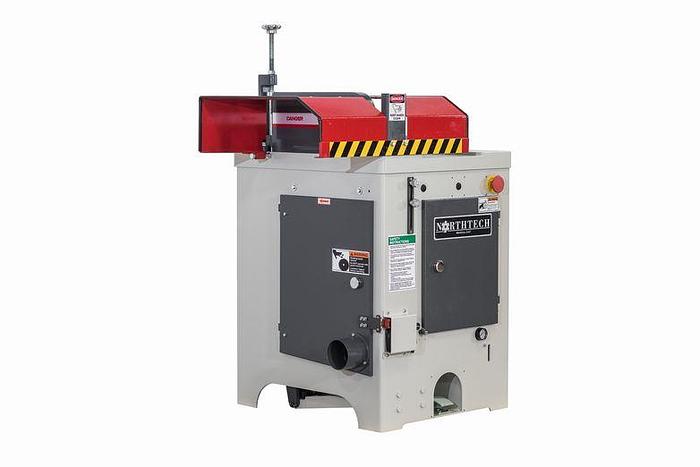

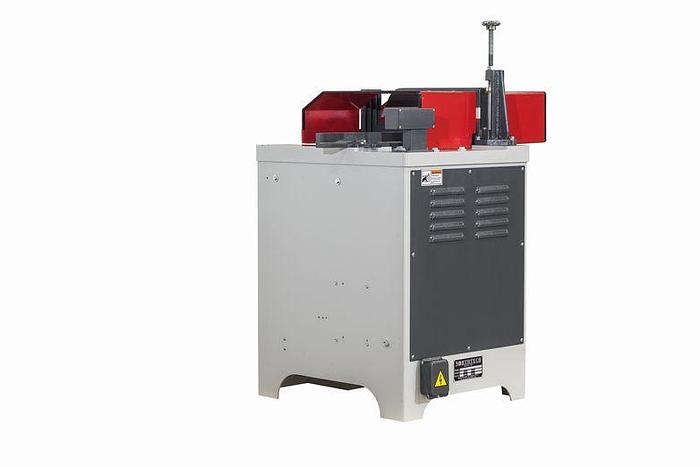

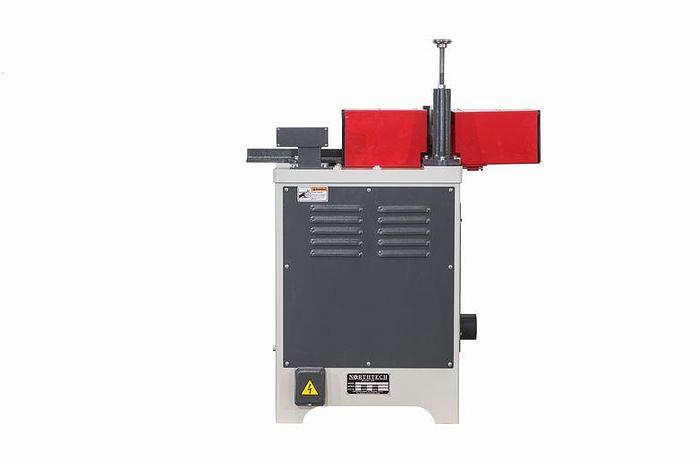

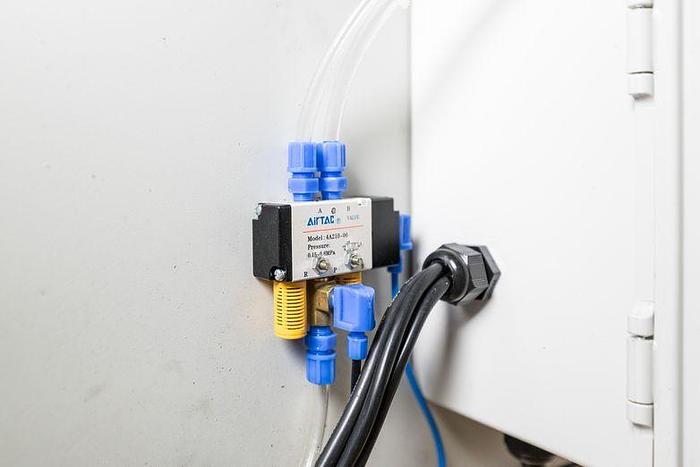

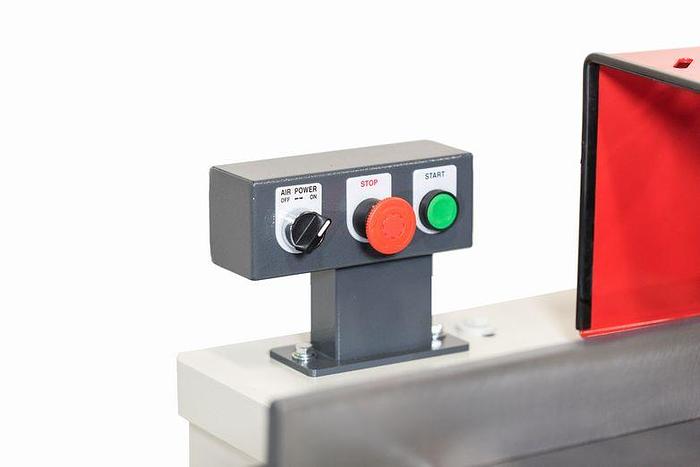

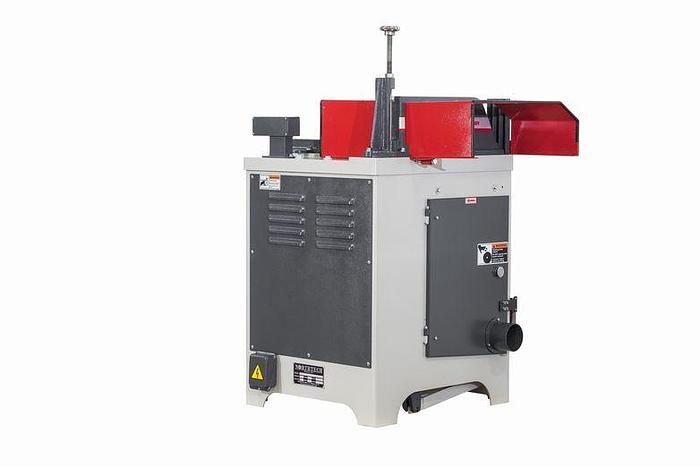

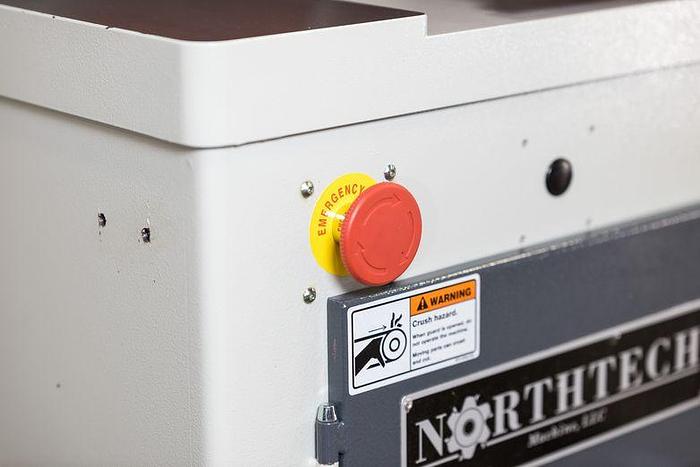

The NT CS20L Up Cut Saw is in the middle of the family of Northtech Up Cut Saws. Upcut Saws house the blade inside the cabinet of the machine and use a double action cylinder to hold and cut the product safely. Left handed Up Cut Saws have the blade on the left side of the machine as you face the front of the machine and material is fed from the right to the left. Using a 20″ diameter blade the CS20 has a modest 2″x14″ cut capacity but still maintains the compact body design of the smaller saws making it more user friendly small to mid size parts. This machine comes standard with stroke speed control, emergency stop, safety switch, guarding, foot operation and stroke adjustments for the blade and the top clamp making it ideal for wood and plastic application. The CS20 has several available options such as two handed cycle operation, infeed/outfeed tables, chromed machine table and safety interlocked cabinet doors for restricted operator access.


Specifications

ManufacturerNorthtech
ModelNT-UCS20L
ConditionNew

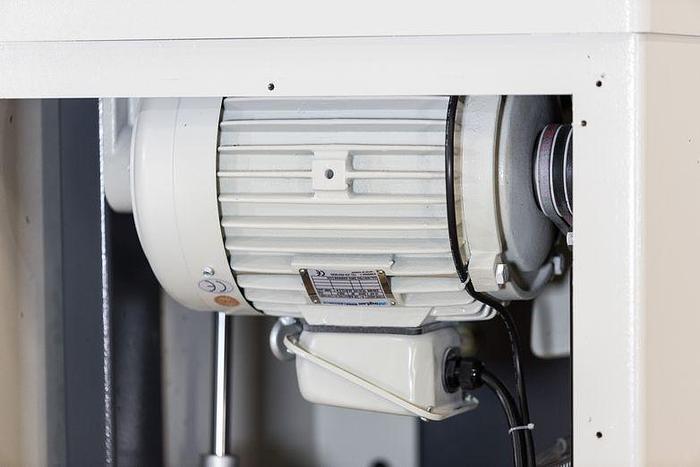

MAIN MOTOR HP10 HP
VOLTAGE, FREQUENCY230/460 Volt 60 Hz
PHASE3 Phase
AMP REQUIREMENT12/24 Amps
APPROVED ELECTRICAL PARTSCE Approved Components
DUAL VOLTAGE MOTORS230/460 Volt
CONTROL VOLTAGE24 Volt Control Voltage
PASS-LINE36''
MAX. WORKING THICKNESS5-3/4''
ARBOR RPM2153 RPM
BLADE SIZE20'' Tungsten Carbide Tipped
NO. OF TEETH ON BLADE120 Tooth
TOOTH SPACING1/2''
BLADE KERF.141''

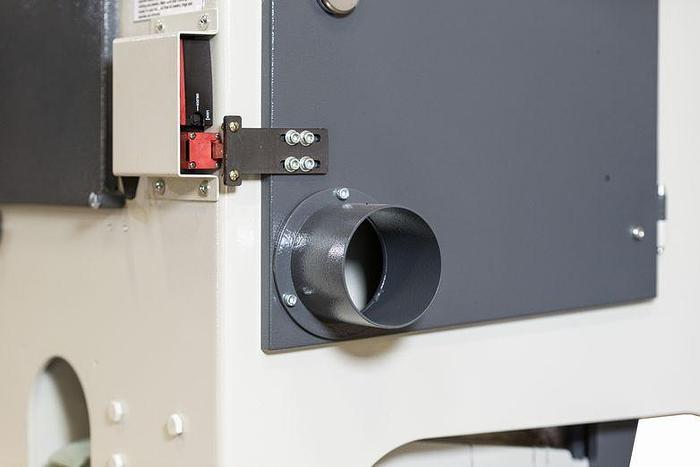

DUST COLLECTION REQUIREMENT4'' Port @ 450CFM Optional 2nd Top Port
ARBOR DIAMETER1''
CYCLES/MINUTE40 Cuts Per Minute Adjustable

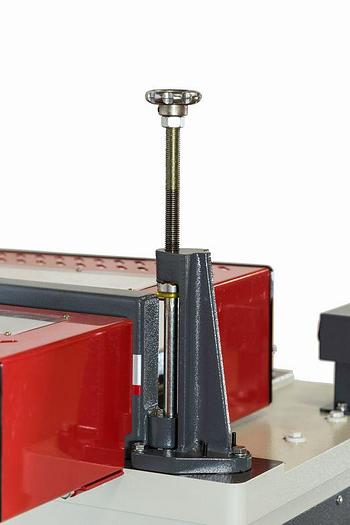

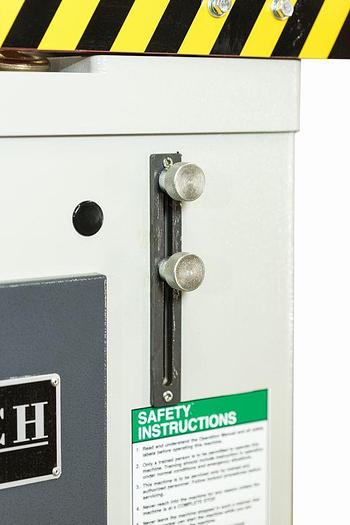

HOLD DOWN STYLET Clamp
FLR INCLUDEDFilter, Lubricator, Regulator
FLR INCLUDEDFilter, Lubricator, Regulator
CFM AIR SUPPLY REQUIREMENT1/4'' Line @ 90 PSI

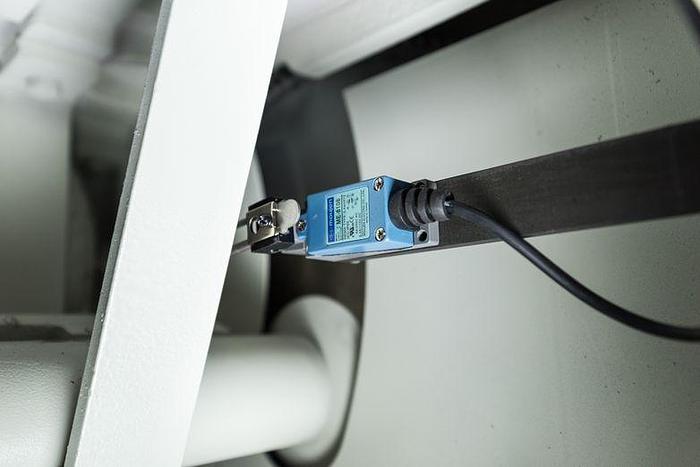

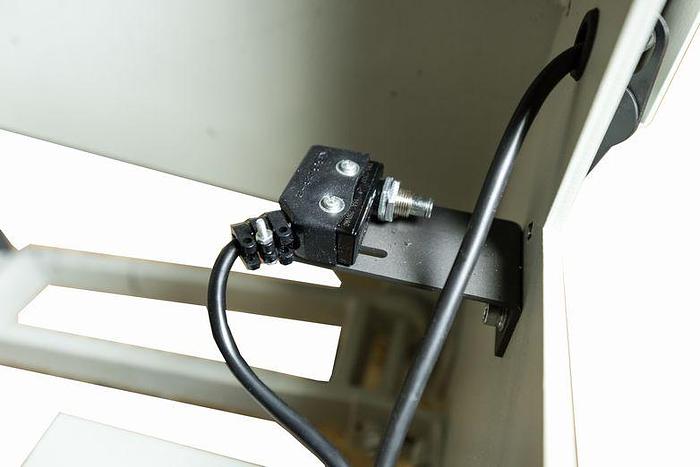

SAFETY FEATURESafety Interlock On Sawblade Door Optional)
GUARDINGFull Guard with Clear View
OPERATION STYLEFoot Pedal Optional Dual Palm Button
WORKTABLE DIMENSIONS21-1/2'' x 67''
TABLE CONSTRUCTION MATERIALCast Iron
DECIBEL RATING75 dB
NET WEIGHT788 Lbs.
GROSS WEIGHT874 Lbs.
MACHINE DIMENSIONS42'' x 34'' x 54-1/2''
PACKAGING DIMENSIONS35'' x 30'' x 51''
