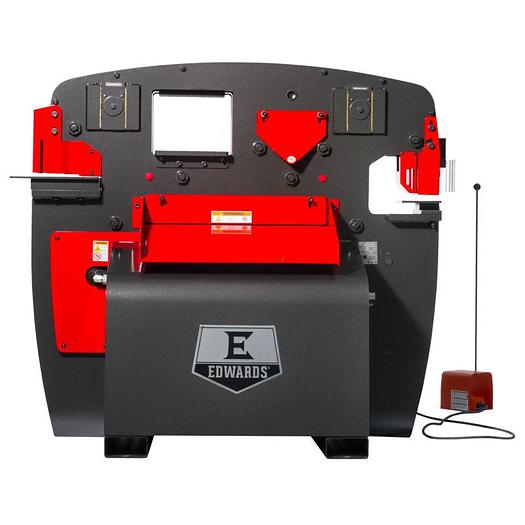

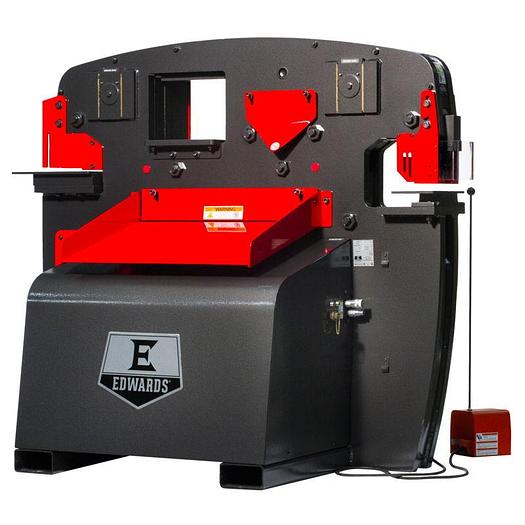

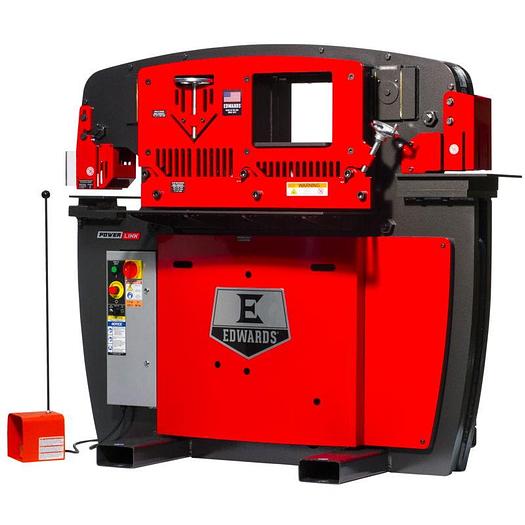

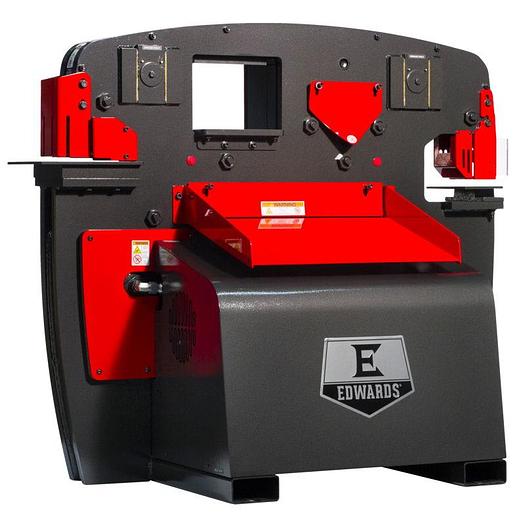

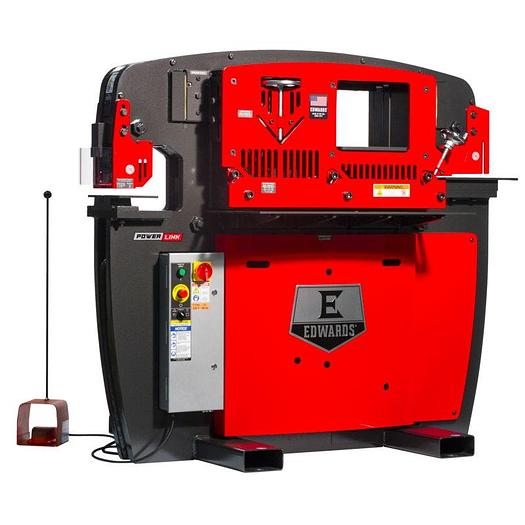

Edwards 65 Ton Ironworker

Our Most Versatile Machine

• Five Available Workstations
• Universal Open Tooling Station
• 24" Flat Bar Shear
• Dedicated Coper Notcher
• Electric Stroke Control
• ANSI B11.5-1988R(02) Compliant
• ETL/UL Approved Controls

The five workstations of the Edwards 65 Ton  Ironworker give you the power to handle any size job and the flexibility to tailor it to your specific needs. Standard features include a Punch Assembly with Pedestal Die Table, 24" wide Flat Bar Shear, Angle Shear, Coper Notcher and a universal open tooling station designed for optional Tooling Accessories.

The optional PowerLink System allows your Ironworker to act as a power source to our expanding line of innovative PowerLink Hydraulic Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press.

PUNCH

Rating 65 Tons

Max. Capacity 1-1/16" Dia. in 3/4" A36

(65,000 PSI Tensile)

Stroke 1-13/16"

Throat Depth 9-3/4"

Open Height 8-3/4"

Shut Height 6-15/16"

Work Height 36-9/16"

FLAT BAR SHEAR

Max. Capacity 3/8" x 24"

1/2" x 14"

1" x 4"

Max. Round 1"

Max. Square 1"

Work Height 34-1/2"

ANGLE SHEAR

Max. Capacity 5" x 5" x 3/8"

Work Height 43-1/2"

COPER NOTCHER

Max. Capacity 2-1/2" x 5" x 3/8"

Work Height 39-1/2"

OPEN CAVITY

Height 8-3/4"

Width 12"

Work Height 43"

GENERAL SPECIFICATIONS

Standard Motor 7.5 HP 3~ 208 V or 230 V

1765 RPM 22 A

Optional Motors 7.5 HP 3~ 460 V

1765 RPM 11 A

7.5 HP 3~ 575 V

1770 RPM 8 A

5 HP 1~ 230 V

1725 RPM 23 A

*7.5 HP 1~ 230 V

1765 RPM 36 A

*Required for 1~

Hydraulic Accessory Pack

Hydraulic Pump 10-1/2 GPM - 2 Stage

Valve Pressure 3500 PSI

Reservoir 17 Gallons

Cylinder 3-1/2" Ram

DIMENSIONS

Height 57"

Width 62-1/8"

Depth 45"

Shipping Weight 4750 lb
