Circle T LM116 Lockmiter Machine
or
Call +1 (607) 678-4374
Description

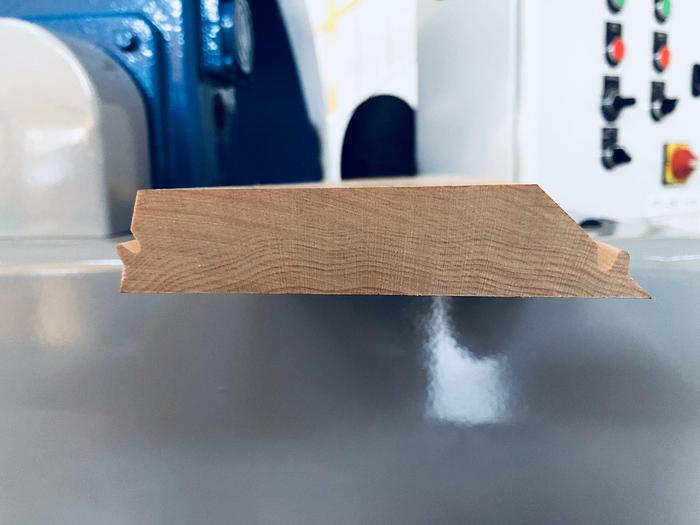

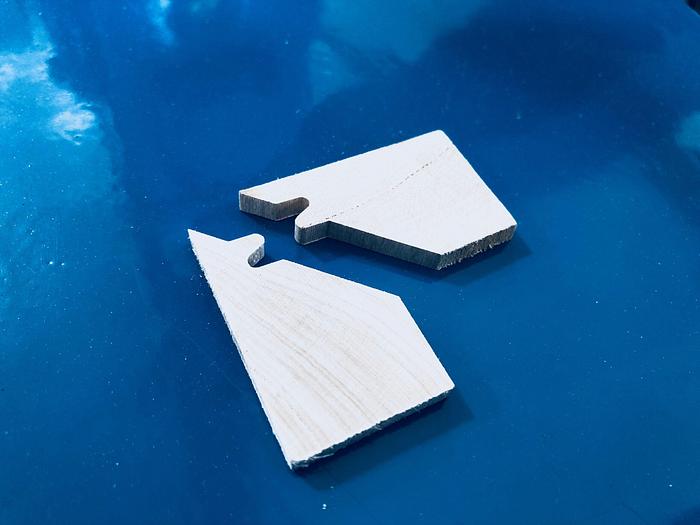

Our Model LM116 is Uniquely Designed to Produce an extremely PRECISE and EASY LOCK MITER JOINT. Many customers use our machines for face-frame cabinetry, beams, pillar/column wrapping, box newel posts, solid surface, and more!

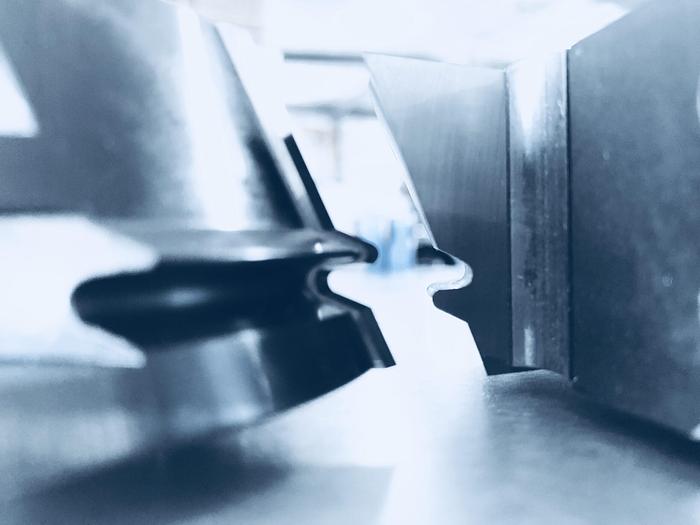

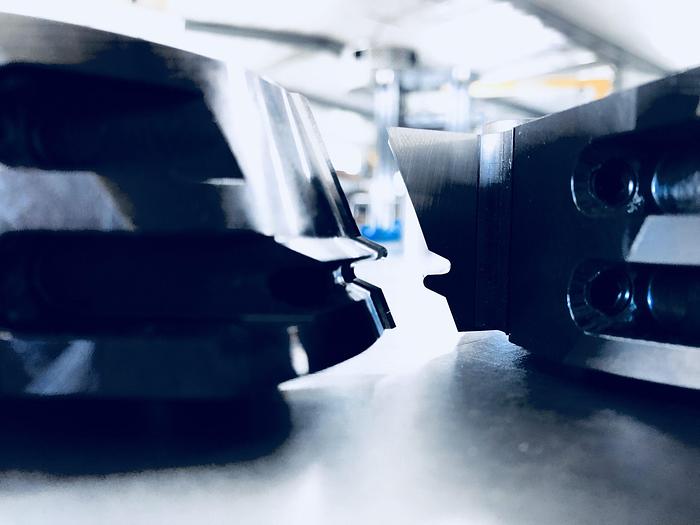

- A and B profiles are cut using a Single Pneumatic Powered Tilting Spindle!!!
- No more downtime setting up and changing out your shaper!!!
- No more running pieces on their side!!!
- Upgrade to our EASY LOCK MITER LM116
Specifications
| Manufacturer | Circle T |
| Model | LM116 |
| Condition | New |
| Maximum Material Thickness | 1″ |
| * Minimum Material Thickness | 1/2″ |
| * Minimum Material Width | 1-1/4″ |
| Minimum Material Width (2-Sided) | 2″ |
| * Maximum Material Thickness | 1″ |
| * Minimum Material Length | 12″ |
| Capable of Machining Angles from | 90 – 30 Degrees (Finish Angle) |

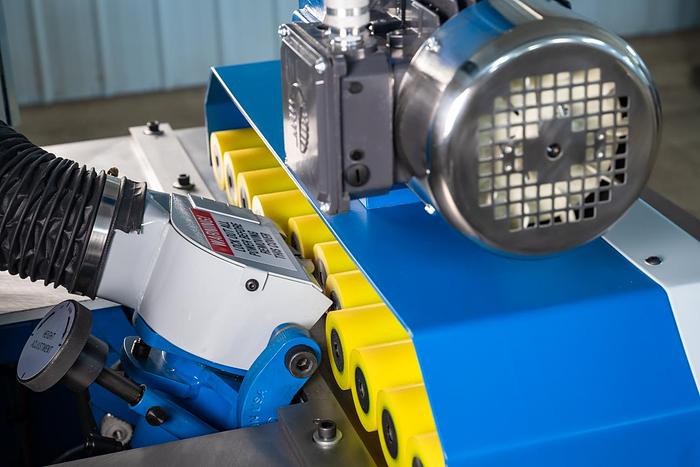

| * Spindle Motor | 5 HP |
| * Feed Motor | 0.5 HP |

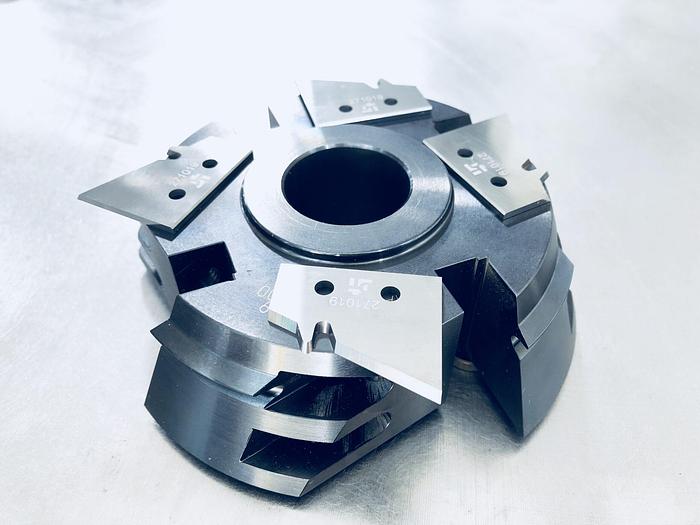

| * Spindle Diameter | 1-1/4″ |
| * Spindle Speed | 8,200 RPM |

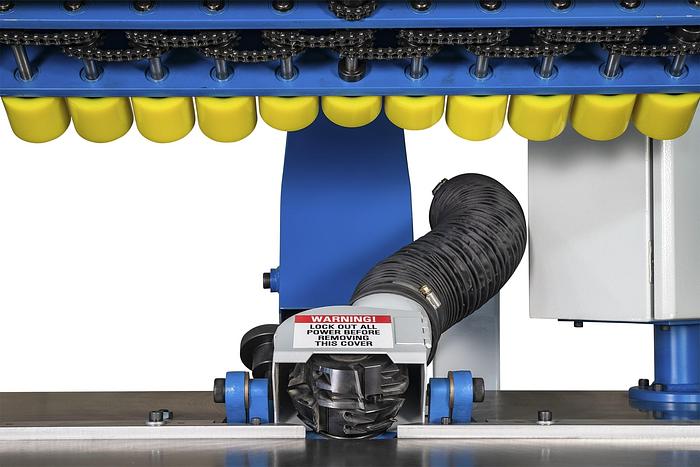

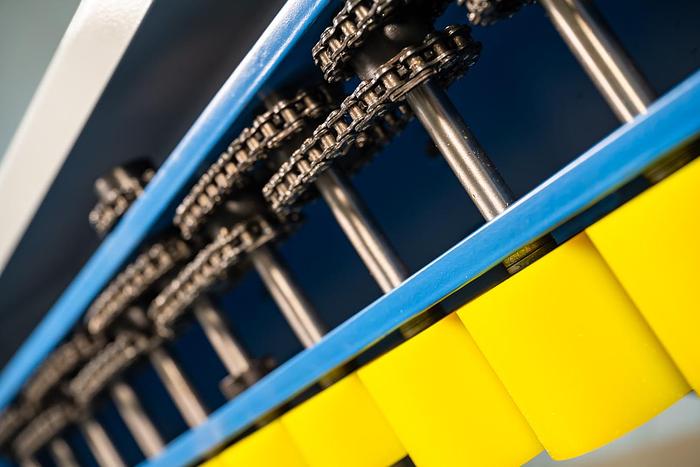

| Variable Speed | 11-Roll Positive Grip Feeder |
| * Dust Collection Requirements | 670 CFM, 4″ Outlet |
| * Pneumatic Requirements | 100 PSI .5 CFM |
| Power Requirements | 25 AMP Disconnect at 480V 3phase |
| * Table Size | 40″ x 47″ |
| Footprint | 42″L x 54″W x 60″H |
| NET WEIGHT | 1250lbs |
