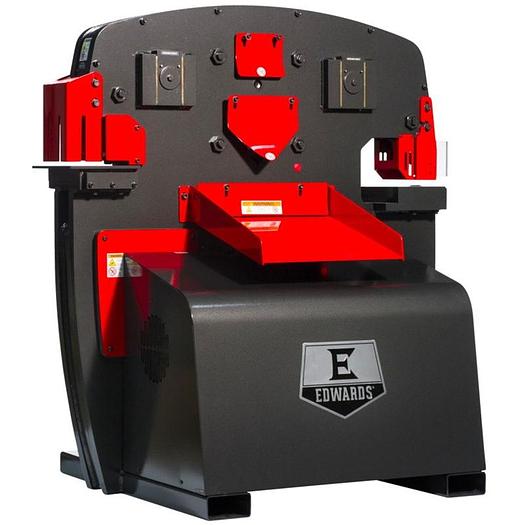

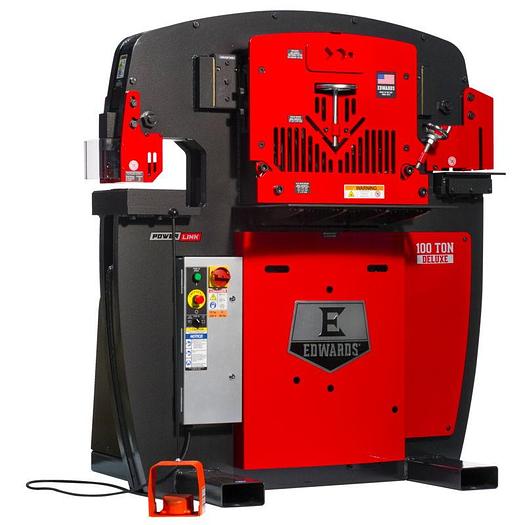

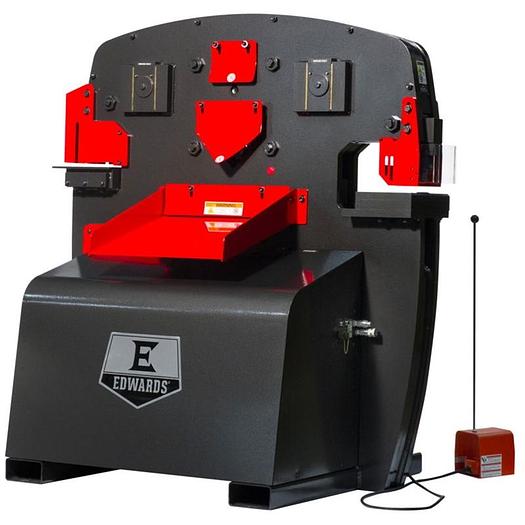

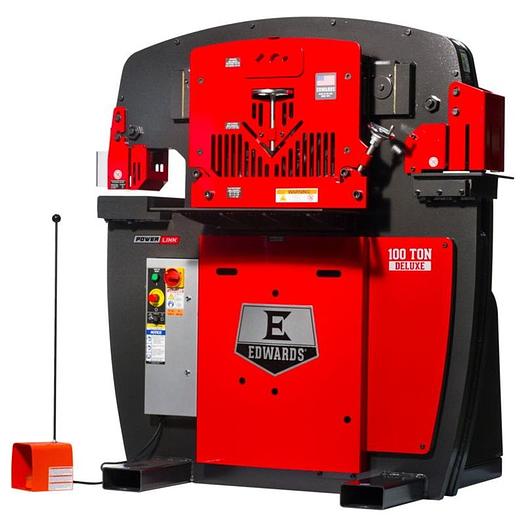

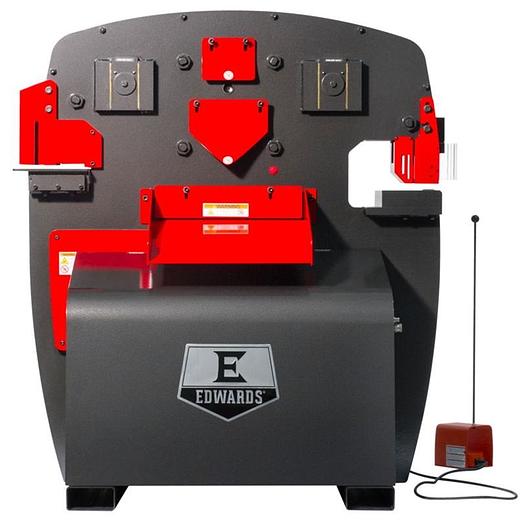

Edwards 100 Ton Deluxe Ironworker

Edwards 100 Ton Deluxe Ironworker

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

Ideal for the Large Shop

  • Five Loaded Workstations
  • Built-in Rod Shear for Square and Round Bar
  • 18" Flat Bar Shear
  • Dedicated Coper Notcher
  • Electric Stroke Control
  • ANSI B11.5-1988R(02) Compliant
  • ETL/UL Approved Controls


A brute of an Ironworker, the Edwards 100 Ton Deluxe Ironworker features super-duty construction and a powerful 10hp motor. Standard features include a Punch Assembly, 18" wide Flat Bar Shear, Angle Shear, Coper Notcher and a special built-in Rod Shear for solid square and round bar stock.


The optional PowerLink System allows your Ironworker to act as a power source to our expanding line of innovative PowerLink Hydraulic Tools, such as the 10 Ton Tube/Pipe Bender20 Ton Shop Press and 40 Ton Shop Press.


PUNCH

Rating 100 Tons

Max. Capacity 1-1/16" Dia. in 1" A36

(65,000 PSI Tensile)

Stroke 1-15/16"

Throat Depth 11"

Open Height 8-3/4"

Shut Height 6-13/16"

Work Height 39-3/8"


FLAT BAR SHEAR

Max. Capacity 1/2" x 18"

3/4" x 14"

1" x 10"

Max. Round 1"

Max. Square 1"

Work Height 37"


ANGLE SHEAR

Max. Capacity 6" x 6" x 1/2"

Work Height 43-15/16"


ROD SHEAR

Max. Round 1-1/2"

Max. Square 1-1/4"

Work Height 54-1/2"


COPER NOTCHER

Max. Capacity 3" x 6" x 1/2"

Work Height 42"


GENERAL SPECIFICATIONS

Standard Motor 10 HP 3~ 208 V or 230 V

1770 RPM 26 A

Optional Motors 10 HP 3~ 460 V

1770 RPM 12 A

10 HP 3~ 575 V

1770 RPM 10 A

10 HP 1~ 230 V

1740 RPM 40 A

Hydraulic Pump 24 GPM

Valve Pressure 3800 PSI

Reservoir 17 Gallons

Cylinder 2-1/2" Ram


DIMENSIONS

Height 63-1/8"

Width 56"

Depth 45-1/2"

Shipping Weight 5180 lb

Specifications

ManufacturerEdwards
Model100 Ton Deluxe
ConditionNew
