Edwards 110/65 Ton Elite Dual Operator Ironworker

True Dual Operation

• Five Workstations
• Two Independent Power Plants
• Super-size Punch Throat Depth of 17-3/4"
• Universal Open Tooling Cavity
• ANSI B11.5-1988R(02) Compliant
• ETL/UL Approved Controls
• ELITE Integrated Features:
• Hydraulic Hold-Down
• E-Stop / Lockout-Tagout
• Electric Stroke Control
• Hydraulic Accessory Pack
• Central Lubrication System
• Swing-Away Stripper Assembly
• Roller Encoder Measuring System
• Quick Change Punch Assembly
• Premium Gauging Tables
• LED Lighting

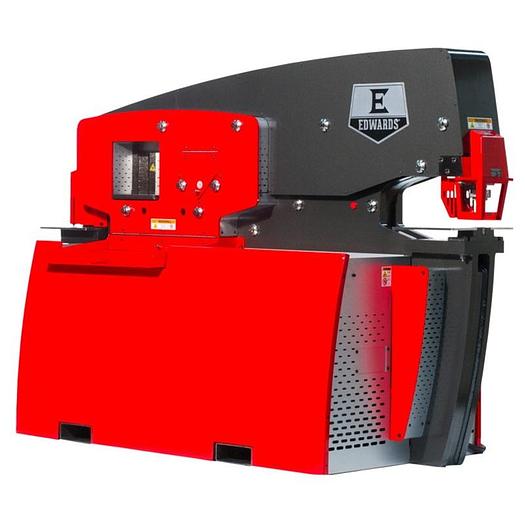

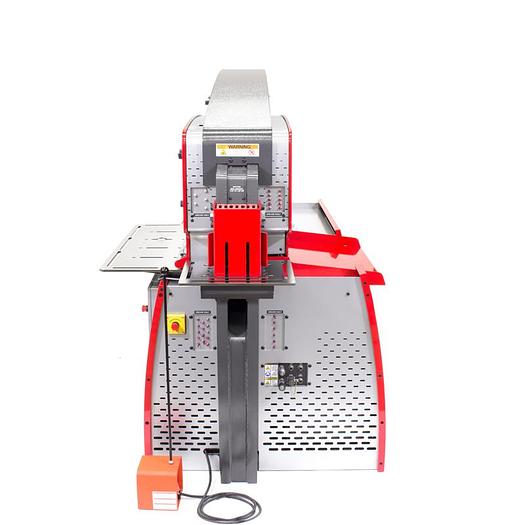

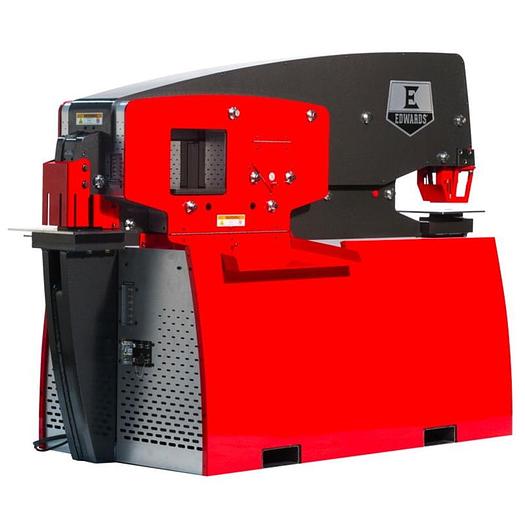

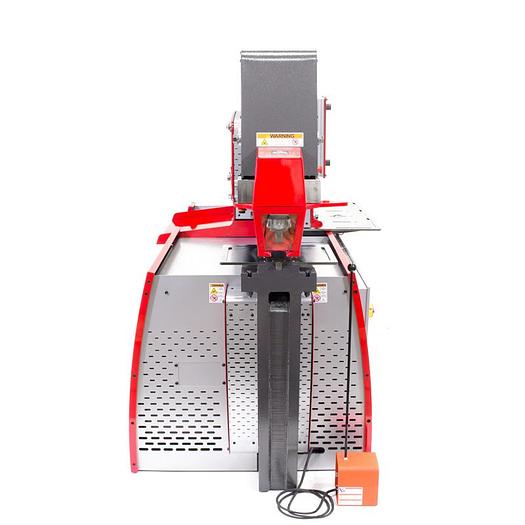

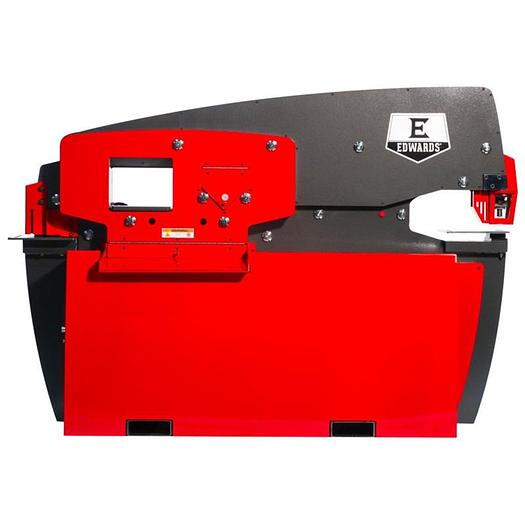

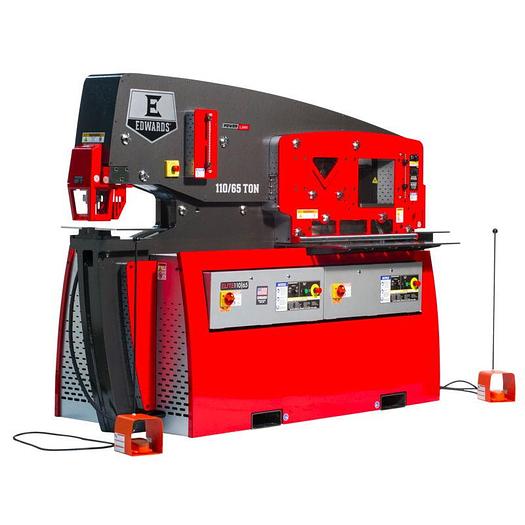

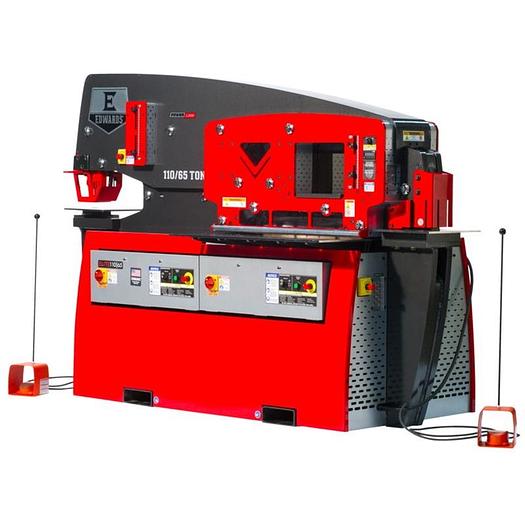

Designed for simultaneous use by two people, the Edwards ELITE 110|65 Ironworker is the most powerful of the new ELITE line. It features a standard Punch Assembly, 24" wide Flat Bar Shear, Angle Shear, a dedicated Coper Notcher and a universal open tooling station for optional Tooling Accessories.

The integrated PowerLink System enables your ELITE 110|65 to act as a power source for our expanding line of innovative PowerLink Hydraulic Tools.

PUNCH

Rating 110 Tons

Max. Capacity 1-3/8" Dia. in 1" A36

(65,000 PSI Tensile)

Stroke 3"

Throat Depth 17-3/4"

Open Height 9-3/4"

Shut Height 6-9/16"

Work Height 37-1/2"

FLAT BAR SHEAR

Rating 65 Tons

Max. Capacity 3/8" x 24"

1/2" x 14"

1" x 4"

Max. Round 1"

Max. Square 1"

Work Height 33-1/2"

ANGLE SHEAR

Max. Capacity 5" x 5" x 3/8"

Work Height 44"

COPER NOTCHER

Max. Capacity 2-1/2" x 6" x 3/8"

Work Height 35-5/8"

OPEN CAVITY

Height 9"

Width 11-3/4"

Work Height 40-7/8"

GENERAL SPECIFICATIONS

Standard Motor 7.5 HP 3~ 208 V or 230 V

1765 RPM 22 A

Optional Motors 7.5 HP 3~ 460 V

1765 RPM 11 A

7.5 HP 3~ 575 V

1770 RPM 8 A

7.5 HP 1~ 230 V

1765 RPM 36 A

Hydraulic Pump 10-1/2 GPM - 2 Stage

Valve Pressure 3000 PSI

Reservoir 17 GallonsCylinder

(Punch Side) 7-1/2" Bore / 3" RamCylinder

(Shear Side) 6" Bore / 3-1/2" Ram

DIMENSIONS

Height 65-1/8"

Width 91-9/16"

Depth 44-7/8"

Shipping Weight 8580 lb
