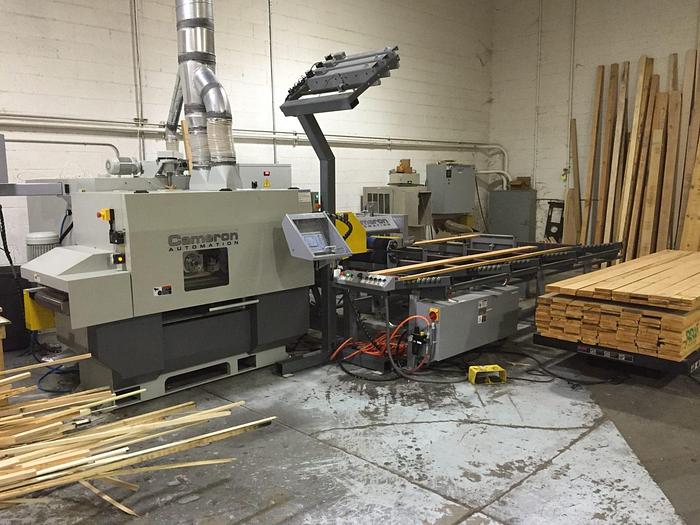

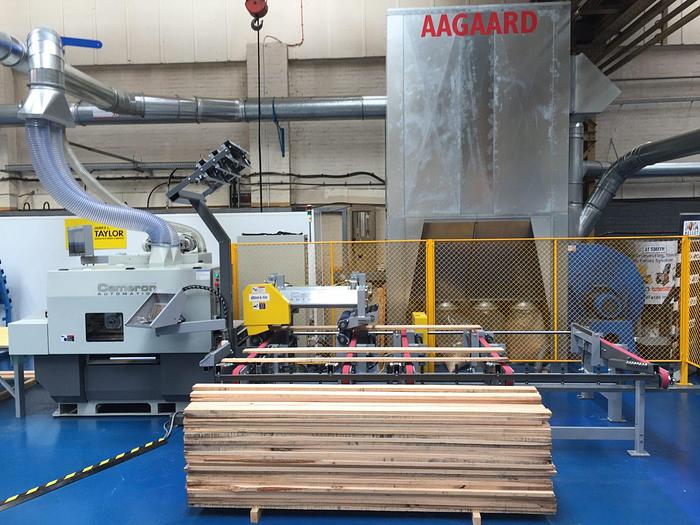

Cameron Automation #415A Quick Rip System

Cameron Automation #415A Quick Rip System

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

The Quick Rip System offers the highest yield in the market due to its fenceless design, powerful “Opti-Rip” optimizing software, and multiple moving blade technology in a few different model saws. Non straight boards are handled just as effectively as straight boards and the net result is lower raw material costs.


  • Cameron Quick Rip Infeed with Fenceless, Servo-Driven Board Positioner with Extremely High Accuracy

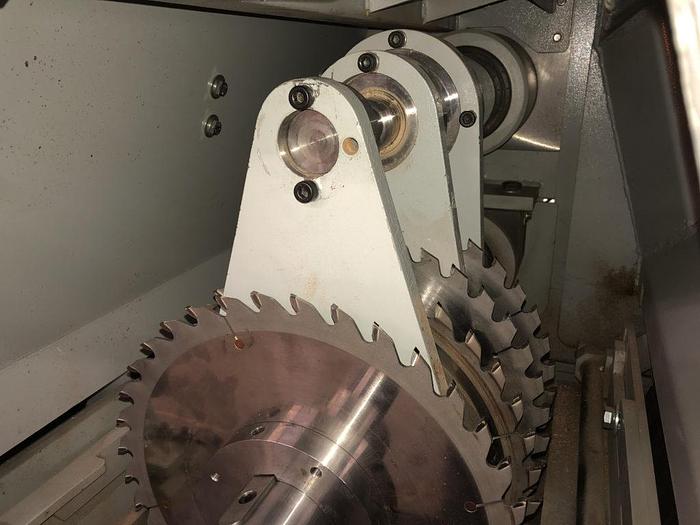

  • Multiple Moving Blade, Multiple Fixed Blade Setups
  • Completely Integrated Software Package
  • Automatic Movable Blade Positioning by the Cameron Software
  • Highest Board Yield on the Market!!!


Cameron Saw Models:

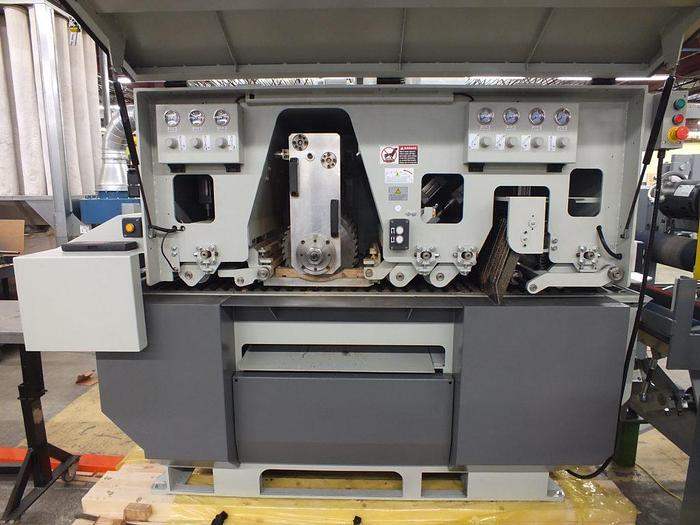

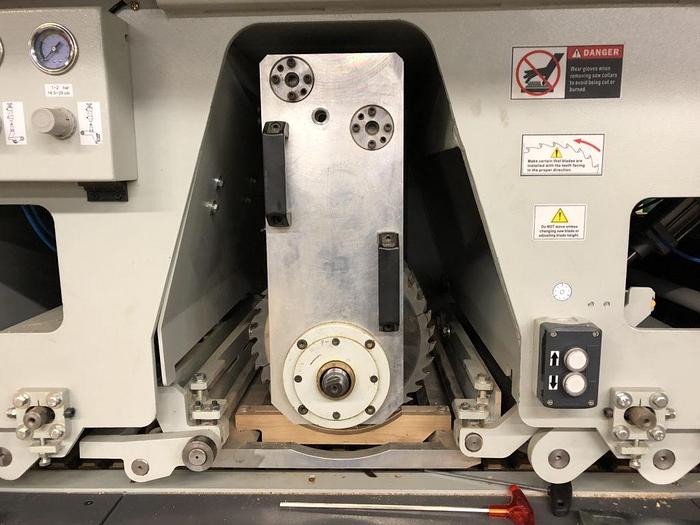

  1. #413A – 12″ Wide (2) Moving Blade, Multiple Fixed Blade Saw
  2. #413B – 18″ Wide (3) Moving Blade, Multiple Fixed Blade HD Rip Saw
  3. #413C – 24″ Wide (4) Moving Blade, Multiple Fixed Blade HD Rip Saw


Unlike other systems, the Quick Rip is fenceless and has Auto Skewing for achieving highest possible yield. Our sensors read the width, the length, and the shape of the boards. If a board has crook or taper, our software can determine if the board should be skewed for higher yield. If so, it happens automatically. This adds up to an additional 3% yield over systems with a fence. Quick Rips can be paired with Moving Blade Saws that come with (2), (3) or (4) Moving Blades Depending on your Cut Bill and Lumber. The Cameron Opti-Rip software is written in-house allowing changes, improvements and free upgrades to happen on a regular basis.

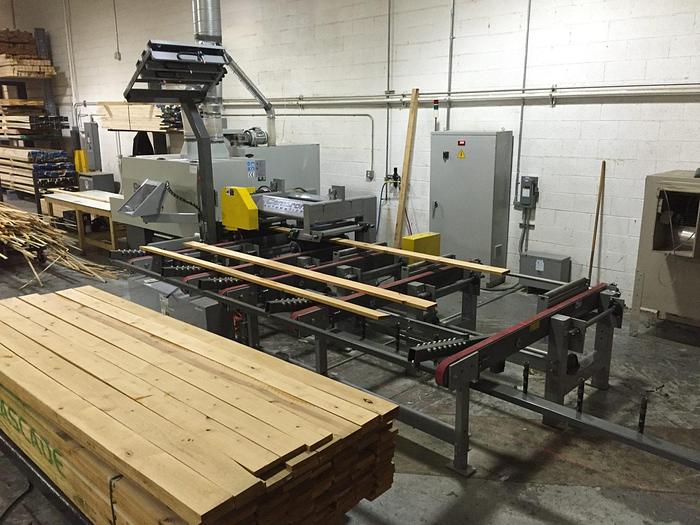

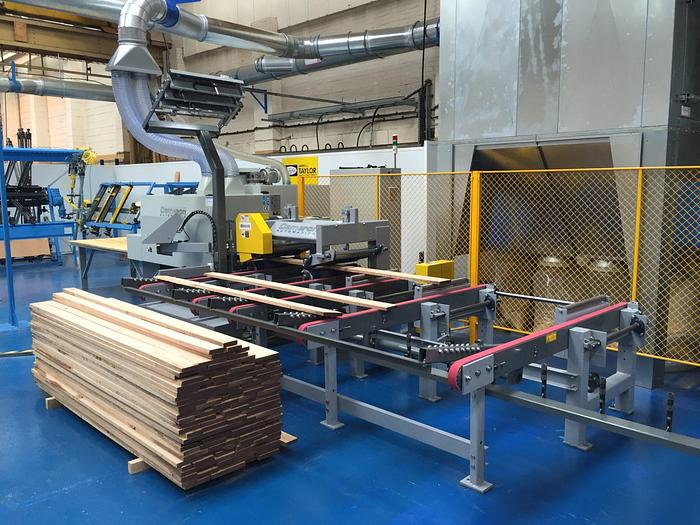

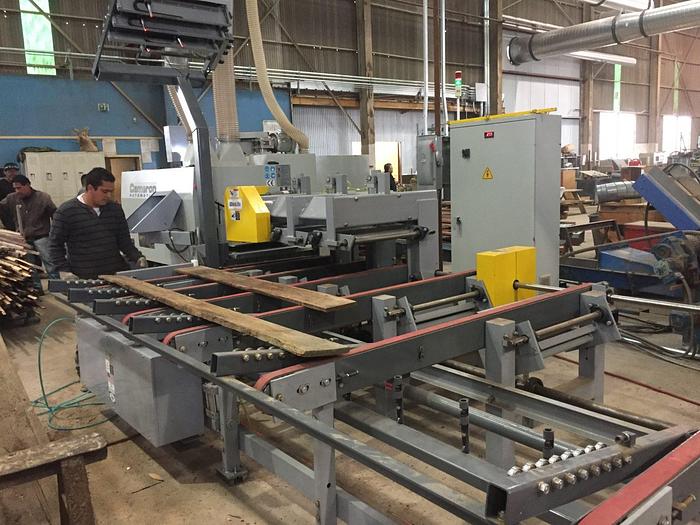

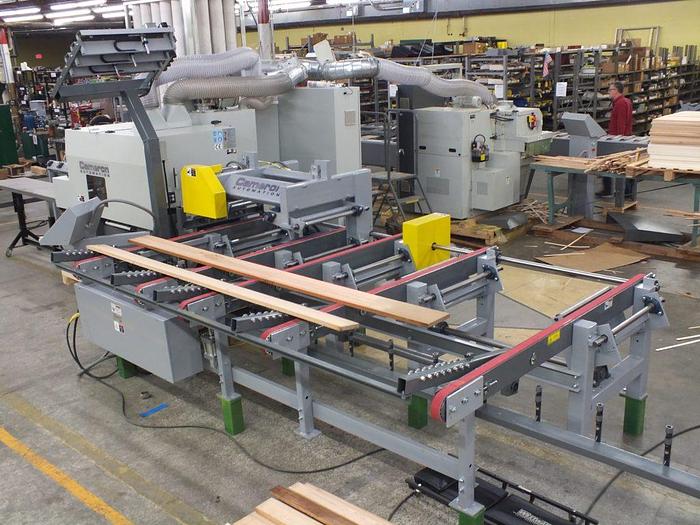

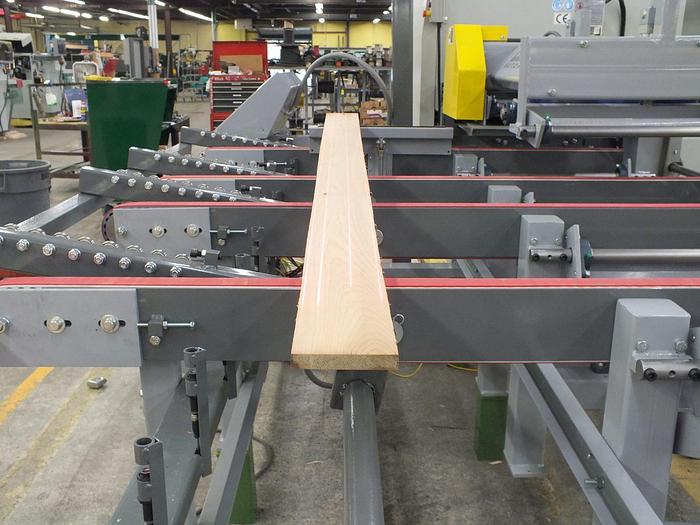

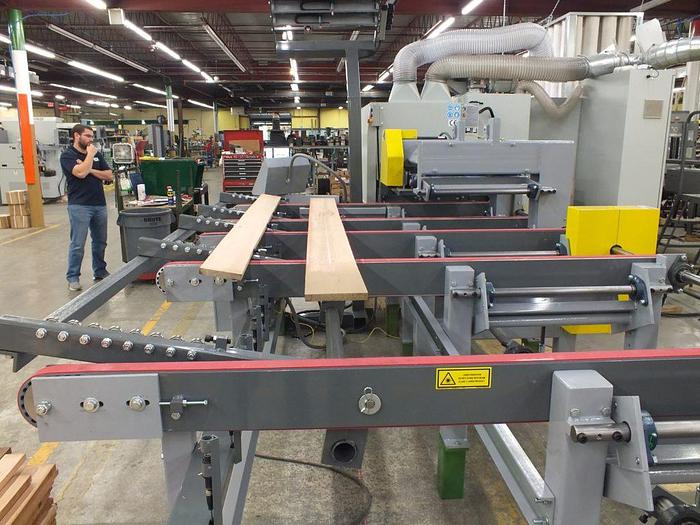

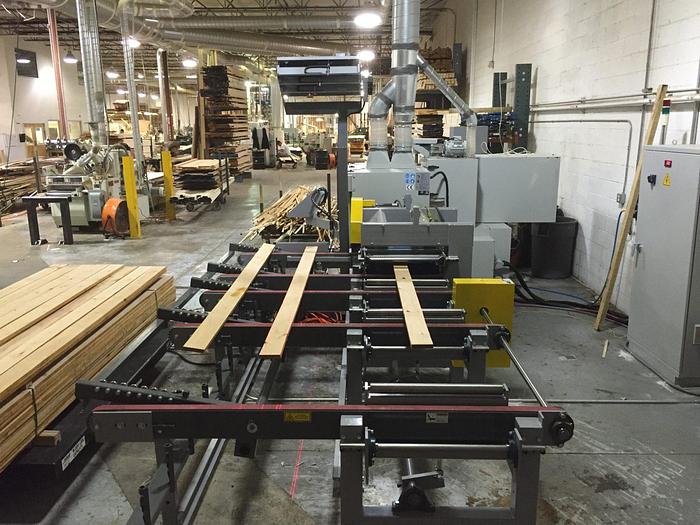

The Quick Rip system works as follows: An operator places the boards, one at a time, on a servo-controlled series of the belts. The belts then accelerate the board to be processed past multiple sensors that measure the board every foot for the length and width, to determine its full profile. Next, the belts accurately position the board under a series of laser lights, presenting the operator with the optimum rip combination based on the measured width.

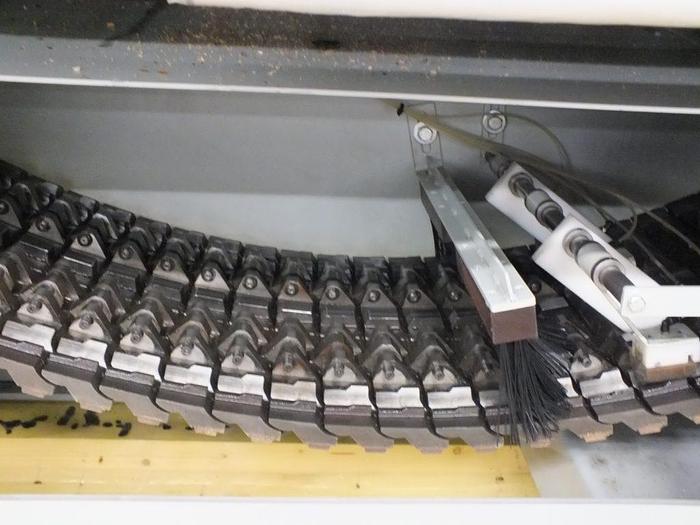

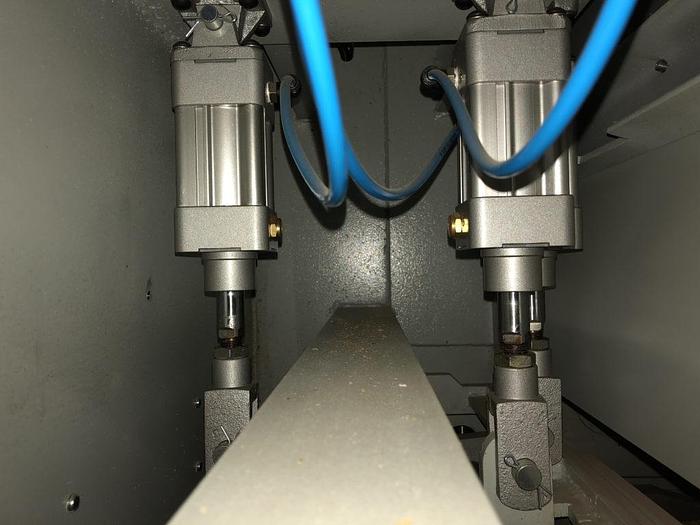

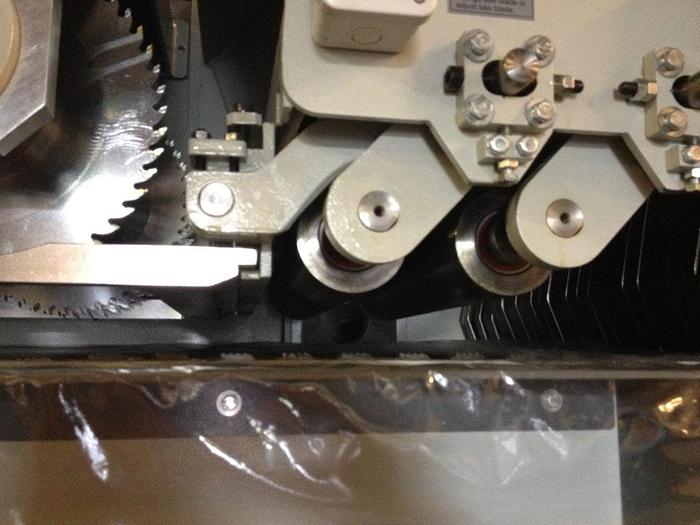

The operator can then choose an alternate rip pattern, fine tune the positioning and/or skew the board to the angle that will result in the optimum rip. With the optional Auto Skew feature, this can be done automatically while the operator is loading the next board. When the operator is happy with the positioning of the board, a button is pressed and the belts then position the board in front of the rip saw where a series of pinch rollers lift the board and feed it into the saw. A major advantage to this novel method is that lumber can be skewed on the conveyor, resulting in an increase in yield.

Existing gang rip saw optimization systems incorporate a straight fence, usually working in conjunction with cant rollers, to position the lumber before it enters the saw. Unfortunately, this orientation is not always the proper orientation to achieve maximum yield. The Quick Rip solves this problem by using a precision servo-controlled belt system to position the lumber from the belt and feeds it into the saw, maintaining its orientation.


Typical Quick Rip users:

  • Moulding & Millwork Shops
  • Mid-Size Cabinet Manufacturers
  • Window & Door Manufacturers
  • Wholesale Lumber Distributor



Specifications

ManufacturerCameron Automation
Model#415A
ConditionNew
