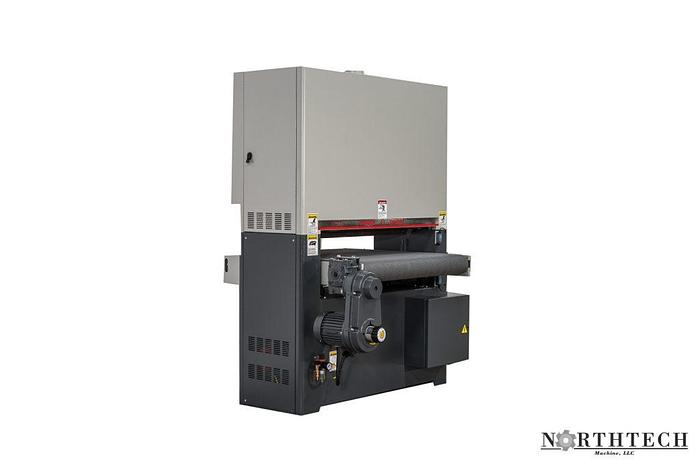

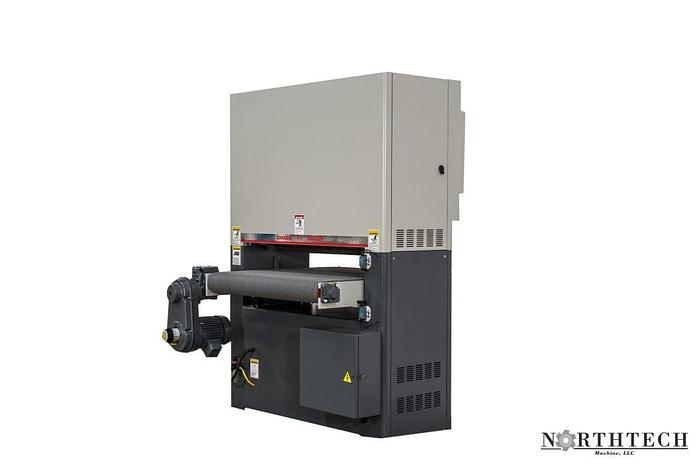

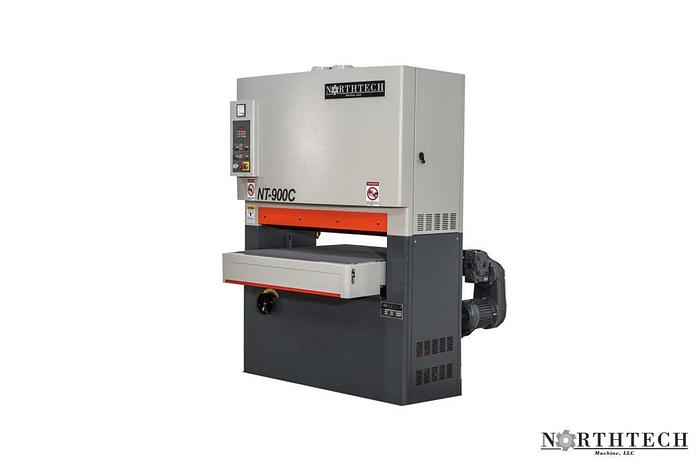

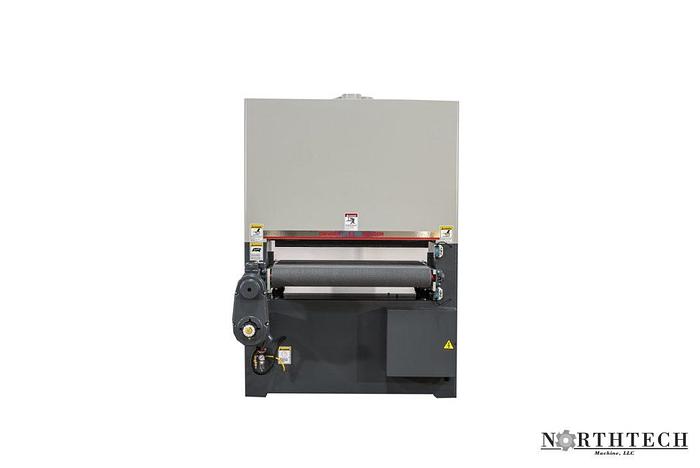

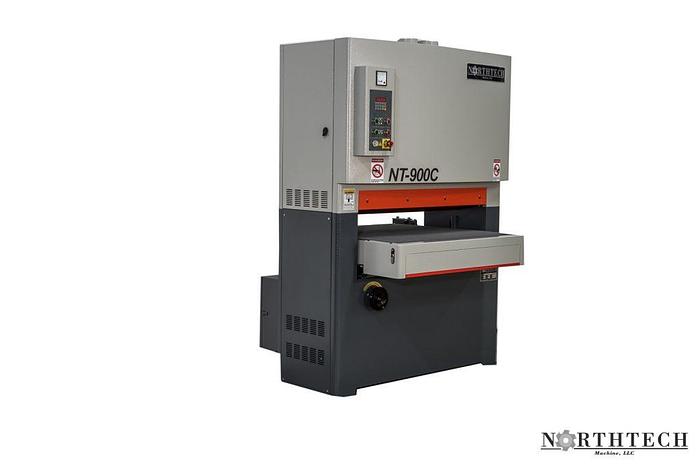

Northtech NT-900C Single Head 37'' Wide Belt Sander

Northtech NT-900C Single Head 37'' Wide Belt Sander

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

The NT-900C single combination head wide belt sander has a 36″ working width and comes standard with 37″ x 75″ belt and variable speed invisible seam feed mat. The combination head provides the benefit of sanding with a roller and platen in side a single head machine footprint. Features heavy steel frame design, digitally positioned elevation control with close to 6″ opening and independent start/stop controls for the feed and belt.

Specifications

ManufacturerNorthtech
ModelNT-900C
ConditionNew
MACHINE HP16-1/4 HP
VOLTAGE, FREQUENCY230/460 Volt 60Hz
PHASE3 Phase
AMP REQUIREMENT41/20.5 Amp
1st HEAD15 HP 4'' Fluted Drum with Platen
FEED HP1 HP.
FEED SYSTEM36-1/2'' Feed Belt
DRIVE SYSTEMMotor / Gear Box / Variable Speed Clutch
FEED SPEED RANGE15-35 FPM
VARIABLE FEED SPEEDAdjustable Pulley
ELEVATION HP1/4 HP
ELEVATION STYLEDigital Readout

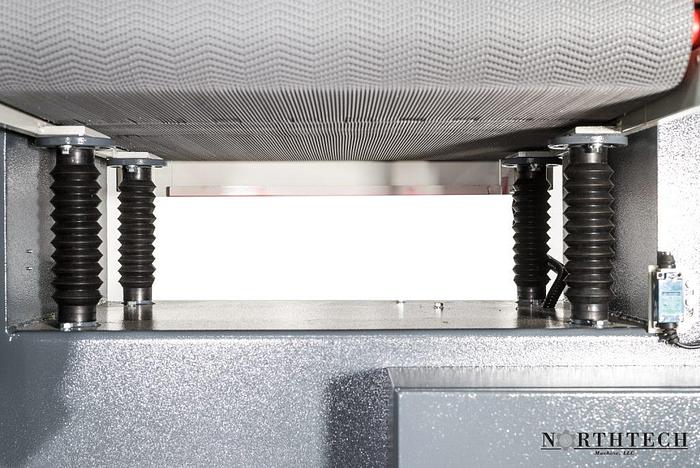

ELEVATION SYSTEM4 Post Jack Screw
DUAL VOLTAGE MOTORS230/460 Volt
CONTROL VOLTAGE220 Volt
MIN. WORKING LENGTH13''
MAX. WORKING WIDTH36''
MIN. WORKING THICKNESS.155''
MAX. WORKING THICKNESS6''
SANDPAPER SIZE37'' x 75''
PLATEN SPECIFICATIONS1-3/4'' x 38''
DRUM SPECIFICATIONS4'' Spiral Fluted 65 Durometer
1st BELT SPEED2625 FPM
OSCILLATION TRAVEL3/4''
CLEANING SYSTEMJet Blow Off on Tracking Sensor
TRACKING STYLEPneumatic Cylinder / Photo Eye
TENSION STYLEPneumatic Cylinder
DUST COLLECTION REQUIREMENT681 CFM @ Extraction Points
DUST PORT SIZE OUTLET(3) 5'' Ports
DIGITAL DISPLAYElevation Controller
PRESSURE SHOES(2)
HOLD DOWN STYLEPressure Shoe / Rollers
FLR INCLUDEDFilter, Lubricator, Regulator
CFM AIR SUPPLY REQUIREMENT3/8'' Line @90 PSI
EMERGENCY STOPPush Button
GUARDINGFull Enclosure
BRAKE SYSTEMSingle Pneumatic Caliper
FRAME CONSTRUCTION1/4'' Steel
TABLE CONSTRUCTION MATERIALSteel
DECIBEL RATING77 dB
NET WEIGHT1676 Lbs.
GROSS WEIGHT1968 Lbs.
MACHINE DIMENSIONS53'' x 50'' x 74''
PACKAGING DIMENSIONS57'' 52-1/2'' x 84''
