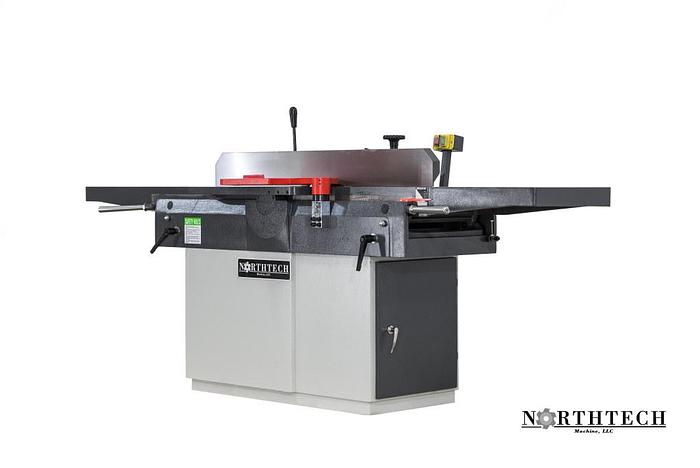

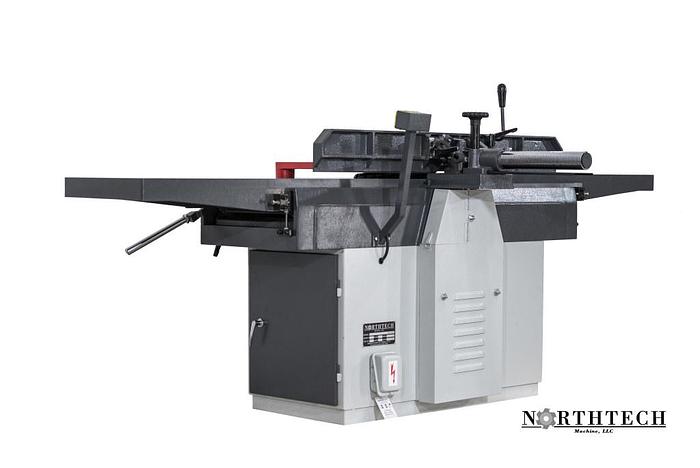

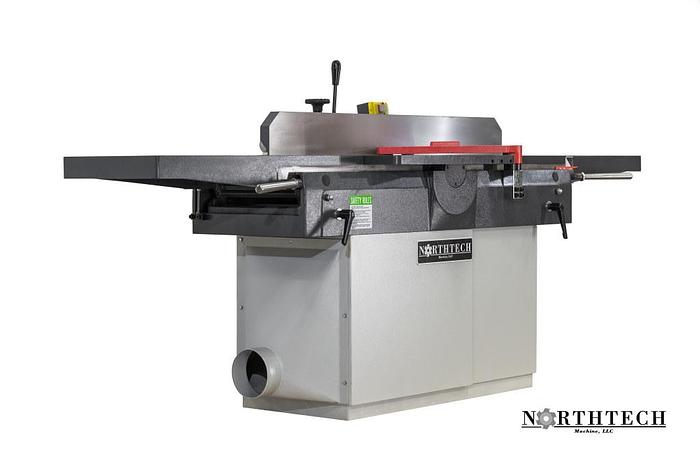

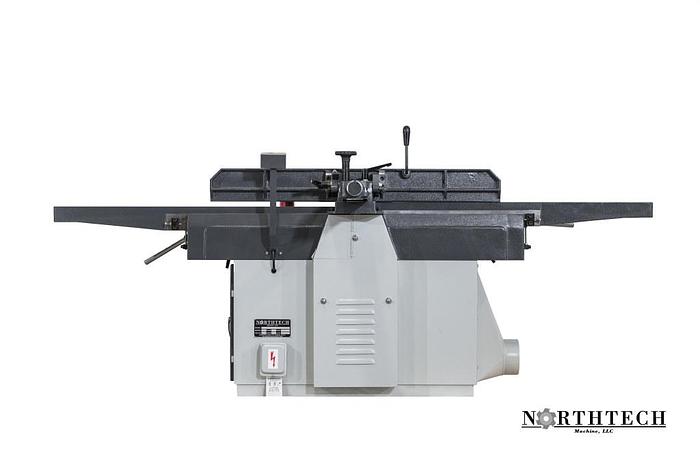

Northtech NT-1696HC 16'' Helical Head Jointer
orCall +1 (607) 678-4374
Description

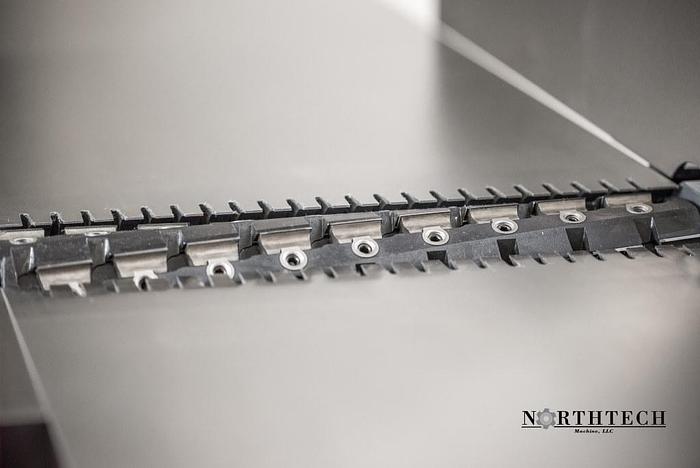

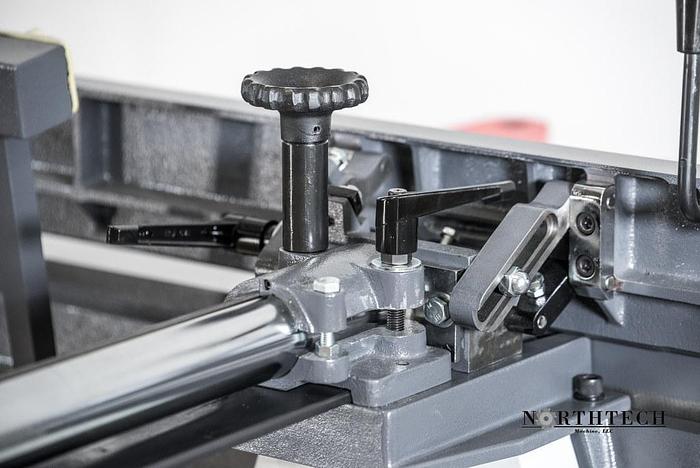

The NT-1696 Jointer has a 16″ working width and 8ft table for a smooth and flat surface making them ideal for gluing surface prep. Cast iron bases and rigid tables are designed for industrial use and will provide decades of use. Helical cutter heads employ a 30x12x2.5mm insert that can be rotated 1 time for a new cutting surface. The parallelogram design ensures smooth movement of the infeed bed for varying stock removals.
Specifications
| Manufacturer | Northtech |
| Model | NT-1696HC |
| Condition | New |
| Stock Number | NT-1696HC |
| BOTTOM HEAD HP | 7.5 HP |
| VOLTAGE, FREQUENCY | 230/460 Volt 60HZ |
| PHASE | 3 Phase |
| AMP REQUIREMENT | 11 / 22 Amps |
| APPROVED ELECTRICAL PARTS | CE Approved Components |
| DUAL VOLTAGE MOTORS | 230/460 Volt |
| CONTROL VOLTAGE | Line Voltage 230/460 |
| PASS-LINE | 30-3/4 - 31-1/2'' |
| MIN. WORKING LENGTH | 12'' |
| MIN. WORKING WIDTH | 3'' |
| MAX. WORKING WIDTH | 16'' |
| CUTTER HEAD RPM | 5000 RPM |
| HEAD TYPE | Spiral Helical Cutter Head |
| CUTTER HEAD DIMENSIONS | 4'' x 16'' |
| CUTTER HEAD MATERIAL | Alloy Steel |
| ROWS OF CUTTERS | 6 Rows |
| NO. OF INSERTS | 57 Inserts |
| INSERT SIZE | 30 x 12 x 2.5 MM |
| DUST COLLECTION REQUIREMENT | 981 CFM @Point of Extraction |
| DUST PORT SIZE OUTLET | 6'' Port |

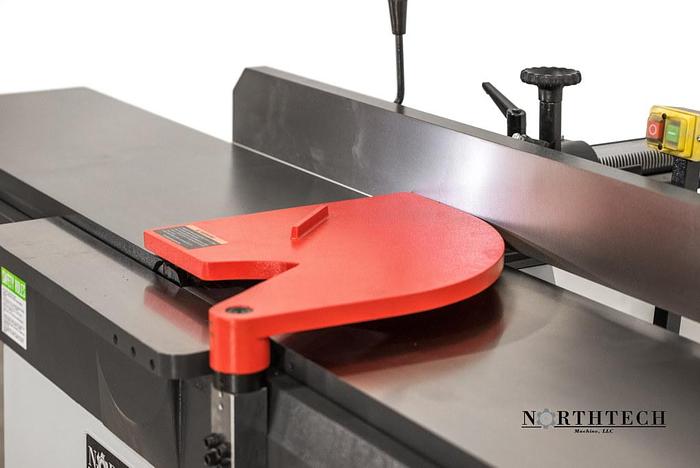

| GUARDING | Swivel Fence |
| FENCE DIMENSIONS | 5-3/8'' x 47'' |
| FRAME CONSTRUCTION | Cast Construction |
| INFEED TABLE LENGTH | 47-1/2'' |
| OUTFEED TABLE LENGTH | 47-1/2'' |
| DECIBEL RATING | 73 dB |
| NET WEIGHT | 956 Lbs. |
| GROSS WEIGHT | 1160 Lbs. |
| MACHINE DIMENSIONS | 97'' x 46'' x 44'' |
| PACKAGING DIMENSIONS | 100'' x 30'' x 40'' |
