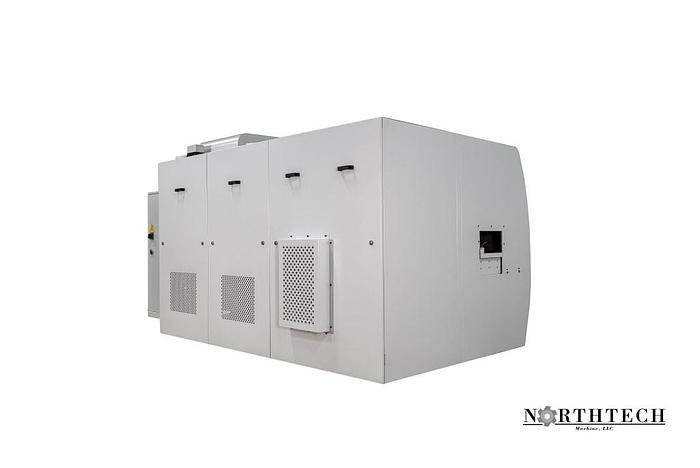

Northtech NT-A4230-H150 MOULDER 4 HEAD

Northtech NT-A4230-H150 MOULDER 4 HEAD

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

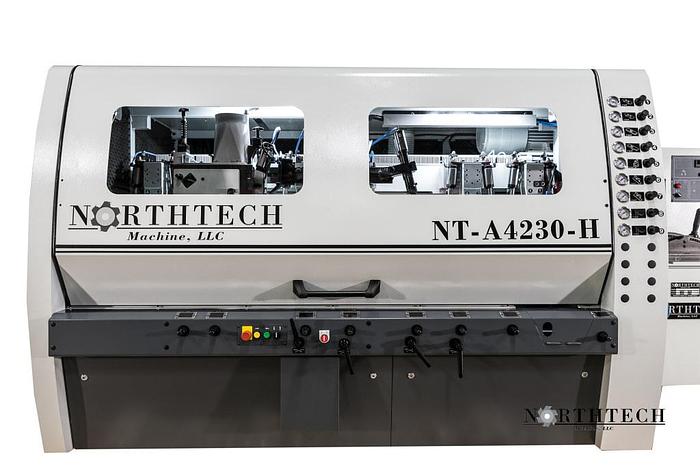

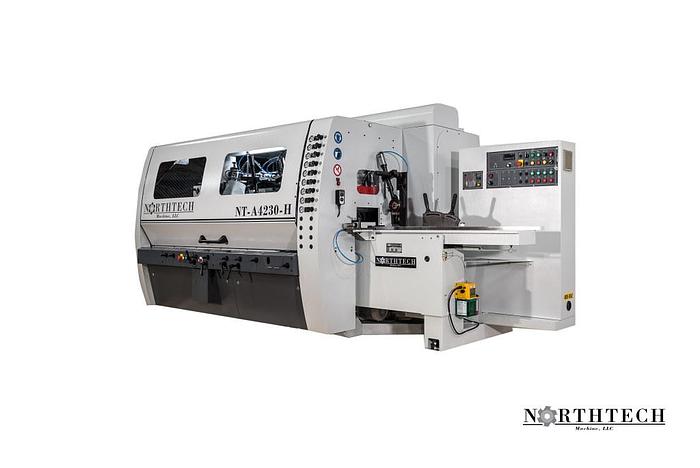

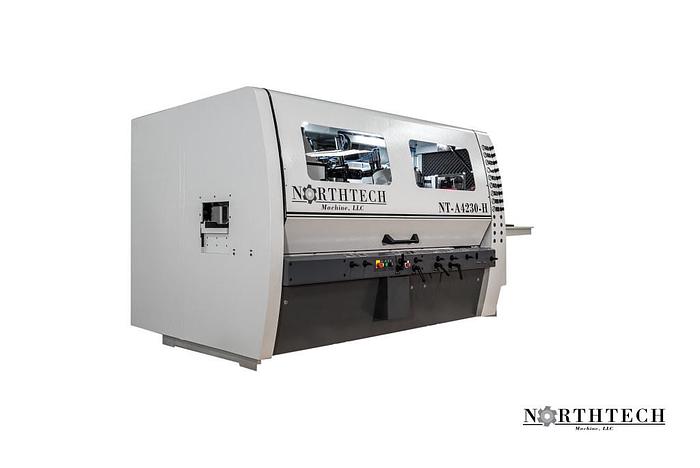

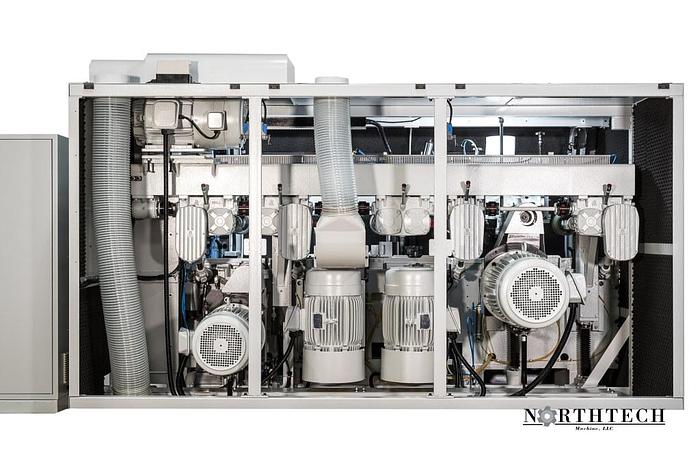

NT-A4230-H150 MOULDER 4 HEAD The NT A4230-H is a 4 head high speed moulder. The single head per side configuration can be equipped with hydro locking helical heads and high HP making it a better option to outdated 4 sided planers. The 6″ x 9″ capacity moulder with a 4 head single side configuration provides a small footprint and high dimensional stock capacity. Features such as chrome table, Siko mechanical readouts, extra bed rollers, oversized infeed, automatic bed oiler and independent spindle motors powering 50mm(2″) 6000RPM Spindles are standard. With optional larger capacities, oil cooled infeeds and speeds up to 300M/MIN (960FPM), the A series is a premium industrial grade moulder able to accommodate any customers moulding needs.

Specifications

ManufacturerNorthtech
ModelNT-A4230-H150
ConditionNew
MACHINE HP101 HP
REVERSIBLE MOTORFeed
VOLTAGE, FREQUENCY230/460 Volt 60HZ
PHASE3 Phase
AMP REQUIREMENT238/119 Amps
CONFIGURATIONB - R - L - T
1ST SPINDLE25 HP Bottom Horizontal
2nd SPINDLE15 HP Right Vertical
3rd SPINDLE15 HP Left Vertical
4th SPINDLE30 HP Top Horizontal
SPINDLE DIAMETER1-13/16''
SPINDLE RPM6000 RPM
UNDER THE NUT CAPACITY10'' Vertical 7'' Horizontal
FEED HP15 HP
FEED SYSTEMKnurled Feed Rollers / Polyurethane Rollers
DRIVE SYSTEMGear Box / Carden Shaft
FEED SPEED RANGE20-200 FPM
VARIABLE FEED SPEEDInverter Controlled
REVERSIBLE FEEDYes
ELEVATION HP1 HP
ELEVATION STYLERaise Lower Switch
ELEVATION SYSTEM(3) Jack Screws / Guides
TOTAL MACHINE HP101 HP
APPROVED ELECTRICAL PARTSCE Approved Components
DUAL VOLTAGE MOTORS230/460 Volt
CONTROL VOLTAGE110 Volt
ASSISTED STARTWye Delta Heads 1-4
PASS-LINE36-3/4''
CUTTING ENVELOPE6'' x 9''
MIN. WORKING LENGTH27''
MIN. WORKING WIDTH7/16''
MAX. WORKING WIDTH9''
MIN. WORKING THICKNESS7/16''
MAX. WORKING THICKNESS6''
NO. OF INSERTS28 Vertical 63 Horizontal
INSERT SIZE30 x 12 x 2.5 MM
DUST COLLECTION REQUIREMENT1336 CFM @Points of Extraction
DUST PORT SIZE OUTLET(4) 7''
DIGITAL DISPLAYFeed Speed
POWERED ROLLERS(9) Top (4) Bed Rollers
IDLE ROLLERS(4) Aux. Top (4) Aux. Side Rollers
PRESSURE SHOES(2) 4th Head
HOLD DOWN STYLEPneumatic
TOTAL CLAMPS3/8'' Line @ 90 PSI
EMERGENCY STOP(2)
GUARDINGFull Enclosure
OPERATION STYLEAuto / Manual
GREASE MANIFOLD(15) Fittings
OILERBed Lubricant
FENCE TYPEAdjustable
FENCE DIMENSIONS1'' x 91''
FRAME CONSTRUCTIONCast / Steel
WORKTABLE DIMENSIONS10-3/4'' x 158-1/2''
TABLE CONSTRUCTION MATERIALCast Chromed Finish
INFEED TABLE LENGTH57-1/2''
MEASURING METHODSiko Counters
DECIBEL RATING75 dB
NET WEIGHT12900 Lbs.
GROSS WEIGHT13600 Lbs.
MACHINE DIMENSIONS161'' x 83'' x 80''
PACKAGING DIMENSIONS163'' x 90'' x 84''
