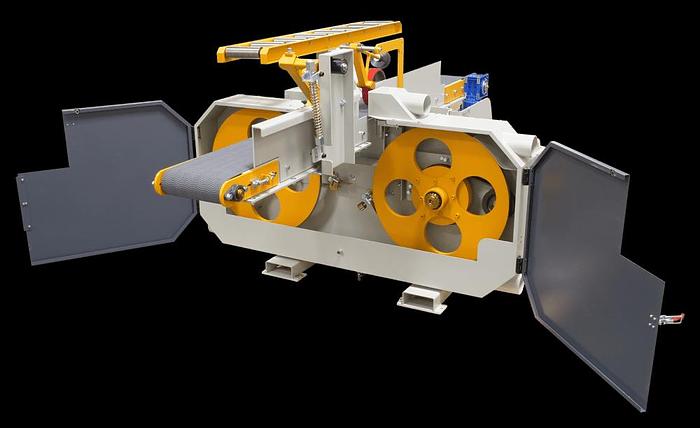

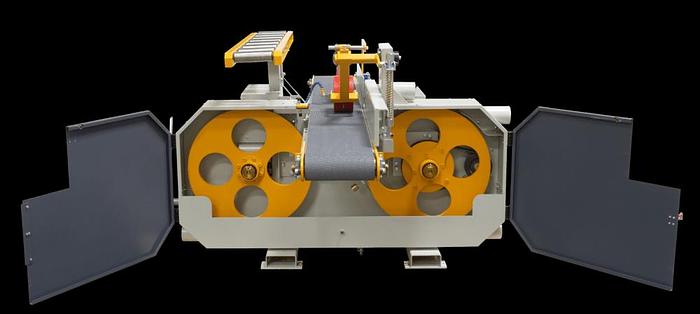

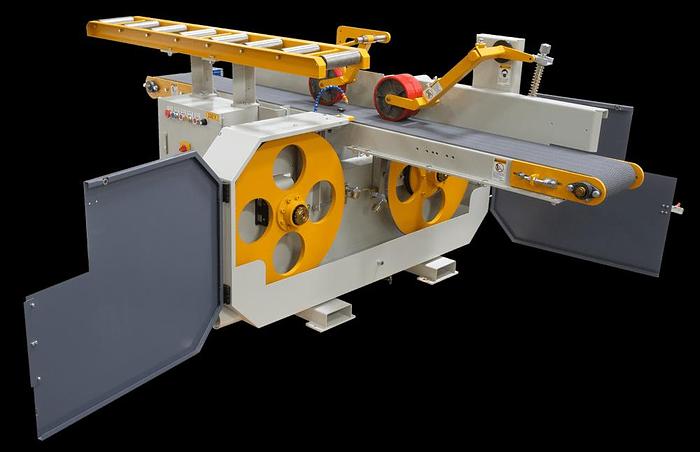

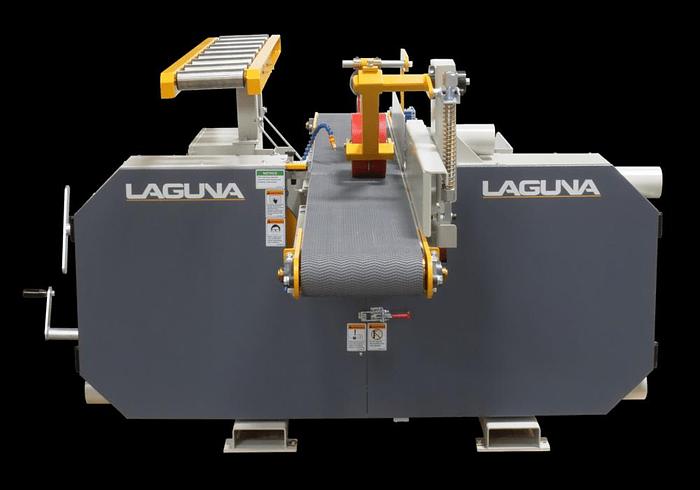

Laguna HRS-28 Horizontal Band Resaw

Laguna HRS-28 Horizontal Band Resaw

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

The HRS-28 Horizontal Band Resaw was designed to be Laguna tough to withstand any jobs thrown at it. We designed this bandsaw to be fully adjustable to accommodate a wider variety of stock so that users can get the most bang for their buck. See the specs below and take the first step toward a truly quality cut.


Features:

Manual Blade Tension Control.

The blade tension is adjusted by turning the tensioning handle.

Large handle design facilitates blade tension adjustment.

Easy to Elevate Saw Wheels

Manual elevation of saw wheels is transmitted through a worm gear mechanism for easy operation.

Both elevation screws are linked by a shaft to ensure synchronized elevation of saw wheels


Additional Details

Max. Work Piece Size (W x H): 11.8″ x 9.8″

Distance From Blade To Conveyor Table: 4-125mm

Conveyor Belt Size: 11.2″ x 215.4″

In-Feed Speed: 5-25M/min

Blade Size: 168″ x 1″

Main Motor: 20HP

Electric Conveyor: 2HP Motor 30 – 1 Gearbox + 2HP Inverter

Manual Return Conveyor

Net Weight: 1982 lbs

Minimum Working Length: 15.7″

Pressure Roller System For Accurate Cutting

Tolerance: ±0.1mm

Shipping Dimensions (L x W x H): 120″ x 88.5″ x 87″

Specifications

ManufacturerLaguna
ModelHRS-28
ConditionNew
Stock NumberMBANDHRS-28
Max. Work Piece Size (W x H)11.8″ x 9.8″
Distance From Blade To Conveyor Table4-125mm
Electric Conveyor2HP Motor 30 – 1 Gearbox + 2HP Inverter
Manual Return ConveyorYes
Pressure Roller System For Accurate CuttingYes
Shipping Dimensions (L x W x H)120″ x 88.5″ x 87″
Conveyor Belt Size11.2″ x 215.4″
In-Feed Speed5-25M/min
Net Weight1982 lbs
Tolerance±0.1mm
Minimum Working Length15.7″
Blade Size168″ x 1″
Main Motor20HP
