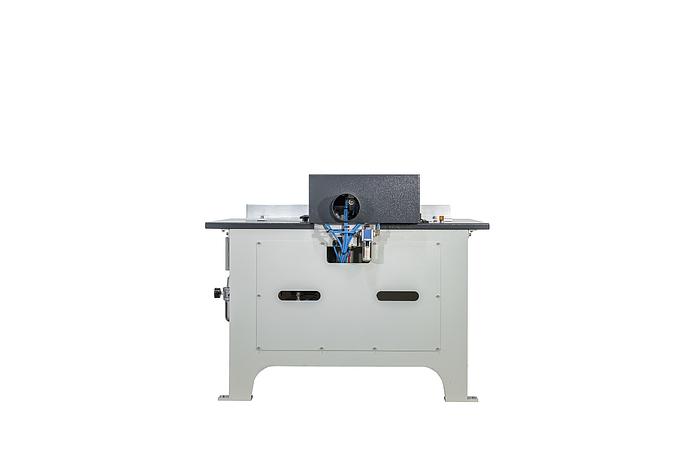

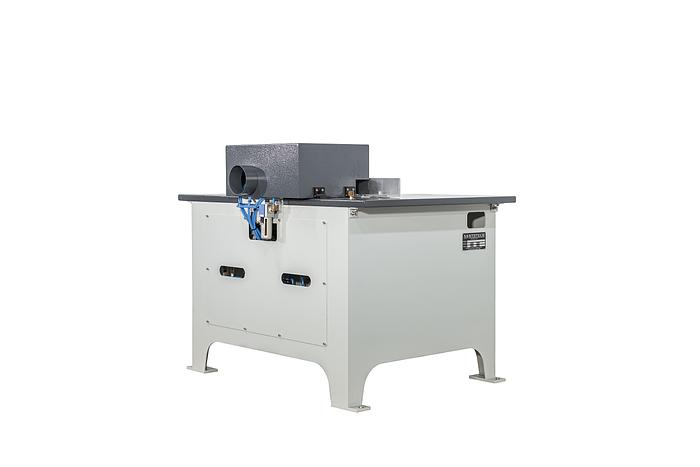

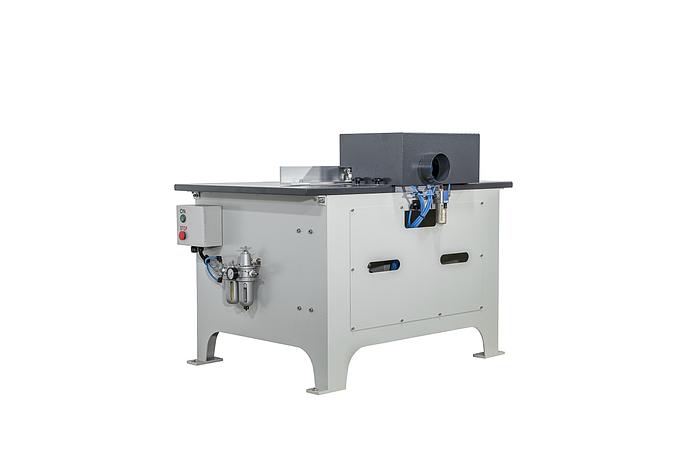

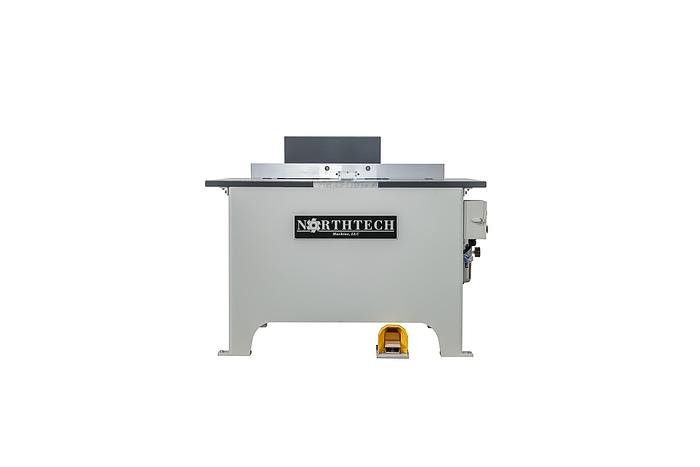

Northtech NT-DBN26 Drawer Box Notcher

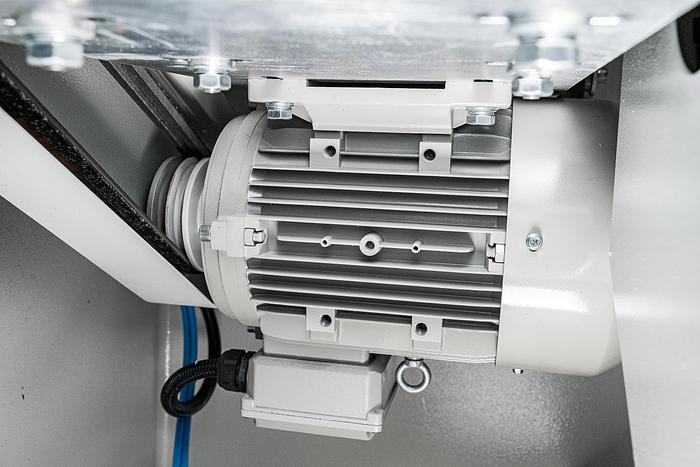

• Motor 5HP 3PH 230V or 460V 60HZ

• Max notch dimensions: 57mm (2 1⁄4”) x 0.5” H

• Capable of notching over 200 boxes/hr

• Designed to notch and drill the underside of a drawer

box for mounting undermount drawer slides

• Cutter diameter: 10”

• Drill diameter: 1⁄4”

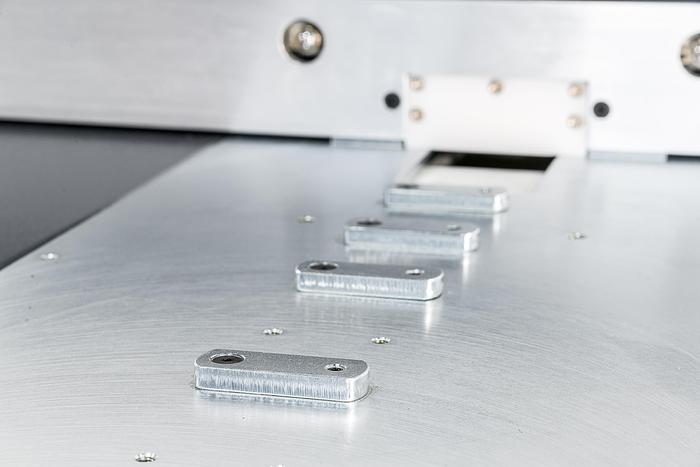

• Table size: 50” x 23”

• Passline: 33”

• (1) Dust port 4” requiring 436CFM at point of extraction

• Compressed air required 90 – 100 PSI

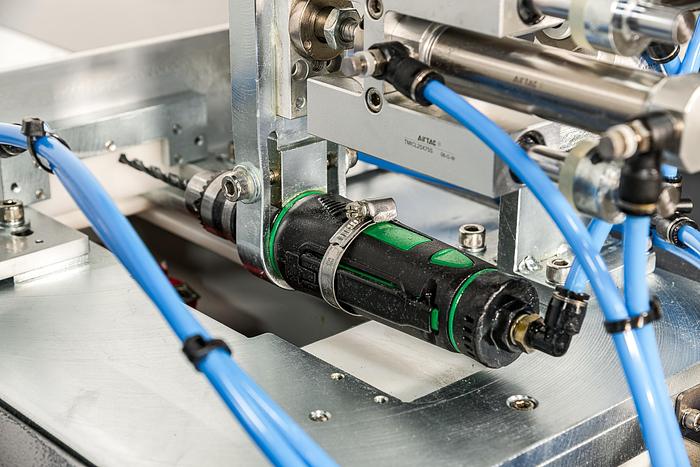

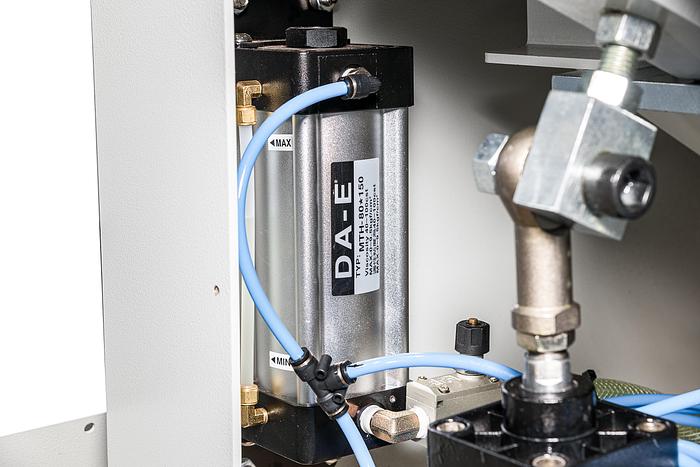

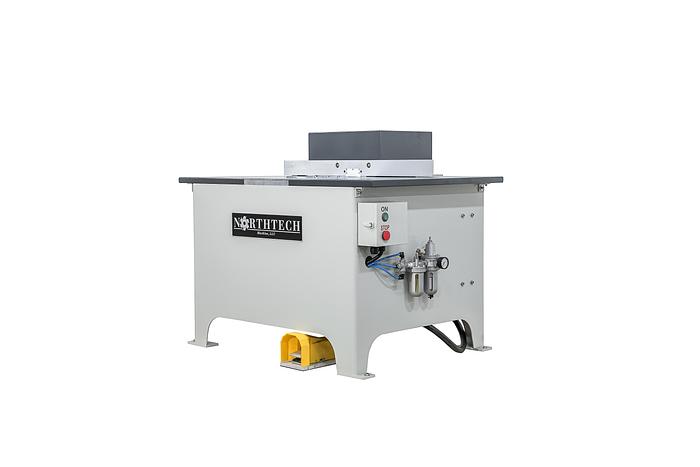

• Pneumatic cutter & drill stroke by foot pedal operation simultaneously for fast cycles

• Cutter stroke and drill speed are adjustable

• Machine will not cycle unless a drawer is up against the switch for safe operation

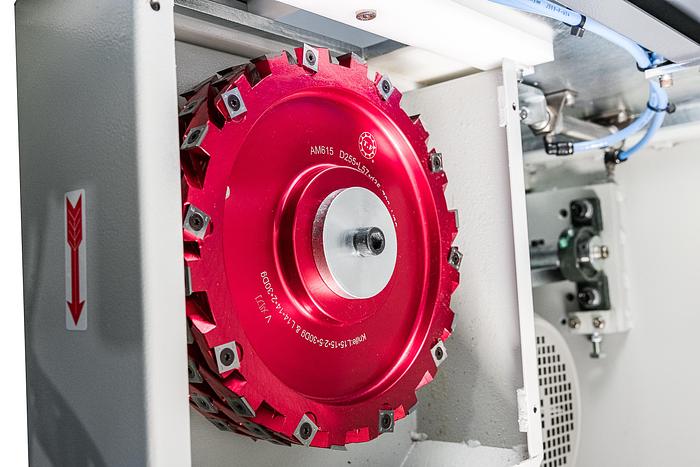

• Insert knife cutterhead with solid carbide inserts for optimum fi nish results and long tool life

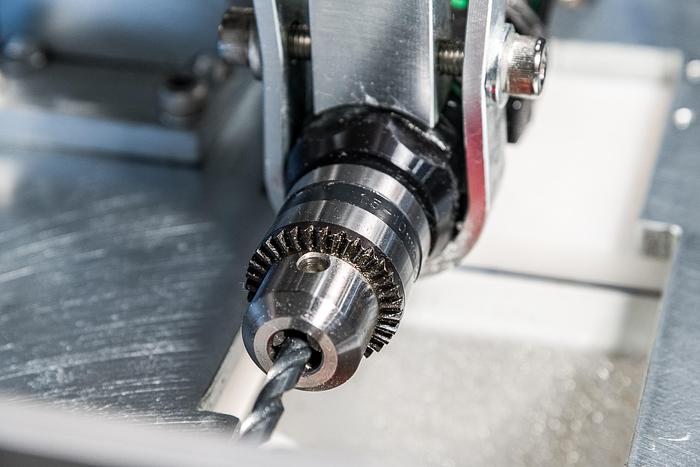

• Comes with 2-1/4” cutterhead with inserts and 1⁄4” (6.3mm) carbide drill bit

• Machine dimensions (LxWxH): 48” x 38” x 40”

• Machine weight: 650lbs

• Operation and Parts Manual included

• Warranty is one year parts

• All machines are tested stateside prior to shipment providing trouble free start up.
