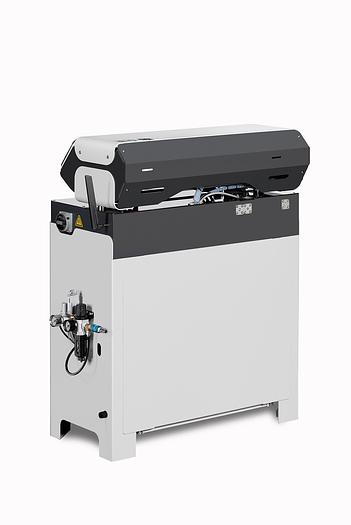

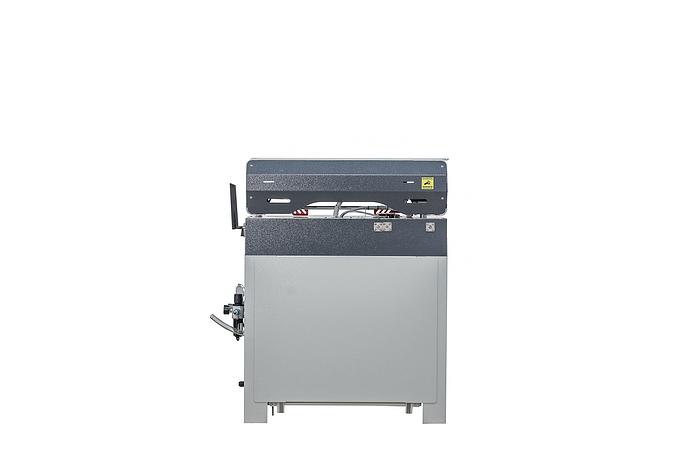

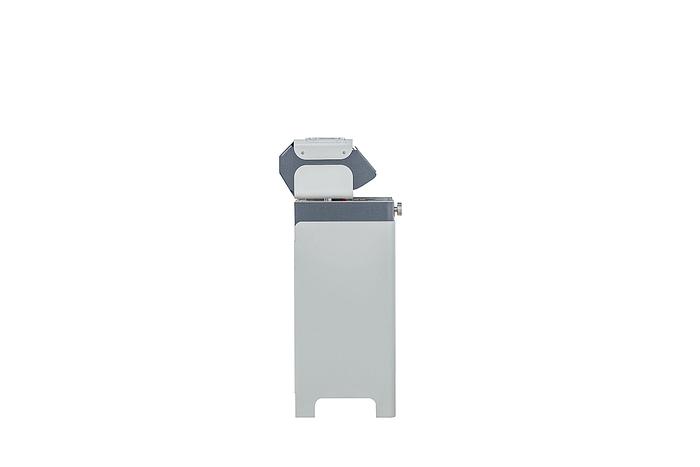

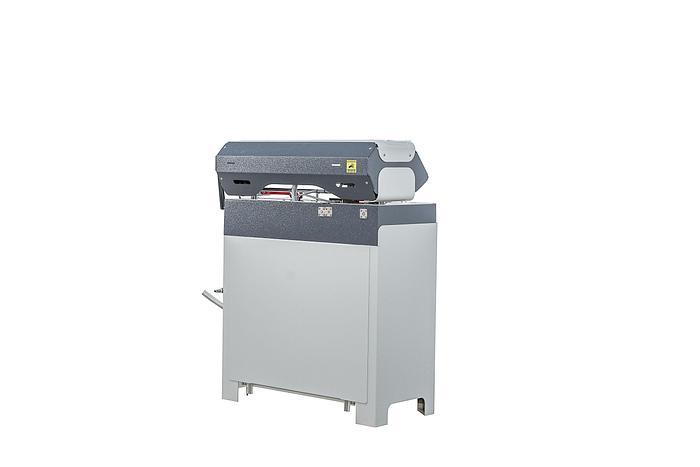

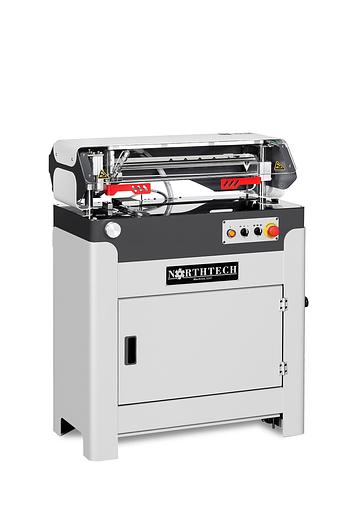

Northtech NT-iGlue450DTG Automatic Dovetail Gluer

Northtech NT-iGlue450DTG Automatic Dovetail Gluer

Contact us for price

Location:Dundee, NY

orCall +1 (607) 678-4374

Description

NT-iGlue450 Dovetail Gluer Automatic 18″

The Northtech iGlue is the revolutionary new gluer that quickly and accurately applies glue to dovetail and similar joinery. You literally just stick your part in and the iGlue scans and applies glue all in one pass and all in seconds with no required setups, no mess, and no wasted glue. This machine has auto thickness compensation and is able to apply glue to either the mortise or tenon at the rate of over 100 dovetails/minute. The iGlue even comes with an automatic water bath sleep mode that keeps the glue tip fresh and ready to go. This machine works with standard PVA white glue and can be used for any material. The Northtech iGlue and iDovetail are patent pending and the only new innovations in the dovetail market.

Specifications

ManufacturerNorthtech
ModelNT-iGlue450DTG
ConditionNew
Stock NumberNT-iGlue450DTG
MACHINE HP.2 HP
VOLTAGE, FREQUENCY230/460 Volt 60Hz
PHASE1 Phase 220 3 Phase 230/460
AMP REQUIREMENT.15/.3
FEED SYSTEMManual Feed
DRIVE SYSTEMServo Motor
FEED SPEED RANGE3-17 CM Per Second
VARIABLE FEED SPEEDServo Controlled
TOTAL MACHINE HP.2 HP
APPROVED ELECTRICAL PARTSCE Approved Parts
CONTROL VOLTAGE24 Volt
PROGRAMABLEYes
TOUCH SCREENI Phone or I Pad Controlled
PASS-LINE34-1/4''
MIN. WORKING LENGTH3''
MAX. WORKING WIDTH18-3/4''
MIN. WORKING THICKNESS0.24''
MAX. WORKING THICKNESS2''

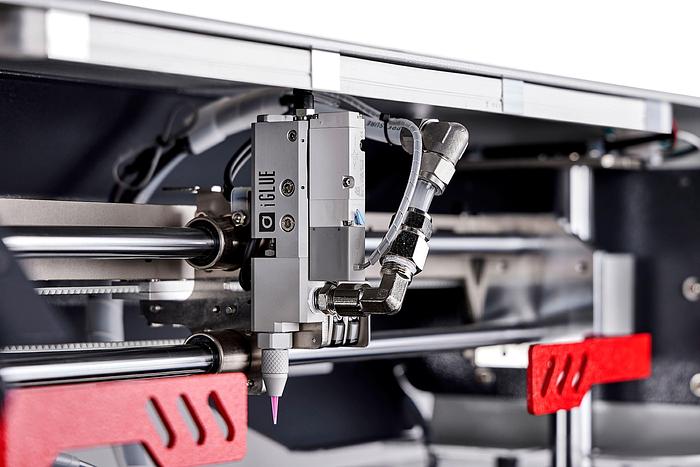

HEAD TYPEGlue Cone
CLEANING SYSTEMWater Bath Self Purge
HOLD DOWN STYLEPneumatic Depth Gauge
TOTAL CLAMPS(2) Pneumatic Depth Gauges

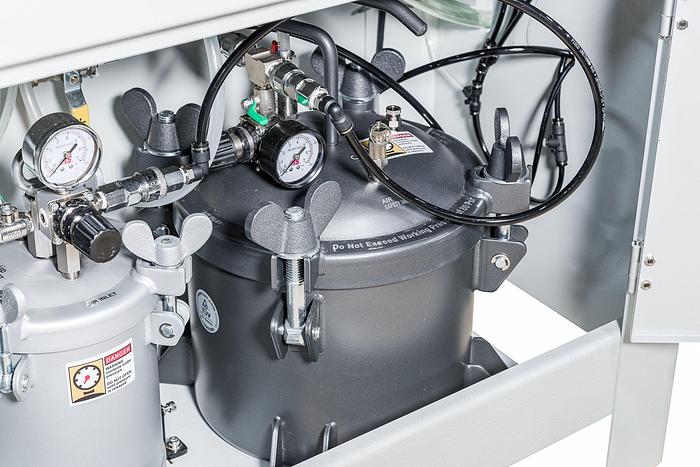

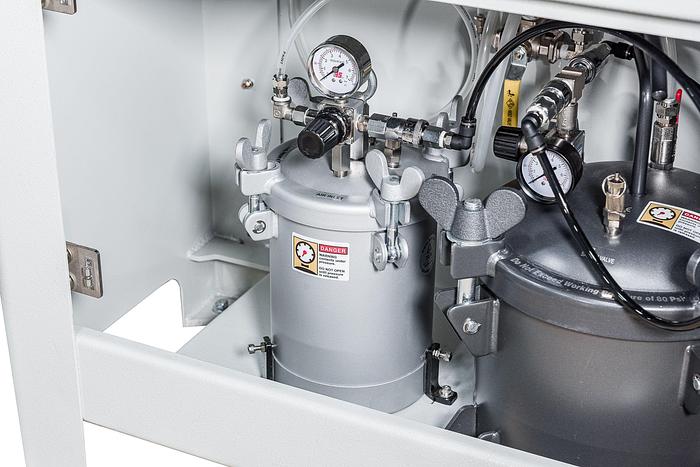

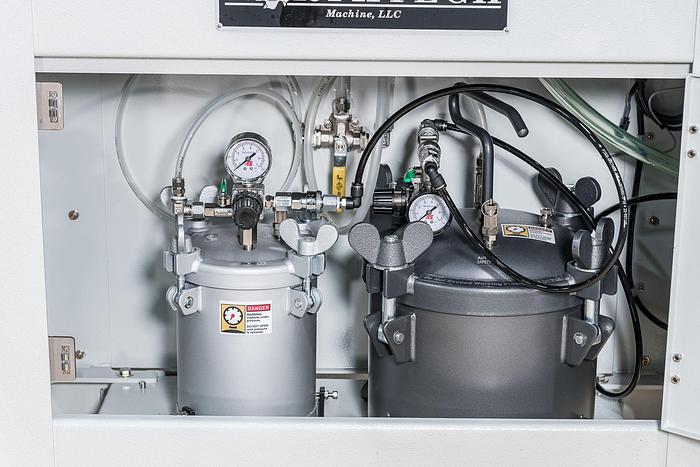

RESERVOIR CAPACITY 1.32 Gallons Water 2.6 Gallons Glue

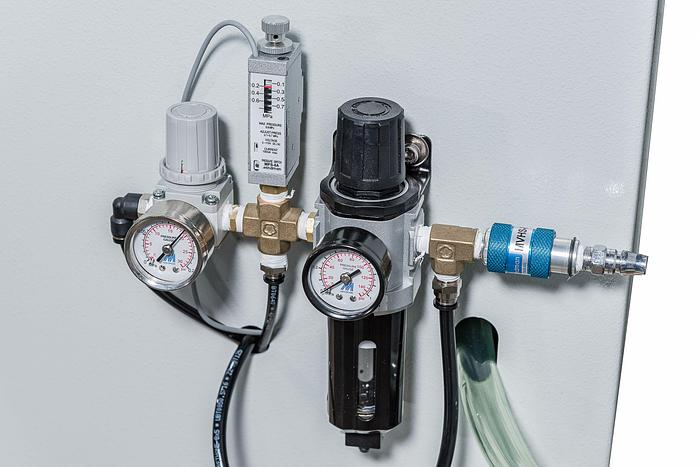

FLR INCLUDEDFilter, Lubricator, Regulator
CFM AIR SUPPLY REQUIREMENT3/8'' Line @ 90 PSI

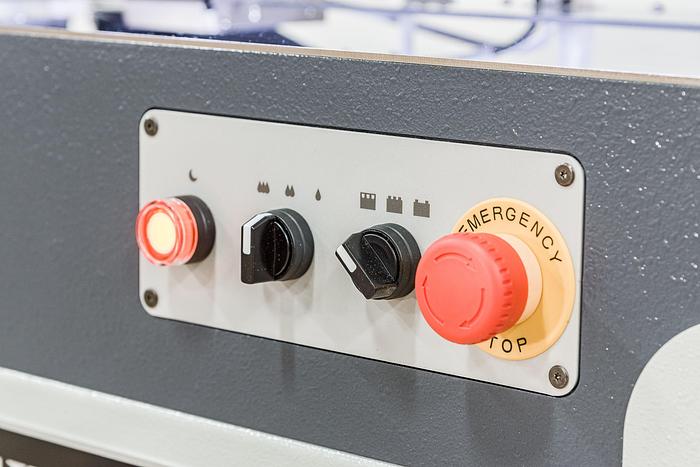

EMERGENCY STOPFront E- Stop
GUARDINGEnclosure
OPERATION STYLEManual Load
FENCE TYPEAdjustable for Depth
FENCE DIMENSIONS3/4'' x 3''
MICRO FENCEMicro Adjustable with Siko Counter
FRAME CONSTRUCTIONSteel Construction
TABLE CONSTRUCTION MATERIALChrome Plated Steel
CHROME BED PLATEYes
AUTO CYCLEOnce Board Hits Trigger Fence
NET WEIGHT300 Lbs.
GROSS WEIGHT412 Lbs.
MACHINE DIMENSIONS38'' x 20'' x 44''
PACKAGING DIMENSIONS 42'' x 21'' x 49''
