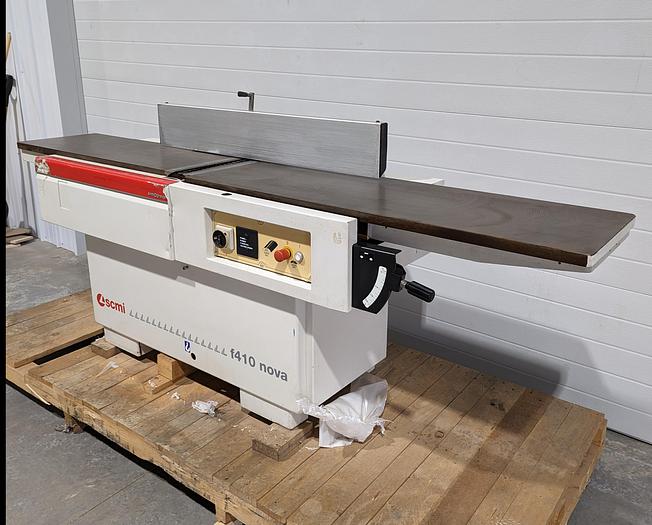

2012 SCMI F410 Nova Spiral Head 16'' Jointer

2012 SCMI F410 Nova Spiral Head 16'' Jointer

Cleaned checked and ready to go.

Comes with an SCMI swing guard

Technical Specifications:

8 HP motor 16-1/8" wide working capacity

102-1/2" long table with ribbed cast iron

5/16" maximum depth of cut

Parallelogram movement of the infeed and outfeed tables

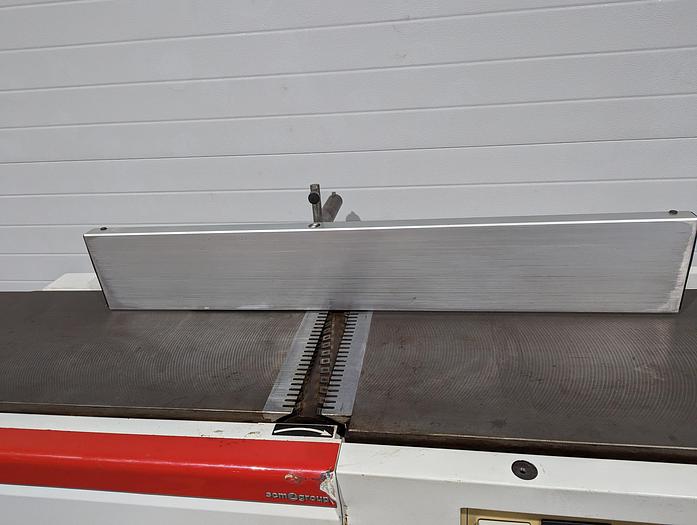

Helical insert cutterhead

Replaceable 4-sided insert knives

4-3/4" diameter cutterhead rotating at 5 000 RPM

57" infeed table length

45-1/2" outfeed table length

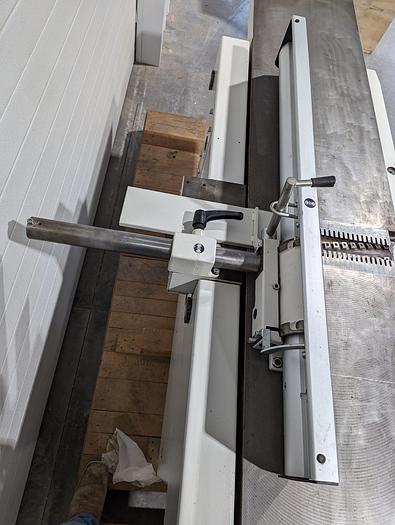

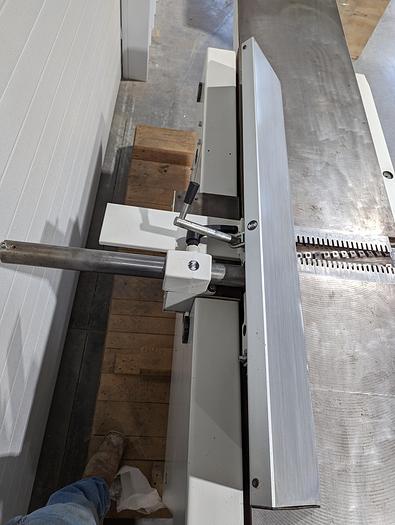

47-1/4" x 7-1/2" aluminum jointer fence

Fence tilts 0 to 45 degrees

Spring type cutterhead guard

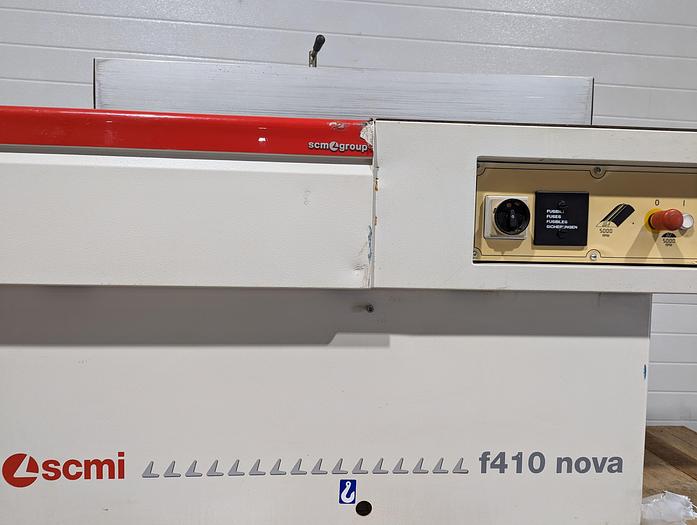

Magnetic starter with overload protection

120 mm diameter dust hood

Dust requirements: 980 CFM

Electrical requirements: 21 amps @ 230V

3-Phase

Machine weight: 1 851 lbs.
